Standard: | TCP/IP |
Sensor: | 1/2.8 " STARVIS™ CMOS |
Matrix size: | 4 Mpx |
Resolution: | 2560 x 1440 - 3.7 Mpx , 1920 x 1080 1080p , 1280 x 960 1.3 Mpx , 1280 x 720 - 720p |
View angle: | 80 ° |
Optical zoom: | ![]() |
Digital zoom: | 16x |
Range of IR illumination: | 100 m |
White light LED illuminator range: | ![]() |
Video output: | ![]() |
Horizontal rotation range: | 0 ° ... 325 ° - Rotation of the head is limited by stops |
Vertical rotation range: | -20 ° ... 100 ° |
RS-485 interface: | ![]() |
Horizontal scan: | ![]() |
Route settings: | ![]() |
Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
Alarm inputs / outputs: | ![]() |
Main stream frame rate: | 25 fps - 4 Mpx |

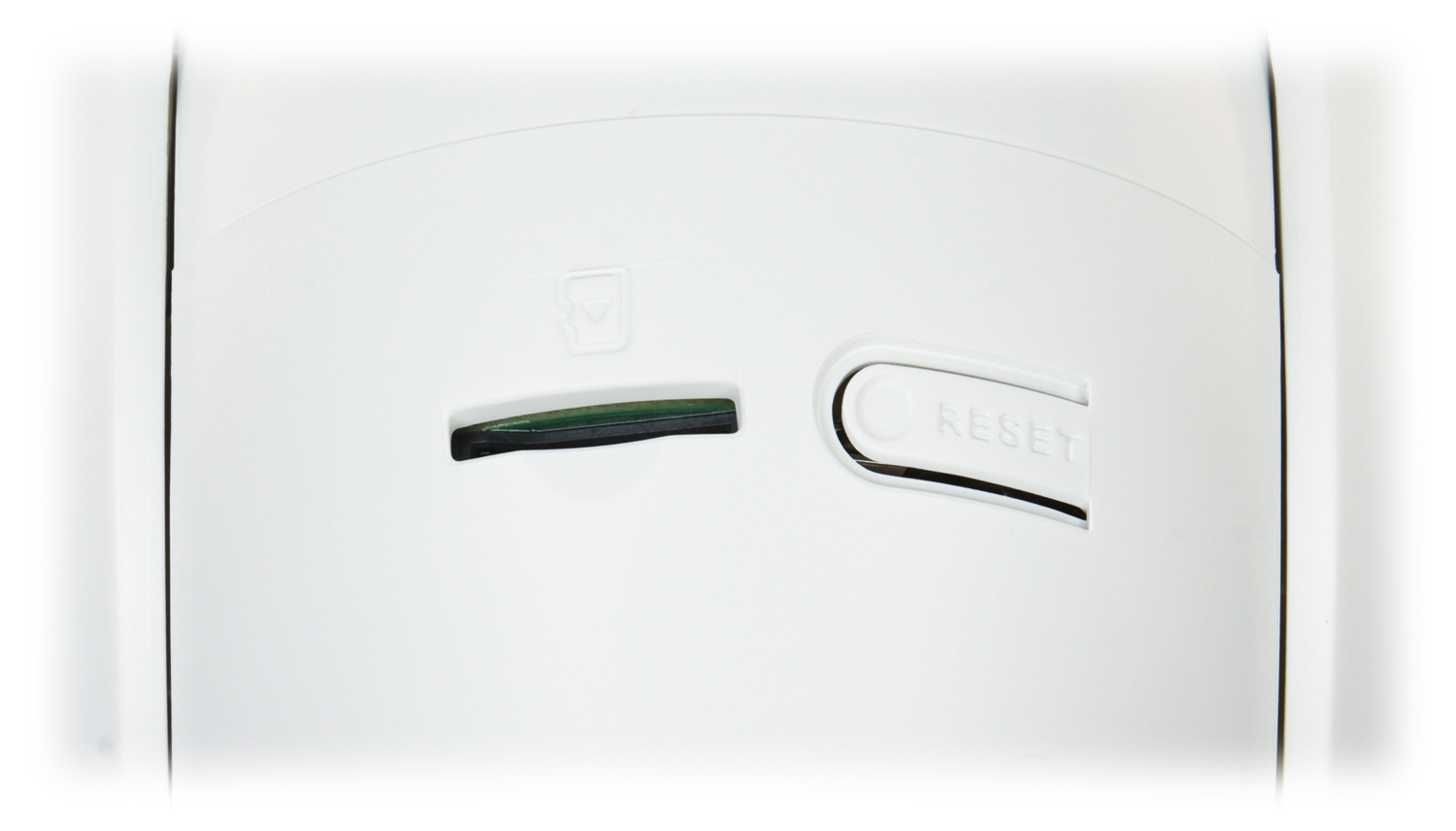

Memory card slot: | Micro SD memory cards up to 512GB support (possible local recording) |
Network interface: | 10/100 Base-T (RJ-45) |
WEB Server: | ![]() |
ONVIF: | ![]() |
Audio: | |
Mobile phones support: | 37777 port |
Default admin user / password: | admin / - The administrator password should be set at the first start |
Default IP address: | 192.168.1.108 |
Web browser access ports: | ![]() |
PC client access ports: | 37777 |
Mobile client access ports: | 37777 |
RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
Intelligent Image Analysis: | People detection, Intelligent Object Tracking |
Main features: | |
Power supply: | 5 V DC / 1 A - from USB-C port |
Power consumption: | ≤ 5 W |
Housing: | Speed Dome, Plastic |
Color: | White |
"Index of Protection": | ![]() |
Mechanical protection class: | ![]() |
Operation temp: | -10 °C ... 40 °C |
Weight: | 0.25 kg |
Dimensions: | Ø 96 x 130 mm |
Supported languages: | Polish, English, Czech, French, Spanish, Dutch, Indonesian (Bahasa), German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Vietnamese, Italian |
Manufacturer / Brand: | DAHUA |
Guarantee: | 5 years |
