Sensor: 1/1.8 " STARVIS™ CMOS ; Matrix size: 8.3 Mpx ; Resolution: 3840 x 2160, 4K UHD, 2560 x 1440 - 4 Mpx, 1920 x 1080 - 1080p ; View angle: 63.9 ° ... 2.0 ° ; Optical zoom: x 40 ; Range of IR illumination: 500 m ; Rotation speed (manual control): 0.1 °/s ... 240 °/s (horizontal) 0.1 °/s ... 100 °/s (vertical) ; Image compression method: H.265+ ; Alarm inputs / outputs: 7 / 2 ; Audio: 1 Audio input ; Memory card slot: Micro SD memory cards up to 512GB support (possible local recording) ; Power supply: Hi-PoE, 36 V DC ;
| Standard: | TCP/IP |
| Sensor: | 1/1.8 " STARVIS™ CMOS |
| Matrix size: | 8.3 Mpx |
| Resolution: | 3840 x 2160 - 8.3 Mpx, 4K UHD , 2560 x 1440 - 4 Mpx , 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx , 1280 x 720 - 720p |
| Scanning system: | Progressive |
| Lens: | 5.6 ... 223 mm |
| View angle: | 63.9 ° ... 2.0 ° (manufacturer data) |
| Optical zoom: | x 40 |
| Digital zoom: | x 16 |

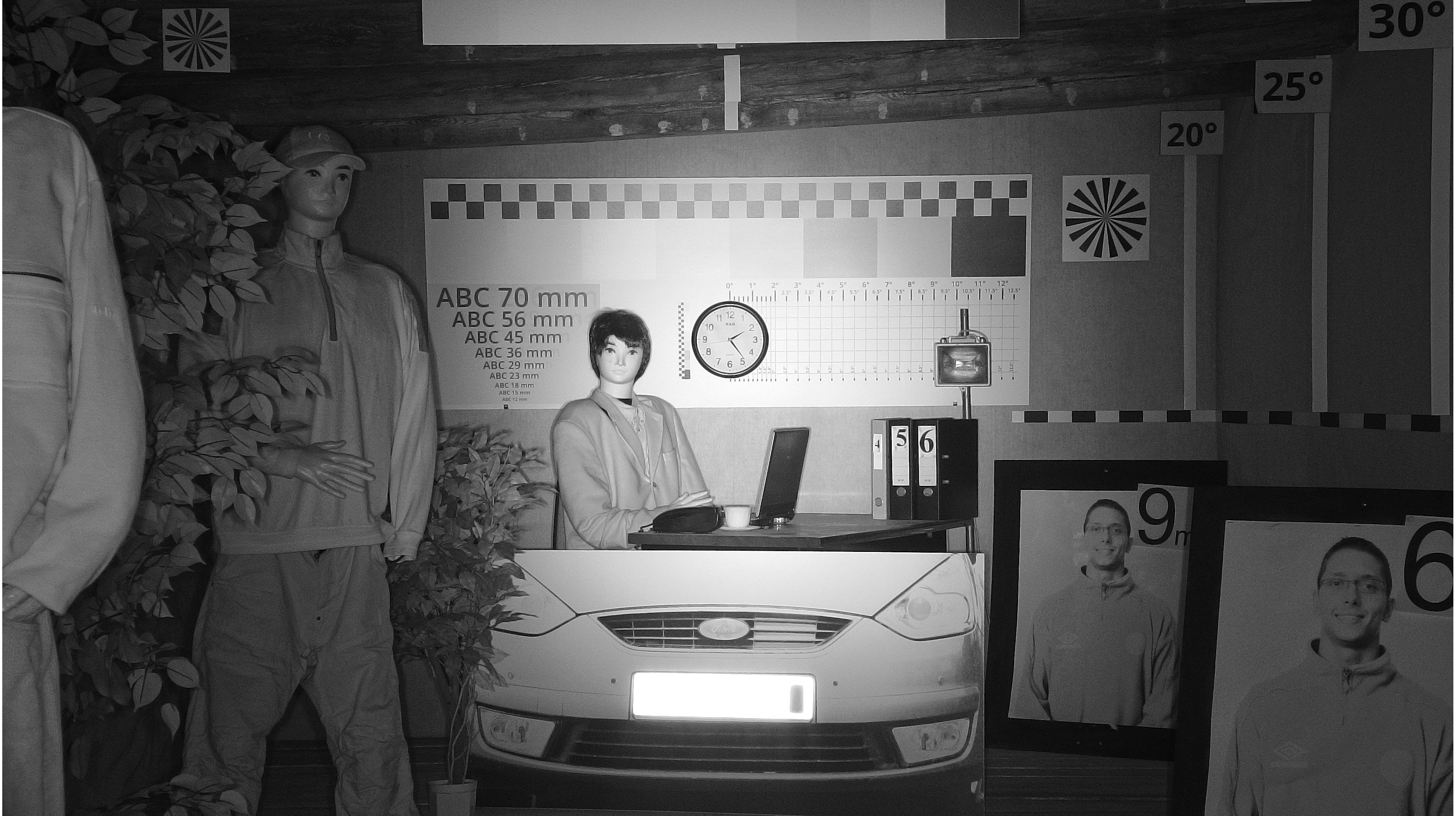

| Range of IR illumination: | 500 m |
| S/N ratio: | ≥ 55 dB (AGC off) |
| Video output: | 1 Vpp / 75 Ω |
| Preset rotation speed: | |
| Rotation speed (manual control): | |
| Horizontal rotation range: | 360 ° continuous |
| Vertical rotation range: | -30 ° ... 90 ° |
| RS-485 interface: |  |
| Protocols: | Pelco-D, Pelco-P, DH-SD Auto detection |
| Number of presets: | 300 |
| Horizontal scan: | |
| Route settings: | 8 |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Bitrate: | |
| Alarm inputs / outputs: | 7 / 2 |
| Audio: | |
| Main stream frame rate: | 1 ... 25 fps - 8 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, HTTP, HTTPS, IEEE 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, RTCP, RTMP |
| WEB Server: | Built-in, NVR compliance |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Memory card slot: | Micro SD memory cards up to 512GB support (possible local recording) |
| Main features: | |
| Power supply: | |
| Power consumption: | |
| Housing: | Speed Dome Metal |
| Color: | White |
| Vandal-proof: |  |
| "Index of Protection": | IP67 |
| Operation temp: | -40 °C ... 70 °C |
| Weight: | 10 kg (without bracket) |

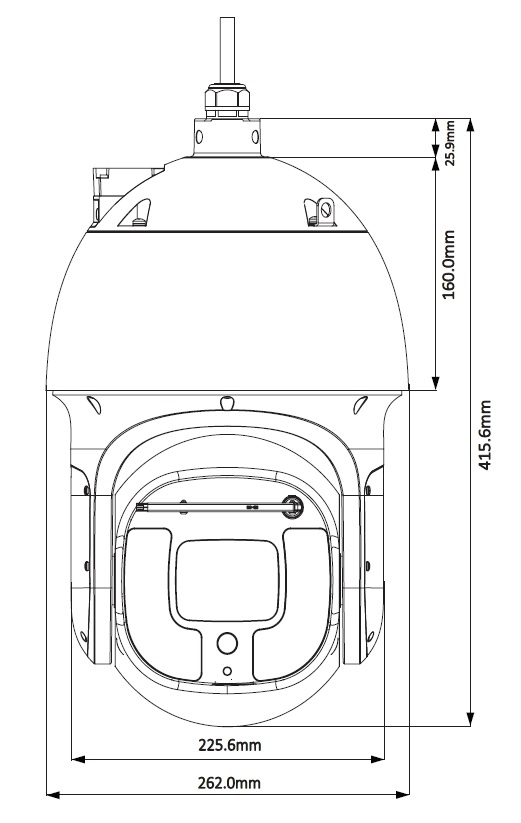

| Dimensions: | Ø 262 x 416 mm (without bracket) |
| Supported languages: | English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 5 years |
Brand:
Dahua
