Sensor: 1/2.8 " SONY Starvis™ Back-illuminated CMOS ; Matrix size: 2.1 Mpx ; Resolution: 1920 x 1080 - 1080p ; View angle: 70 ° ... 1.8 ° ; Optical zoom: x 45 ; Range of IR illumination: 250 m ; Rotation speed (manual control): 0.1 °/s ... 200 °/s (horizontal) 0.1 °/s ... 120 °/s (vertical) ; Image compression method: H.265+ ; Alarm inputs / outputs: 7 / 2 ; Audio: External microphone input ; Memory card slot: Micro SD memory cards up to 256GB support (possible local recording) ; Main features: Intelligent Object Tracking ;
| Standard: | TCP/IP |
| Sensor: | 1/2.8 " SONY Starvis™ Back-illuminated CMOS |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 - 1080p 1280 x 960 - 1.3 Mpx 1280 x 720 - 720p 704 x 576 - D1 |
| Scanning system: | Progressive |
| Lens: | 3.95 ... 177.7 mm |
| View angle: | |
| Optical zoom: | x 45 |
| Digital zoom: | x 16 |
| Range of IR illumination: | 250 m |
| S/N ratio: | > 55 dB (AGC off) |
| Video output: | 1 Vpp / 75 Ω |
| Preset rotation speed: | max. 300 °/s (horizontal) max. 200 °/s (vertical) |
| Rotation speed (manual control): | 0.1 °/s ... 200 °/s (horizontal) 0.1 °/s ... 120 °/s (vertical) |
| Horizontal rotation range: | 360 ° continuous |
| Vertical rotation range: | -20 ° ... 90 ° |
| RS-485 interface: |  |
| Protocols: | Pelco-D, Pelco-P, DH-SD Auto detection |
| Number of presets: | 300 |
| Horizontal scan: | |
| Route settings: | 8 |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Bitrate: | 448 ... 8192 kbps |

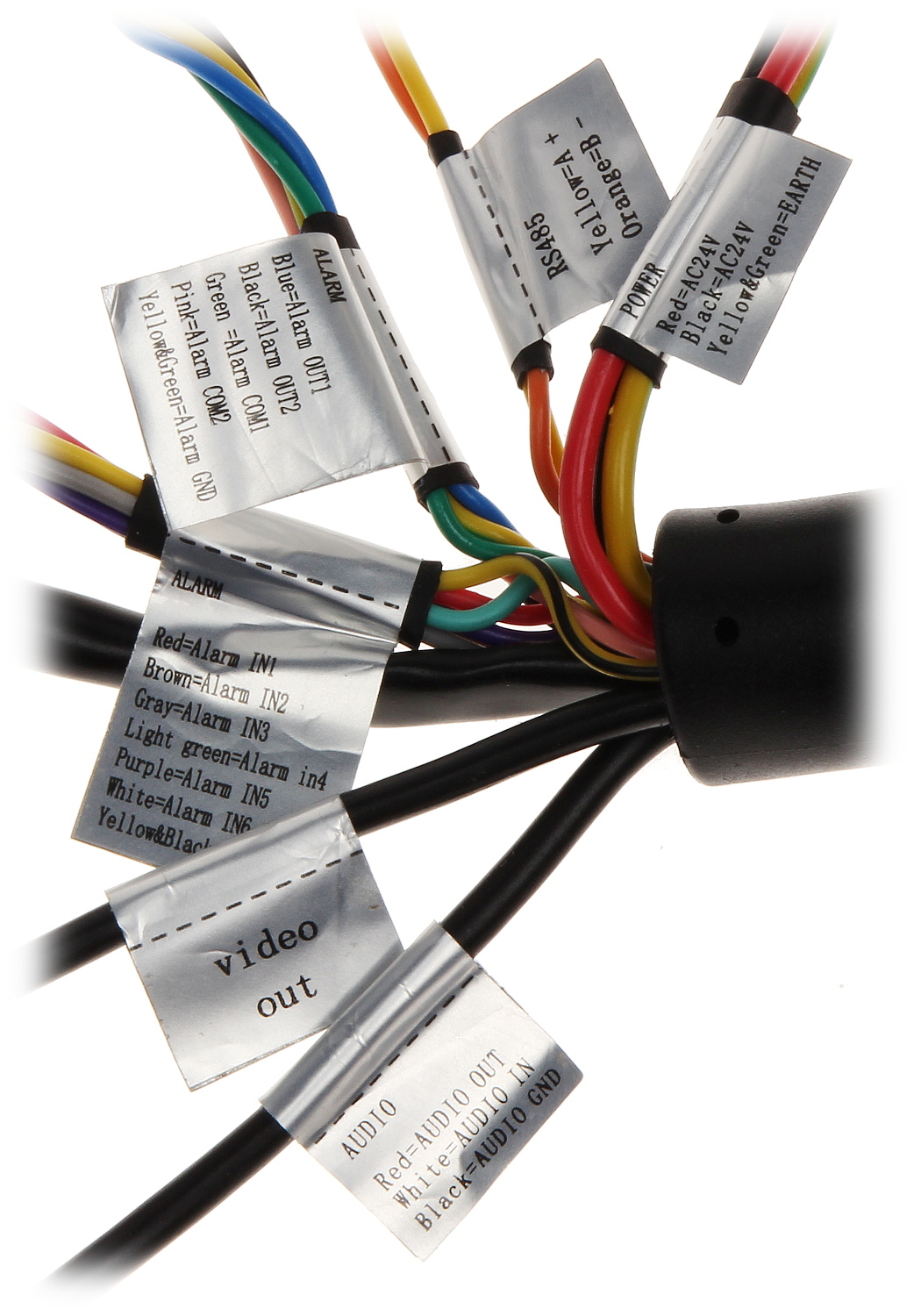

| Alarm inputs / outputs: | 7 / 2 |
| Audio: | |
| Main stream frame rate: | 1 ... 50 fps - 1080p |

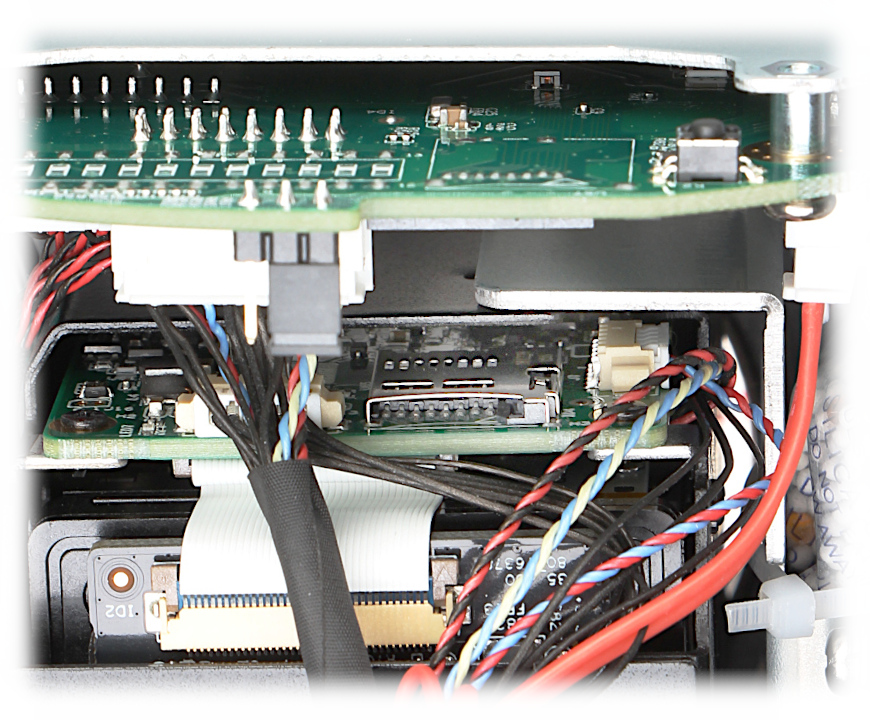

| Memory card slot: | Micro SD memory cards up to 256GB support (possible local recording) |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, IEEE 802.1x |
| WEB Server: | Built-in, NVR compliance |
| Max. number of on-line users: | 20 |
| ONVIF: | 16.12 |
| Mobile phones support: | 37777 port |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / admin |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Main features: | |
| Power supply: | |
| Power consumption: | ≤ 25 W |

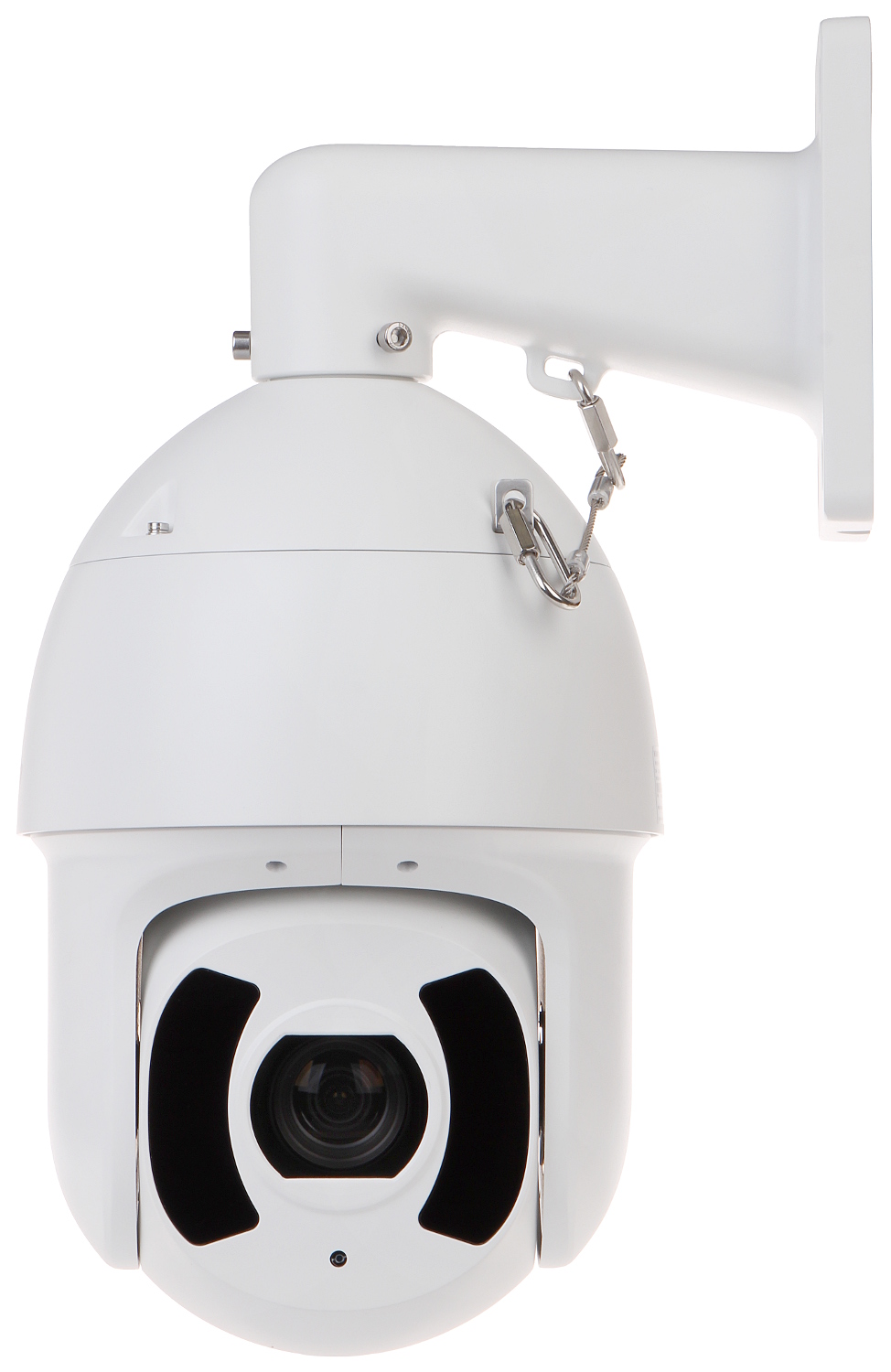

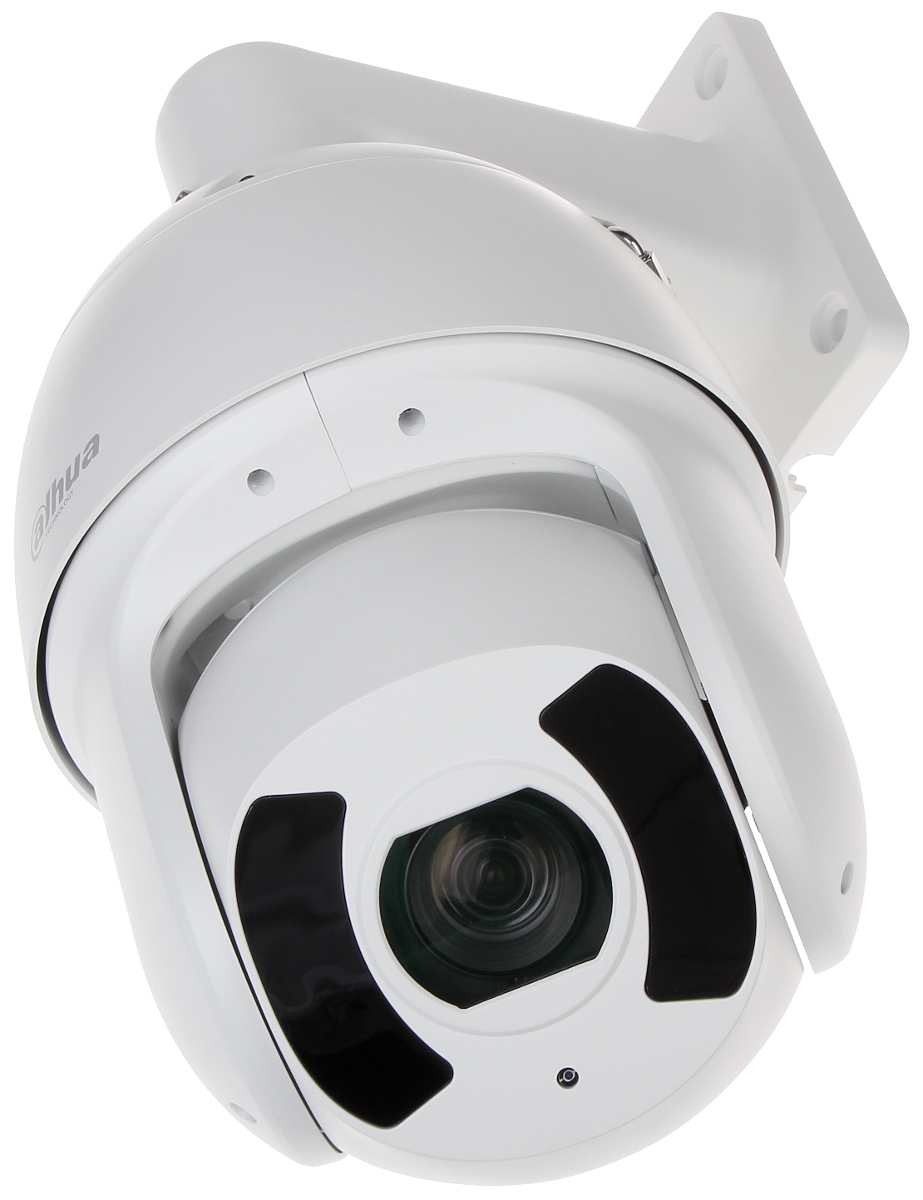

| Housing: | Speed Dome Metal |
| Color: | White |
| Vandal-proof: | IK10 |
| "Index of Protection": | IP67 |
| Operation temp: | -40 °C ... 60 °C |
| Weight: | 6.59 kg (with bracket) |

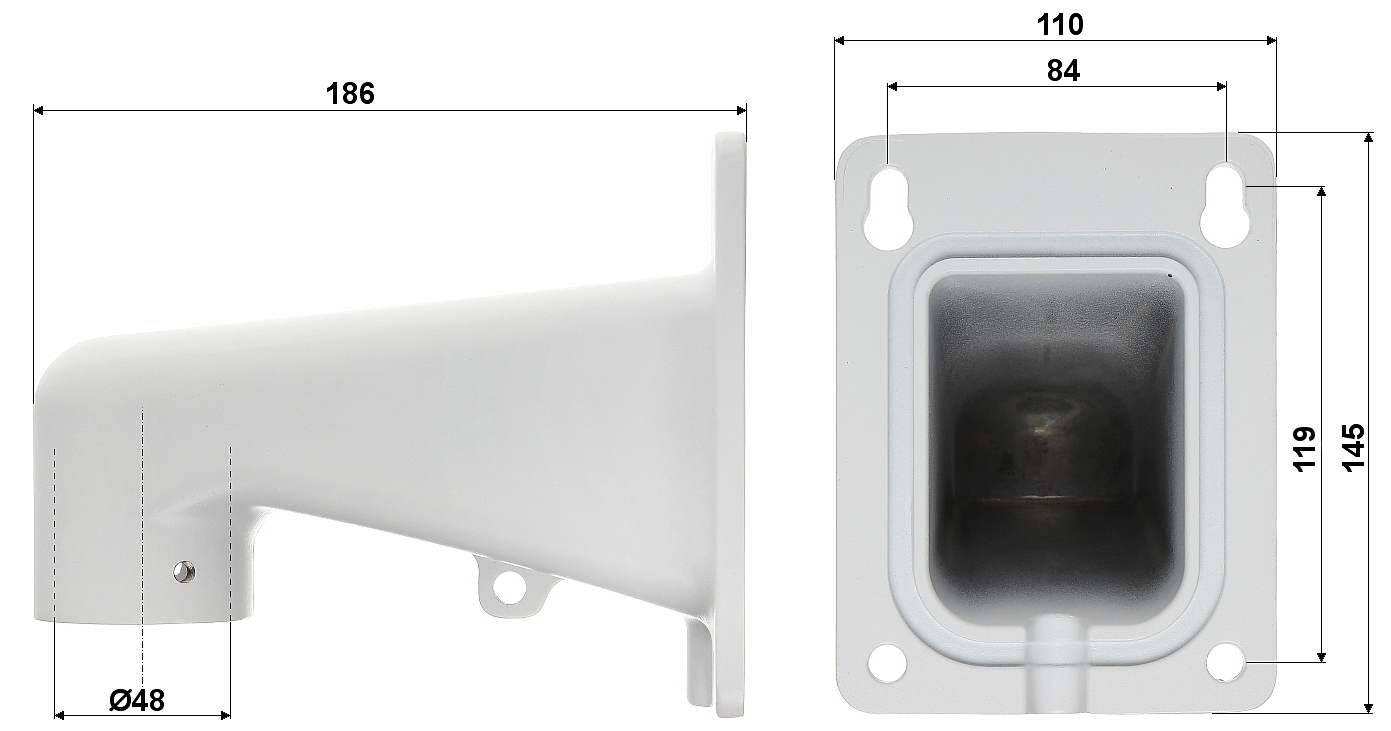

| Dimensions: | 209 x 270 x 420 mm (with bracket) |
| Supported languages: | Polish, English, Arabic, Czech, French, Spanish, Dutch, Korean, German, Persian, Portuguese, Russian, Italian |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 5 years |
