Supported resolutions: max. 12 Mpx ; Audio support: 4 Channels ; Image compression method: H.265+ ; Supported hard drives: 1 x 16 TB SATA III ;
| Standard: | TCP/IP |
| Supported resolutions: | max. 12 Mpx |

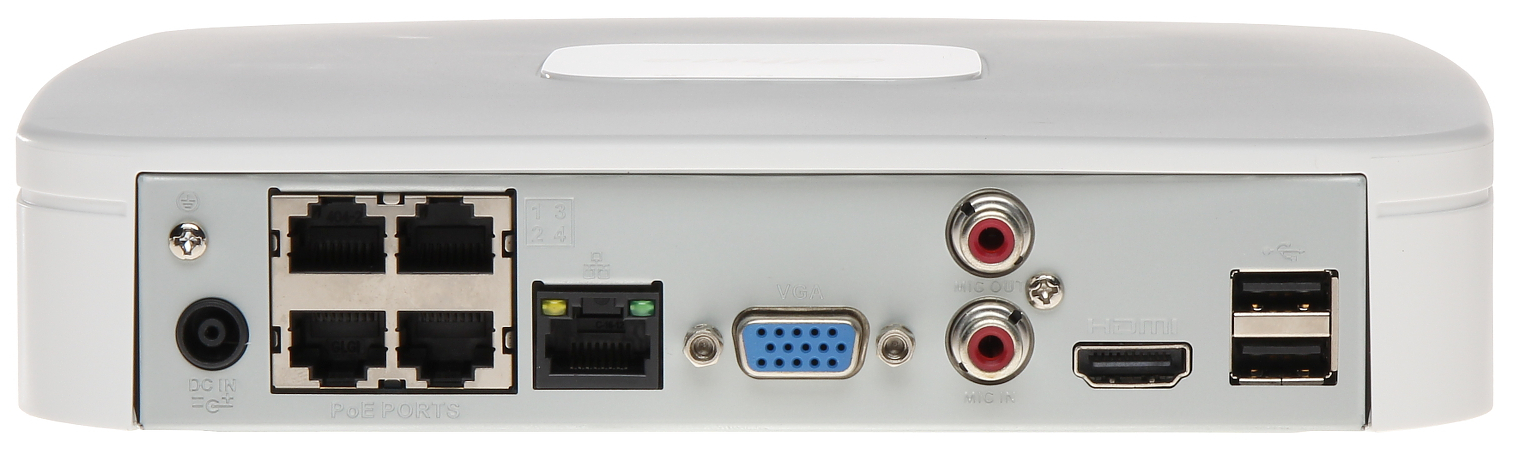

| Video outputs: | 1 pcs HDMI 1 pcs VGA |
| Audio support: | 4 Channels - Audio from cameras |
| Audio inputs: | 1 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Supported hard drives: | 1 x 16 TB SATA III |
| Recording modes: | Manual, Motion Detection, Schedule |
| Network protocols: | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, IP Search, P2P, ONVIF |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: by time and events type. Records playback: forward, backward, fast, slow "Frame by Frame" playback function |
| Bitrate: | max. 80 Mbps |
| Network functions: | Full support via network, Remote records copying, Web-Server built-in |
| ONVIF: |  |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) See how to configure the P2P function in Dahua recorders and how to enable the mobile application |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Alarm inputs / outputs: |  |
| PTZ control: | |
| Motion Detection: | |
| USB: | 2 pcs USB 2.0 |
| Intelligent Image Analysis: | |
| Mouse support: | |
| IR remote controller in the set: | |
| Main features: | Functions implemented in cooperation between the recorder and cameras that support these functions |
| Switch PoE: | 4-port PoE Switch built-in, 25.5 W / Channel - PoE (802.3af/at), max. 36 W (total) |

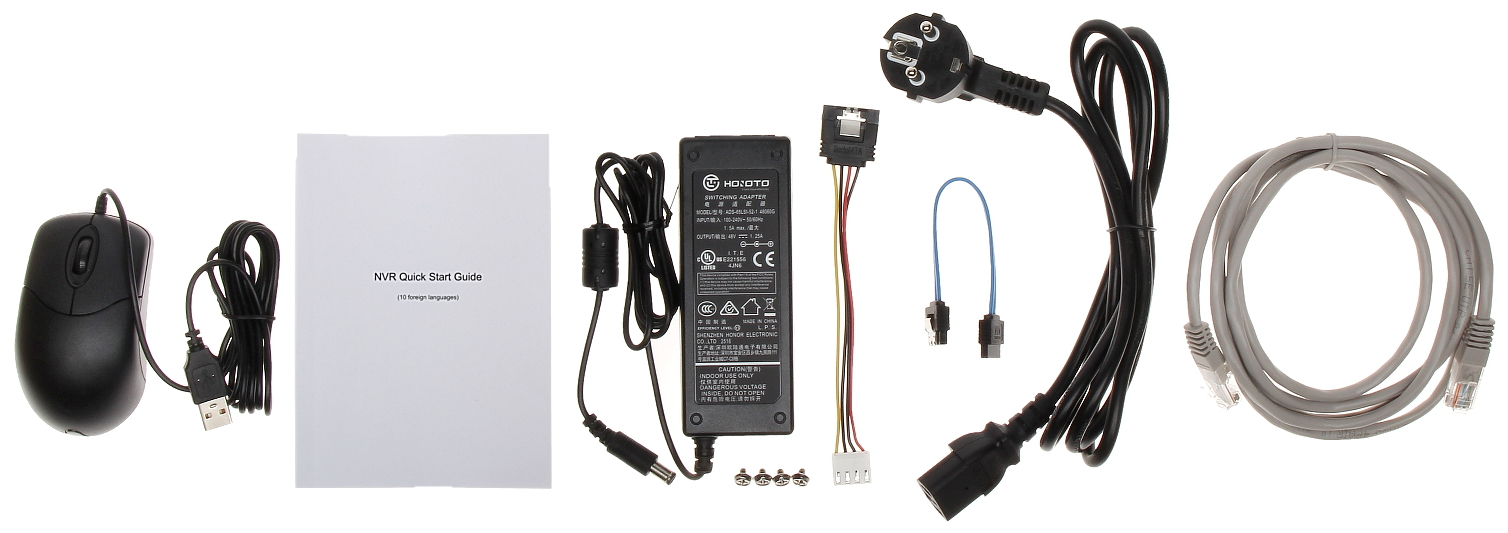

| Power supply: | 53 V DC / 1.22 A (power adapter included) |
| Weight: | 0.48 kg |
| Dimensions: | 205 x 206 x 46 mm |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
