Supported resolutions: max. 6 Mpx - 3072 x 2048 px ; Audio support: 4 Channels ; Image compression method: Smart H.265 ; Supported hard drives: 1 x 16 TB SATA ;
| Standard: | TCP/IP |
| Supported resolutions: | max. 6 Mpx - 3072 x 2048 px |

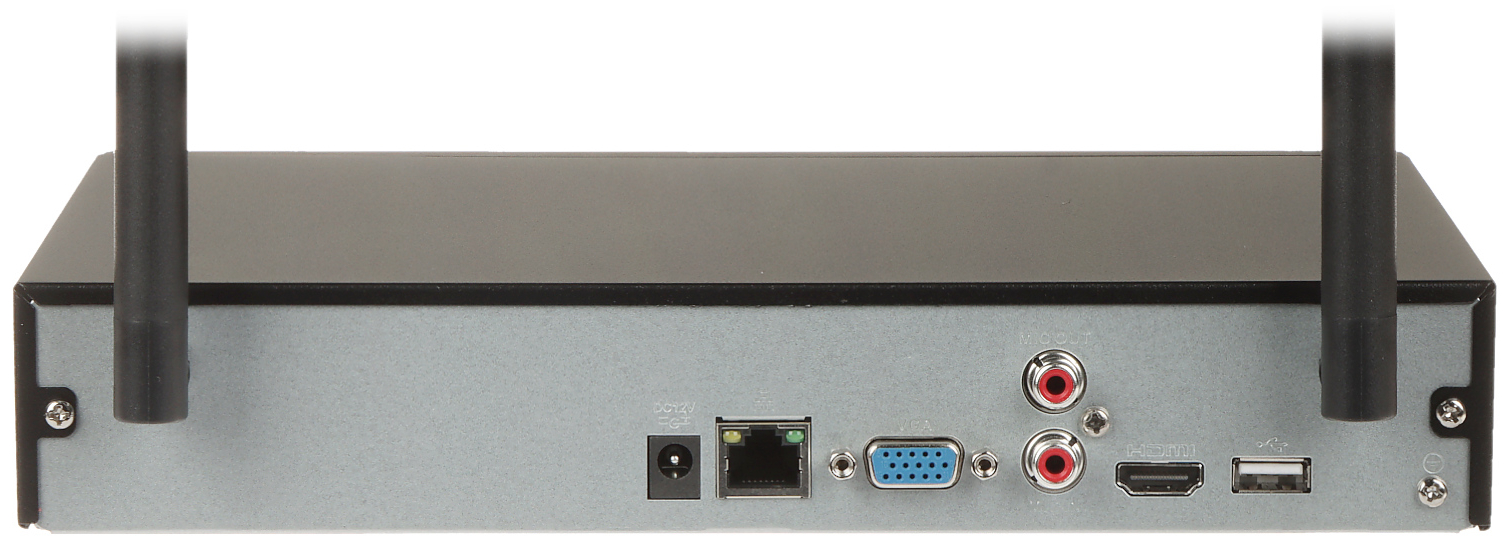

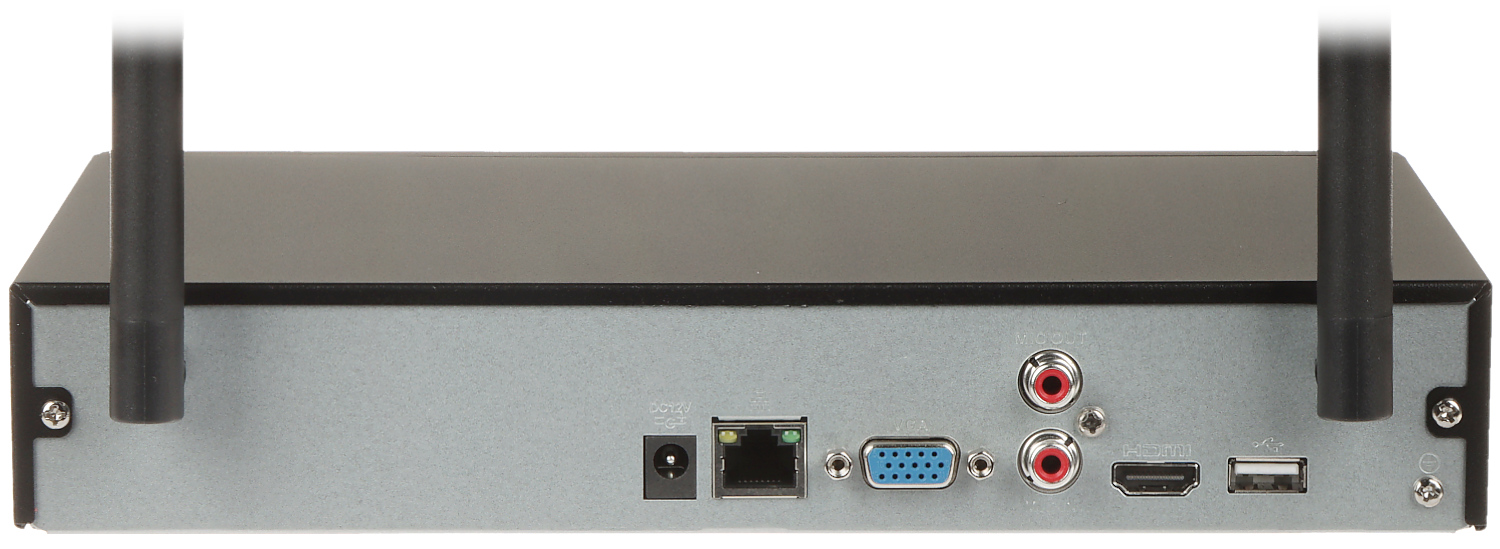

| Video outputs: | 1 pcs HDMI 1 pcs VGA |
| Audio support: | 4 Channels - Audio from cameras |
| Audio inputs: | 1 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | Smart H.265 / H.265 / Smart H.264 / H.264 / MJPEG |
| Bitrate: | max. 40 Mbps max. 16 Mbps Wi-Fi |
| Supported hard drives: | 1 x 16 TB SATA |
| Recording modes: | Manual, Motion Detection, Schedule |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: by time and events type. Records playback: forward, backward, fast, slow Advanced searching (to the one second accuracy) 1 or 4 channels synchronous playback, Smart Playback function |
| Network interface: | |
| Network functions: | |
| Network protocols: | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, Alarm Server, P2P |
| ONVIF: |  |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) See how to configure the P2P function in Dahua recorders and how to enable the mobile application |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| USB: | 2 pcs USB 2.0 |
| Serial ports: |  |
| Alarm inputs / outputs: | |
| PTZ control: | IP Speed Dome Cameras |
| Motion Detection: | |
| Intelligent Image Analysis: | |
| Main features: | |
| Mouse support: | |
| IR remote controller in the set: | |
| Power supply: | 12 V DC / 1.5 A (power adapter included) |
| Power consumption: | ≤ 10 W (without HDD) |
| Operation temp: | -10 °C ... 45 °C |
| Weight: | 0.83 kg |
| Dimensions: | 260 x 248 x 48 mm |
| Supported languages: | Polish, English, Bulgarian, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovenian, Swedish, Hungarian, Italian |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
