• Support for up to 16 cameras • Bandwidth for cameras up to 100Mb / s • The maximum resolution of 8Mpix / 4K cameras • Supports 2 HDDs up to 6TB (S.M.A.R.T.) • CMS OPTIVA Surveillance Client (WINDOWS OR MACOS) • OPTIVA Mobile Viewer 3 • Support for analytics from VOBIP cameras • P2P system • Motion detection, notifications • 12VDC power supply
|
Product type |
NVR 16 channels 2xHDD |
|
Resolution (px) |
8Mpix |
|
Number of IP cameras |
16 |
|
Maximum bandwidth for video streams |
100Mb/s |
|
Number of disks / TB capacity |
2/12 |
|
Service |
Local, web browser, CMS |
|
Video output |
HDMI (4K), VGA (1080p) |
|
IP cameras supported |
Optiva2B, ONVIF |
|
Compatibility |
ONVIF |
|
Connectors |
2 x USB2.0 |
|
Power |
12VDC |
|
Power consumption (W) |
6 |
|
Working temperature (° C) |
-10 +55 |
|
Dimensions (H x W x D) mm |
300 x 227 x 53 |
|
Screen breaks |
16 |
|
Playback |
16 |
|
Event handling |
Sound detection |
|
Software |
OPTIVA Surveillance Client, OPTIVA Mobile Viewer |
|

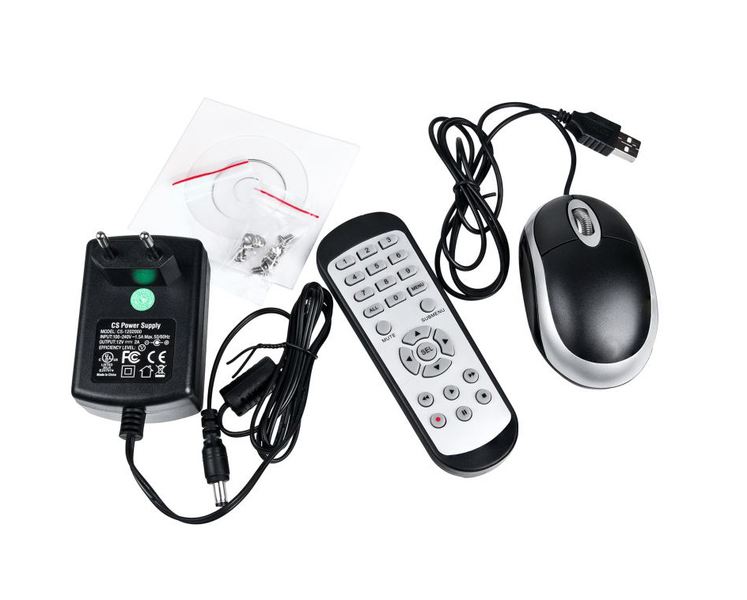

Accessories |
User manual in Polish, power supply, CD, OPTIVA sticker |
|
Video compression |
H.264 |
|
Weight |
4kg |
