• Recording resolution up to 12 MP • Resolution of independent video outputs: HDMI up to 4K@30Hz or 2K (1080p) 30/60 Hz, VGA up to 1080p@60 Hz • BNC video output • Max total bandwidth (input/output): 160/256 Mbps • Support of up to 16 IP cameras (Hikvision or ONVIF-compliant) • AcuSense in 4 channels (for cameras without AcuSense function), • Place for two SATA HDDs, each up 8 TB • Support for H.265/H.264+/H.264/MPEG4 video compression • VCA functions (face detection, crossing virtual lines, area intrusion detection etc.) • Support for ANR and POS functions • Alarm inputs/outputs: 4/1 • 1x USB 2.0 and 1x USB 3.0 interfaces
|
Name / Model |

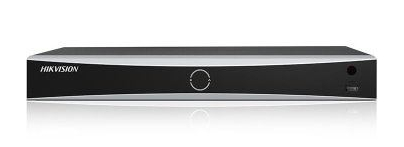

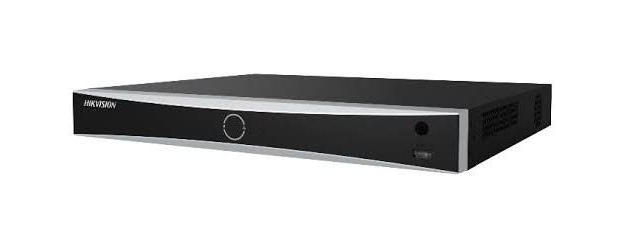

Hikvision DS-7616NXI-I2/4S |
|
Code |
K22153 |
|
Standard |
IP |
|
Number of channels |
16 |
|
Max. input / output data stream [Mb/s] |
160 / 256 |
|
Remote connections |
up to 128 |
|
HDD interface |
Max. 2x 8 TB SATA HDD |
|

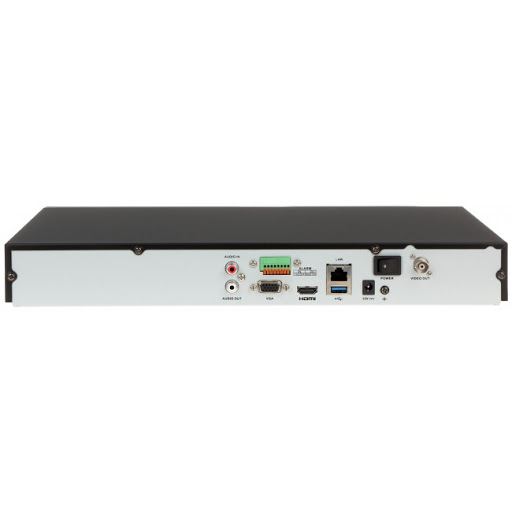

Video outputs |
HDMI, VGA, BNC (CVBS) |
|
HDMI/VGA resolution modes |
HDMI: Max. 4k (3840 x 2160) |
|
Max. recording resolution |
12 MP |
|
Synchronous playback |
From 16 channels |
|
Decoding (live preview) |
12x 1080p channels |
|
S.M.A.R.T. disk monitoring |
Yes |
|
Supported camera brands |
ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek, ZAVIO, ONVIF |
|
Video compression |
H.265/H.264+/H.264/MPEG4 |
|
Recording options |
Continuous, schedule, motion detection, VCA |
|
AcuSense (false alarms filtering) |
4 channels, for cameras up to 4 MP (line crossing, intrusion detection) |
|
VCA support |
Yes |
|
Protocols |
TCP/IP, PPPoE, DNS, DDNS, NTP, SMPT, NFS, iSCSI, UPNP, RTSP |
|
Archiving |
USB memory device, remote server |
|
Support for POS |
Yes |
|
ANR |
Yes |
|
Access from mobile devices |
Android, iOS |
|
Compatible browser |
IE |
|
Audio IN/OUT |
RCA 1 / 1 |
|
Alarm IN/OUT |
4 / 1 |
|
Other connectors |
USB 2.0, USB 3.0 |
|
Ethernet port |
1 x RJ-45 10/100/1000 Mbps (Auto) |
|
Operating temperature range |
-10°C ... 55°C |
|
Power consumption |
<15 W (without an HDD) |
|
Supply voltage |

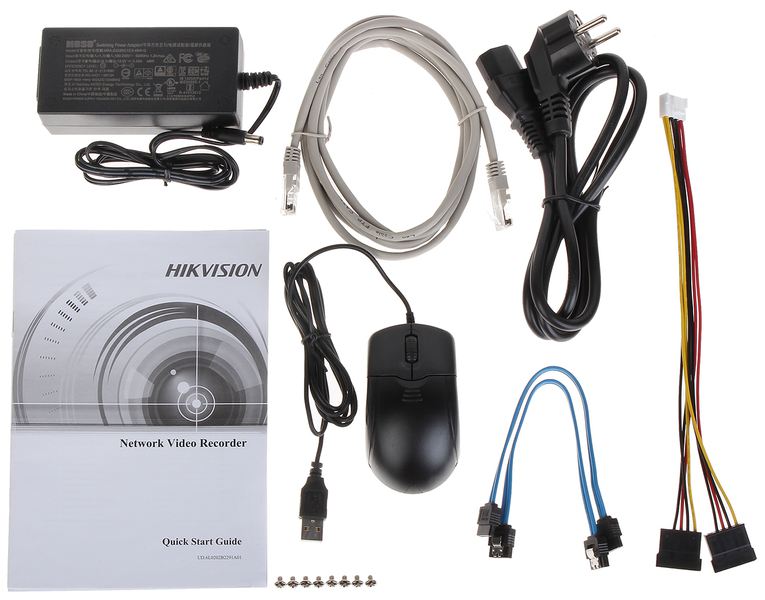

12 VDC (AC/DC adapter incl.) |
|
Dimensions (W x D x H) |
380 x 315 x 51 mm |
|
Weight |
2.97 kg |
