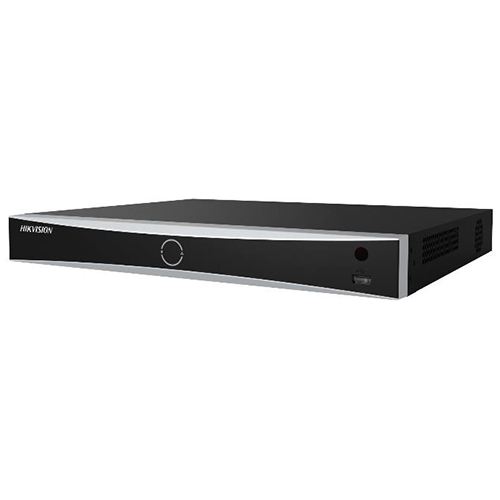

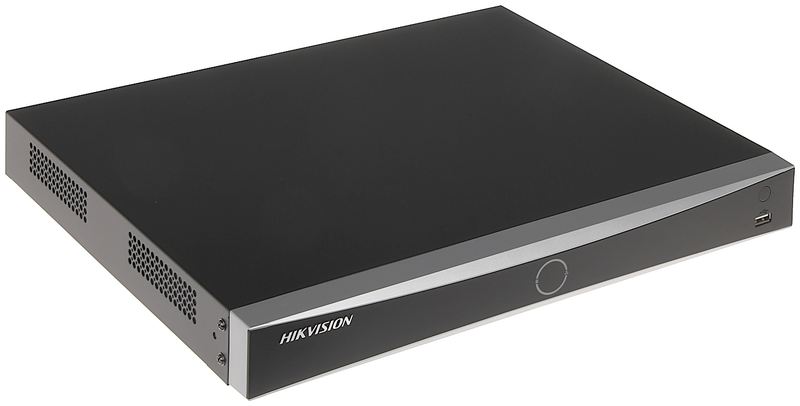

DS-7616NXI-I2/16P/S - 16-ch 1U 16 POE AcuSense 4K NVR

• Видеоформаты H.265+/H.265/H.264+/H.264 • Интеллектуальная аналитика на основе алгоритма глубокого обучения • Защита периметра до 4 каналов • До 4 каналов распознавания лиц для видеопотока • До 8 каналов распознавания лиц для изображения лица • До 16-канальных входов для IP-камер • Возможность декодирования до 32 каналов 1080p

• Intelligent Analytics
• AI by NVR Facial recognition, perimeter protection, motion detection 2.0
• AI by Camera Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
• Engine 1, engine mode is adjustable

• Facial Recognition
• Face Picture Library Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
• Face Picture Comparison 4-ch face picture comparison alarm
• Facial Detection and Analytics Face picture comparison, human face capture, face picture search
• Facial Detection and Analytics Performance 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)

• Motion Detection 2.0
• Human/Vehicle Analysis 16-ch
• By NVR All channels for Hikvision cameras
• By Camera All channels

• Perimeter Protection
• Human/Vehicle Analysis

  Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

  Up to 12 rules in total;Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

• By NVR

  4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

  Up to 12 rules in total

• By Camera All channels

• ANPR
• By Camera All channels
• Vehicle Attributes Plate number, license plate color, license plate type
• Plate Attributes Vehicle brand, vehicle color, vehicle type

• Video and Audio
• IP Video Input 16
• Incoming Bandwidth 160 Mbps
• Outgoing Bandwidth 256 Mbps
• HDMI Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode HDMI/VGA independent output
• CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)

• Decoding
• Decoding Format H.265,H.265+,H.264,H.264+,MPEG4
• Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback 16-ch
• Live View Window Division 1/4/6/8/9/16
• Aux Port Window Division 1/4/6/8/9/16
• Decoding Capability 16-ch @ 1080p (30 fps)
• Audio Compression G.711ulaw,G.711alaw,G.722,G.726,MP2L2
• Dual-Stream Recording Support
• Stream Type Video, Video & Audio

• Network
• Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Remote Connection 128
• Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• API ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

• PoE
• Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power ≤ 200W
• Standard IEEE 802.3 af/at

• Auxiliary Interface
• SATA 2 SATA interfaces
• Capacity Up to 10 TB capacity for each disk
• Serial Interface RS-485 (half-duplex), RS-232, Keyboard
• Alarm In/Out 4/1
• USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
