Sensor: 4 x 1/1.8 " Progressive Scan CMOS ; Resolution: 8192 x 3840, 7680 x 3600, 7168 x 3360, 6720 x 3152, 5760 x 2700, 4800 x 2252 ; View angle: 180 ° ; Range of IR illumination: 30 m ; Alarm inputs / outputs: 2 / 2 ; Memory card slot: Micro SD memory cards up to 256GB support (possible local recording) ; Power supply: 12 V DC ; Vandal-proof: IK10 ; "Index of Protection": IP67 ;
| Standard: | TCP/IP |
| Sensor: | 4 x 1/1.8 " Progressive Scan CMOS |
| Matrix size: | 4 x 8.0 Mpx - 32.0 Mpx (total) |
| Scanning system: | Progressive |
| Resolution: | 8192 x 3840 - 32 Mpx , 7680 x 3600 - 27.6 Mpx , 7168 x 3360 - 24 Mpx , 6720 x 3152 - 21.1 Mpx , 5760 x 2700 - 15.6 Mpx , 4800 x 2252 - 10.8 Mpx , 4096 × 1920 - 7.8 Mpx , 2880 × 1360 - 4 Mpx , 2304 × 1080 - 2.5 Mpx , 2408 × 960 - 2.3 Mpx , 1520 × 712 - 1.1 Mpx , 1280 × 600 - 0.8 Mpx |
| Lens: | 4 x 2.8 mm / F1.6 |
| View angle: | 180 ° (horizontal) 90 ° (vertical) |
| Range of IR illumination: | 30 m |
| RS-485 interface: |  |
| Image compression method: | H.265 / H.264 / H.264H / H.264B / MJPEG |

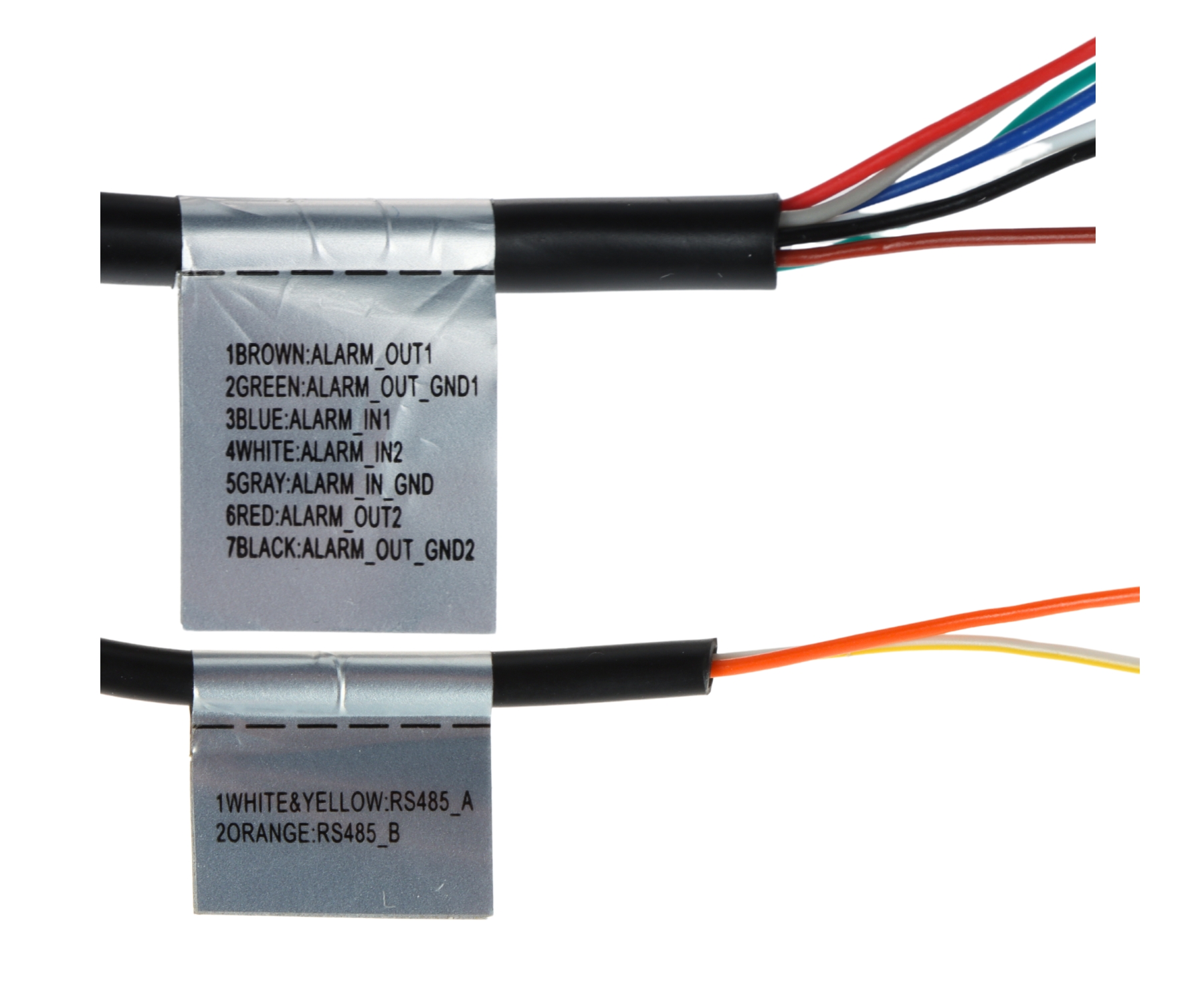

| Alarm inputs / outputs: | 2 / 2 |
| Audio: | |
| Bitrate: | 38 ... 55612 kbps @ H.265 96 ... 65536 kbps @ H.264 |
| Main stream frame rate: | 25 fps @ 31.5 Mpx |
| Network interface: | 10/100/1000 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, IEEE 802.1x, SNMP, Bonjour |
| Memory card slot: | Micro SD memory cards up to 256GB support (possible local recording) |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / admin |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| Main features: | |
| Power supply: | 12 V DC / 1130 mA |
| Power consumption: | 13.6 ... 24.3 W |
| Housing: | Bullet, Metal |
| Color: | Gray |
| Vandal-proof: | IK10 |
| "Index of Protection": | IP67 |
| Operation temp: | -40 °C ... 60 °C |
| Weight: | 3.03 kg |

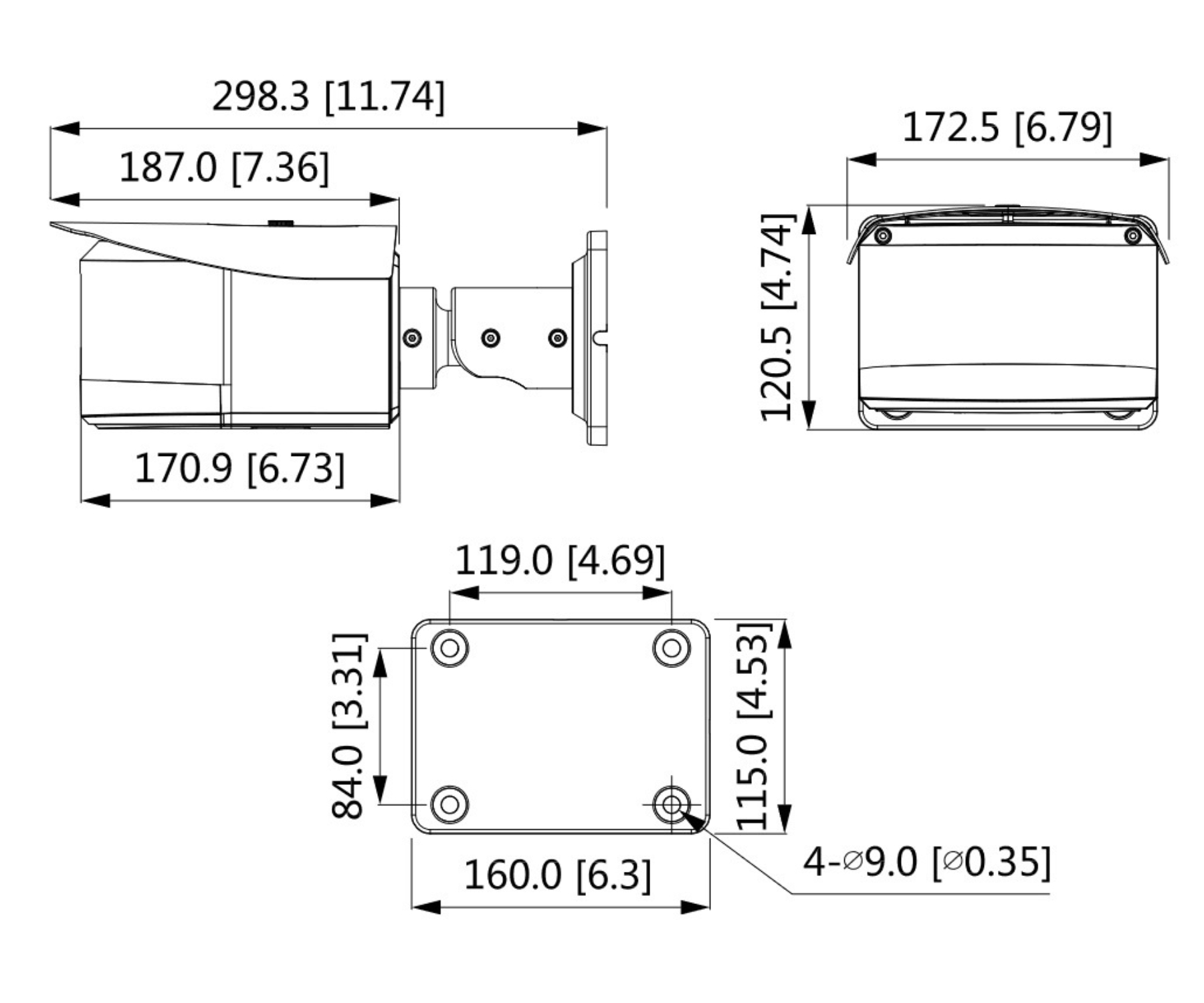

| Dimensions: | 298 x 173 x 121 mm |
| Supported languages: | English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 5 years |
Brand:
Dahua
