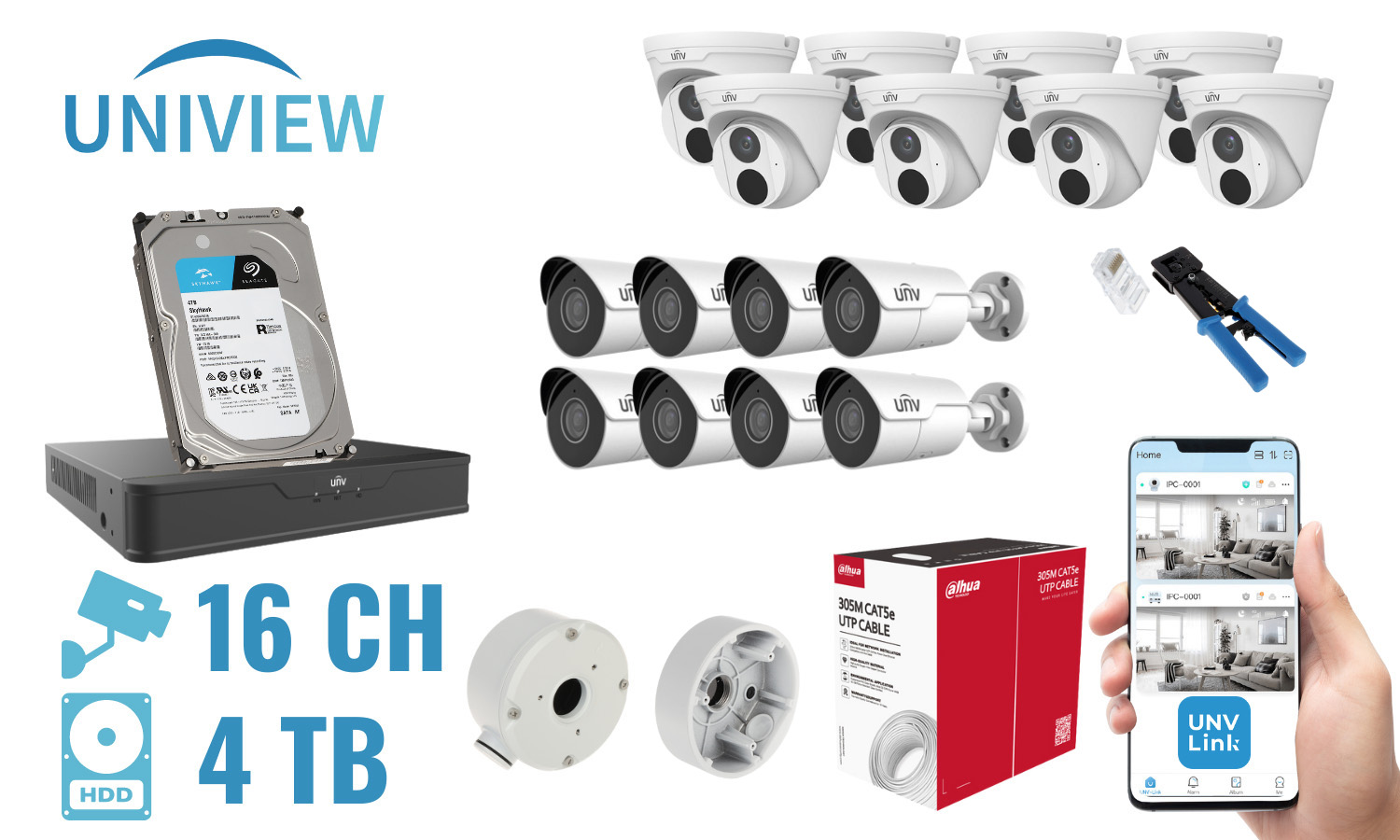

The kit consists of a DVR, a 4 TB hard drive, 8 bullet cameras, 8 dome cameras, a 305 m long twisted pair cable, a set of RJ45 plugs and a crimping tool; Supported resolutions: max. 8.3 Mpx 4K UHD - 3840 x 2160 px ; Image compression method: Ultra 265 ; Designed to continuous operation 24/7; Standard: IP ;
| Cameras: | |
| Recorder: | 1 pcs NVR501-16B |
| Switch: | 1 pcs NSW2020-16T1GT1GC-POE-IN |
| HDD: | 1 pcs HDD-ST4000VX016 |
| Camera bracket: | |
| Twisted-pair cable: | 305 m PFM920I-5EUN |
| Crimping tool: | 1 pcs HT-240T |
| RJ-45 plug: | 100 pcs RJ45T |
DVR:
| Model: | NVR501-16B |
| Standard: | IP |
| Supported resolutions: | max. 8.3 Mpx 4K UHD - 3840 x 2160 px |
| Video outputs: | 1 pcs HDMI 4K 1 pcs VGA |
| Audio support: | |
| Audio inputs: | 1 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | Ultra 265 / H.265 / H.264 |
| Bitrate: | max. 80 Mbps |
| Supported hard drives: | 1 x 8 TB SATA |
| Recording modes: | Manual, Motion Detection, Schedule |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: by time and events type. Records playback: forward, backward, fast, slow Advanced searching (to the one second accuracy) 1/4/6/8/9/16 channel synchronous playback |
| Network interface: | 1 x RJ-45 10/100 Base-TX |
| Network functions: | Full support via network, Remote records copying, Web-Server built-in max. 128 on-line users |
| ONVIF: |  |
| Default IP address: | DHCP or 192.168.1.30 |
| Default admin user / password: | admin / 123456 |
| Mobile phones support: | Port no.: 80 or access by a cloud (P2P) |
| Web browser access ports: | 80, 554 |
| PC client access ports: | Port no.: 80 or access by a cloud (P2P) - PC: EZStation free application |
| Mobile client access ports: | 80 |
| RTSP URL: | rtsp://192.168.1.30:554/unicast/c1/s0/live - Main stream rtsp://192.168.1.30:554/unicast/c1/s1/live - Sub stream |
| USB: | 1 x USB 2.0 1 x USB 3.0 |
| Serial ports: |  |
| Alarm inputs / outputs: | |
| PTZ control: | PTZ Uniview cameras |
| Motion Detection: | |
| Intelligent Image Analysis: | |
| Main features: | Functions implemented in cooperation between the recorder and cameras that support these functions |
| Mouse support: | |
| IR remote controller in the set: | |
| Power supply: | 12 V DC / 2 A (power adapter included) |
| Power consumption: | max. 6 W (without HDD) |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 0.69 kg |
| Dimensions: | 260 x 222 x 47 mm |
Camera 1:
| Model: | IPC2124LE-ADF28KM-G |
| Number of cameras in the kit: | 8 pcs |
| Standard: | IP |
| Resolution: | 2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p |
| Sensor: | 1/3 " Progressive Scan CMOS |
| Lens: | 2.8 mm |
| View angle: | 101 ° |
| Range of IR illumination: | 50 m |
| S/N ratio: | > 52 dB |
| RS-485 interface: | |
| Memory card slot: | Micro SD card support up to 256GB |
| Image compression method: | Ultra 265 / H.265 / H.264 / MJPEG |
| Alarm inputs / outputs: | |
| Audio: | |
| Main stream frame rate: | 25 fps @ 4 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 32 |
| ONVIF: | |
| Mobile phones support: | Access by a cloud (P2P) |
| Default IP address: | DHCP or 192.168.1.13 |
| Default admin user / password: | admin / 123456 |
| Web browser access ports: | 80, 554 |
| PC client access ports: | Port no.: 80 or access by a cloud (P2P) - PC: EZStation free application |
| Mobile client access ports: | 80 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream rtsp://192.168.1.13:554/unicast/c1/s1/live - Sub stream |
| Main features: | |
| Power supply: | |
| Power consumption: | ≤ 6.5 W |
| Housing: | Compact, Metal + Plastic |
| Color: | White |
| "Index of Protection": | IP67 |
| Mechanical protection class: | |
| Operation temp: | -30 °C ... 60 °C |
| Weight: | 0.43 kg |
| Dimensions: | 190 73 x 71 mm |
Camera 2:
| Model: | IPC3614LE-ADF28K-G |
| Number of cameras in the kit: | 8 |
| Standard: | IP |
| Sensor: | 1/3 " Progressive Scan CMOS |
| Scanning system: | Progressive |
| Resolution: | 2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p |
| Lens: | 2.8 mm |
| View angle: | |
| Range of IR illumination: | 30 m |
| S/N ratio: | > 52 dB |
| RS-485 interface: | |
| Memory card slot: | Micro SD card support up to 256GB |
| Image compression method: | Ultra 265 / H.265 / H.264 / MJPEG |
| Alarm inputs / outputs: | |
| Audio: | |
| Main stream frame rate: | 25 fps @ 3.7 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 32 |
| ONVIF: | |
| Mobile phones support: | Access by a cloud (P2P) |
| Default IP address: | DHCP or 192.168.1.13 |
| Default admin user / password: | admin / 123456 |
| Web browser access ports: | 80, 554 |
| PC client access ports: | Port no.: 80 or access by a cloud (P2P) - PC: EZStation free application |
| Mobile client access ports: | 80 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream rtsp://192.168.1.13:554/unicast/c1/s1/live - Sub stream |
| Main features: | |
| Power supply: | |
| Power consumption: | ≤ 6 W |
| Housing: | Dome, Metal + Plastic |
| Color: | White |
| "Index of Protection": | IP67 |
| Vandal-proof: | |
| Operation temp: | -30 °C ... 60 °C |
| Weight: | 0.37 kg |
| Dimensions: | Ø 118 x 95 mm |
BRACKET 1:
| Model: | TR-JB05-B-IN |
| Mounting holes distance: | 45 mm |
| Number of holes: | 3 |
| Neck diameter: | Ø 104 mm |
| Suitable for cameras: | UNIVIEW |
| Material: | Aluminum alloy |
| Color: | White |
| Distance from mounting surface: | 54.5 mm |
| Weight: | 0.31 kg |
| Dimensions: | Ø 104 x 54.5 mm |
BRACKET 2:
| Model: | TR-JB03-I-IN |
| Mounting holes distance: | 70 mm |
| Number of holes: | 3 |
| Neck diameter: | Ø 118 mm |
| Suitable for cameras: | UNIVIEW |
| Material: | Aluminum |
| Color: | White |
| Distance from mounting surface: | 38 mm |
| Weight: | 0.2 kg |
| Dimensions: | Ø 118 x 38 mm |
TWISTED-PAIR CABLE:
| Model: | PFM920I-5EUN |
| Length: | 305 m |
| Type: | UTP cat. 5e |
| Inner conductor: | Ø 0.45 mm Cu=99.99%, Wire |
| Resistance: | max. 12 Ω / 100 m |
| Shield: | |
| Outer coating: | Ø 4.7 mm PVC |
| Coating color: | White |
| Main features: | Parameters far exceeding the requirements for Category 5+ |
| Weight: | 24.5 kg/km |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
RJ-45 plug:
| Model: | RJ45T |
| In the kit: | 100 pcs |
| Connector type: | RJ-45 - Plug, 8 pin |
| Attachment of connector elements: | Crimping |
| Wire mounting: | Clamping on each wire with 3-pin edge |
| Application: | Twisted-pair cable, UTP cat. 5e, FTP cat. 5e |
| Material: | PET |
| Main features: | Very easy and quick assembly |
CRIMPING TOOL:
| Model: | HT-240T |
| Material: | Metal / PET |
| Application: | Plug RJ45 (8P8C) |
| Main features: | |
| Dimensions: | 200 x 75 x 25 mm |
Switch PoE:
| Model: | NSW2020-16T1GT1GC-POE-IN |
| LAN ports: | |
| Management: | |
| LED diodes: | G1/SFP1, G2, PoE Max, Power, Link/Act, PoE |
| Transmission speed: | |
| Maximal output power: | 30 W / port PoE 802.3af/at |
| Maximal total power: | 225 W |
| MAC addresses table: | 16k |
| Operation modes: | |
| Main features: | |
| Certificates: | CE, FCC |
| Housing: | Desktop, Metal |
| Power supply: | 100 ... 240 V AC, 50 / 60 Hz |
| Operation temp: | 0 °C ... 40 °C |
| Weight: | 2.08 kg |
| Dimensions: | 440 x 195 x 44 mm, RACK 19", 1U |
HDD:
| Model: | HDD-ST4000VX016 |
| Number of hard drives: | 1 pcs |
| Capacity: | 4 TB |
| Interface: | SATA 6 Gb/s |
| Size format: | 3.5 " |
| Cache memory: | 256 MB |
| Technology: | Brand:
