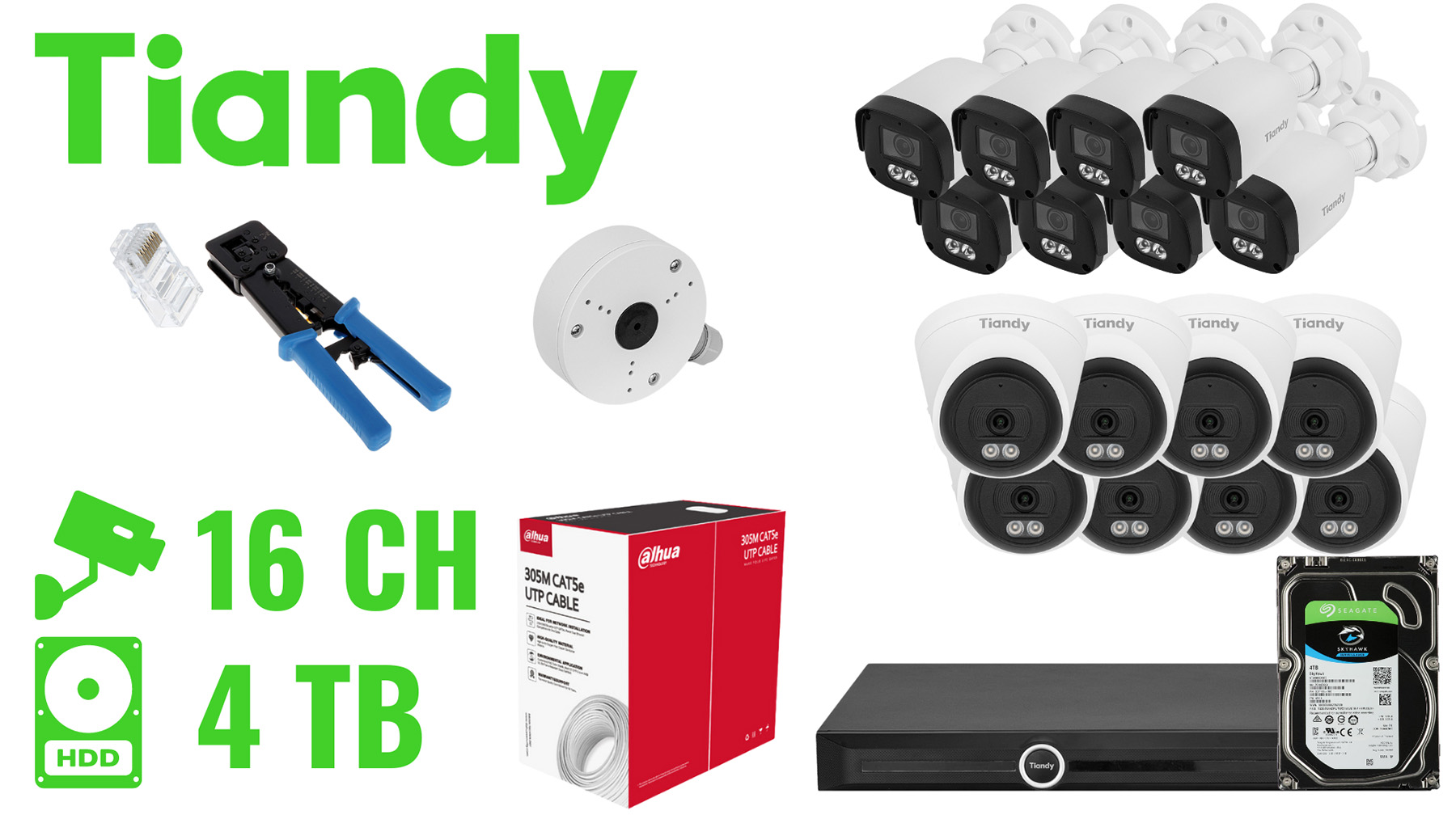

The kit consists of a DVR, a 4 TB hard drive, 8 bullet cameras, 8 dome cameras, a 305 m long twisted pair cable, a set of RJ45 plugs and a crimping tool; Supported resolutions: max. 8 Mpx ; Image compression method: S+265 ; Audio: Audio transmission via network ; Designed to continuous operation 24/7; Standard: IP ;
| Cameras: | |
| Recorder: | 1 pcs TC-R3220 SPEC:I/B/P16/K/V3.1 |
| HDD: | 1 pcs HDD-ST4000VX016 |
| Camera bracket: | 16 pcs TC-P54BM SPEC:V5/V3.0 |
| Twisted-pair cable: | 305 m PFM920I-5EUN |
| Crimping tool: | 1 pcs HT-240T |
| RJ-45 plug: | 100 pcs RJ45T |

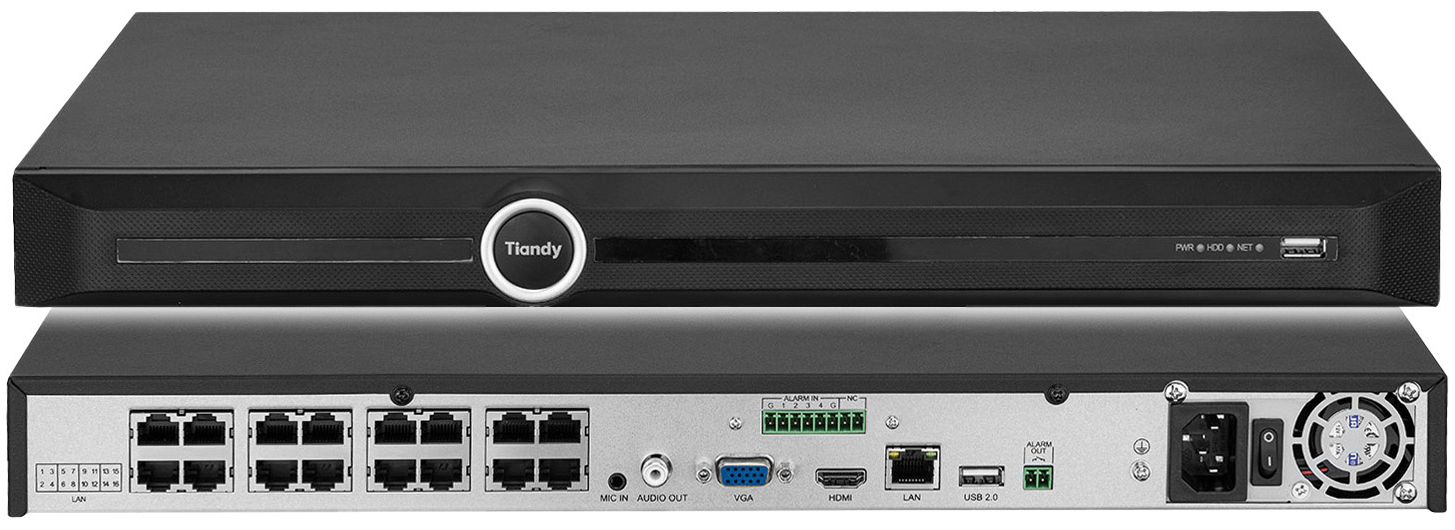

DVR:
| Model: | TC-R3220 SPEC:I/B/P16/K/V3.1 |
| Standard: | IP |
| Supported resolutions: | max. 8 Mpx |
| Video outputs: | 1 pcs HDMI 4K 1 pcs VGA |
| Audio support: | 20 Channels - Audio from cameras |
| Audio inputs: | 1 pcs |
| Audio outputs: | 1 pcs |
| Image compression method: | S+265 / H.265 / S+264 / H.264 |
| Supported hard drives: | 2 x 10 TB SATA |
| Recording modes: | Manual, Motion Detection, Schedule |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | |
| Network interface: | 1 x RJ-45 - 10 / 100 / 1000 Mbps |
| Network functions: | Full support via network, Remote records copying, Web-Server built-in |
| ONVIF: |  |
| Bitrate: | max. 160 Mbps |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Default IP address: | 192.168.1.3 |
| RTSP URL: | rtsp://user:password@192.168.1.3:554/1/1 - Main stream rtsp://user:password@192.168.1.3:554/1/2 - Sub stream |
| Web browser access ports: | 80, 443, 3000, 3001, 3002, 23002 |
| PC client access ports: | 3000, 3001 |
| Mobile client access ports: | 3000, 3001 |
| Mobile phones support: | Port no.: 3000 or access by a cloud (P2P) |
| Access from PC: | Port no.: 3000 or access by a cloud (P2P) - PC: Easy7 Smart Client Express free application |
| Alarm inputs / outputs: | 4 / 1 |
| Motion Detection: | |
| Intelligent Image Analysis: |  |
| USB: | 2 x USB 2.0 |
| Mouse support: | |
| IR remote controller in the set: | |
| Intelligent Image Analysis: | Support for Intelligent Image Analysis function, available in TIANDY cameras : |
| Switch PoE: | 16-port PoE Switch built-in, 30 W / Channel - PoE |
| Maximum total switch load: | 200 W |
| Power supply: | 100 V ... 240 V AC |
| Weight: | 3.07 kg |
| Dimensions: | 440 x 284 x 47 mm |
Camera 1:
| Model: | TC-C34QN SPEC:I3/E/Y/2.8MM/V5.0 |
| Number of cameras in the kit: | 10 pcs |
| Standard: | IP |
| Resolution: | 2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 720 - 720p |
| Sensor: | 1/3 " Progressive Scan CMOS |
| Lens: | 2.8 mm |
| View angle: | 92 ° |
| Range of IR illumination: | 30 m |
| Memory card slot: | |
| Image compression method: | S+265 / H.265 / H.264 |
| Alarm inputs / outputs: | |
| Audio: | |
| Main stream frame rate: | 20 fps @ 4 Mpx |
| Interface: | 10/100 Base-TX (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 2 |
| ONVIF: | |
| Mobile phones support: | Port no.: 3000 or access by a cloud (P2P) |
| Access from PC: | Port no.: 3000 or access by a cloud (P2P) - PC: Easy7 Smart Client Express free application |
| Default IP address: | DHCP or 192.168.1.2 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 3000, 3001 |
| Mobile client access ports: | 3000, 3001 |
| PC client access ports: | 3000, 3001 |
| ONVIF port: | 80 |
| Intelligent Image Analysis: | |
| Main features: | |
| Power supply: | PoE (802.3af) |
| Power consumption: | ≤ 6 W |
| Housing: | Compact - Metal + Plastic |
| Color: | White |
| "Index of Protection": | IP67 |
| Mechanical protection class: | |
| Operation temp: | -30 °C ... 60 °C |
| Weight: | 0.21 kg |
| Dimensions: | 164 x 73 x 73 mm |
Camera 2:
| Model: | TC-C34XN SPEC:I3/E/Y/2.8MM/V5.0 |
| Number of cameras in the kit: | 10 pcs |
| Standard: | IP |
| Resolution: | 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 720 - 720p |
| Sensor: | 1/3 " Progressive Scan CMOS |
| Lens: | 2.8 |
| View angle: | 92 ° |
| Range of IR illumination: | 30 m |
| Image compression method: | S+265 / H.265 / H.264 |
| Alarm inputs / outputs: | |
| Audio: | |
| Main stream frame rate: | 20 fps @ 4 Mpx |
| Interface: | 10/100 Base-TX (RJ-45) |
| Max. number of on-line users: | 2 |
| ONVIF: | |
| Mobile phones support: | Port no.: 3000 or access by a cloud (P2P) |
| Access from PC: | Port no.: 3000 or access by a cloud (P2P) - PC: Easy7 Smart Client Express free application |
| Default IP address: | DHCP or 192.168.1.2 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 443, 3000, 3001, 3002, 23002 |
| Mobile client access ports: | 3000, 3001 |
| PC client access ports: | 3000, 3001 |
| ONVIF port: | 80 |
| Main features: | |
| Power supply: | |
| Power consumption: | ≤ 6 W |
| Housing: | Dome - Plastic |
| Color: | White |
| "Index of Protection": | |
| Mechanical protection class: | |
| Operation temp: | -30 °C ... 60 °C |
| Weight: | 0.23 kg |
| Dimensions: | Ø 117 x 96 mm |
BRACKET:
| Model: | TC-P54BM SPEC:V5/V3.0 |
| Number of brackets included: | 16 pcs |
| Neck diameter: | Ø 117 mm |
| Material: | Aluminum alloy |
| Color: | White |
| Distance from mounting surface: | 41 mm |
| Weight: | 0.35 kg |
| Dimensions: | Ø 117 x 41 mm |
TWISTED-PAIR CABLE:
| Model: | PFM920I-5EUN |
| Length: | 305 m |
| Type: | UTP cat. 5e |
| Inner conductor: | Ø 0.45 mm Cu=99.99%, Wire |
| Resistance: | max. 12 Ω / 100 m |
| Shield: | |
| Outer coating: | Ø 4.7 mm PVC |
| Coating color: | White |
| Main features: | Parameters far exceeding the requirements for Category 5+ |
| Weight: | 24.5 kg/km |
RJ-45 plug:
| Model: | RJ45T |
| In the kit: | 100 pcs |
| Connector type: | RJ-45 - Plug, 8 pin |
| Attachment of connector elements: | Crimping |
| Wire mounting: | Clamping on each wire with 3-pin edge |
| Application: | Twisted-pair cable, UTP cat. 5e, FTP cat. 5e |
| Material: | PET |
| Main features: | Very easy and quick assembly |
CRIMPING TOOL:
| Model: | HT-240T |
| Material: | Metal / PET |
| Application: | Plug RJ45 (8P8C) |
| Main features: | |
| Dimensions: | 200 x 75 x 25 mm |
HDD:
| Model: | HDD-ST4000VX016 |
| Number of hard drives: | 1 pcs |
| Capacity: | 4 TB |
| Interface: | SATA 6 Gb/s |
| Size format: | 3.5 " |
| Cache memory: | 256 MB |
| Technology: | |
| Designed to continuous operation 24/7: | |
| Weight: | 0.43 kg |
General information:
| Standard: | IP |
| Supported languages: | Polish, English, Albanian, Arabic, Spanish, Korean, French, Dutch, Hebrew, German, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese, Italian |
| Manufacturer / Brand: | TIANDY |
| Guarantee: | 3 years |
Brand:
Delta-Opti
