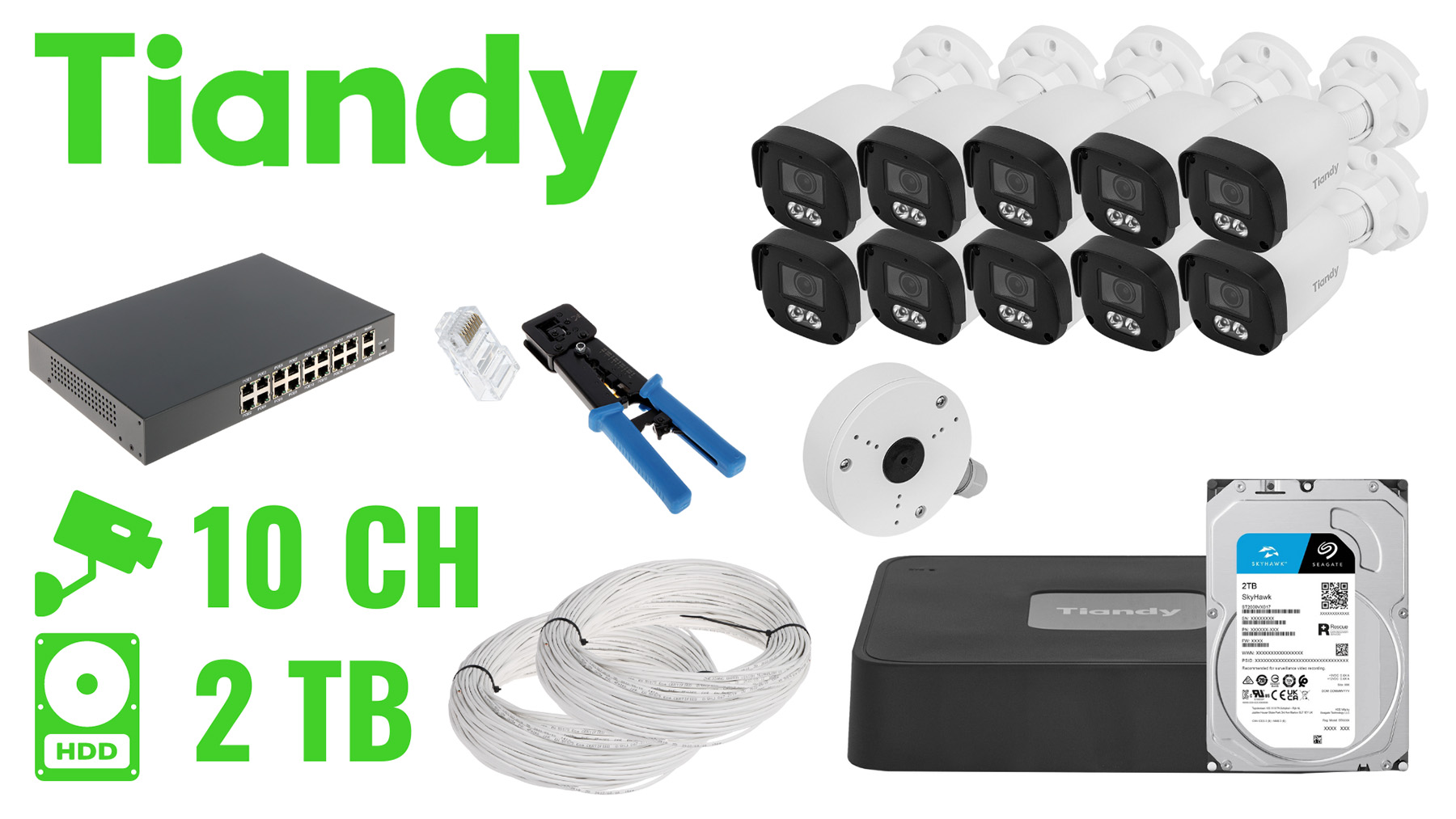

The kit consists of a DVR, a 2 TB hard drive, 10 tube cameras, a PoE switch, a 200 m long twisted-pair cable, a set of RJ45 plugs and a crimping tool; Supported resolutions: max. 6 Mpx ; Image compression method: S+265 ; Audio: Audio transmission via network ; Designed to continuous operation 24/7; Standard: IP ;
| Cameras: | 10 pcs TC-C34QN SPEC:I3/E/Y/2.8MM/V5.0 |
| Recorder: | 1 pcs TC-R3110 SPEC:I/B/L/EU/V1.1 |
| HDD: | 1 pcs HDD-ST2000VX017 |
| Switch: | 1 pcs APTI-POE1602G-240W |
| Camera bracket: | 10 pcs TC-P54BM SPEC:V5/V3.0 |
| Twisted-pair cable: | 200 m PFM920I-5EUN/100M |
| Crimping tool: | 1 pcs HT-240T |
| RJ-45 plug: | 100 pcs RJ45T |
DVR:
| Model: | TC-R3110 SPEC:I/B/L/EU/V1.1 |
| Standard: | IP |
| Supported resolutions: | max. 6 Mpx |
| Video outputs: | 1 pcs HDMI 4K 1 pcs VGA |
| Audio support: | Audio from cameras |
| Audio inputs: |  |
| Audio outputs: | |
| Image compression method: | S+265 / H.265 / S+264 / H.264 |
| Supported hard drives: | 1 x 8 TB SATA |
| Recording modes: | Manual, Motion Detection, Schedule |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: by time and events type. Records playback: forward, backward, fast, slow Advanced searching (to the one second accuracy) 1/4 channel synchronous playback |
| Network interface: | 1 x RJ-45 - 10 / 100 Mbps |
| Network functions: | Full support via network, Remote records copying, Web-Server built-in |
| ONVIF: |  |
| Bitrate: | max. 60 Mbps |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Default IP address: | 192.168.1.3 |
| RTSP URL: | rtsp://user:password@192.168.1.3:554/1/1 - Main stream rtsp://user:password@192.168.1.3:554/1/2 - Sub stream |
| Web browser access ports: | 80, 443, 3000, 3001, 3002, 23002 |
| PC client access ports: | 3000, 3001 |
| Mobile client access ports: | 3000, 3001 |
| Mobile phones support: | Port no.: 3000 or access by a cloud (P2P) |
| Access from PC: | Port no.: 3000 or access by a cloud (P2P) - PC: Easy7 Smart Client Express free application |
| Alarm inputs / outputs: | |
| Motion Detection: | |
| Intelligent Image Analysis: | |
| USB: | 2 x USB 2.0 |
| Mouse support: | |
| IR remote controller in the set: | |
| Main features: | Support for Intelligent Image Analysis function, available in TIANDY cameras : |
| Power supply: | 12 V DC / 1.5 A (power adapter included) |
| Weight: | 0.42 kg |
| Dimensions: | 199 x 197 x 43 mm |
CAMERA:
| Model: | TC-C34QN SPEC:I3/E/Y/2.8MM/V5.0 |
| Number of cameras in the kit: | 10 pcs |
| Standard: | IP |
| Resolution: | 2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 720 - 720p |
| Sensor: | 1/3 " Progressive Scan CMOS |
| Lens: | 2.8 mm |
| View angle: | 92 ° |
| Range of IR illumination: | 30 m |
| Memory card slot: | |
| Image compression method: | S+265 / H.265 / H.264 |
| Alarm inputs / outputs: | |
| Audio: | |
| Main stream frame rate: | 20 fps @ 4 Mpx |
| Interface: | 10/100 Base-TX (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 2 |
| ONVIF: | |
| Mobile phones support: | Port no.: 3000 or access by a cloud (P2P) |
| Access from PC: | Port no.: 3000 or access by a cloud (P2P) - PC: Easy7 Smart Client Express free application |
| Default IP address: | DHCP or 192.168.1.2 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 3000, 3001 |
| Mobile client access ports: | 3000, 3001 |
| PC client access ports: | 3000, 3001 |
| ONVIF port: | 80 |
| Intelligent Image Analysis: | |
| Main features: | |
| Power supply: | PoE (802.3af) |
| Power consumption: | ≤ 6 W |
| Housing: | Compact - Metal + Plastic |
| Color: | White |
| "Index of Protection": | IP67 |
| Mechanical protection class: | |
| Operation temp: | -30 °C ... 60 °C |
| Weight: | 0.21 kg |
| Dimensions: | 164 x 73 x 73 mm |

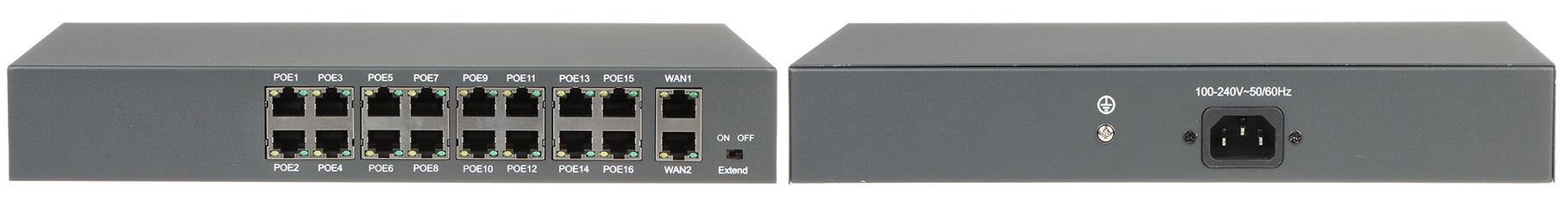

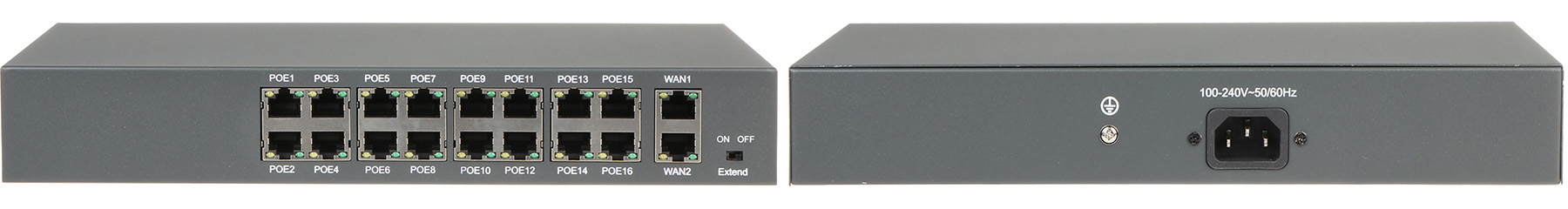

Switch:
| Model: | APTI-POE1602G-240W |
| LAN ports: | 18 x RJ45 ( 16 x PoE (802.3af/at) ) |
| Management: | |
| LED diodes: | LAN, PoE |
| Transmission speed: | |
| Maximal output power: | 30 W / port PoE |
| Maximal total power: | 240 W |
| MAC addresses table: | 2k |
| Main features: | |
| Certificates: | CE |
| Power supply: | 230 V AC |
| Operation temp: | 0 °C ... 55 °C |
| Weight: | 1.63 kg |
| Dimensions: | 290 x 202 x 44 mm |
| Guarantee: | 2 years |
BRACKET:
| Model: | TC-P54BM SPEC:V5/V3.0 |
| Neck diameter: | Ø 117 mm |
| Material: | Aluminum alloy |
| Color: | White |
| Distance from mounting surface: | 41 mm |
| Weight: | 0.35 kg |
| Dimensions: | Ø 117 x 41 mm |
TWISTED-PAIR CABLE:
| Model: | PFM920I-5EUN/100M |
| Length: | 200 m |
| Type: | UTP cat. 5e |
| Inner conductor: | Ø 0.45 mm Cu=99.99%, Wire |
| Resistance: | max. 12 Ω / 100 m |
| Shield: | |
| Outer coating: | Ø 4.7 mm PVC |
| Coating color: | White |
| Main features: | Parameters far exceeding the requirements for Category 5+ |
| Weight: | 24.5 kg/km |
| Guarantee: | 3 years |
RJ-45 plug:
| Model: | RJ45T |
| In the kit: | 100 pcs |
| Connector type: | RJ-45 - Plug, 8 pin |
| Attachment of connector elements: | Crimping |
| Wire mounting: | Clamping on each wire with 3-pin edge |
| Application: | Twisted-pair cable, UTP cat. 5e, FTP cat. 5e |
| Material: | PET |
| Main features: | Very easy and quick assembly |
CRIMPING TOOL:
| Model: | HT-240T |
| Material: | Metal / PET |
| Application: | Plug RJ45 (8P8C) |
| Main features: | |
| Dimensions: | 200 x 75 x 25 mm |
HDD:
| Model: | HDD-ST2000VX017 |
| Number of hard drives: | 1 pcs |
| Capacity: | 2 TB |
| Interface: | SATA 6 Gb/s |
| Size format: | 3.5 " |
| Cache memory: | 256 MB |
| Technology: | |
| Designed to continuous operation 24/7: | |
| Weight: | 0.39 kg |
| Guarantee: | 3 years |
General information:
| Standard: | IP |
| Supported languages: | Polish, English, Albanian, Arabic, Spanish, Korean, French, Dutch, Hebrew, German, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese, Italian |
| Manufacturer / Brand: | TIANDY |
| Guarantee: | 3 years |
Brand:
Delta-Opti
