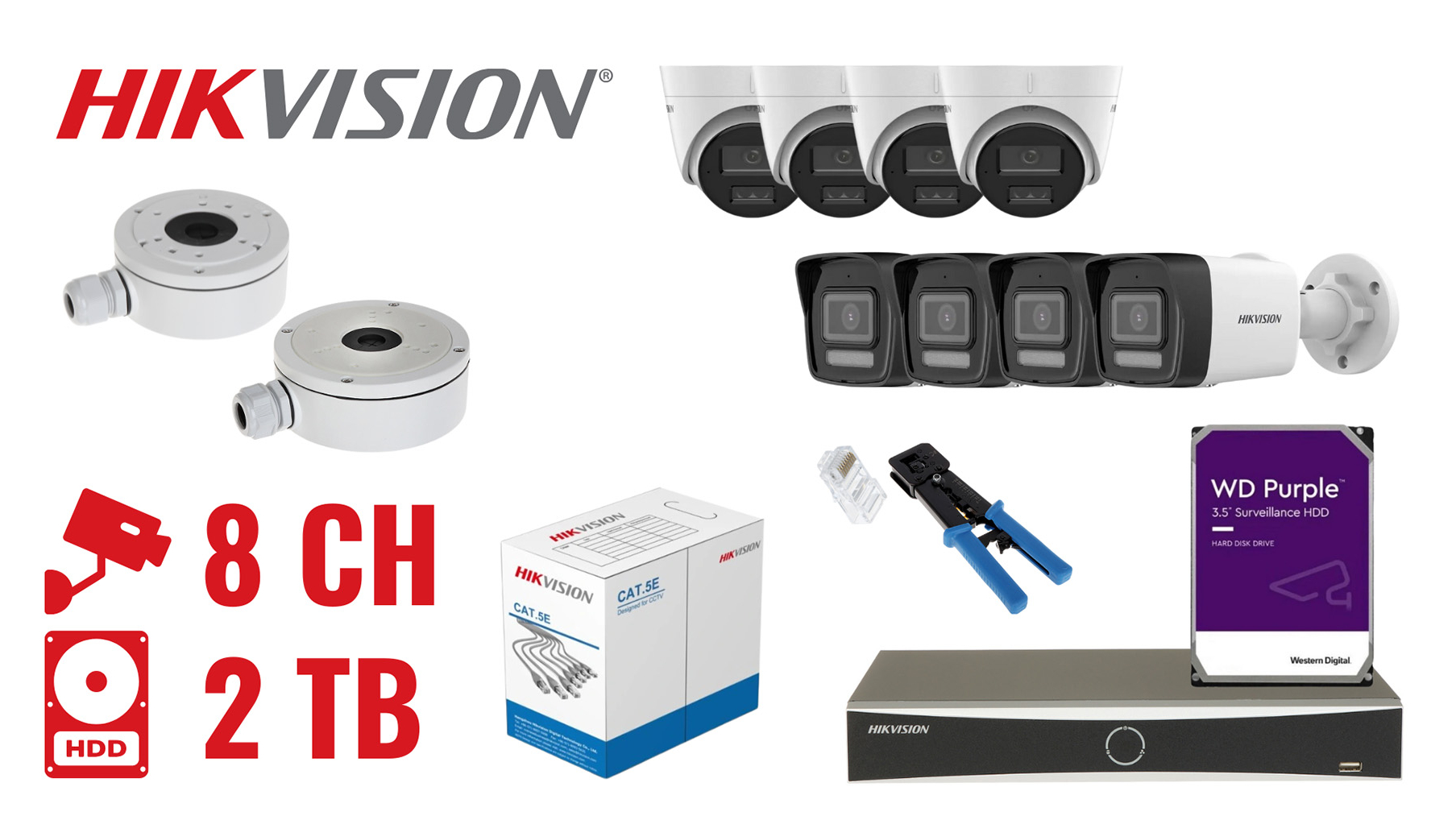

The kit consists of a DVR, a 2 TB hard drive, 4 bullet cameras, 4 dome cameras, a 305 m long twisted pair cable, a set of RJ45 plugs and a crimping tool; Supported resolutions: max. 12 Mpx - 4000 x 3000 px ; Image compression method: H.265+ H.265+ ; Designed to continuous operation 24/7; Standard: IP ;
| Cameras: | |
| Recorder: | 1 pcs DS-7608NXI-K2/8P(D) |
| HDD: | 1 pcs HDD-WD23PURZ |
| Camera bracket: | |
| Twisted-pair cable: | 305 m DS-PL-5E |
| Crimping tool: | 1 pcs HT-240T |
| RJ-45 plug: | 100 pcs RJ45T |

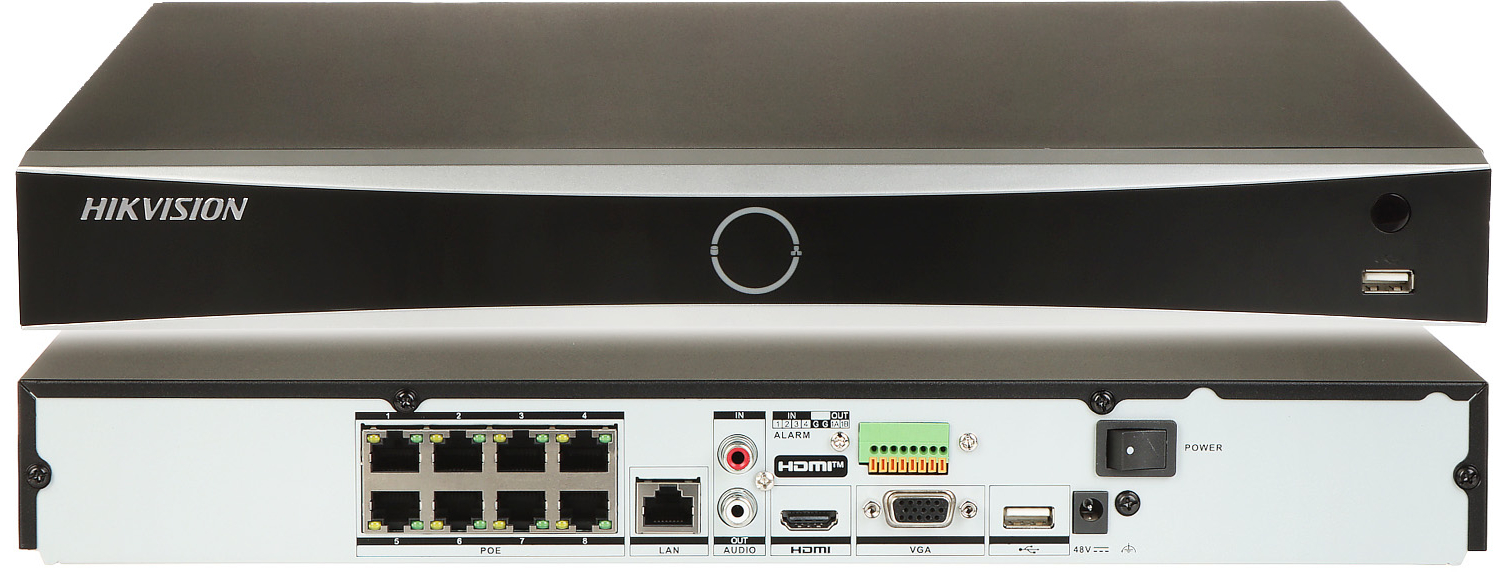

DVR:
| Model: | DS-7608NXI-K2/8P(D) |
| Standard: | IP |
| Supported resolutions: | max. 12 Mpx - 4000 x 3000 px |
| Video outputs: | 1 pcs HDMI 4K 1 pcs VGA |
| Audio support: | |
| Audio inputs: | 1 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265+ / H.265 / H.264 / H.264+ |
| Bitrate: | 80 Mbps (incoming) |
| Supported hard drives: | 2 x 16 TB SATA |
| Recording modes: | Manual, Sensor, Motion detection, Schedule |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: by time and events type. Records playback: forward, backward, fast, slow Advanced searching (to the one second accuracy) All channels synchronous playback, Smart Search function Records playback from max. 8 channels in the same time |
| Network interface: | 1 x RJ-45 10/100/1000 Base-TX |
| Network functions: | |
| ONVIF: |  |
| Default IP address: | 192.168.1.64 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Mobile phones support: | Port no.: 8000 or access by a cloud (P2P) |
| Web browser access ports: | 80, 8000 |
| PC client access ports: | 8000 |
| Mobile client access ports: | 8000 |
| RTSP URL: | |
| USB: | 2 pcs USB 2.0 |
| Serial ports: |  |
| Alarm inputs / outputs: | 4 / 1 |
| PTZ control: | |
| Motion Detection: | 2.0 |
| Intelligent Image Analysis: | |
| Main features: | Functions implemented in cooperation between the recorder and cameras that support these functions |
| Mouse support: | |
| IR remote controller in the set: | |
| Switch PoE: | 8-port PoE Switch built-in, 25.5 W / Channel - PoE (802.3af/at) |
| Maximum total switch load: | 80 W |
| Power supply: | 48 V DC / 2.5 A (power adapter included) |
| Power consumption: | max. 15 W (without HDD) |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 1.74 kg |
| Dimensions: | 385 x 322 x 52 mm |
| SAP Code: | 303621204 |

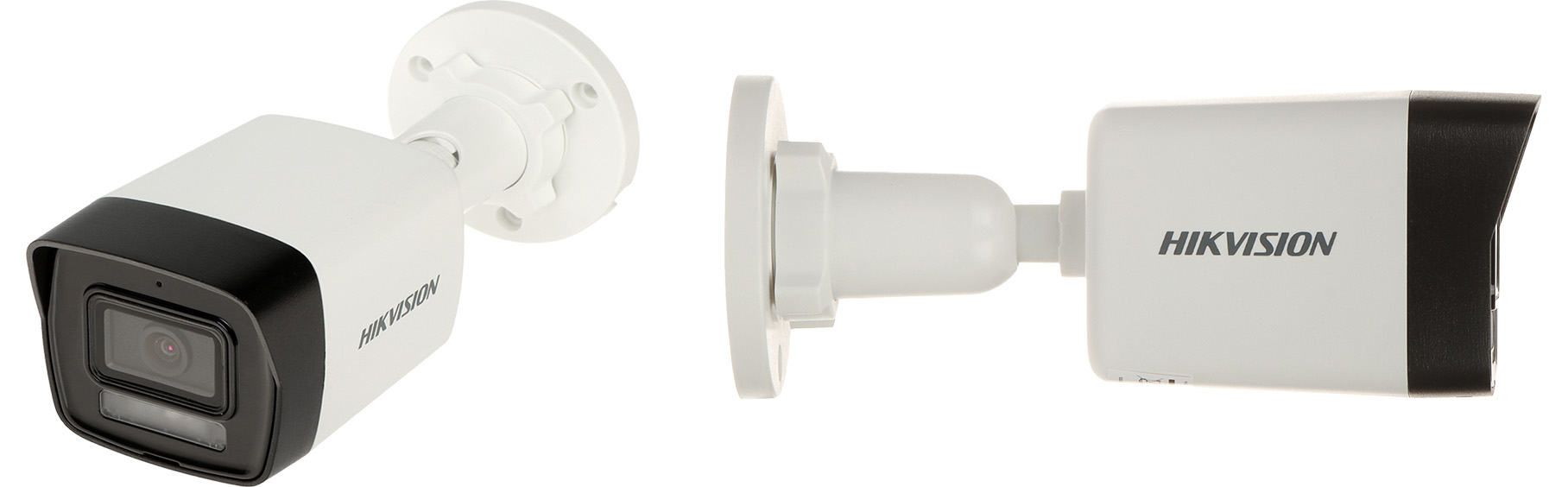

Camera 1:
| Model: | DS-2CD1043G2-LIU(2.8MM)PL |
| Number of cameras in the kit: | 4 pcs |
| Standard: | IP |
| Resolution: | 2560 x 1440 - 3.7 Mpx , 1920 x 1080 - 1080p , 1280 x 720 - 720p 2560 x 1440 |
| Sensor: | 1/3 " Progressive Scan CMOS |
| Lens: | 2.8 mm |
| View angle: | 98 ° |
| White light LED illuminator range: | 30 m |
| Range of IR illumination: | 30 m |
| Memory card slot: | |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs / outputs: | |
| Audio: | |
| Main stream frame rate: | |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 6 |
| ONVIF: | |
| Main features: | |
| Mobile phones support: | Port no.: 8000 or access by a cloud (P2P) |
| Default IP address: | 192.168.1.64 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80 |
| PC client access ports: | Port no.: 8000 or access by a cloud (P2P) - iVMS-4200 application |
| Mobile client access ports: | 8000 |
| ONVIF port: | 80 |
| RTSP URL: | |
| Power supply: | |
| Power consumption: | |
| Housing: | Compact - Metal + Plastic |
| Color: | White |
| "Index of Protection": | IP67 |
| Mechanical protection class: | |
| Operation temp: | -30 °C ... 60 °C |
| Weight: | 0.28 kg |
| Dimensions: | 171 x 66 x 69 mm |
| Supported languages: | Polish |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 311327287 |
| Guarantee: | 3 years |

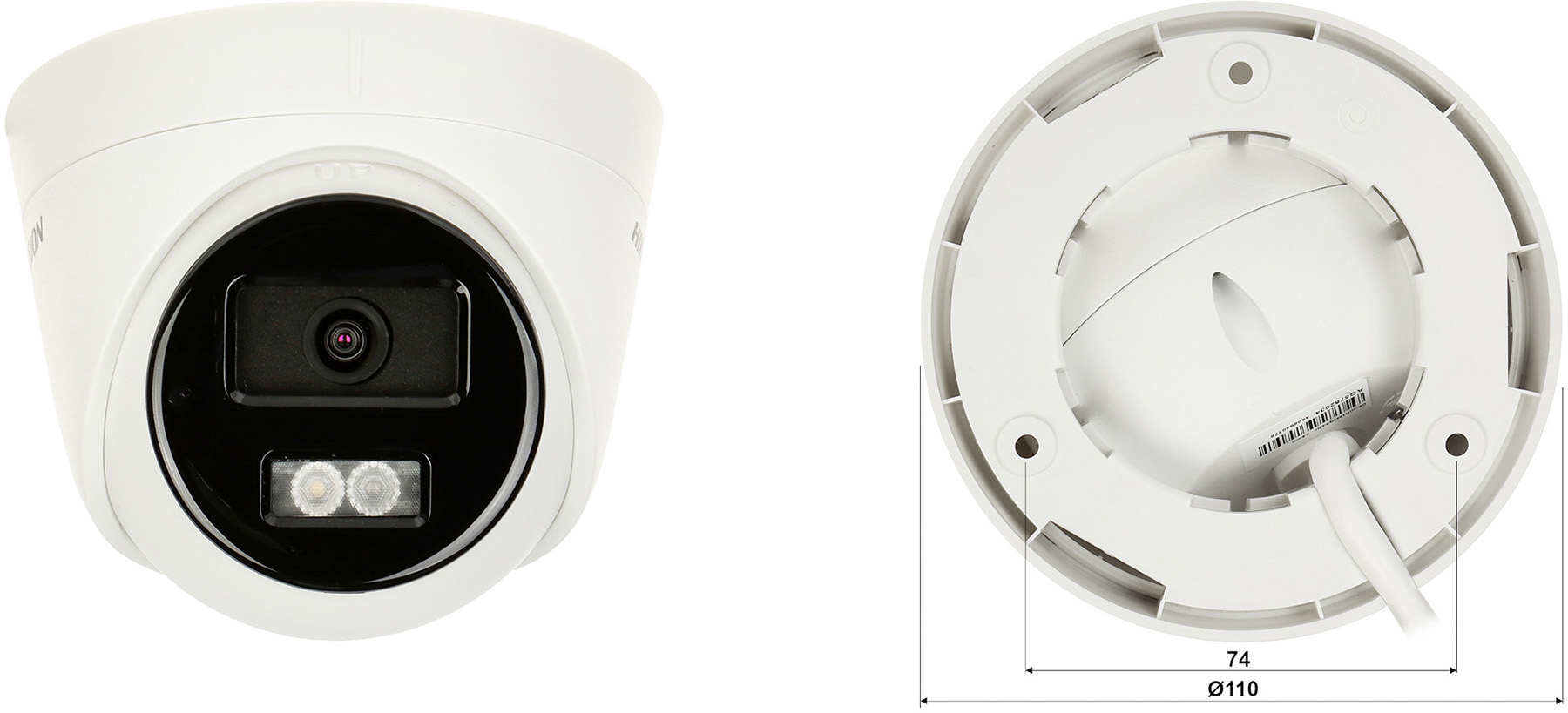

Camera 2:
| Model: | DS-2CD1343G2-LIU(2.8MM)PL |
| Number of cameras in the kit: | 4 pcs |
| Standard: | IP |
| Resolution: | 2560 x 1440 - 3.7 Mpx , 1920 x 1080 - 1080p 1280 x 720 - 720p |
| Sensor: | 1/3 " Progressive Scan CMOS |
| Lens: | 2.8 mm |
| View angle: | 98 ° |
| White light LED illuminator range: | 30 m |
| Range of IR illumination: | 30 m |
| Memory card slot: | |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs / outputs: | |
| Audio: | |
| Main stream frame rate: | |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 6 |
| ONVIF: | |
| Main features: | |
| Mobile phones support: | Port no.: 8000 or access by a cloud (P2P) |
| Default IP address: | 192.168.1.64 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80 |
| PC client access ports: | Port no.: 8000 or access by a cloud (P2P) - iVMS-4200 application |
| Mobile client access ports: | 8000 |
| ONVIF port: | 80 |
| RTSP URL: | |
| Power supply: | |
| Power consumption: | |
| Housing: | Dome, Metal + Plastic |
| Color: | White |
| "Index of Protection": | IP67 |
| Mechanical protection class: | |
| Operation temp: | -30 °C ... 60 °C |
| Weight: | 0.36 kg |
| Dimensions: | Ø 110 x 89 mm |
| Supported languages: | Polish |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 311327292 |
| Guarantee: | 3 years |
BRACKET 1:
| Model: | DS-1280ZJ-XS |
| Number of brackets included: | 4 pcs |
| Neck diameter: | Ø 100 mm |
| Suitable for cameras: | Hikvision |
| Material: | Aluminum |
| Color: | White |
| Distance from mounting surface: | 45 mm |
| Weight: | 0.32 kg |
| Dimensions: | Ø 100 x 45 mm |
| SAP Code: | 302700955 |
BRACKET 2:
| Model: | DS-1280ZJ-S |
| Number of brackets included: | 4 pcs |
| Neck diameter: | Ø 137 mm |
| Suitable for cameras: | Hikvision |
| Material: | Aluminum |
| Color: | White |
| Distance from mounting surface: | 52 mm |
| Weight: | 0.54 kg |
| Dimensions: | 168 x 137 x 52 mm |
| SAP Code: | 302700579 |
TWISTED-PAIR CABLE:
| Model: | DS-PL-5E |
| Length: | 305 m |
| Type: | UTP cat. 5e |
| Inner conductor: | Ø 0.45 mm AWG 25, Wire Cu=99.95% |
| Resistance: | ≤ 12 Ω / 100 m |
| Shield: | |
| Outer coating: | Ø 4.7 mm PVC |
| Coating color: | Gray |
| Main features: | |
| Supported norms: | ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801, RoHS 2.0 |
| Operation temp: | -20 °C ... 70 °C |
| Guarantee: | 5 years |
RJ-45 plug:
| Model: | RJ45T |
| In the kit: | 100 pcs |
| Connector type: | RJ-45 - Plug, 8 pin |
| Attachment of connector elements: | Crimping |
| Wire mounting: | Clamping on each wire with 3-pin edge |
| Application: | Twisted-pair cable, UTP cat. 5e, FTP cat. 5e |
| Material: | PET |
| Main features: | Very easy and quick assembly |
CRIMPING TOOL:
| Model: | HT-240T |
| Material: | Metal / PET |
| Application: | Plug RJ45 (8P8C) |
| Main features: | |
| Dimensions: | 200 x 75 x 25 mm |
HDD:
| Model: | HDD-WD23PURZ |
| Number of hard drives: | 1 pcs |
| Capacity: | 2 TB |
| Interface: | SATA 6 Gb/s |
| Spindle speed: | 5400 RPM |
| Size format: | 3.5 " |
| Cache memory: | 64 MB |
| Technology: | |
| Designed to continuous operation 24/7: | |
| Weight: | 0.44 kg |
| Manufacturer / Brand: | WESTERN DIGITAL |
| Guarantee: | 3 years |
General information:
| Standard: | IP |
| Supported languages: | Polish |
| Manufacturer / Brand: | Hikvision |
| Guarantee: | 3 years |
Brand:
Delta-Opti
