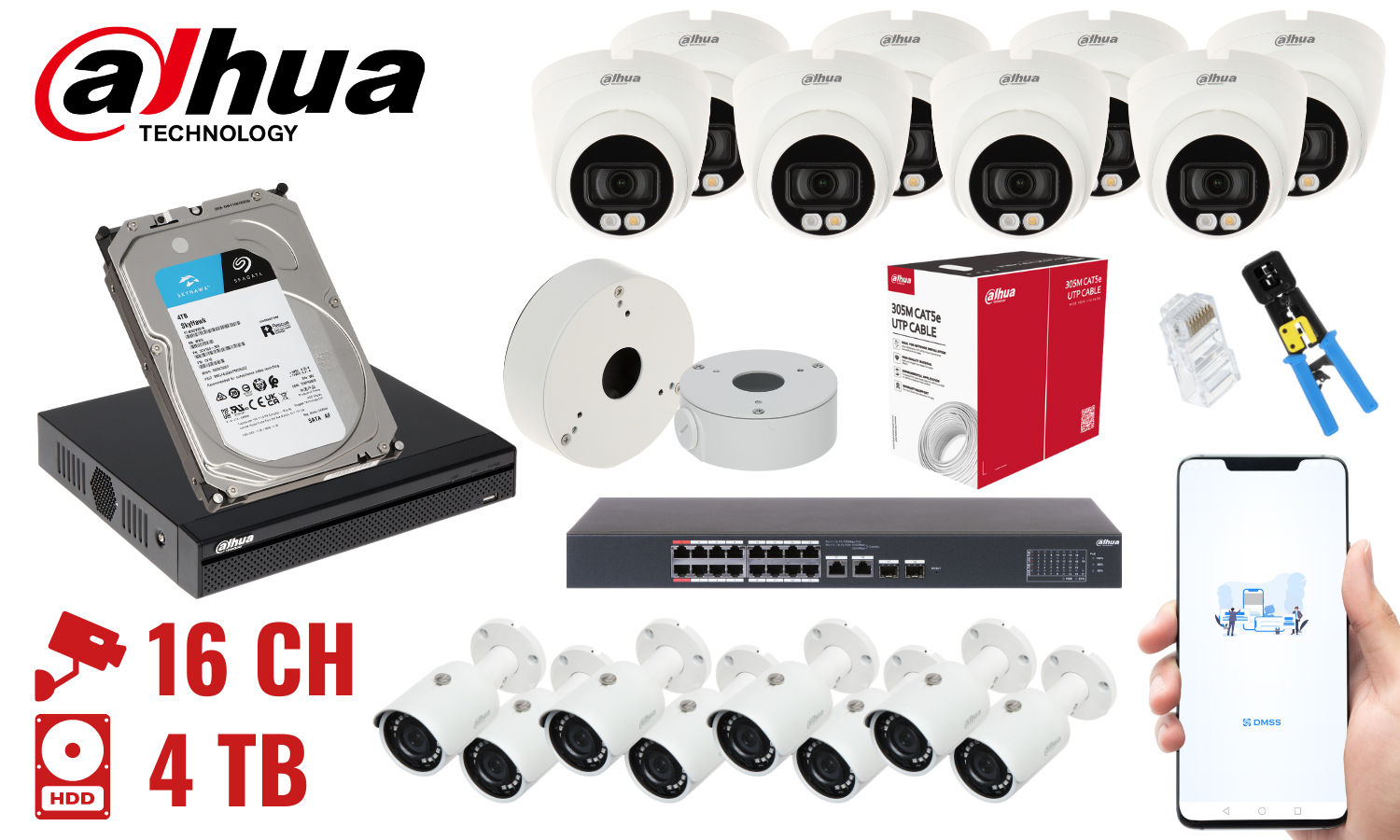

The kit consists of a DVR, a 4 TB hard drive, 8 compact cameras, 8 dome cameras, a PoE switch, a 305 m long twisted-pair cable, a set of RJ45 plugs and a crimping tool; Standard: IP ; Audio support: 16 Channels ; Image compression method: Smart H.265+ ; Intelligent Image Analysis; Matrix size: 4 Mpx ; Resolution: max. 2560 x 1440 - 3.7 Mpx ; LAN ports: 16 x RJ45 10/100 Base-T ( 2 x Hi-PoE (802.3bt) + 14 x PoE (802.3af/at) ) ; Transmission speed: 10 / 100 Mbps ; Capacity: 4 TB ; Designed to continuous operation 24/7;
| Cameras: | 8 pcs IPC-HDW1439V-A-IL-0280B 8 pcs IPC-HFW1431S-0280B-S4 |
| Recorder: | 1 pcs NVR4116HS-4KS3 |
| Switch: | 1 pcs CS4218-16ET-135 |
| HDD: | 1 pcs HDD-ST4000VX016 |
| Camera bracket: | 8 pcs PFA134 8 pcs PFA13G |
| Twisted-pair cable: | 305 m PFM920I-5EUN |
| Crimping tool: | 1 pcs HT-240T |
| RJ-45 plug: | 100 pcs RJ45T |

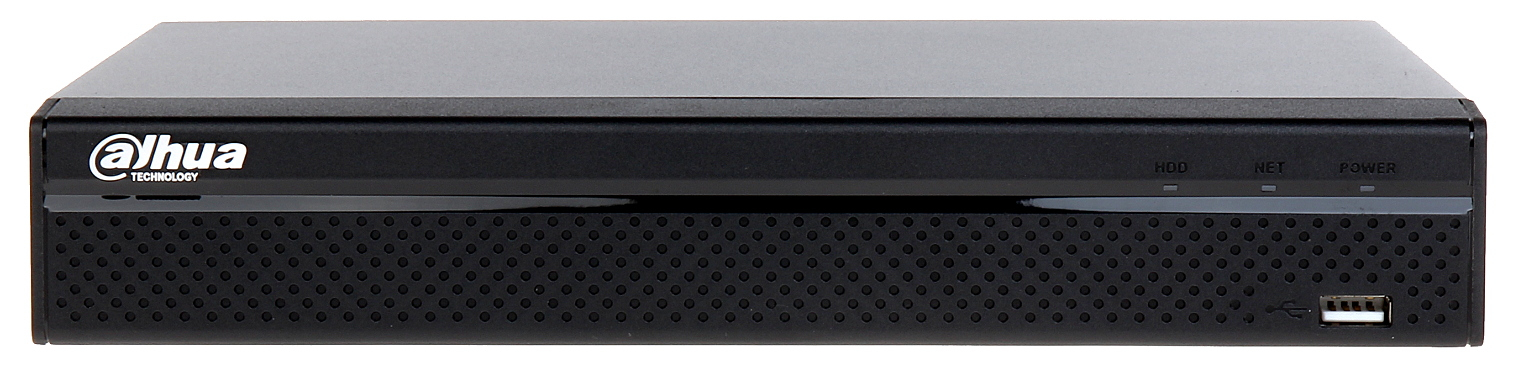

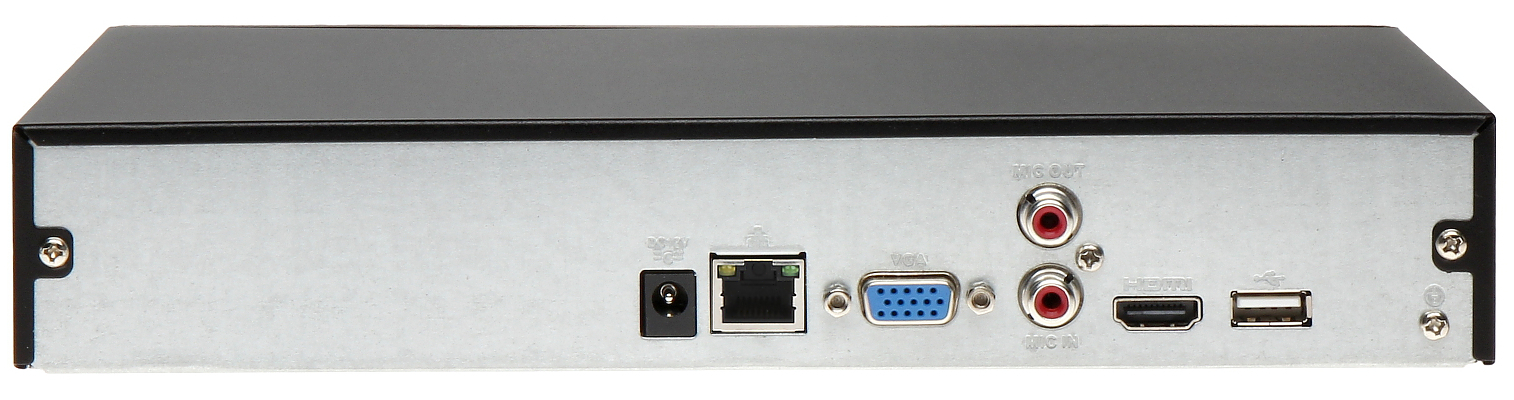

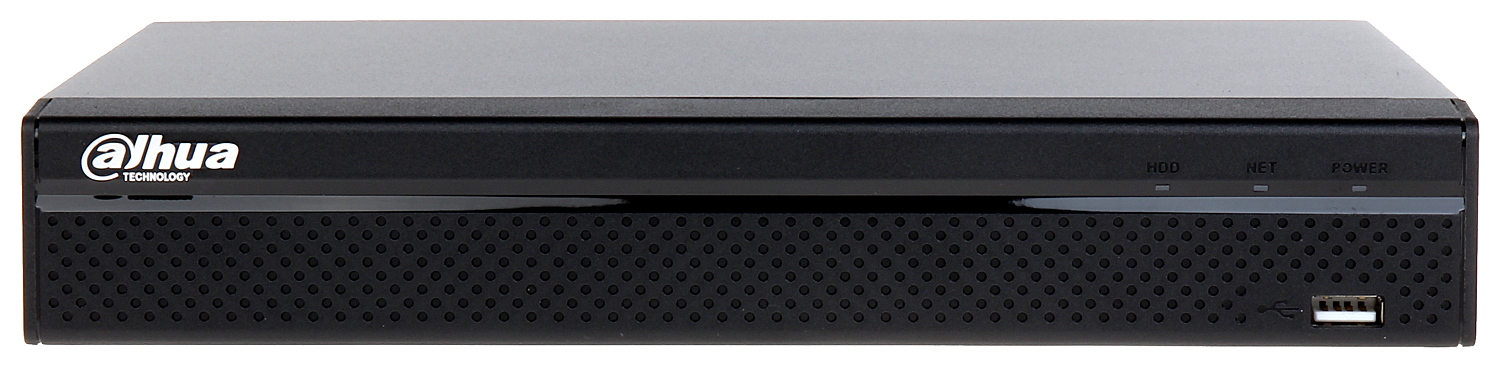

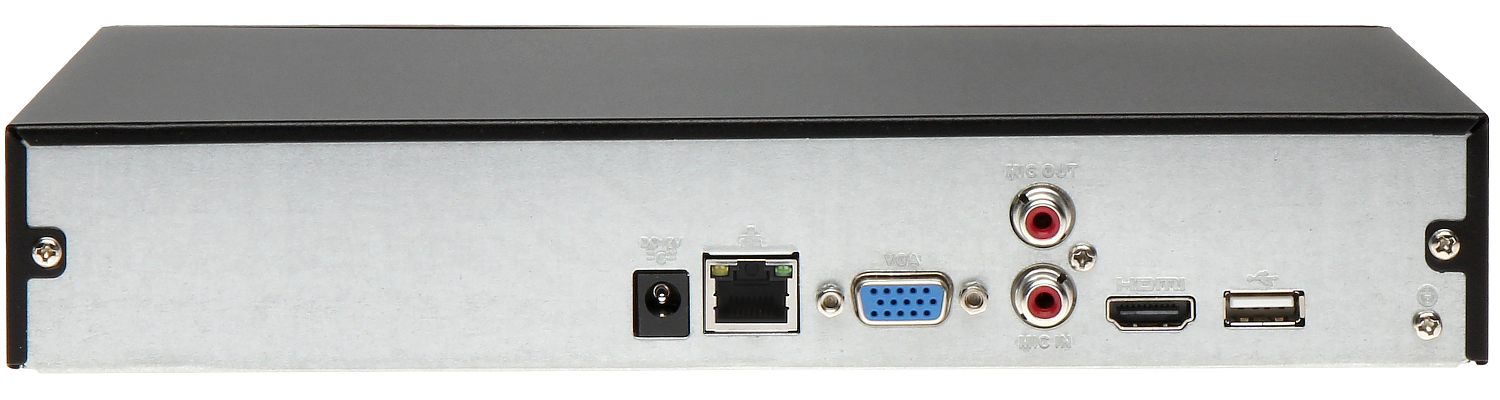

DVR:
| Model: | NVR4116HS-4KS3 |
| Standard: | IP |
| Supported resolutions: | max. 12 Mpx - 4000 x 3000 px |
| Video outputs: | 1 pcs HDMI 4K 1 pcs VGA |
| Audio support: | |
| Audio inputs: | 1 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Bitrate: | max. 160 Mbps (without AI) max. 80 Mbps (AI) |
| Supported hard drives: | 1 x 20 TB SATA |
| Recording modes: | Manual, Motion Detection, Schedule |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | |
| Network interface: | 1 x RJ-45 10/100/1000 Base-TX |
| Network functions: | Full support via network, Remote records copying, Web-Server built-in |
| ONVIF: | 22.12 |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / admin The administrator password should be set at the first start |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) See how to configure the P2P function in Dahua recorders and how to enable the mobile application |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| RTSP URL: | |
| USB: | 2 pcs USB 2.0 |
| Serial ports: |  |
| Alarm inputs / outputs: | |
| PTZ control: | IP Speed Dome Cameras |
| Motion Detection: |  |
| Intelligent Image Analysis: | |
| Mouse support: | |
| IR remote controller in the set: | |
| Switch PoE: | |
| Power supply: | 12 V DC / 2 A (power adapter included) |
| Power consumption: | max. 10 W (without HDD) |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 0.81 kg |
| Dimensions: | 260 x 233 x 48 mm |

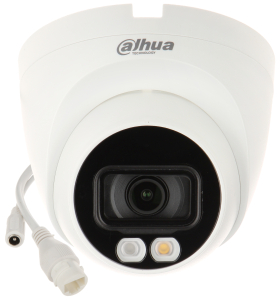

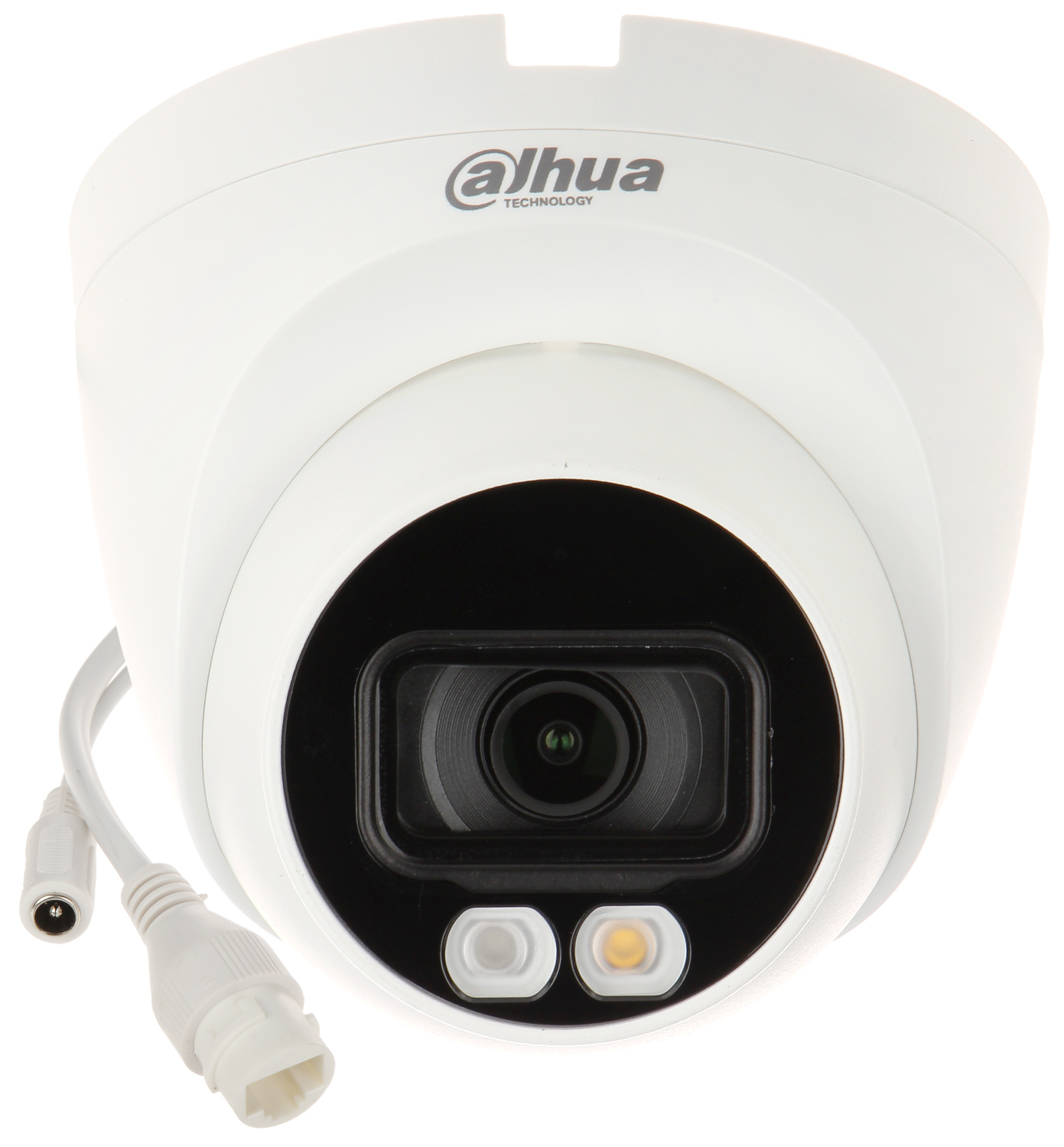

Camera 1:
| Model: | IPC-HDW1439V-A-IL-0280B |
| Number of cameras in the kit: | 8 pcs |
| Standard: | TCP/IP |
| Sensor: | 1/2.9 " Progressive Scan CMOS |
| Matrix size: | 4 Mpx |
| Resolution: | max. 2560 x 1440 - 3.7 Mpx |
| Lens: | 2.8 mm |
| View angle: | 94 ° |
| White light LED illuminator range: | 30 m |
| Range of IR illumination: | 30 m |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Main stream frame rate: | 25 fps @ 3,7 Mpx |
| Memory card slot: | |
| Alarm inputs / outputs: | |
| Audio: | |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 6 |
| ONVIF: | |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Main features: | |
| Housing: | Dome - Metal + Plastic |
| Color: | White |
| "Index of Protection": | IP67 |
| Power supply: | |
| Power consumption: | |
| Operation temp: | -40 °C ... 60 °C |
| Weight: | 0.33 kg |
| Dimensions: | Ø 110 x 101 mm |

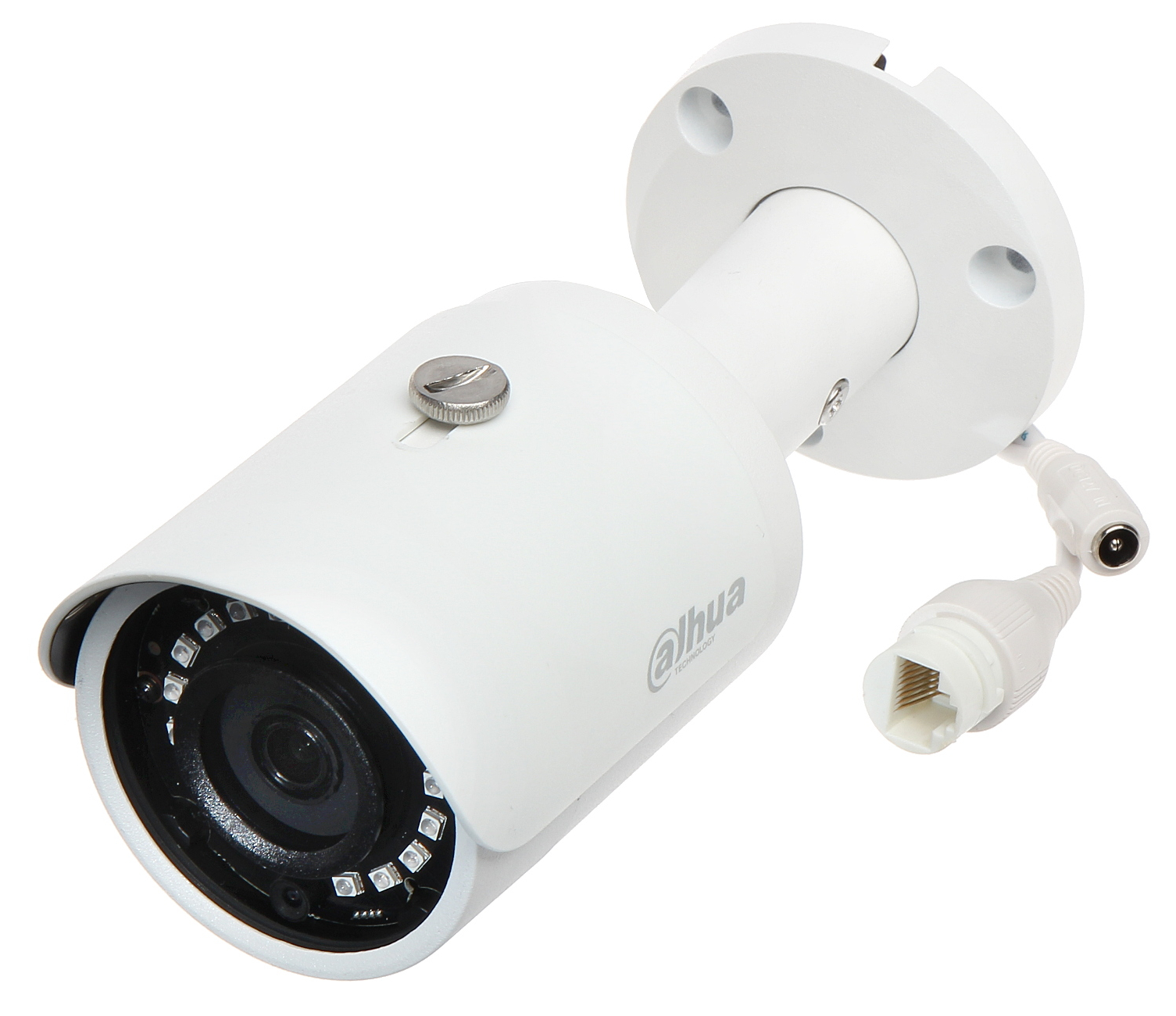

Camera 2:
| Model: | IPC-HFW1431S-0280B-S4 |
| Number of cameras in the kit: | 8 pcs |
| Standard: | TCP/IP |
| Sensor: | 1/3 " Progressive Scan CMOS |
| Matrix size: | 4.0 Mpx |
| Scanning system: | Progressive |
| Resolution: | max. 2688 x 1520 - 4.0 Mpx , |
| Lens: | 2.8 mm |
| View angle: | 106 ° |
| Range of IR illumination: | 30 m |
| S/N ratio: | > 50 dB |
| RS-485 interface: | |
| Memory card slot: | |
| Image compression method: | H.265 / H.264 / MJPEG |
| Alarm inputs / outputs: | |
| Audio: | |
| Main stream frame rate: | 20 fps @ 4.0 Mpx 25 fps @ 3.6 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | 16.12 |
| Default admin user / password: | admin / admin |
| Default IP address: | 192.168.1.108 |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Main features: | |
| Power supply: | |
| Power consumption: | ≤ 5.7 W |
| Housing: | Compact - Aluminum |
| Color: | White |
| "Index of Protection": | IP67 |
| Operation temp: | -30 °C ... 60 °C |
| Weight: | 0.4 kg |
| Dimensions: | Ø 70 x 165 mm |

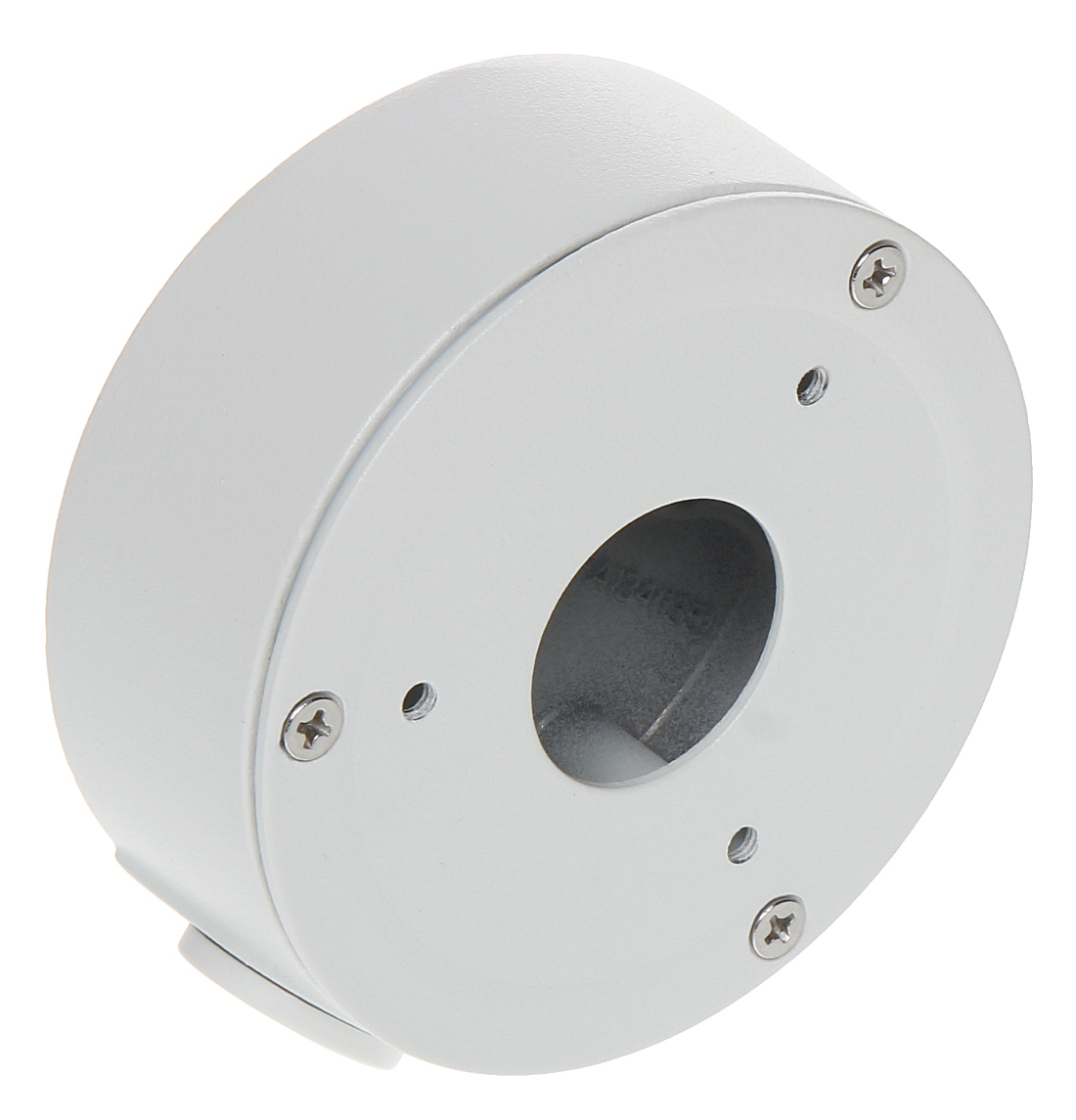

BRACKET 1:
| Model: | PFA134 |
| Number of brackets included: | 8 pcs |
| Mounting holes distance: | 48 mm |
| Number of holes: | 3 |
| Neck diameter: | Ø 91 mm |
| Material: | Aluminum |
| Color: | White |
| Distance from mounting surface: | 35 mm |
| Weight: | 0.22 kg |

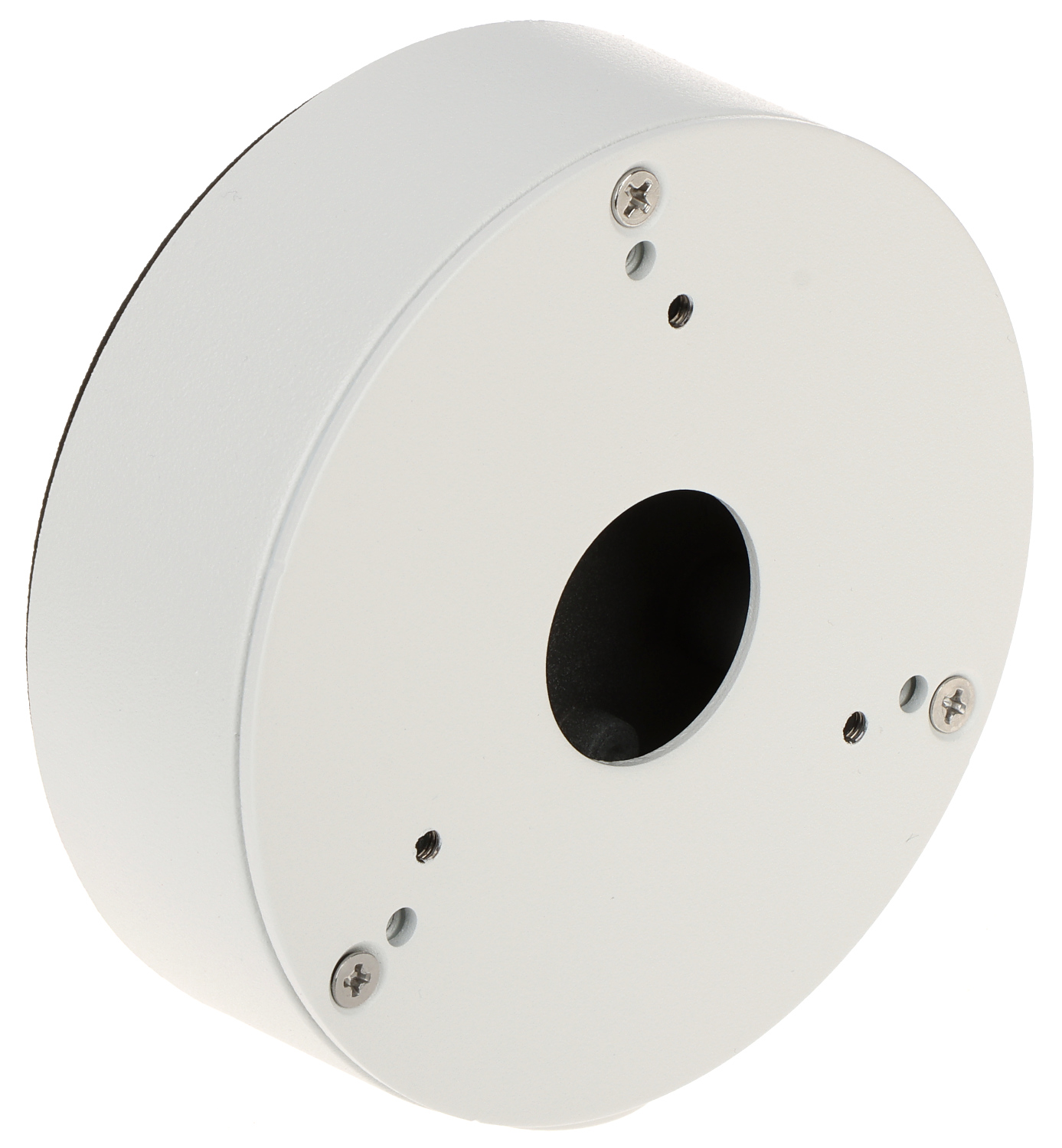

BRACKET 2:
| Model: | PFA13G |
| Number of brackets included: | 8 pcs |
| Mounting holes distance: | 60 mm, 72 mm |
| Number of holes: | 2 x 3 |
| Neck diameter: | Ø 112 mm |
| Material: | Aluminum alloy |
| Color: | White |
| Distance from mounting surface: | 36 mm |
| Weight: | 0.33 kg |

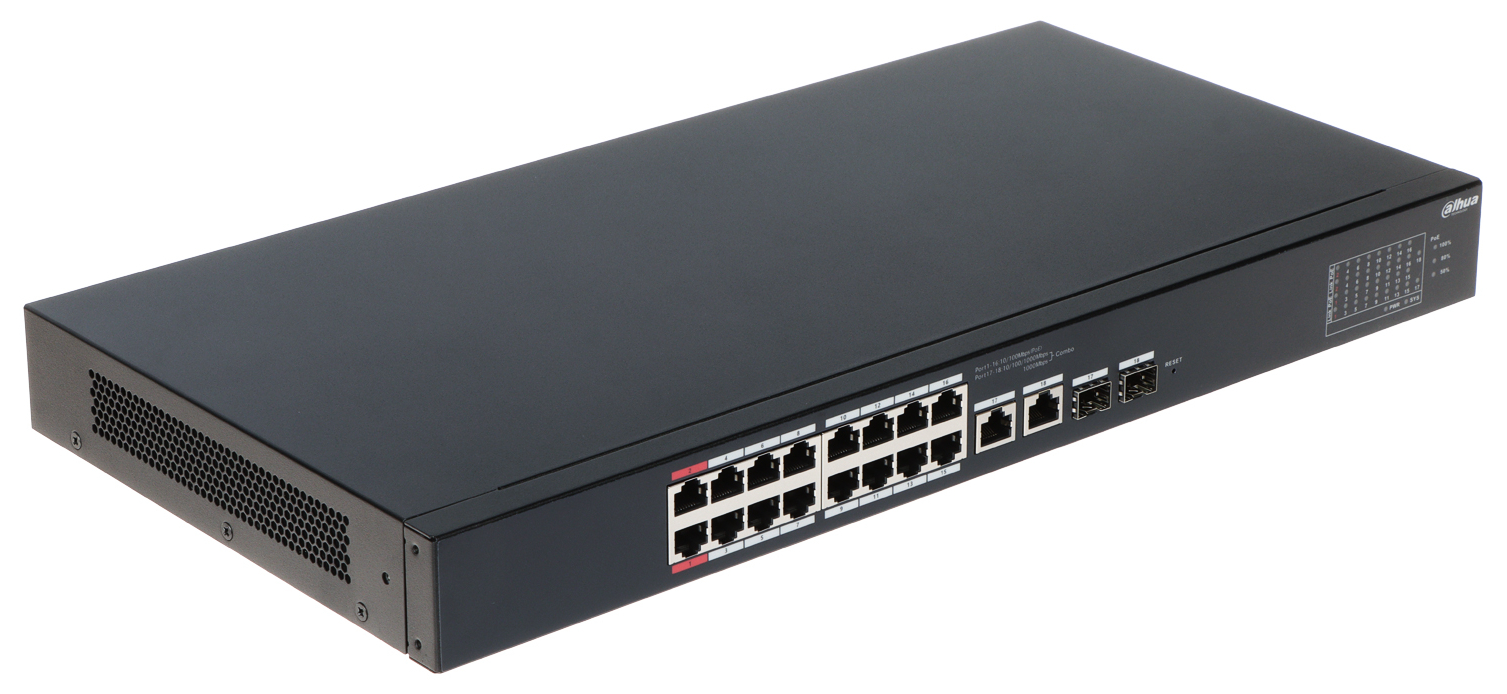

Switch:
| Model: | CS4218-16ET-135 |
| LAN ports: | |
| Management: | |
| Transmission speed: | |
| Maximal output power: | |
| Maximal total power: | 135 W |
| MAC addresses table: | 8k |
| Operation modes: | |
| Main features: | |
| Certificates: | CE |
| Housing: | Metal |
| Power supply: | 100 ... 240 V AC @ 47 ... 63 Hz |
| Power consumption: | max. 154 W |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 2.18 kg |
| Dimensions: | 440 x 220 x 44 mm, RACK 19", 1U |

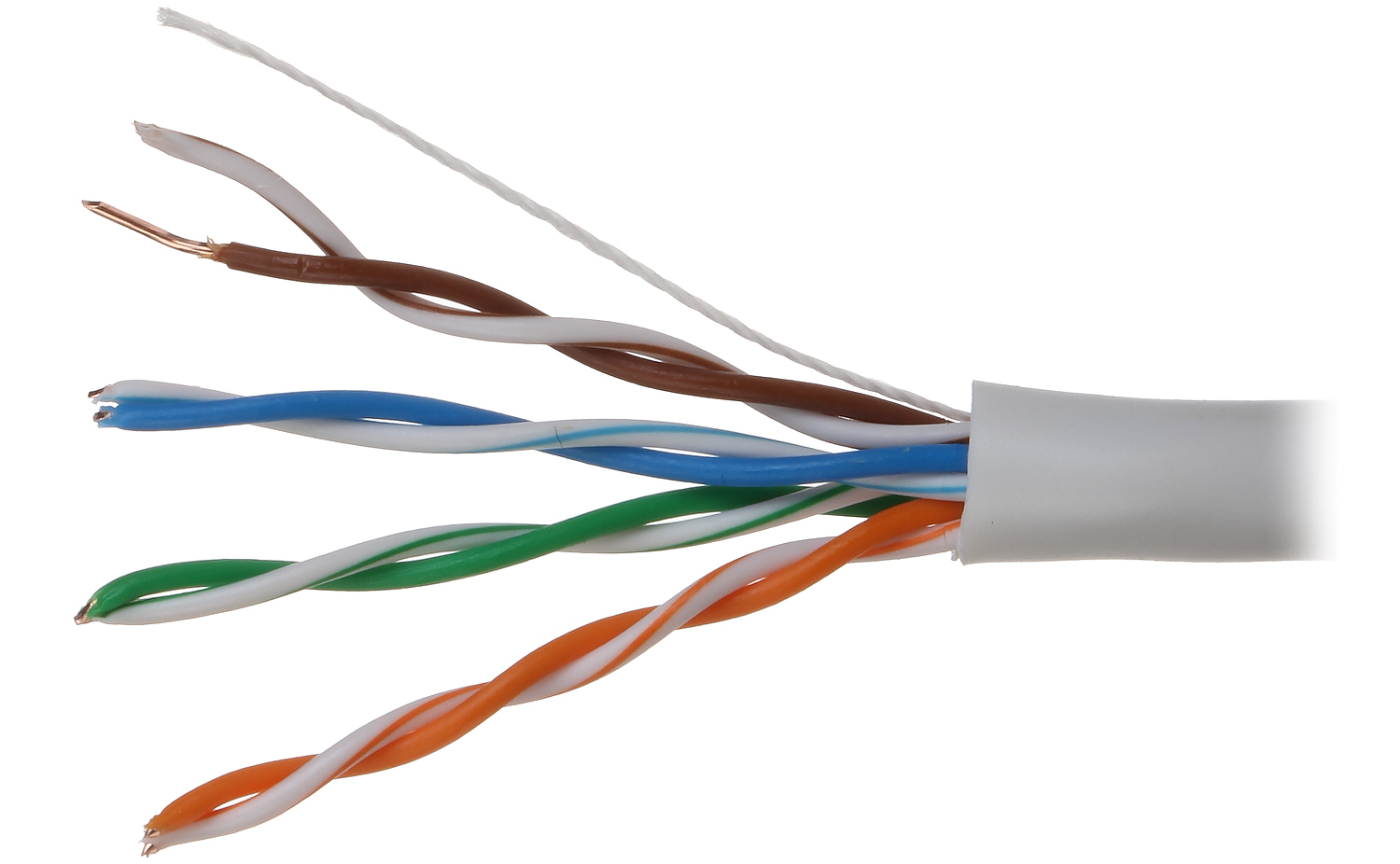

TWISTED-PAIR CABLE:
| Model: | PFM920I-5EUN |
| Length: | 305 m |
| Type: | UTP cat. 5e |
| Inner conductor: | Ø 0.45 mm Cu=99.99%, Wire |
| Resistance: | max. 12 Ω / 100 m |
| Shield: | |
| Outer coating: | Ø 4.7 mm PVC |
| Coating color: | White |
| Main features: | Parameters far exceeding the requirements for Category 5+ |
| Weight: | 24.5 kg/km |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
RJ-45 plug:
| Model: | RJ45T |
| In the kit: | 100 pcs |
| Connector type: | RJ-45 - Plug, 8 pin |
| Attachment of connector elements: | Crimping |
| Wire mounting: | Clamping on each wire with 3-pin edge |
| Application: | Twisted-pair cable, UTP cat. 5e, FTP cat. 5e |
| Material: | PET |
| Main features: | Very easy and quick assembly |
CRIMPING TOOL:
| Model: | HT-240T |
| Material: | Metal / PET |
| Application: | Plug RJ45 (8P8C) |
| Main features: | |
| Dimensions: | 200 x 75 x 25 mm |

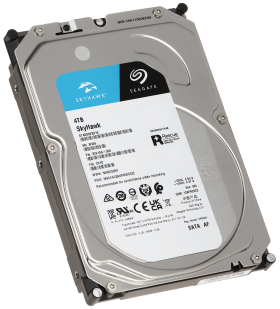

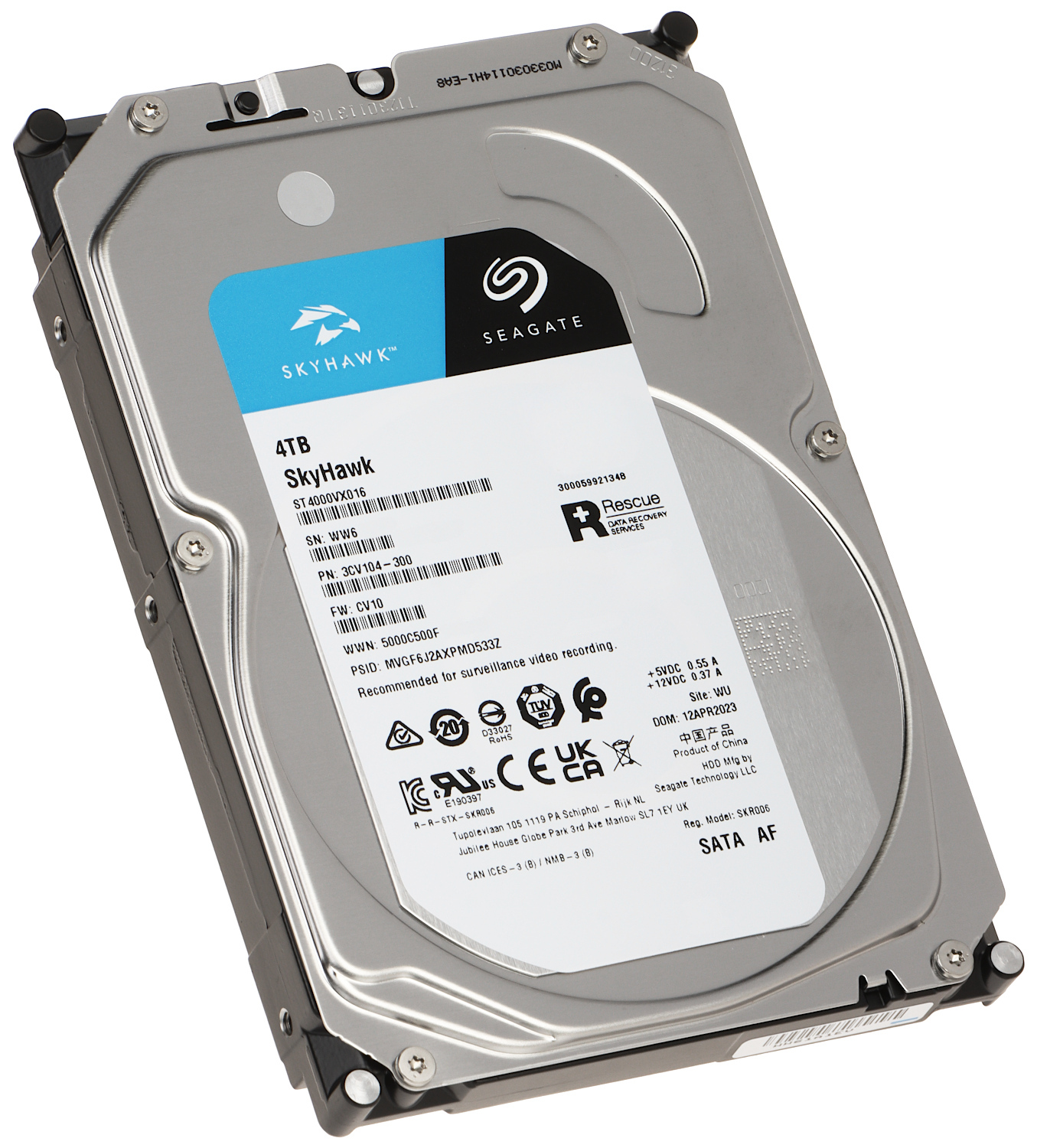

HDD:
| Model: | HDD-ST4000VX016 |
| Number of hard drives: | 1 pcs |
| Capacity: | 4 TB |
| Interface: | SATA 6 Gb/s |
| Size format: | 3.5 " |
| Cache memory: | 256 MB |
| Technology: | |
| Designed to continuous operation 24/7: | |
| Weight: | 0.432 kg |
| Manufacturer / Brand: | SEAGATE |
| Guarantee: | 3 years |
General information:
| Standard: | IP |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 2 years |
Brand:
Delta-Opti
