The kit consists of a DVR, a 1 TB hard drive, 4 tube cameras, a PoE switch, a 100 m long twisted-pair cable, a set of RJ45 plugs and a crimping tool; Supported resolutions: max. 12 Mpx - 4000 x 3000 px, ; Audio support: 4 Channels ; Image compression method: H.265+ ; Range of IR illumination: 30 m ; White light LED illuminator range: 30 m ; Transmission speed: 10 / 100 / 1000 Mbps ; Standard: IP ;
| Cameras: | 4 pcs IPC-HFW1439TL1-A-IL-0280B |
| Recorder: | 1 pcs NVR2104-S3 |
| HDD: | 1 pcs HDD-ST1000VX013 |
| Switch PoE: | 1 pcs SG1006P |
| Camera bracket: | 4 pcs PFA134 |
| Twisted-pair cable: | 100 m PFM920I-5EUN/100M |
| Crimping tool: | 1 pcs HT-240T |
| RJ-45 plug: | 100 pcs RJ45T |

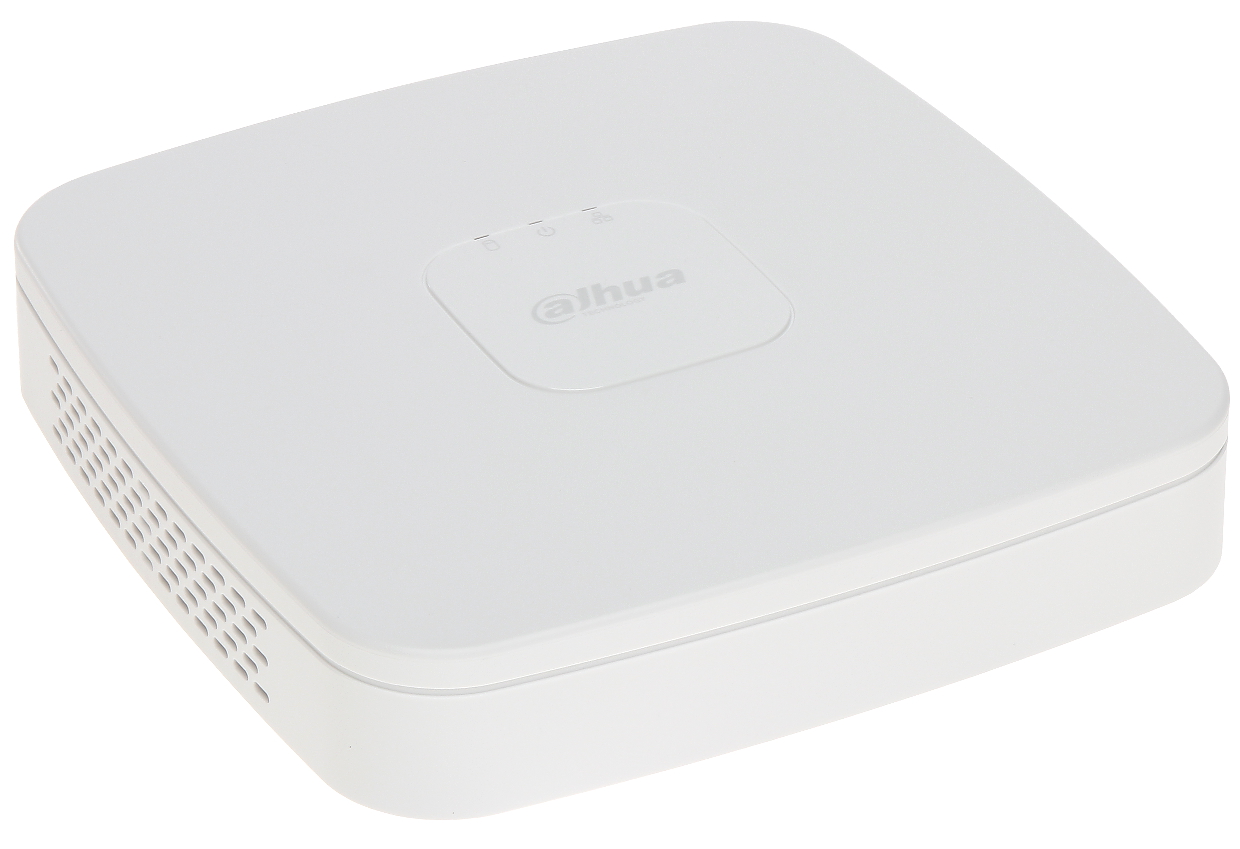

DVR:
| Model: | NVR2104-S3 |
| Standard: | IP |
| Supported resolutions: | max. 12 Mpx - 4000 x 3000 px, |

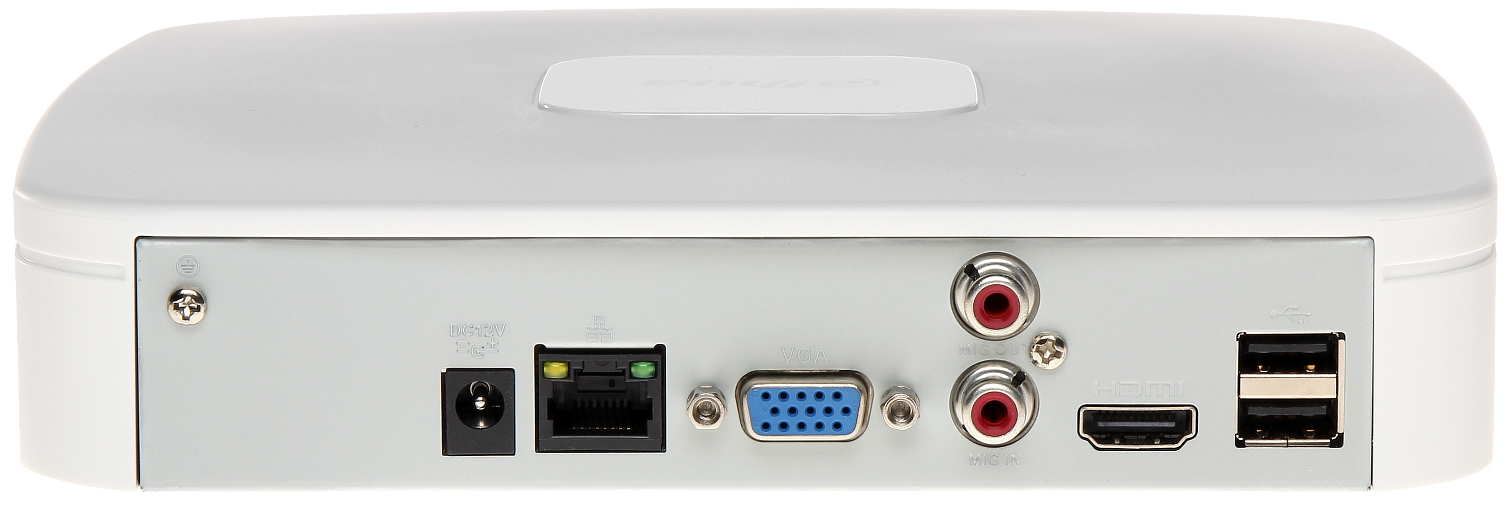

| Video outputs: | 1 pcs HDMI 1 pcs VGA |
| Audio support: | 4 Channels - Audio from cameras |
| Audio inputs: | 1 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Supported hard drives: | 1 x 16 TB SATA |
| Recording modes: | Manual, Motion Detection, Schedule |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: by time and events type. Records playback: forward, backward, fast, slow "Frame by Frame" playback function Channels played simultaneously : 1 @ 12 Mpx, 30 fps 1 @ 8 Mpx, 30 fps 2 @ 5 Mpx, 30 fps 3 @ 4 Mpx, 30 fps 6 @ 1080p, 30 fps |
| Bitrate: | max. 80 Mbps |
| Network functions: | Full support via network, Remote records copying, Web-Server built-in |
| ONVIF: |  |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) See how to configure the P2P function in Dahua recorders and how to enable the mobile application |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Alarm inputs / outputs: |  |
| PTZ control: | IP PTZ control |
| Motion Detection: | |
| USB: | 2 pcs USB 2.0 |
| Main features: | Functions implemented in cooperation between the recorder and cameras that support these functions |
| Mouse support: | |
| IR remote controller in the set: | |
| Power supply: | 12 V DC / 1.5 A (power adapter included) |
| Weight: | 0.42 kg |
| Dimensions: | 205 x 206 x 48 mm |
| Supported languages: | Polish, English |

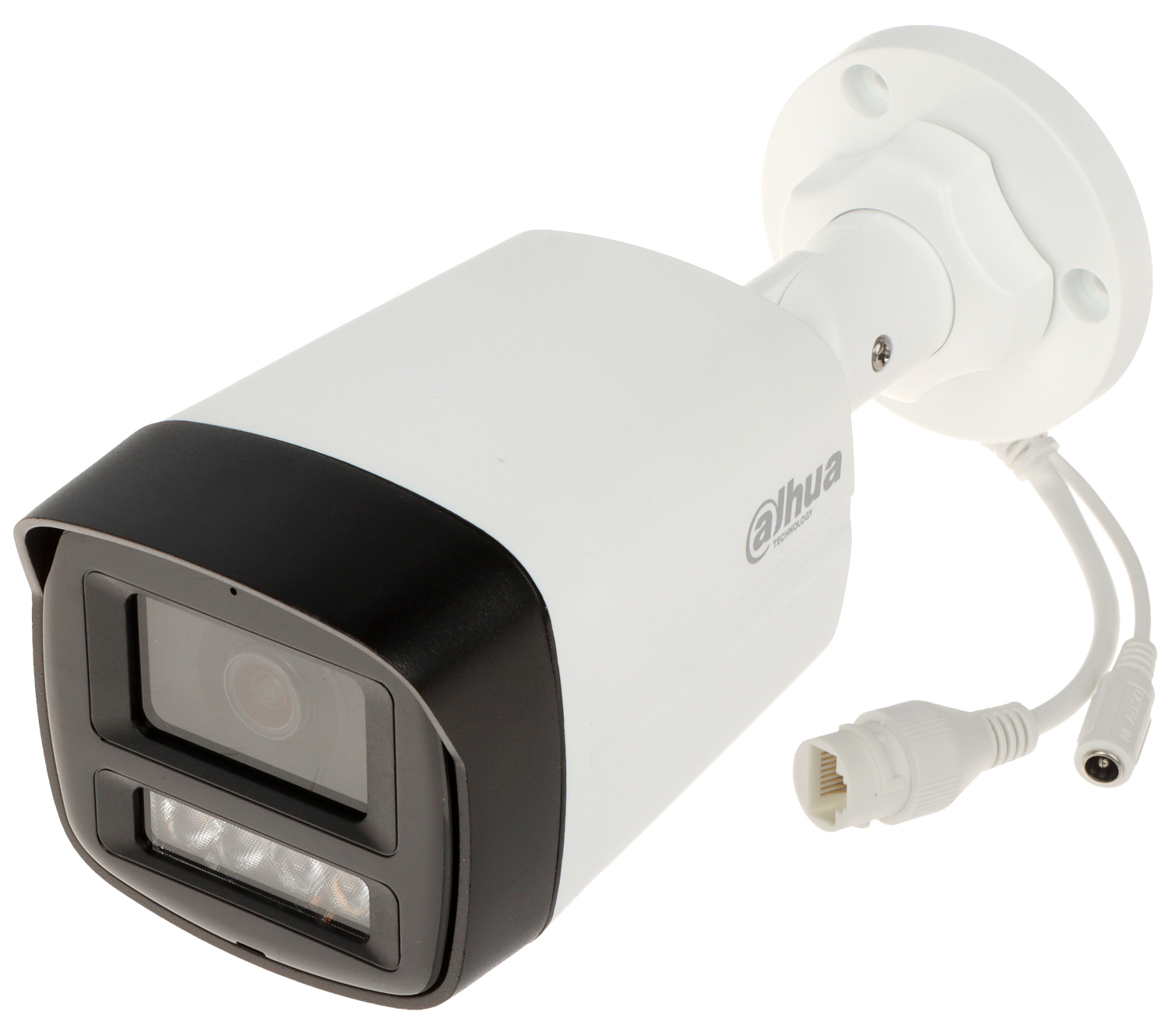

CAMERA:
| Model: | IPC-HFW1439TL1-A-IL-0280B |
| Number of cameras in the kit: | 4 pcs |
| Standard: | IP |
| Sensor: | 1/2.9 " Progressive Scan CMOS |
| Matrix size: | 4 Mpx |
| Resolution: | 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx , 1280 x 720 - 720p |
| Lens: | 2.8 mm |
| View angle: | 94 ° |
| Range of IR illumination: | 30 m |
| White light LED illuminator range: | 30 m |
| S/N ratio: | > 56 dB |
| Memory card slot: | |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs / outputs: | |
| Audio: | |
| Main stream frame rate: | 25 fps @ 3.7 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 6 |
| ONVIF: | |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Main features: | |
| Power supply: | |
| Power consumption: | |
| Housing: | Compact - Metal |
| Color: | White + Black |
| "Index of Protection": | IP67 |
| Vandal-proof: | |
| Operation temp: | -40 °C ... 60 °C |
| Weight: | 0.31 kg |
| Dimensions: | 198 x 80 x 76 mm |

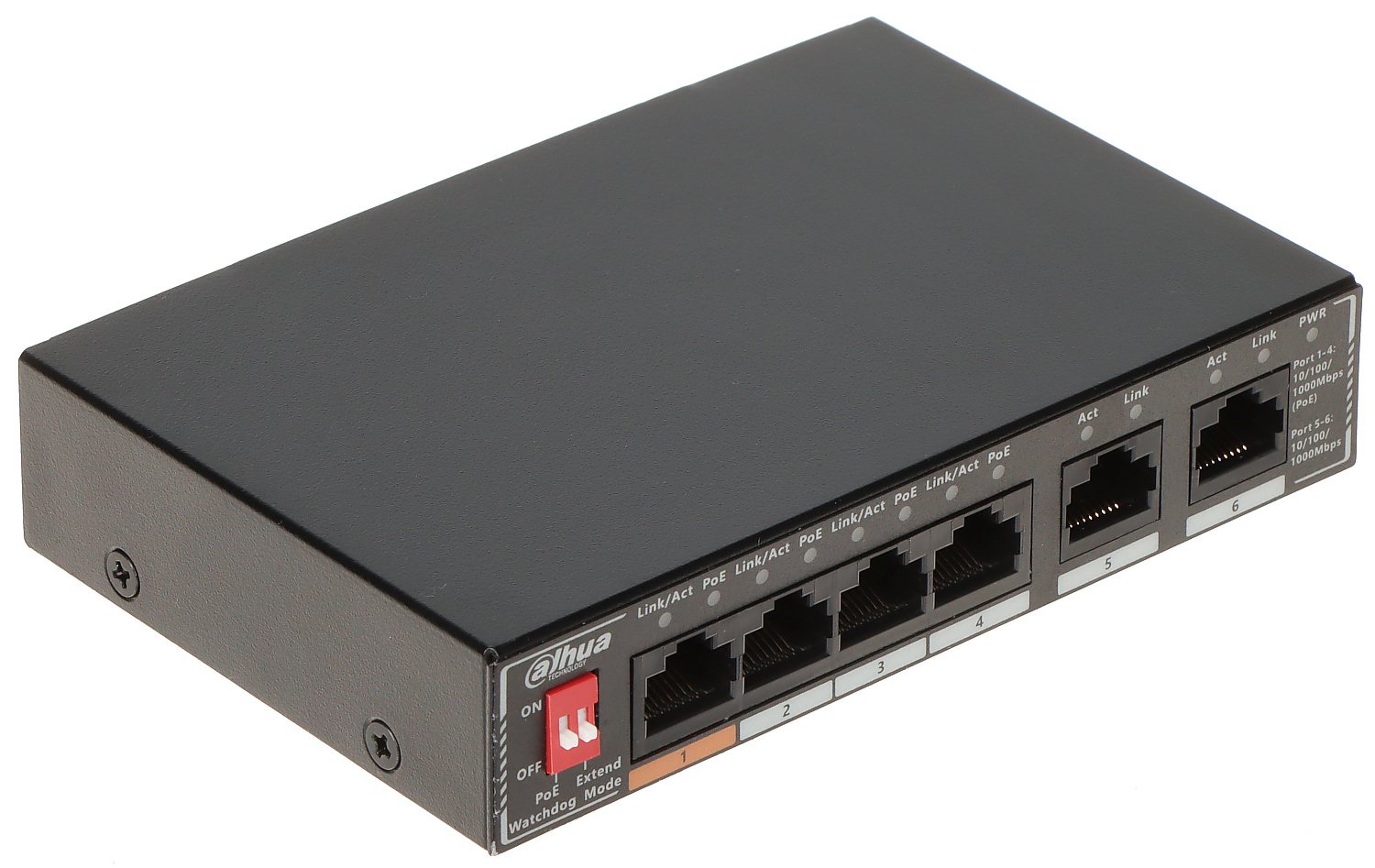

Switch PoE:
| Model: | SG1006P |
| LAN ports: | |
| Management: | |
| LED diodes: | Power, PoE, Link/Act |
| Transmission speed: | 10 / 100 / 1000 Mbps : 4 LAN & PoE ports + 2 Uplink ports |
| Maximal output power: | |
| Maximal total power: | 60 W |
| MAC addresses table: | 2k |
| Operation modes: | Extend On : 250 m, 10 Mbps @ UTP cat. 5e, 6 |
| Main features: | |
| Certificates: | CE |
| Protections: | |
| Housing: | Desktop, Metal |
| Power supply: | 53 V DC / 1.22 A (power adapter included) |
| Operation temp: | -10 °C ... 55 °C |
| Weight: | 0.29 kg |
| Dimensions: | 130 x 85 x 26 mm |

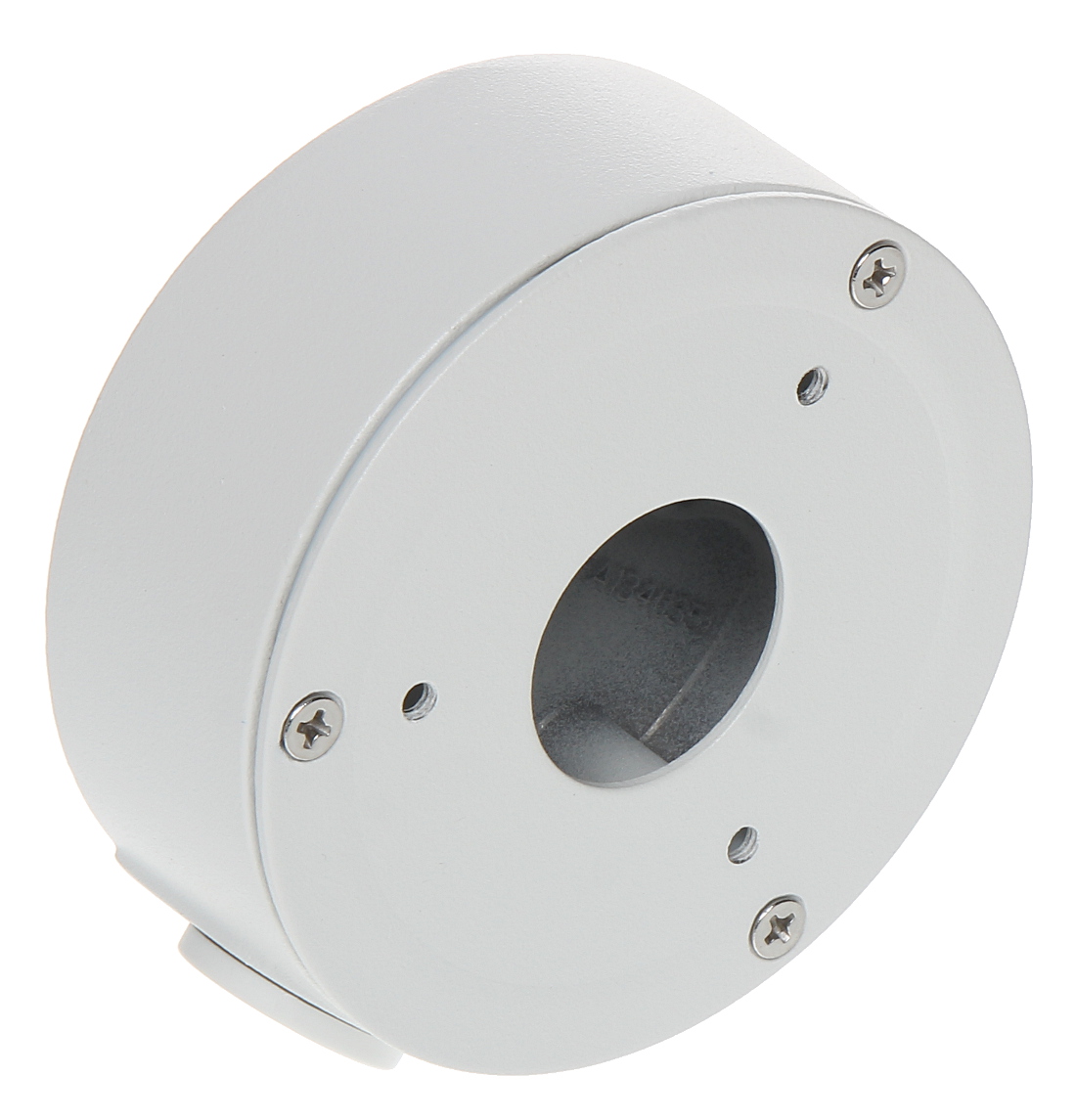

BRACKET:
| Model: | PFA134 |
| Number of brackets included: | 4 pcs |
| Mounting holes distance: | 48 mm |
| Number of holes: | 3 |
| Neck diameter: | Ø 91 mm |
| Suitable for cameras: | DAHUA - documentation for download below. |
| Material: | Aluminum |
| Color: | White |
| Distance from mounting surface: | 35 mm |
| Weight: | 0.22 kg |
| Dimensions: | Ø 90 x 35 mm |

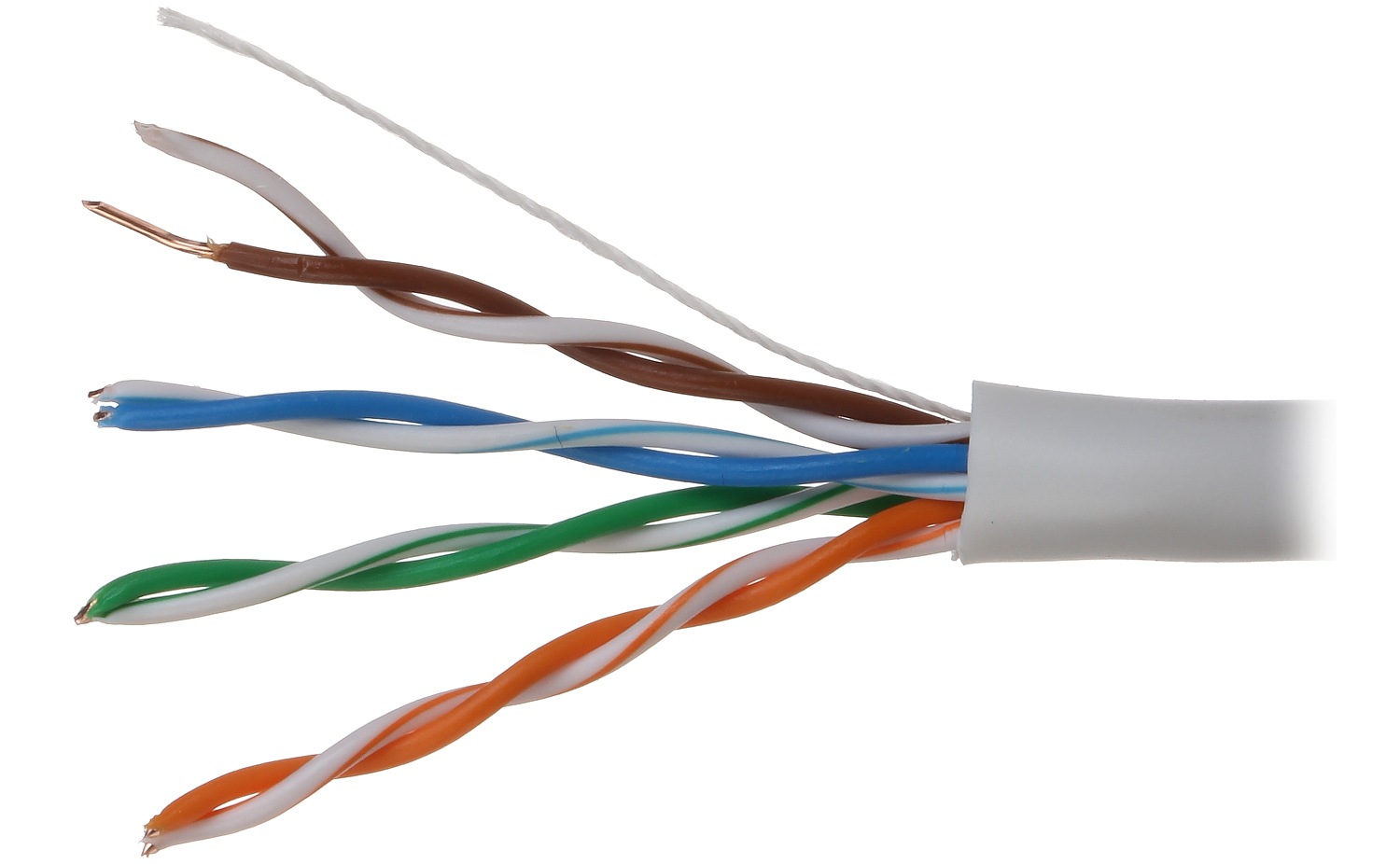

TWISTED-PAIR CABLE:
| Model: | PFM920I-5EUN/100M |
| Length: | 100 m |
| Type: | UTP cat. 5e |
| Inner conductor: | Ø 0.45 mm Cu=99.99%, Wire |
| Resistance: | max. 12 Ω / 100 m |
| Shield: | |
| Outer coating: | Ø 4.7 mm PVC |
| Coating color: | White |
| Main features: | Parameters far exceeding the requirements for Category 5+ |
| Weight: | 24.5 kg/km |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |

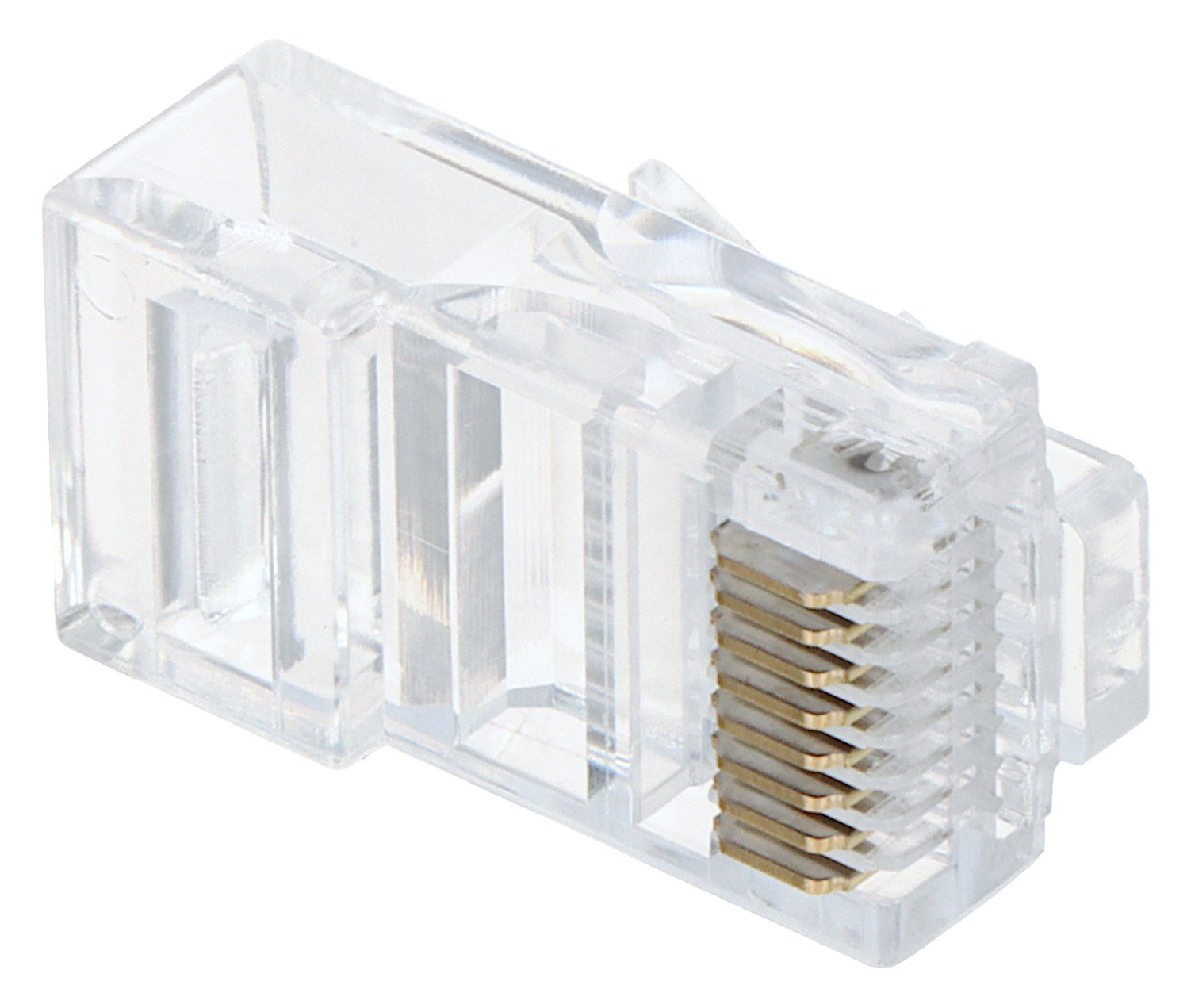

RJ-45 plug:
| Model: | RJ45T |
| In the kit: | 100 pcs |
| Connector type: | RJ-45 - Plug, 8 pin |
| Attachment of connector elements: | Crimping |
| Wire mounting: | Clamping on each wire with 3-pin edge |
| Application: | Twisted-pair cable, UTP cat. 5e, FTP cat. 5e |
| Material: | PET |
| Main features: | Very easy and quick assembly |

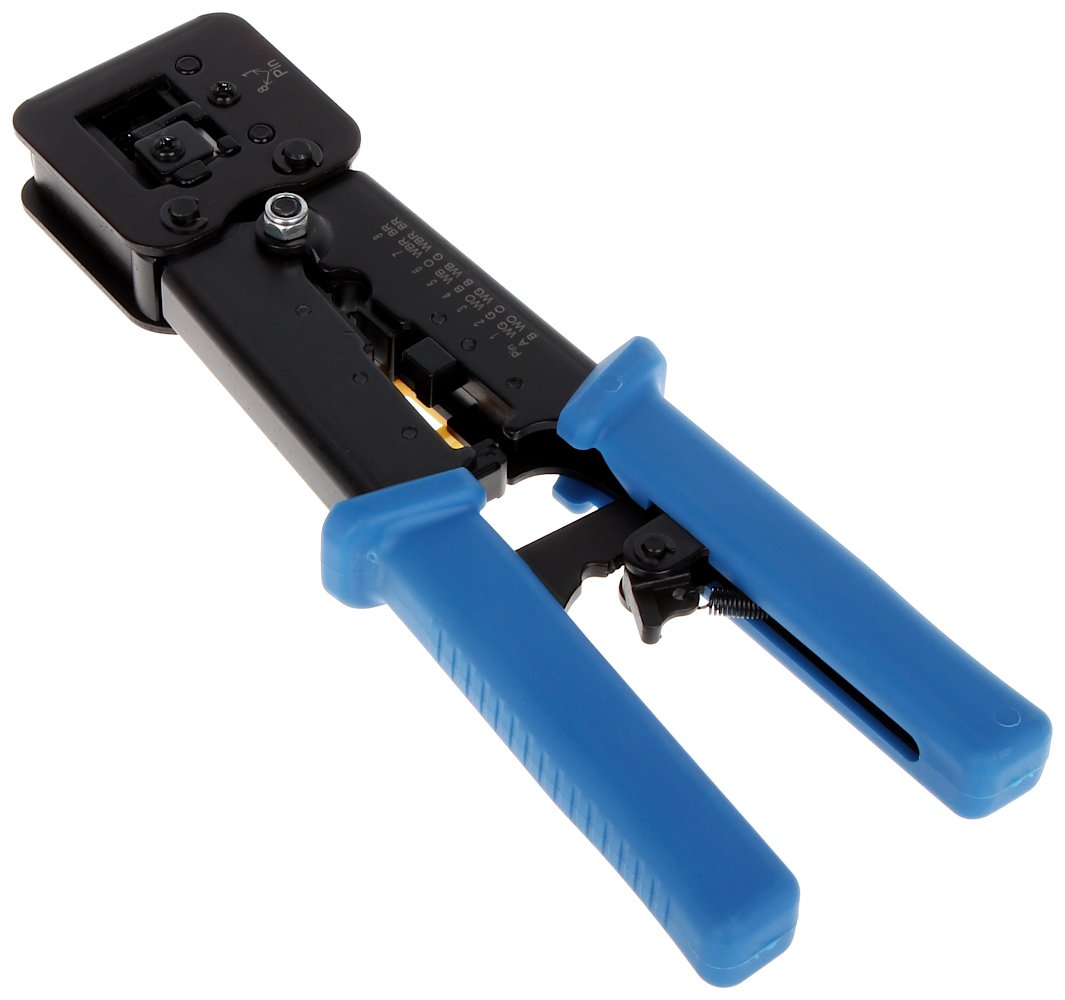

CRIMPING TOOL:
| Model: | HT-240T |
| Material: | Metal / PET |
| Application: | Plug RJ45 (8P8C) |
| Main features: | |
| Dimensions: | 200 x 75 x 25 mm |

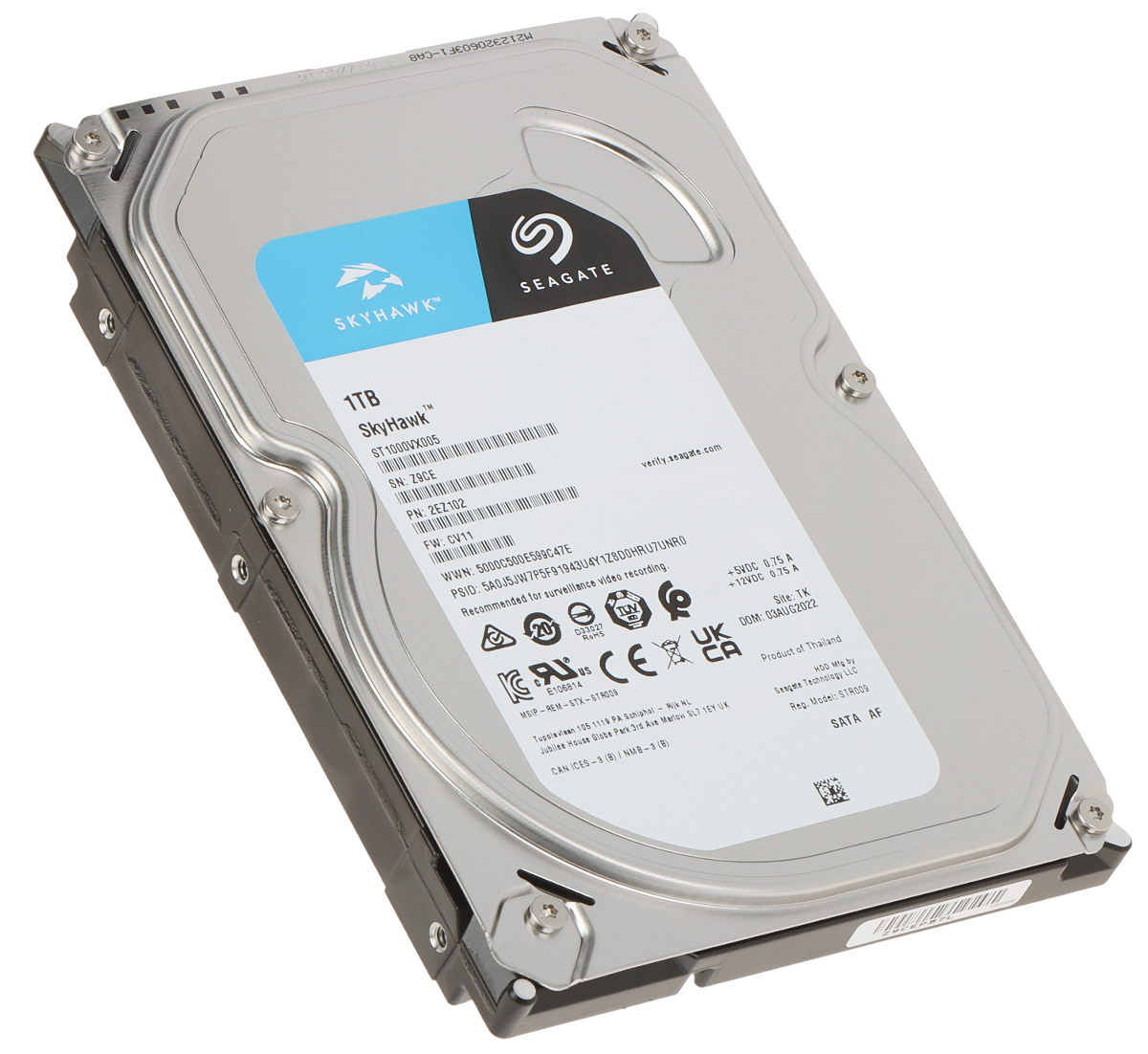

HDD:
| Model: | HDD-ST1000VX013 |
| Number of hard drives: | 1 pcs |
| Capacity: | 1 TB |
| Interface: | SATA 6 Gb/s |
| Size format: | 3.5 " |
| Cache memory: | 64 MB |
| Designed to continuous operation 24/7: | |
| Weight: | 0.39 kg |
| Manufacturer / Brand: | SEAGATE |
| Guarantee: | 3 years |
General information:
| Standard: | IP |
| Supported languages: | Polish, English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 2 years |
