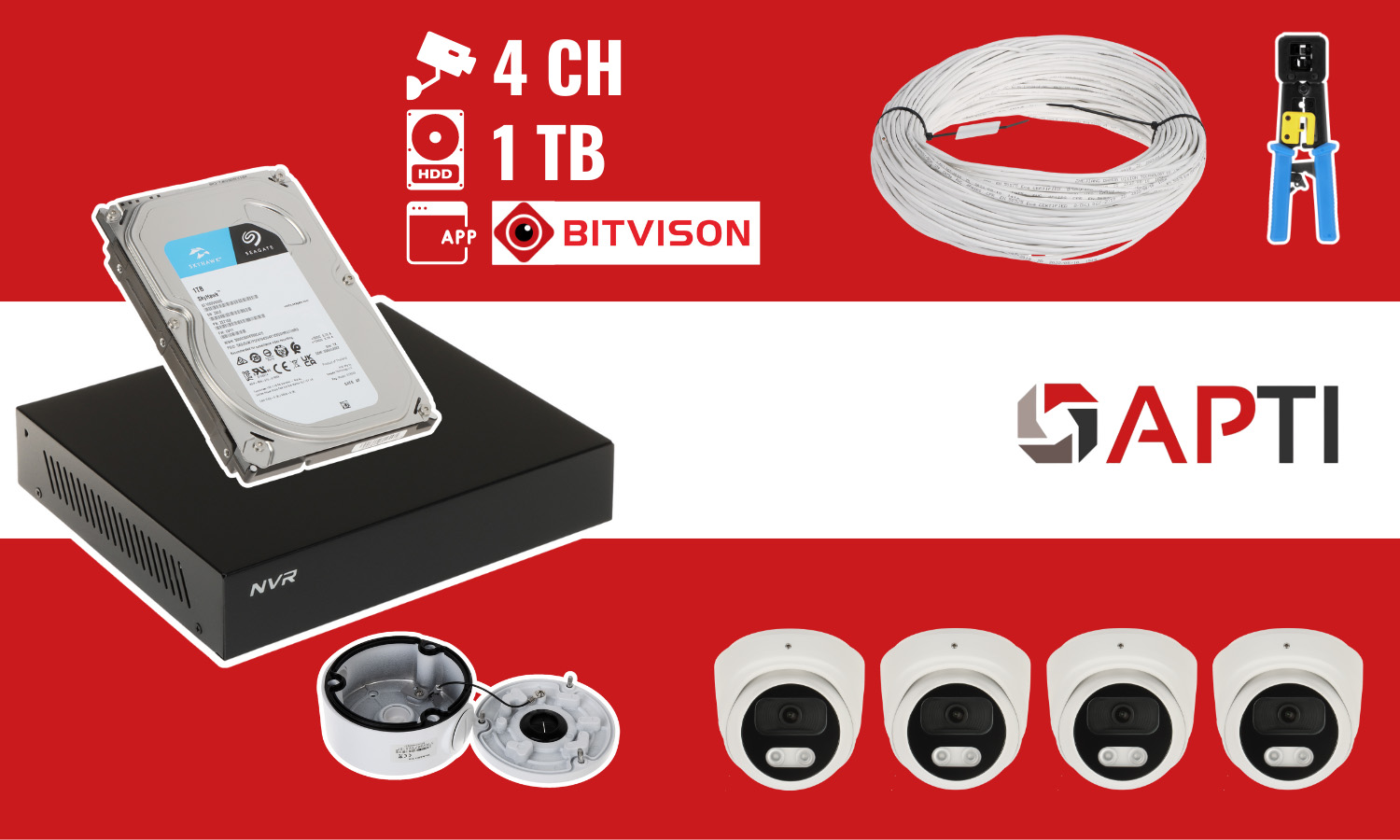

The kit consists of a DVR, a 1 TB hard drive, 4 dome cameras, a 100 m long twisted pair cable, a set of RJ45 plugs and a crimping tool; Standard: IP ; Audio support: 9 Channels ; Image compression method: H.265+ ; Resolution: 2688 x 1512 - 4 Mpx ; Designed to continuous operation 24/7;
| Cameras: | 4 pcs APTI-AI401VA21-28W |
| Recorder: | 1 pcs APTI-N0901-4P-S4 |
| HDD: | 1 pcs HDD-ST1000VX013 |
| Camera bracket: | 4 pcs BD-310 |
| Twisted-pair cable: | 100 m PFM920I-5EUN/100M |
| Crimping tool: | 1 pcs HT-240T |
| RJ-45 plug: | 100 pcs RJ45T |

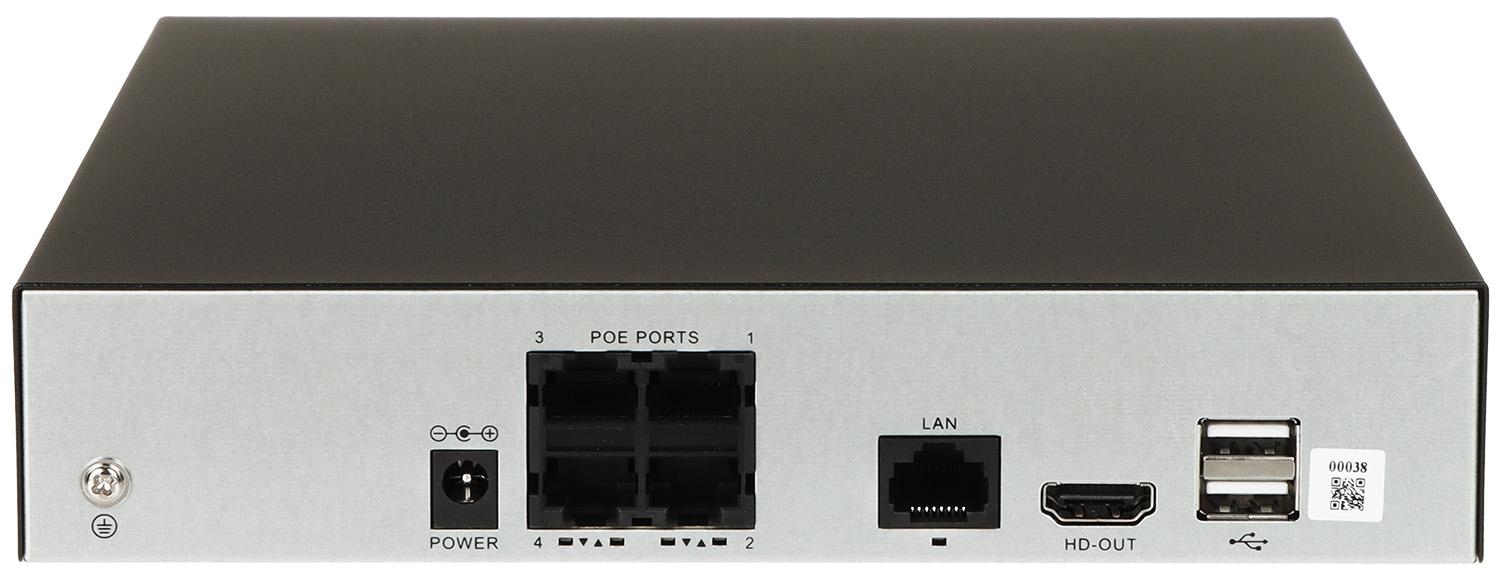

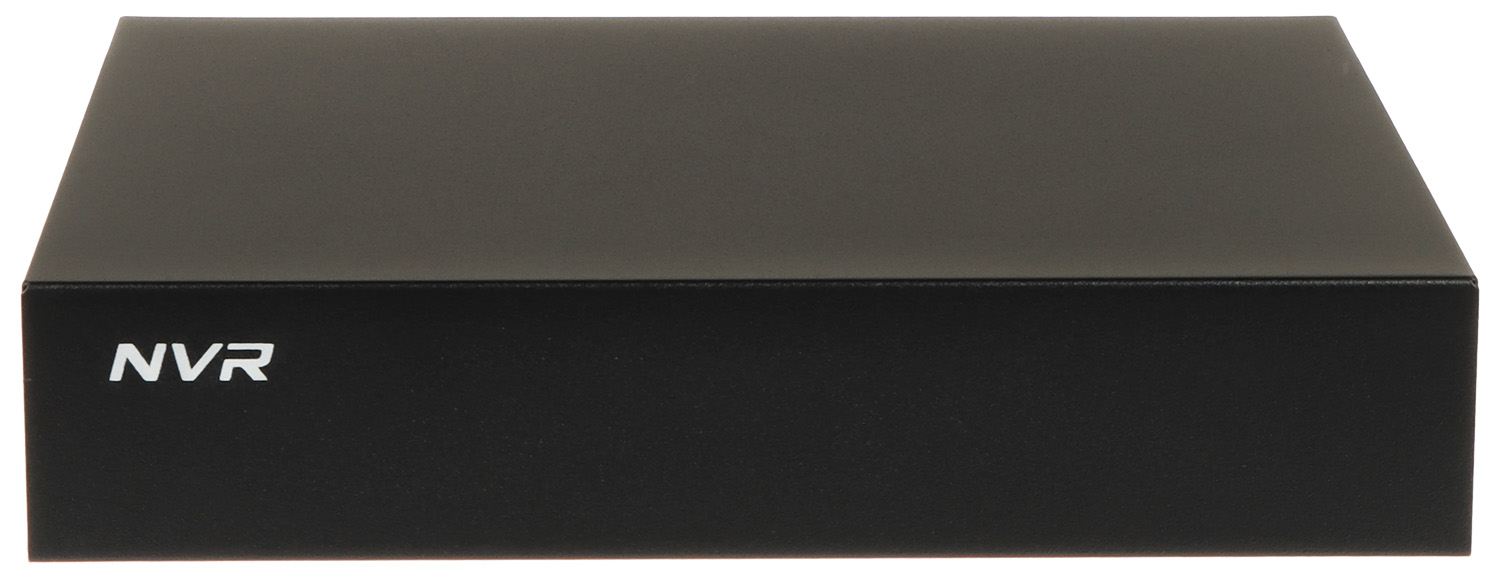

DVR:
| Model: | APTI-N0901-4P-S4 |
| Standard: | IP |
| Supported resolutions: | max. 8.3 Mpx 4K UHD - 3840 x 2160 px |
| Video outputs: | 1 pcs HDMI |
| Audio support: | 9 Channels - Audio from cameras |
| Audio inputs: |  |
| Audio outputs: | |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate: | 72 Mbps (incoming) |
| Supported hard drives: | 1 x 8 TB SATA |
| Recording modes: | Manual, Motion Detection, Schedule |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: by time and events type. Records playback: forward, backward, fast, slow Channels played simultaneously : 1 @ 8 Mpx, 30 fps 1 @ 5 Mpx, 30 fps 2 @ 4 Mpx, 30 fps 2 @ 3 Mpx, 30 fps 4 @ 1080p, 30 fps 9 @ 720p, 30 fps |
| Network interface: | 1 x RJ-45 10/100 Base-TX |
| Network functions: | Network Client Software and IE browser: live view, playback and backup of the records, configuration of the recorder parameters |
| ONVIF: |  |
| Default IP address: | 192.168.1.88 |
| Default admin user / password: | admin / 12345 |
| Mobile phones support: | Access by a cloud (P2P) |
| Web browser access ports: | 80, 5000, 554 |
| PC client access ports: | 80, 5000, 554 |
| USB: | 2 pcs USB 2.0 |
| Serial ports: | |
| Alarm inputs / outputs: | |
| PTZ control: | IP Speed Dome Cameras |
| Motion Detection: | Split the screen into zones : 22 x 18 motion zones |
| Intelligent Image Analysis: | |
| Main features: | |
| Mouse support: | |
| IR remote controller in the set: | |
| Switch PoE: | 4-port PoE Switch built-in : 30 W / Channel - PoE (802.3at) |
| Maximum total switch load: | 45 W |
| Power supply: | 48 V DC / 1.36 A (power adapter included) |
| Power consumption: | max. 6 W (without HDD & PoE) |
| Operation temp: | -10 °C ... 50 °C |
| Weight: | 0.57 kg |
| Dimensions: | 200 x 175 x 40 mm |
| Supported languages: | Polish, English, Bulgarian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Ukrainian, Italian |
Camera:
| Model: | APTI-AI401VA21-28W |
| Number of cameras in the kit: | 4 pcs |
| Resolution: | 2688 x 1512 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 1920 x 1080 - 1080p , 1280 x 720 720p |
| Sensor: | 1/3 " Progressive Scan CMOS |
| Lens: | 2.8 mm |
| View angle: | 89 ° |
| Range of IR illumination: | 30 m |
| Memory card slot: | |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs / outputs: | |
| Audio: | |
| Main stream frame rate: | 25 fps @ 4 Mpx |
| Network interface: | 10/100 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of on-line users: | 10 |
| ONVIF: | |
| Intelligent Image Analysis: | intrusion |
| Main features: | |
| Mobile phones support: | Port no.: 80 or access by a cloud (P2P) |
| Default IP address: | 192.168.1.168 |
| Default admin user / password: | admin / 123456 (older FW versions: admin) The administrator password should be set at the first start |
| Web browser access ports: | 80 |
| PC client access ports: | 80 |
| Mobile client access ports: | 80 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://user:password@ip_address:80/0 - Main stream rtsp://user:password@ip_address:80/1 - Sub stream |
| Power supply: | |
| Power consumption: | ≤ 3.6 W |
| Housing: | Dome, Metal |
| Color: | White |
| "Index of Protection": | IP67 |
| Operation temp: | -20 °C ... 60 °C |
| Weight: | 0.47 kg |
| Dimensions: | Ø 96 x 91 mm |

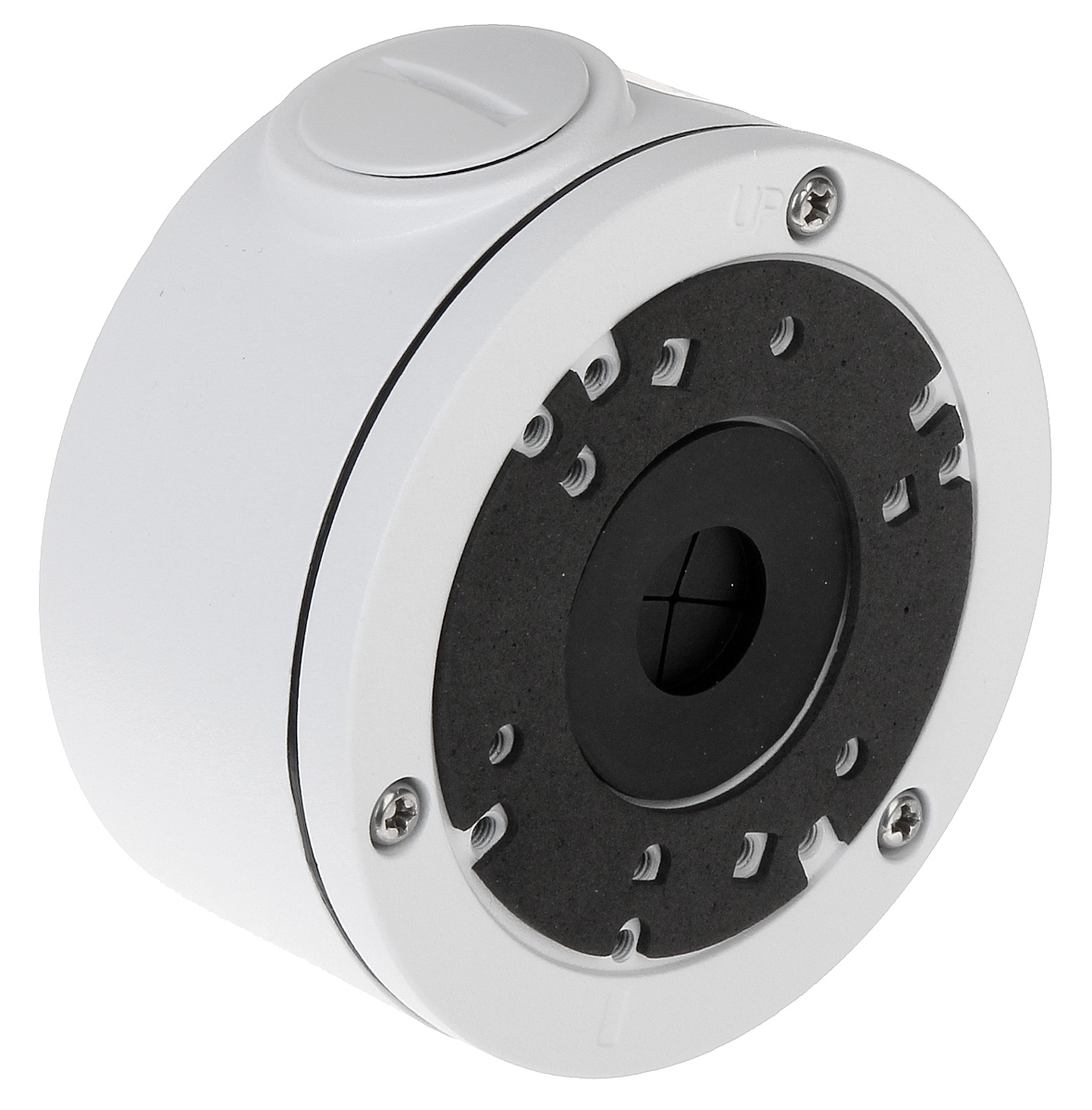

BRACKET:
| Model: | BD-310 |
| Number of brackets included: | 16 pcs |
| Neck diameter: | Ø 101 mm |
| Material: | Aluminum |
| Color: | White |
| Distance from mounting surface: | 51 mm |
| Weight: | 0.324 kg |
| Dimensions: | Ø 101 x 51 mm |

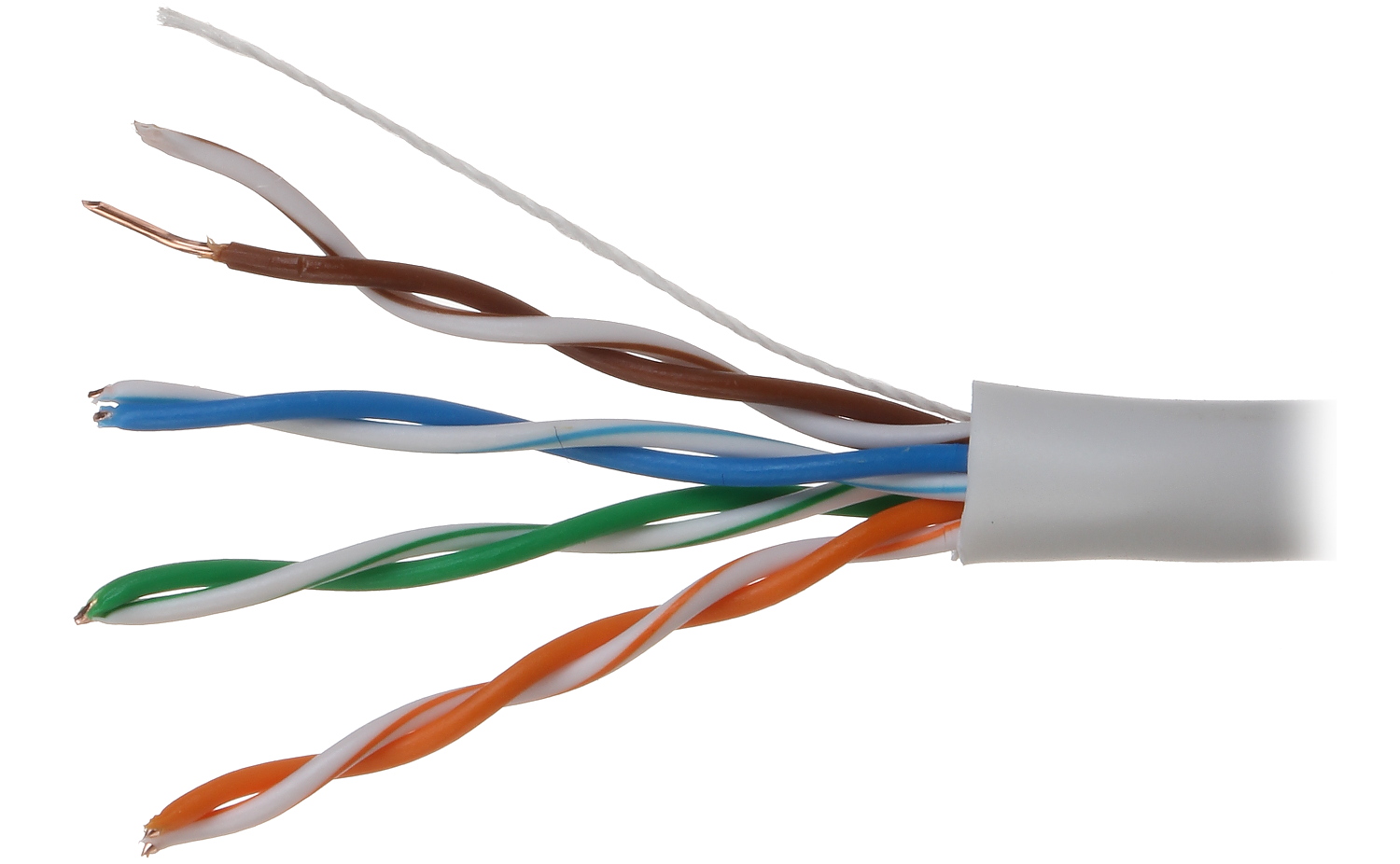

TWISTED-PAIR CABLE:
| Model: | PFM920I-5EUN/100M |
| Length: | 100 m |
| Type: | UTP cat. 5e |
| Inner conductor: | Ø 0.45 mm Cu=99.99%, Wire |
| Resistance: | max. 12 Ω / 100 m |
| Shield: | |
| Outer coating: | Ø 4.7 mm PVC |
| Coating color: | White |
| Main features: | Parameters far exceeding the requirements for Category 5+ |
| Weight: | 24.5 kg/km |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |

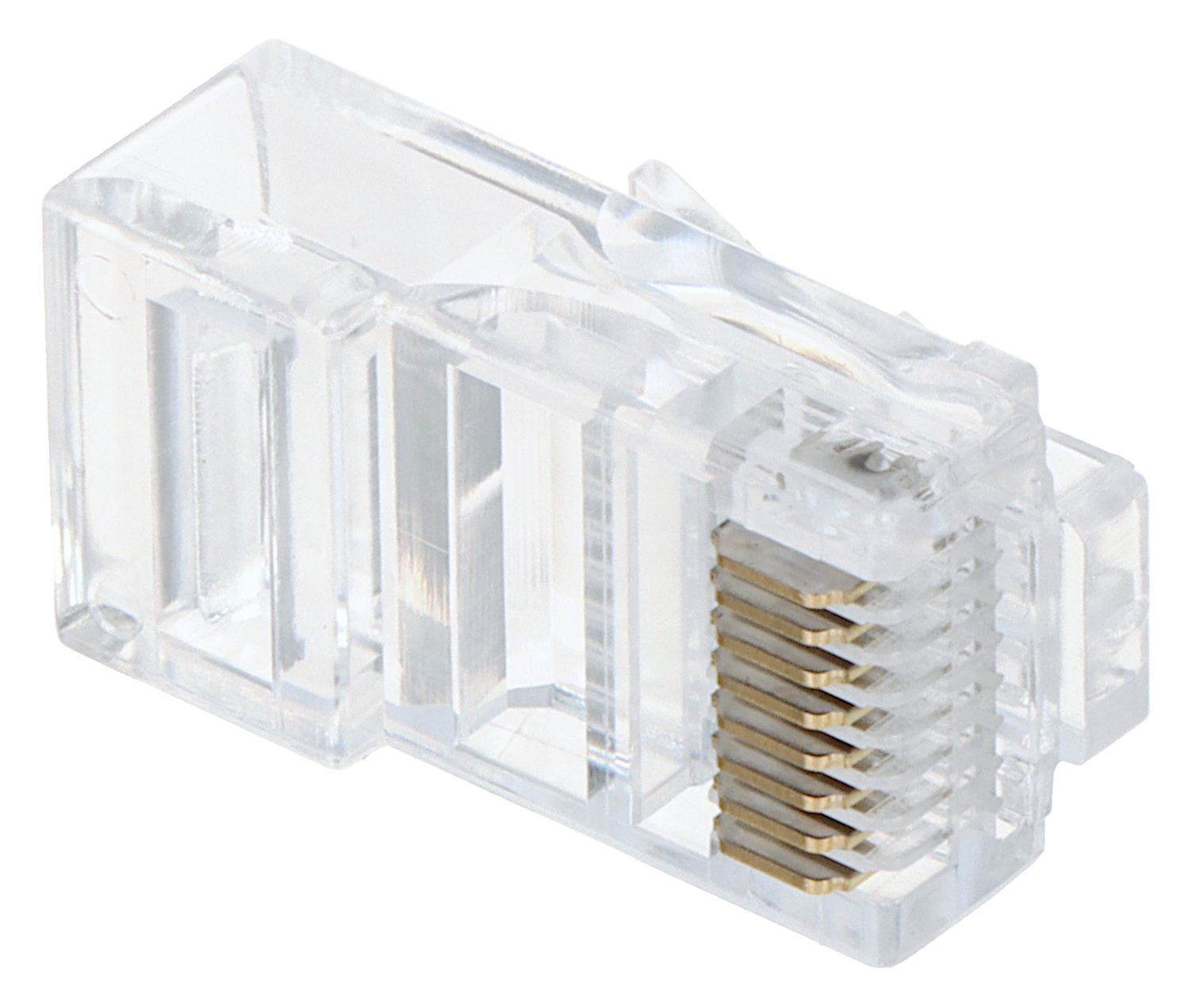

RJ-45 plug:
| Model: | RJ45T |
| In the kit: | 100 pcs |
| Connector type: | RJ-45 - Plug, 8 pin |
| Attachment of connector elements: | Crimping |
| Wire mounting: | Clamping on each wire with 3-pin edge |
| Application: | Twisted-pair cable, UTP cat. 5e, FTP cat. 5e |
| Material: | PET |
| Main features: | Very easy and quick assembly |

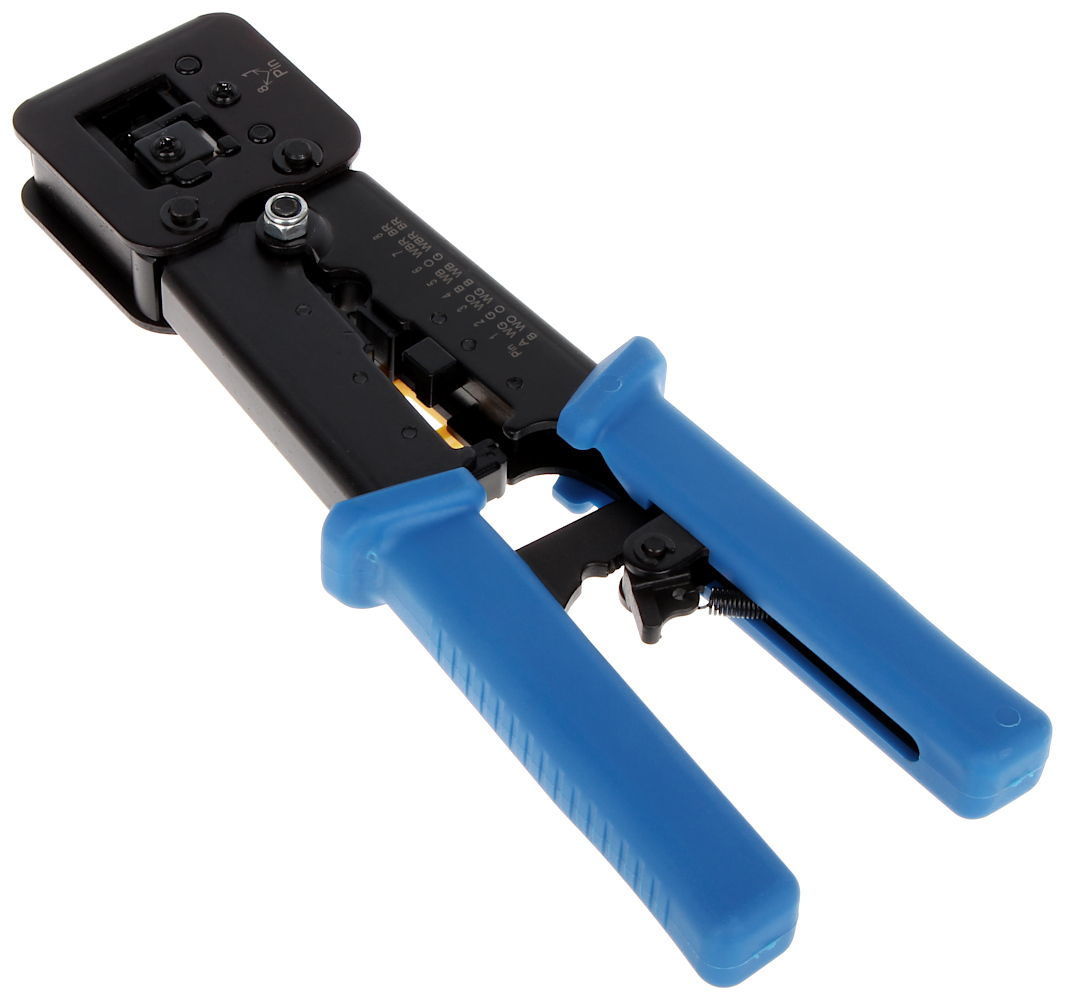

CRIMPING TOOL:
| Model: | HT-240T |
| Material: | Metal / PET |
| Application: | Plug RJ45 (8P8C) |
| Main features: | |
| Dimensions: | 200 x 75 x 25 mm |

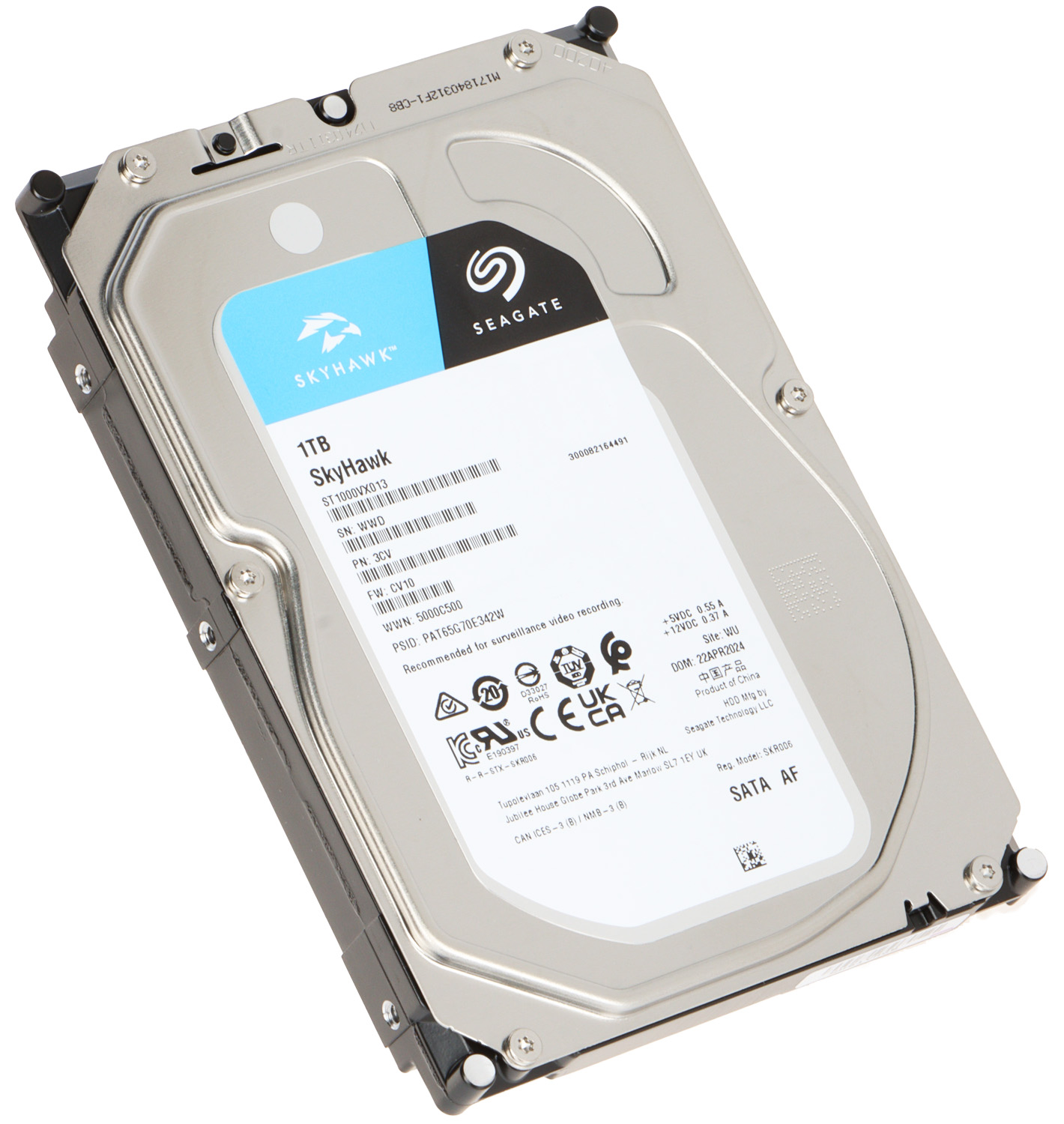

HDD:
| Model: | HDD-ST1000VX013 |
| Number of hard drives: | 1 pcs |
| Capacity: | 1 TB |
| Interface: | SATA 6 Gb/s |
| Size format: | 3.5 " |
| Cache memory: | 256 MB |
| Designed to continuous operation 24/7: | |
| Weight: | 0.39 kg |
| Manufacturer / Brand: | SEAGATE |
| Guarantee: | 3 years |
General information:
| Standard: | IP |
| Supported languages: | Polish, English, Bulgarian Czech, French, Spanish, Dutch, German, Portuguese, Russian, Turkish, Italian |
| Manufacturer / Brand: | APTI |
| Guarantee: | 2 years |
Brand:
Delta-Opti
