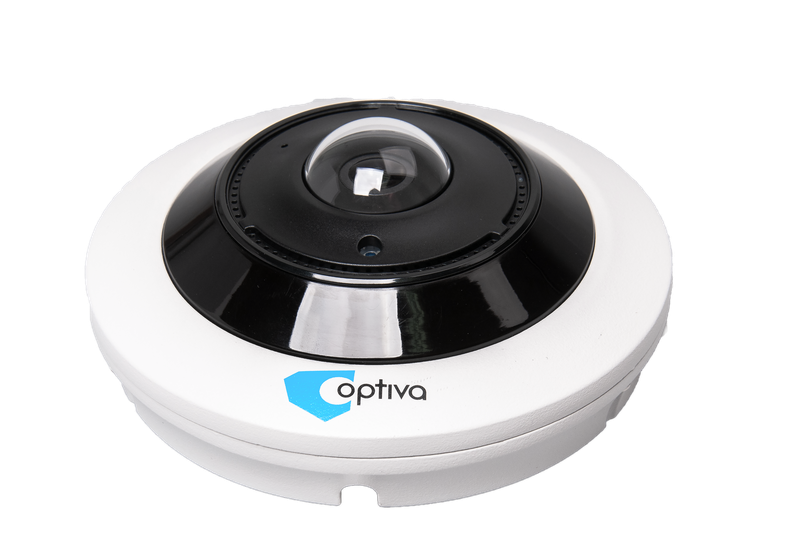

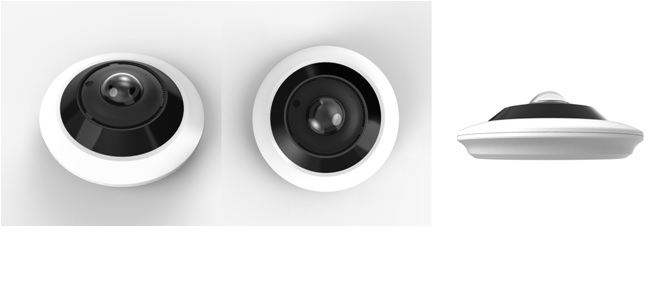

Model |
VOBIP625M |
|
Resolution |
5MP 2160(H)×2160(V) |
|
Image Sensor |
1/2.9" Progressive CMOS |
|
Min. Illumination |
Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON |
|
Shutter |
1/5 ~ 1/20000s |
|

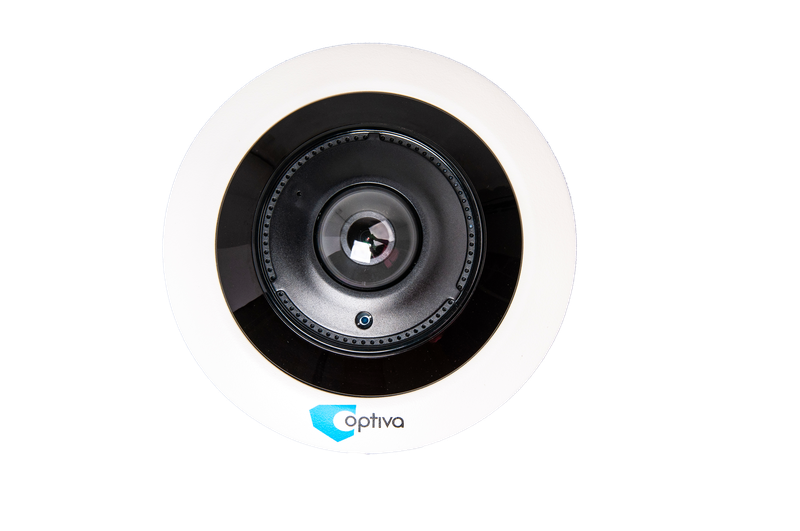

Lens |
1.1mm ,Angle of view: 360° |
|
F No. |
F 2.0 ±5% |
|
Day & Night |
IR cut filter with auto switch |
|
WDR |
Digital WDR |
|
Video Compression |
H.265/H.264 |
|
Video bit rate |
8Kbps ~ 8Mbps |
|
Triple Stream |
yes |
|
Frame Rate |
Mainstream |
|
Image Settings: |
Rotate mode, Saturation, Brightness, Contrast, Hue, Sharpness adjustable |
|
BLC |
Support |
|
ROI |
Support |
|
Protocols |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE, |
|
System Compatibility |
ONVIF( Ver 2.6) |
|

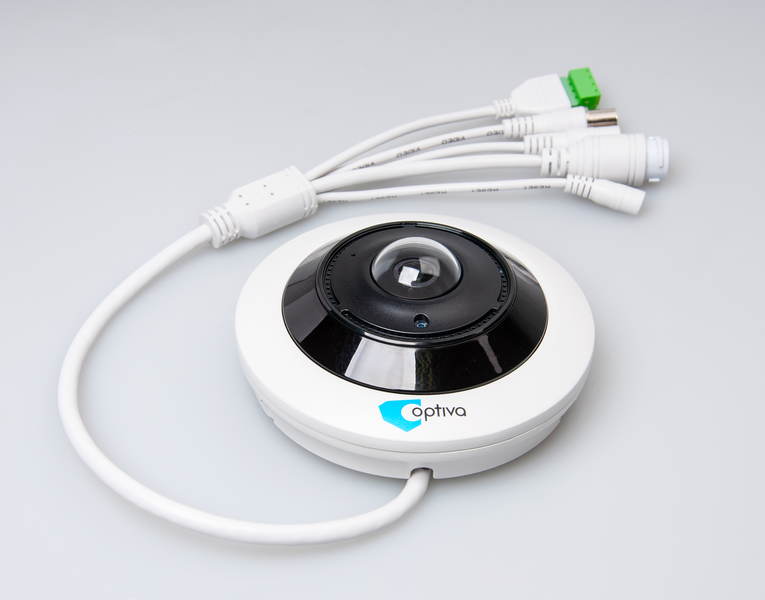

Interface |
RJ45 10M / 100M Ethernet interface x1 |
|
Led |
3pcs(SMD) |
|
IR Range |
Up to 10m |
|
SD storage |
Yes |
|
Alarm Trigger |
Yes |
|
Video Output: |
Yes |
|
Reset Button |
Yes |
|
Water Proof |
IP 64 |
|

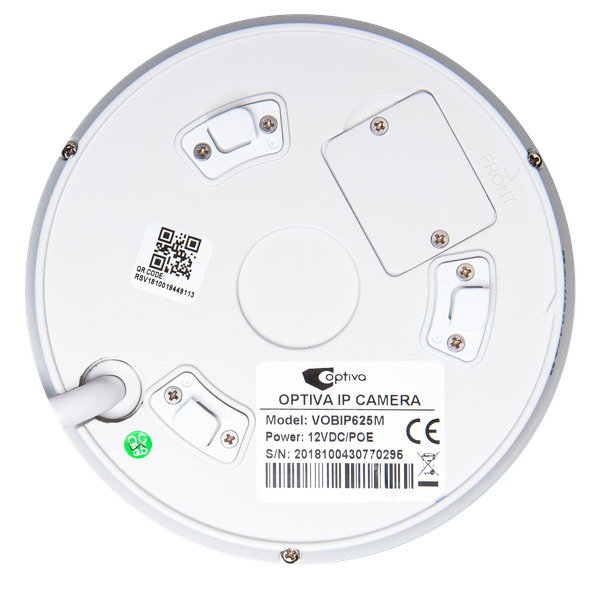

Power Supply |
DC 12V/POE |
|
Consumption |
≤ 5W |
|

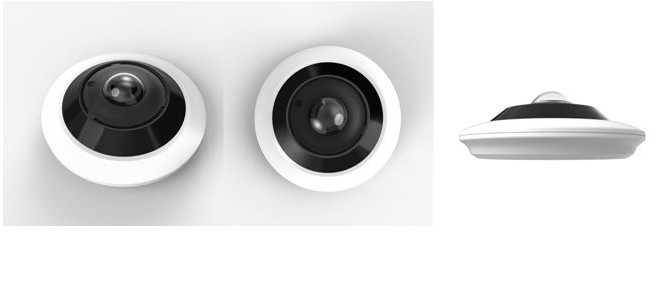

Dimension |
Ø120*55mm |
|
Weight |
appr 400g |
|
Storage Temperature |
-30～+60°C |
|
Operating Temperature |
-30～+55°C |
