SET OF UTP / 2-WIRE CONVERTERS FOR LAN+POE TRANSMISSION ETH-2WIRE-A-SET 2 PCS SET ATTE

€126.61

(Включая налог 21%)

Задать вопрос

КОД: ETH-2WIRE-A-SET

Доступность: 7 шт.

Кол-во:

+ −

Минимальное количество для товара "SET OF UTP / 2-WIRE CONVERTERS FOR LAN+POE TRANSMISSION ETH-2WIRE-A-SET 2 PCS SET ATTE" 1.

Купить в один клик

Transmission speed: 10 / 100 Mbps ; Transmission range: 300 m @ 100 Mbps : 2-wire, 800 m @ 10 Mbps : 2-wire ;

Connectors:	1 pcs RJ45 1 pcs terminals (screw terminals) - 0.32 ... 3.3 mm² ( 22 ... 12 AWG )
LAN ports:	1 pcs RJ45 10 / 100 Mbps
Terminals:	ETH-2WIRE-A-TX : PoE IN - Passive PoE ≤ 30 W, PoE (802.3at) ≤ 30 W, PoE (802.3af) ≤ 15 W ("+/-": 1, 2 pins; "+/-": 3, 6 pins) or ("+/-": 4, 5 pins; "+/-": 7, 8 pins) Power DATA - 2-wire ETH-2WIRE-A-RX : PoE OUT - Hi-PoE (802.3af/at/bt) ("+": 3, 6 / 4, 5 pins; "-": 1, 2 / 7, 8 pins) Power DATA - 2-wire
Transmission speed:	10 / 100 Mbps

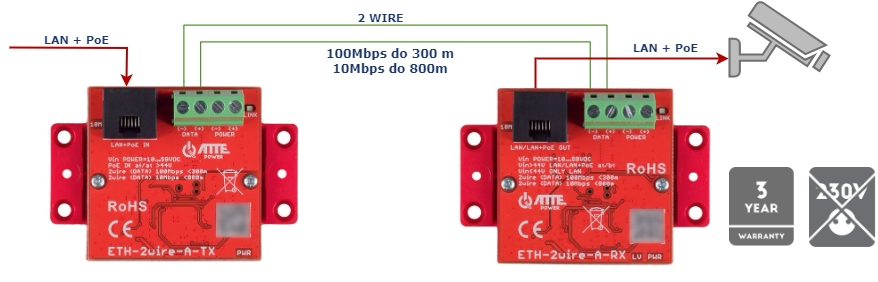

Transmission range:	300 m @ 100 Mbps : 2-wire, 800 m @ 10 Mbps : 2-wire 100 m @ UTP : Switch PoE - ETH-2WIRE-A-TX 100 m @ UTP : ETH-2WIRE-A-RX - IP Camera
LED indicators:	Power LAN (RJ-45) PoE (RJ-45) 2-wire 2-wire 10 Mbps LV - low voltage < 44 V
Protections:	Overvoltage - LAN, DATA Protection against reverse polarity connection - Power Overload 0.6 A - PoE IN ETH-2WIRE-A-TX
Main features:	Plug & Play Support for IP cameras and network devices Full transparency for networks
Power supply:	ETH-2WIRE-A-TX : 24 ... 56 V DC - PoE 12 ... 56 V DC - Power ETH-2WIRE-A-RX : 44 ... 56 V - Power The output PoE voltage is equal to the input voltage
Power consumption:	1.35 W (total)
Housing:	Plastic (polycarbonate)
"Index of Protection":	IP20
Operation temp:	-25 °C ... 65 °C
Weight:	0.028 kg (single element)
Dimensions:	73 x 51 x 23 mm (single element)
Manufacturer / Brand:	ATTE
Guarantee:	3 years
