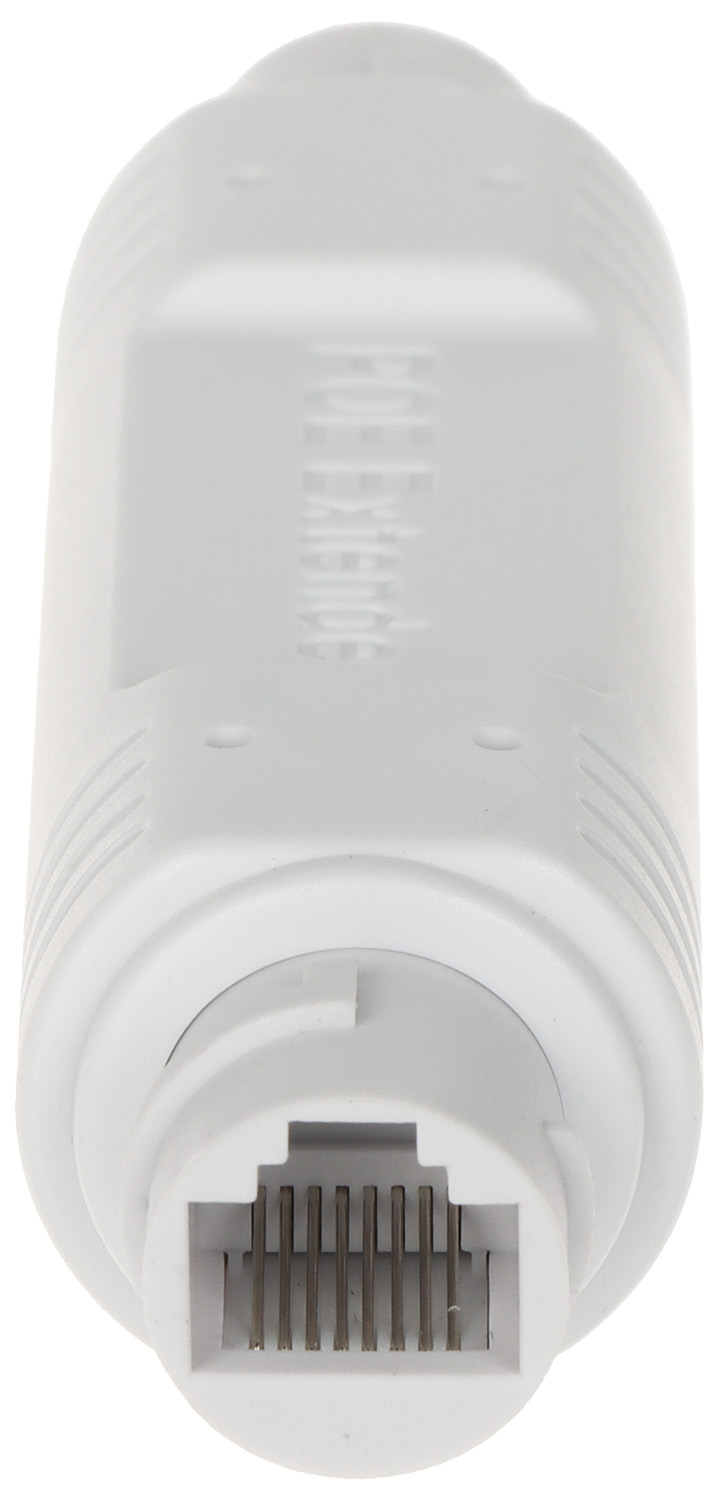

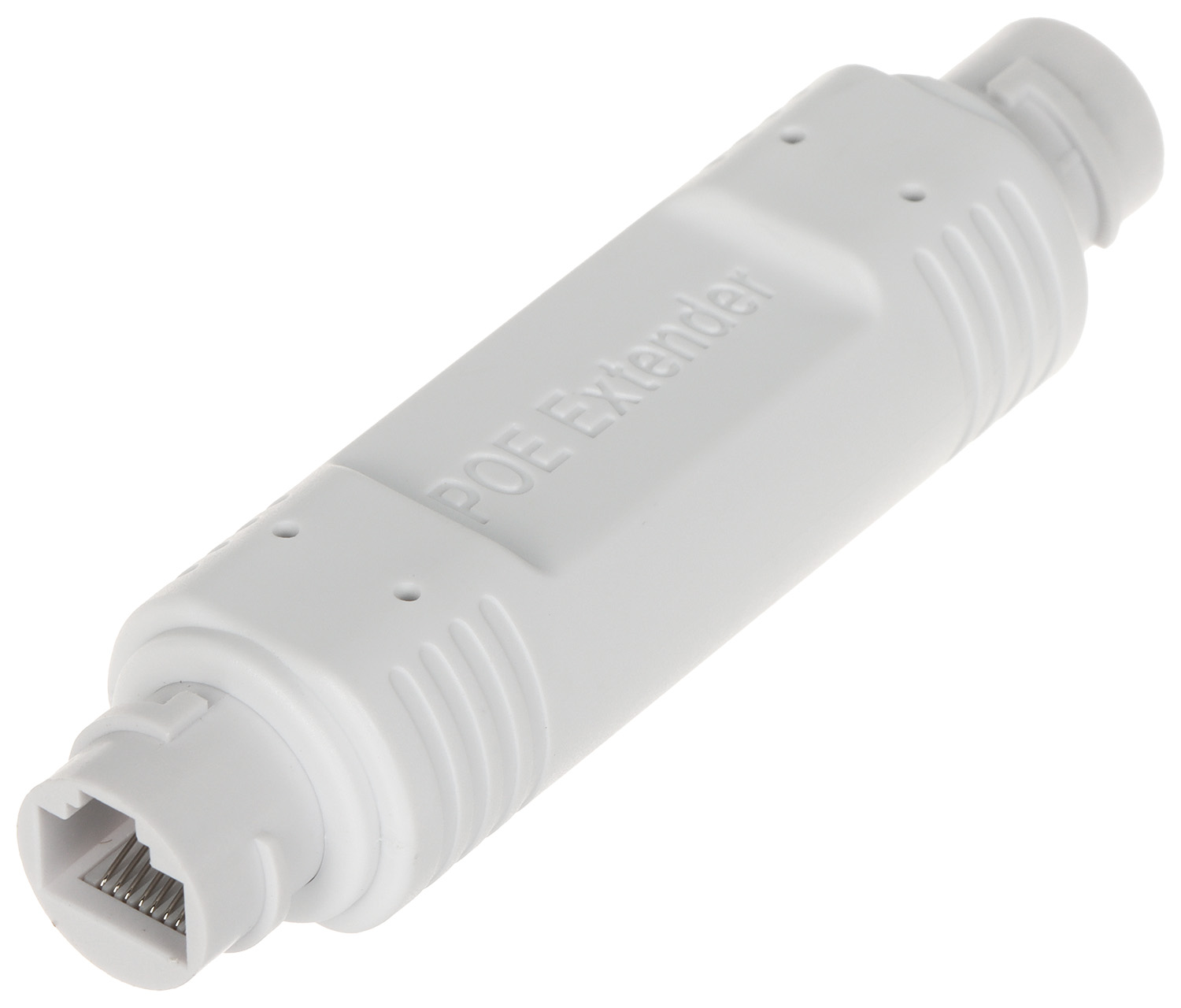

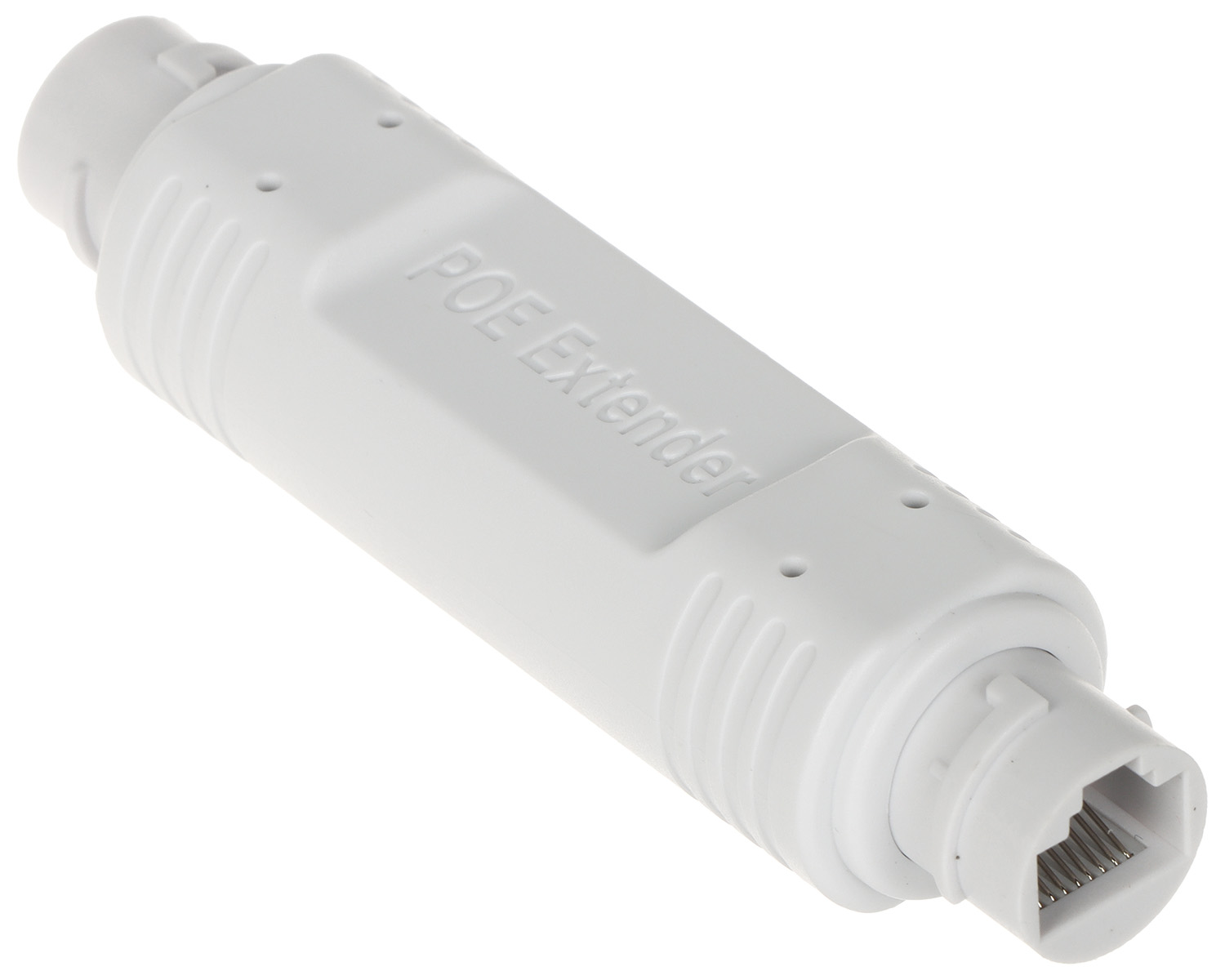

The SPT-POE/1-POE-OUTDOOR-V2 extender is a device designed to increase the distance of PoE power supply and Ethernet data using the UTP cat. 5/5e/6 twisted pair cable for another 100 m; Number of inputs: 1 pcs ; Number of outputs: 1 pcs ; Power supply: Compliance with PoE (802.3af/at) ; Ethernet interface: 10 / 100 Mbps ;
| Number of inputs: | 1 pcs - RJ-45 socket |
| Number of outputs: | 1 pcs - RJ-45 socket |
| Power supply: | Compliance with PoE (802.3af/at) : 44 V ... 57 V DC |
| Output voltage: | Compatible with the power supply voltage |
| Input power pairs PoE IN: | Power supply PoE : ("+": 1, 2 / 4, 5 pins; "-": 3, 6 / 7, 8 pins) |
| Output power pairs PoE OUT: | Power supply PoE : pins 1, 2 and 3, 6 |
| Ethernet interface: | 10 / 100 Mbps |
| Protections: |  |

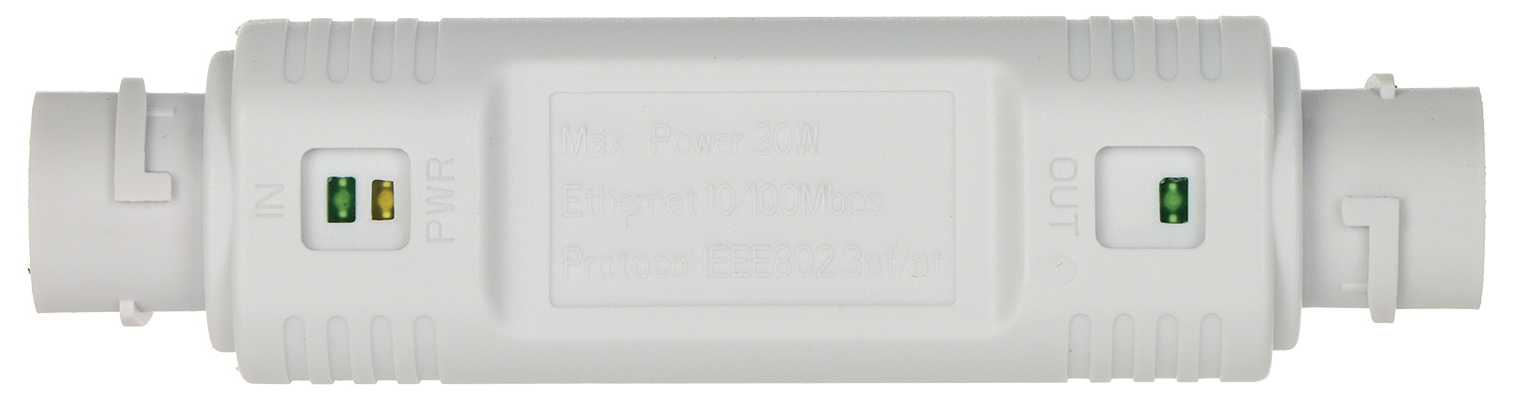

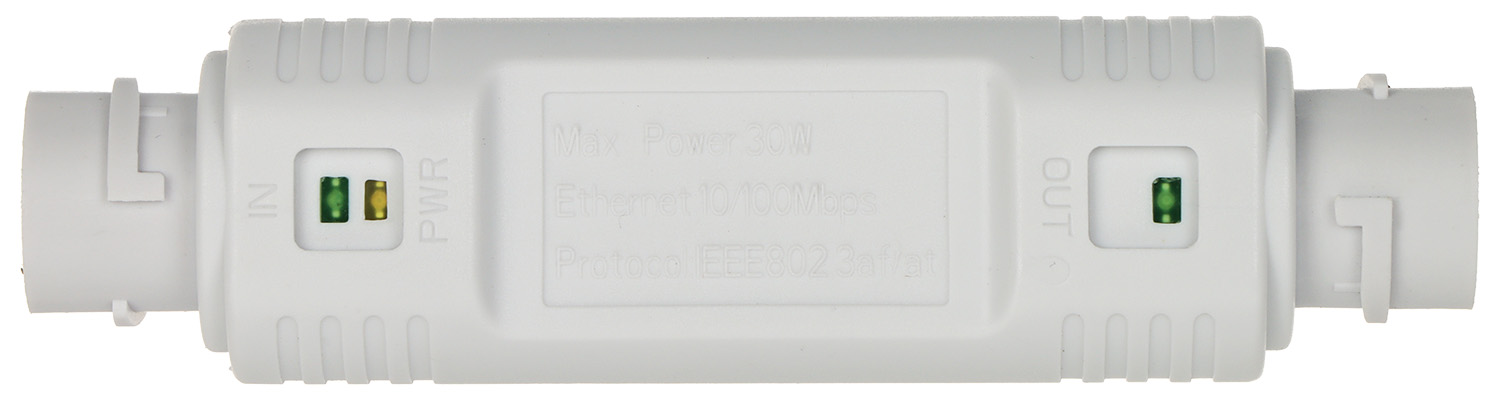

| Operation state indication: | LED diodes : IN, OUT, PWR |
| Main features: | Possibility to connecting in cascade - max. 3 devices |
| Housing: | Plastic - Hermetic casing |
| Operation temp: | -10 °C ... 60 °C |
| Weight: | 0.05 kg |
| Dimensions: | 25 x 100 x 22 mm |
| Guarantee: | 2 years |
Brand:
Delta Network
