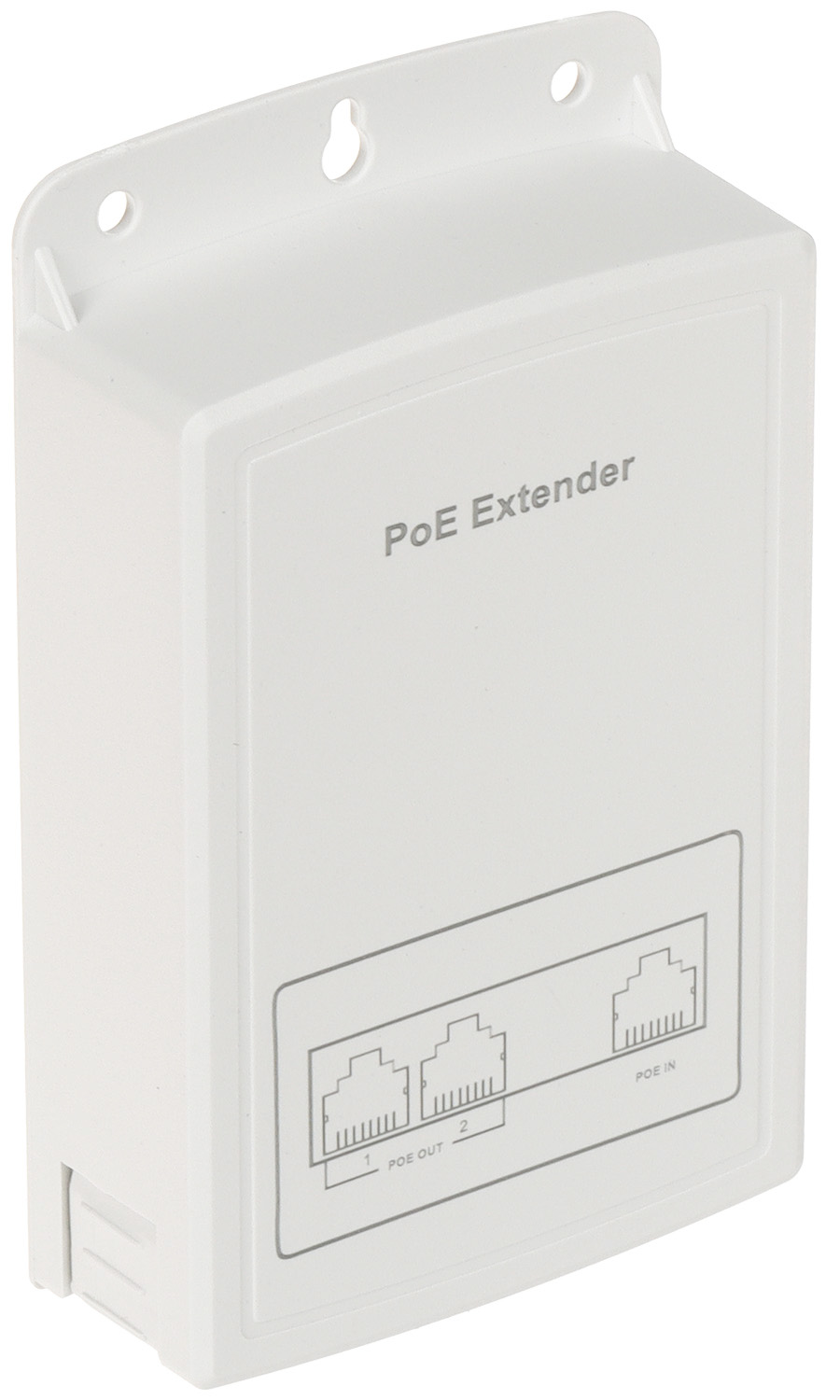

The SPT-POE/2-POE-OUTDOOR extender is a device designed to increase the distance of PoE power supply and Ethernet data using the UTP cat. 5/5e/6 twisted pair cable for another 100 m; Number of inputs: 1 pcs ; Number of outputs: 2 pcs ; Power supply: Compliance with PoE (802.3af/at) ; Ethernet interface: 10 / 100 Mbps ;
| Number of inputs: | 1 pcs - RJ-45 socket |
| Number of outputs: | 2 pcs - RJ-45 socket |
| Power supply: | Compliance with PoE (802.3af/at) : 44 V ... 57 V DC |
| Output voltage: | Compatible with the power supply voltage |
| Input current: | 0.68 A (max) |
| Output power: | 30 W (max) |
| Input power pairs PoE IN: | Power supply PoE : ("+": 1, 2 / 4, 5 pins; "-": 3, 6 / 7, 8 pins) |
| Output power pairs PoE OUT: | Power supply PoE : ("+": 1, 2 / 4, 5 pins; "-": 3, 6 / 7, 8 pins) |
| Ethernet interface: | 10 / 100 Mbps |
| Protections: |  |
| Operation state indication: | LED diodes : Link/Act, PoE |
| Main features: | |
| Housing: | Plastic - Splash-proof casing |
| Operation temp: | -10 °C ... 60 °C |
| Weight: | 0.11 kg |
| Dimensions: | 86 x 140 x 33 mm |
| Guarantee: | 2 years |
Brand:
Delta Network
