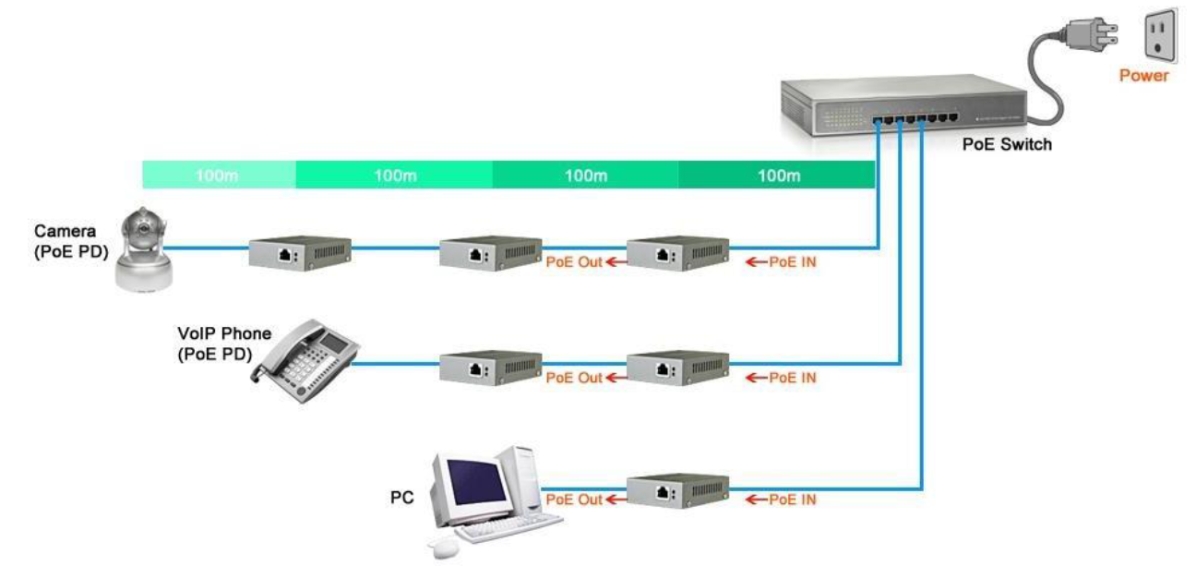

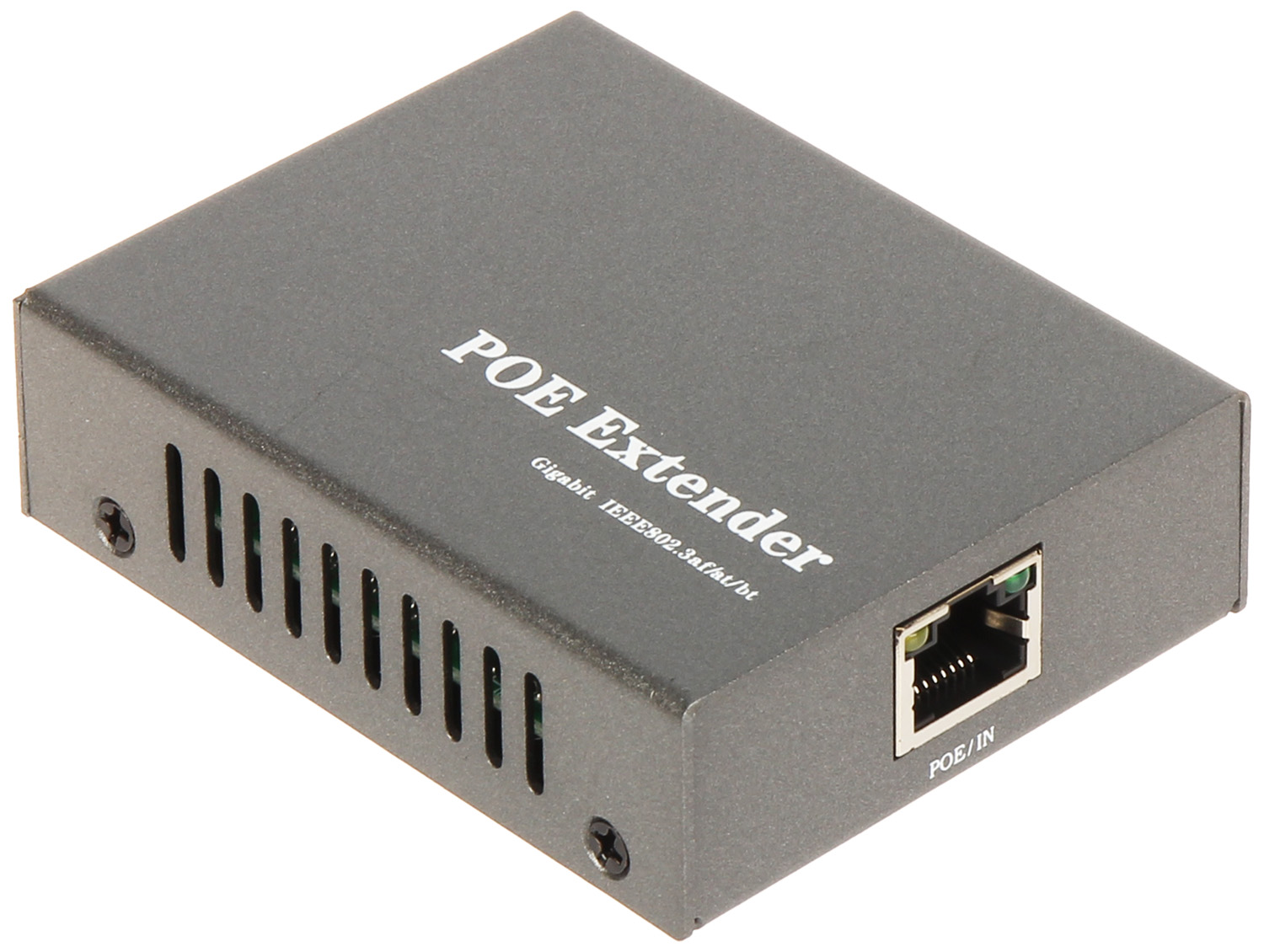

The SPT-POE/1-POE-BT extender is a device designed to increase the distance of PoE power supply and Ethernet data using the UTP cat. 5/5e twisted pair cable for another 100 m; Number of inputs: 1 pcs ; Number of outputs: 1 pcs ; Power supply: Compliance with Hi-PoE (802.3af/at/bt) ;
| Number of inputs: | 1 pcs - RJ-45 socket |
| Number of outputs: | 1 pcs - RJ-45 socket |
| Power supply: | Compliance with Hi-PoE (802.3af/at/bt) : 44 V ... 57 V DC |
| Output voltage: | Compatible with the power supply voltage |
| Input current: | max. 1.7 A |

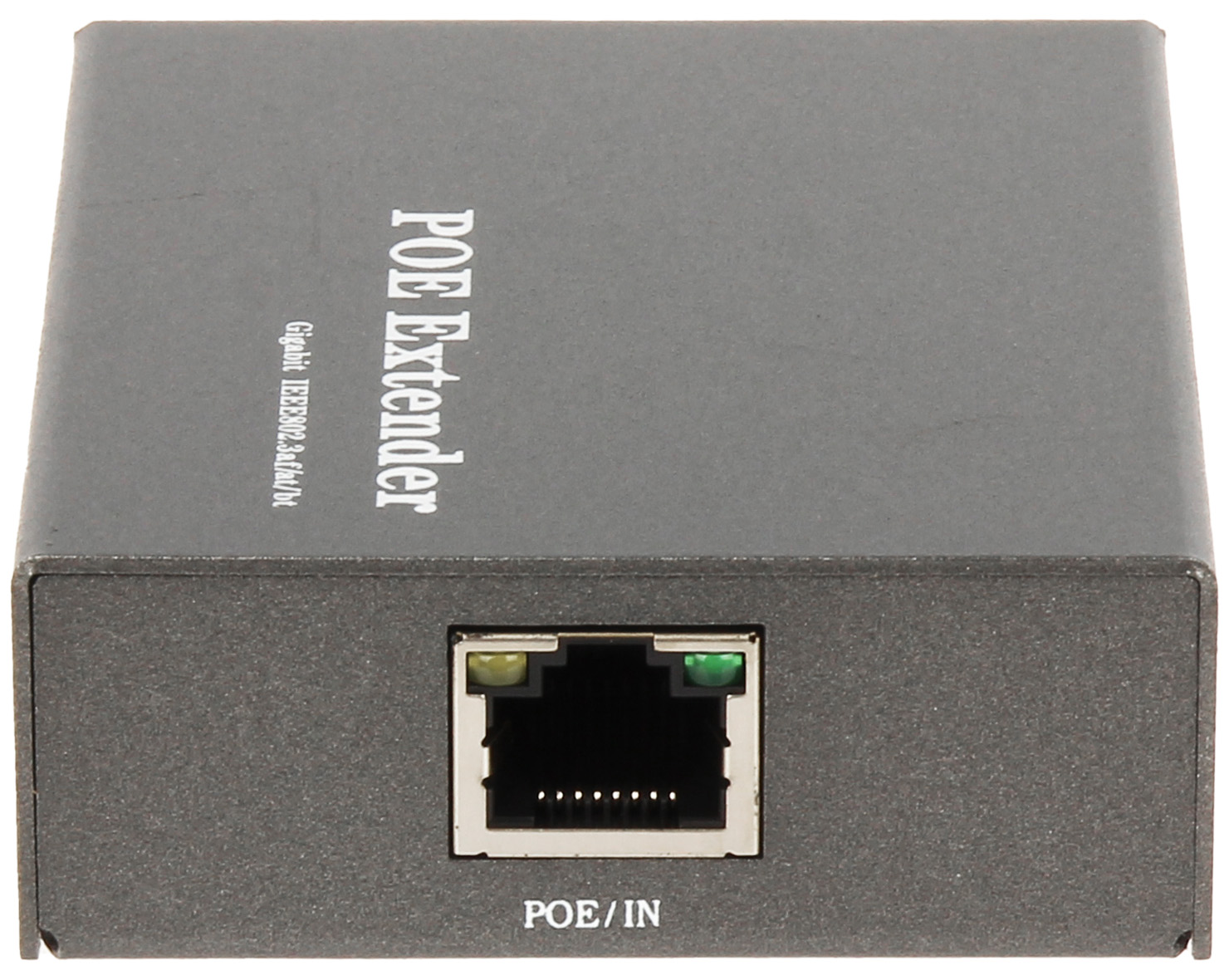

| Input power pairs PoE IN: | Power supply PoE : ("+": 1, 2 / 4, 5 pins; "-": 3, 6 / 7, 8 pins) |

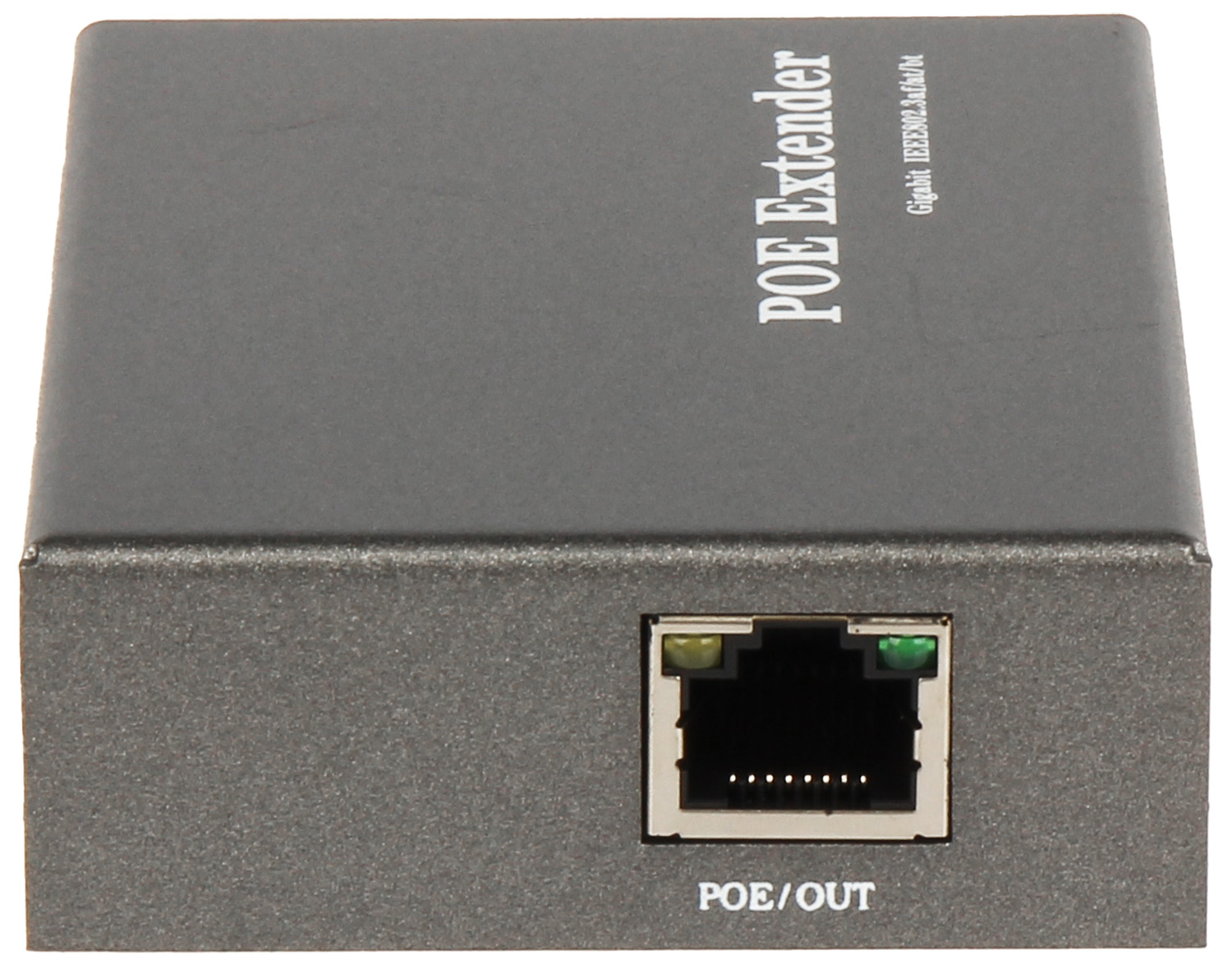

| Output power pairs PoE OUT: | Power supply PoE : ("+": 1, 2 / 4, 5 pins; "-": 3, 6 / 7, 8 pins) |
| Ethernet interface: | 10 / 100 / 1000 Mbps |
| Protections: |  |
| Operation state indication: | LED diodes : Link/Act, PoE |
| Main features: | |
| Housing: | Metal |
| Operation temp: | 0 °C ... 40 °C |
| Weight: | 0.17 kg |
| Dimensions: | 84 x 65 x 25 mm |
| Manufacturer / Brand: | GTX - Grid Telecommunication eXpert |
| Guarantee: | 2 years |
