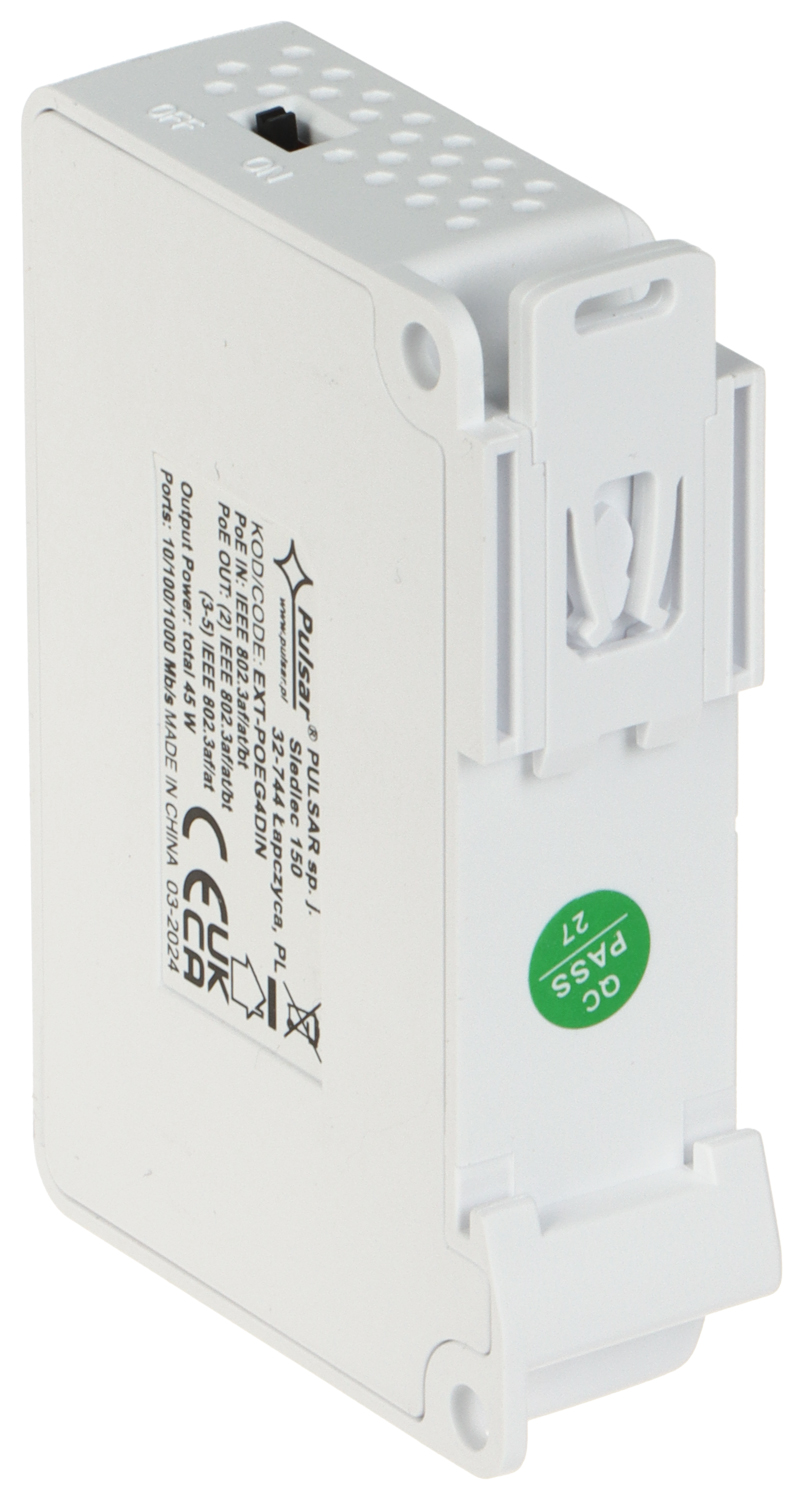

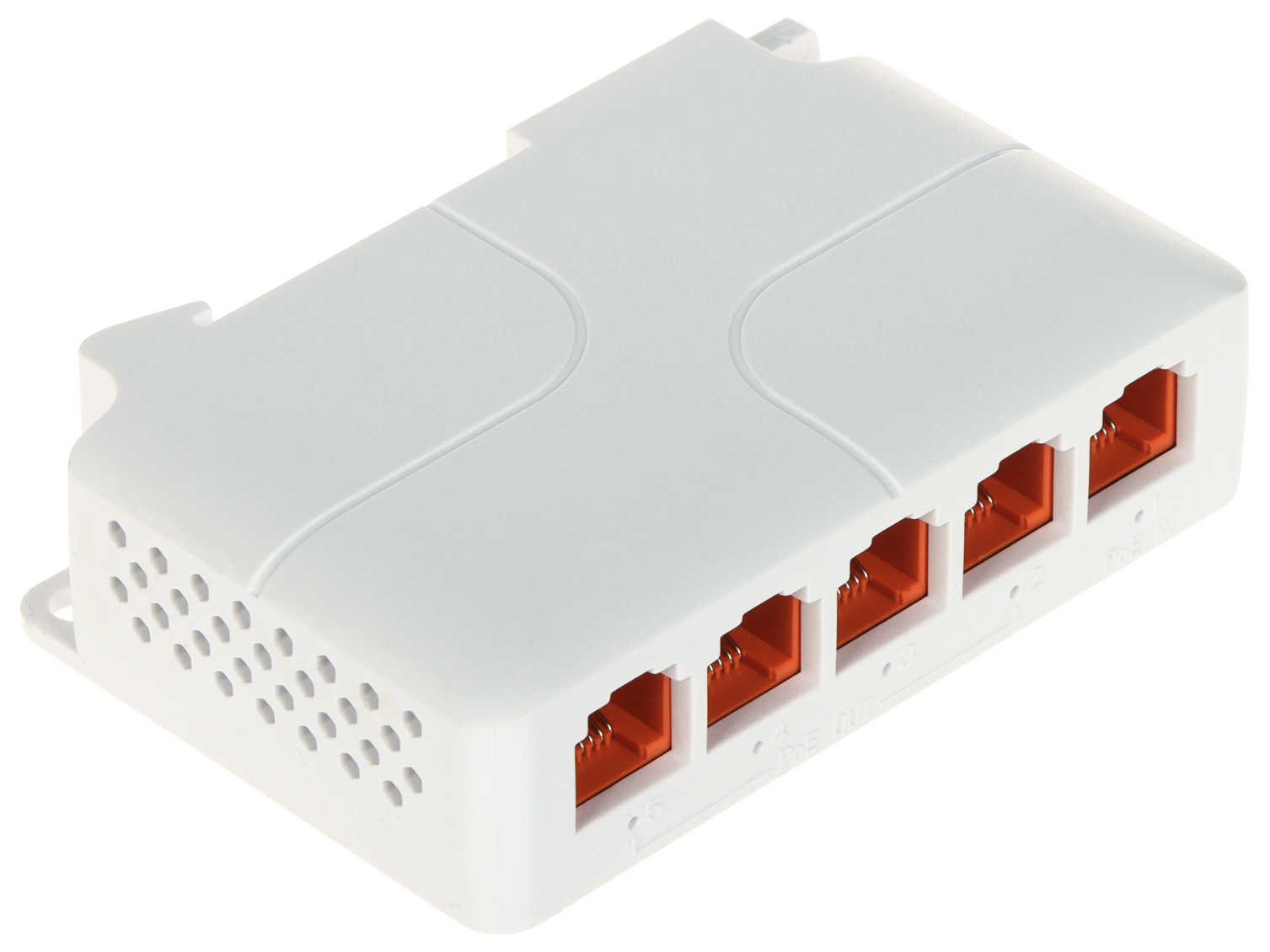

The EXT-POEG4DIN extender is a device designed to increase the distance of PoE power supply and Ethernet data using the UTP cat. 5/5e twisted pair cable for another 100 m; Number of inputs: 1 pcs ; Number of outputs: 3 pcs ; Power supply: Compliance with PoE (802.3af/at/bt) ;

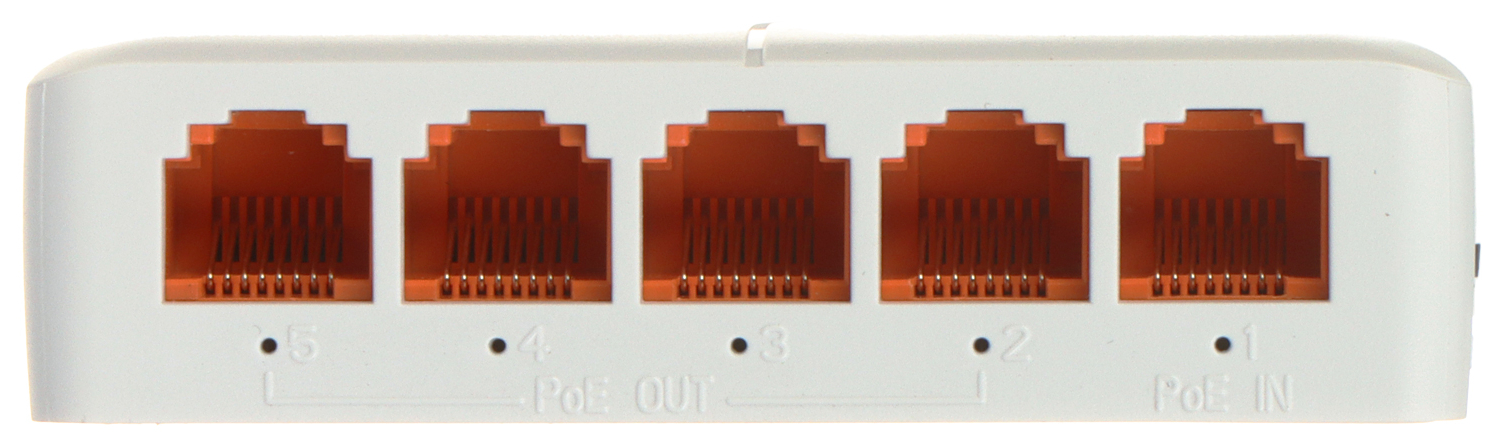

| Number of inputs: | 1 pcs - RJ-45 socket |
| Number of outputs: | 3 pcs - RJ-45 socket |
| Power supply: | Compliance with PoE (802.3af/at/bt) : 48 V ... 57 V DC |
| Output voltage: | Compatible with the power supply voltage |
| Output current: | Total max. 0.9 A |
| Input power pairs PoE IN: | 1/2 (+) 3/6(-) 4/5 (+) 7/8 (-) |
| Output power pairs PoE OUT: | 1/2 (+) 3/6(-) 4/5 (+) 7/8 (-) |
| Ethernet interface: | 10/100/1000 Mbps |
| Protections: | |
| Operation state indication: | LED diodes |
| Main features: | |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.07 kg |
| Dimensions: | 85 x 57 x 23 mm |
| Manufacturer / Brand: | PULSAR |
| Guarantee: | 2 years |
Brand:
Pulsar
