Standard: | TCP/IP |
Sensor: | 1/2.8 " Progressive Scan CMOS |
Matrix size: | 2.1 Mpx |
Resolution: | 1920 x 1080 - 1080p , 1280 x 720 - 720p |
Lens: | 2.8 mm |
View angle: | 108 ° |
Range of IR illumination: | 30 m |
RS-485 interface: | ![]() |
Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
Alarm inputs / outputs: | 1 / 1 |
Audio: | |

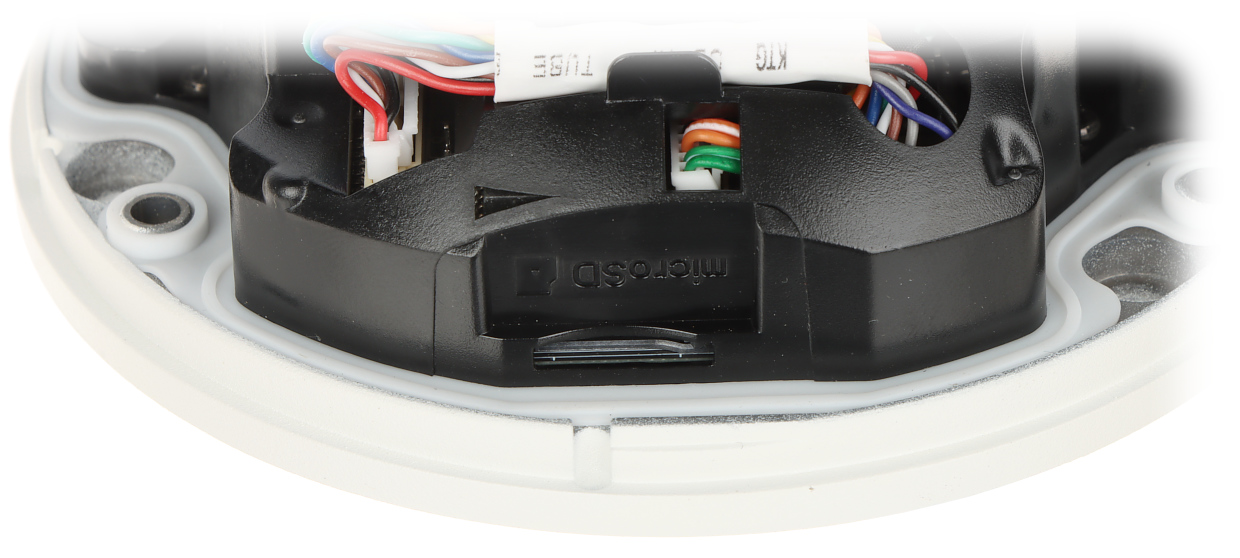

Memory card slot: | Micro SD card support up to 512GB |
Main stream frame rate: | 25 fps @ 4 Mpx |
Network interface: | 10/100 Base-T (RJ-45) |
WEB Server: | Built-in |
Max. number of on-line users: | 6 |
ONVIF: | ![]() |
Mobile phones support: | Port no.: 8000 or access by a cloud (P2P) |
Default admin user / password: | admin / - The administrator password should be set at the first start |
Default IP address: | 192.168.1.64 |
Web browser access ports: | 80 |
PC client access ports: | Port no.: 8000 or access by a cloud (P2P) - iVMS-4200 application |
Mobile client access ports: | 8000 |
ONVIF port: | 80 |
RTSP URL: | |
Main features: | |
Power supply: | |
Power consumption: | ≤ 6.5 W @ PoE (802.3af) ≤ 5.5 W @ 12 V DC |
Housing: | Dome, Aluminum + Plastic |
Color: | White |
"Index of Protection": | IP67 |
Vandal-proof: | IK08 |
Operation temp: | -30 °C ... 60 °C |
Weight: | 0.38 kg |

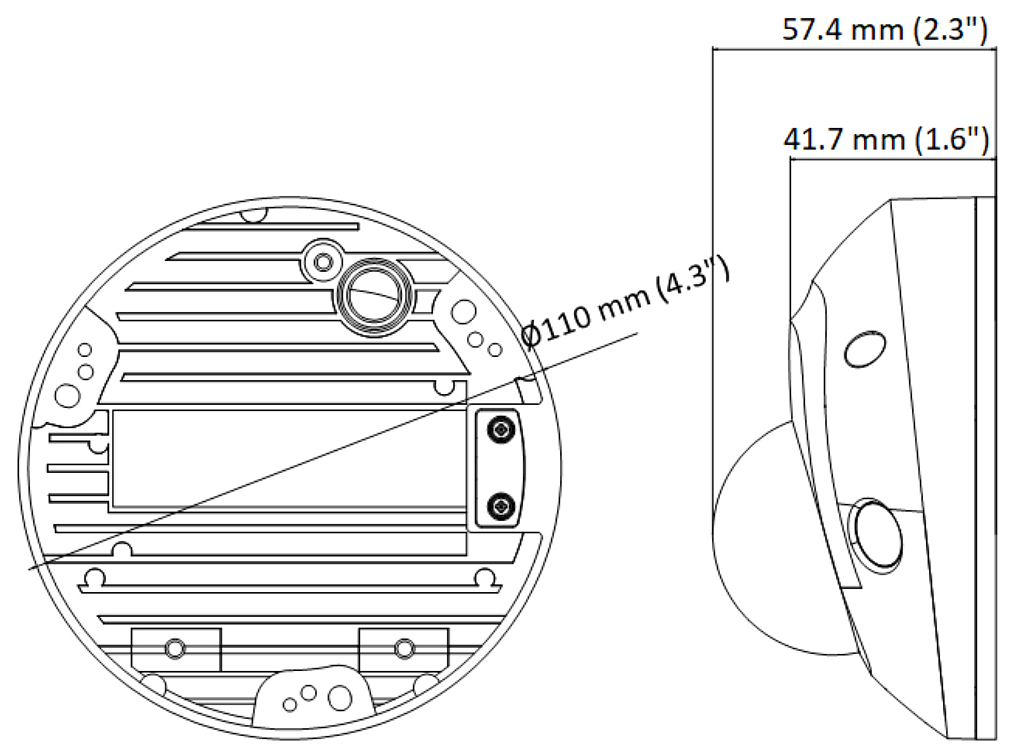

Dimensions: | Ø 110 x 57 mm |
Supported languages: | Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, Lithuanian, Latvian, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Hungarian, Vietnamese, Italian |
Manufacturer / Brand: | Hikvision |
SAP Code: | 311320019 |
Guarantee: | 3 years |
