Standard: | IP |
Resolution: | 2688 x 1512 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 1920 x 1080 - 1080p , 1280 x 720 - 720p |
Sensor: | 1/2.8 " SONY Starvis™ Back-illuminated CMOS |
Lens: | 2.8 mm @ F1.0 |
View angle: | 106 ° |

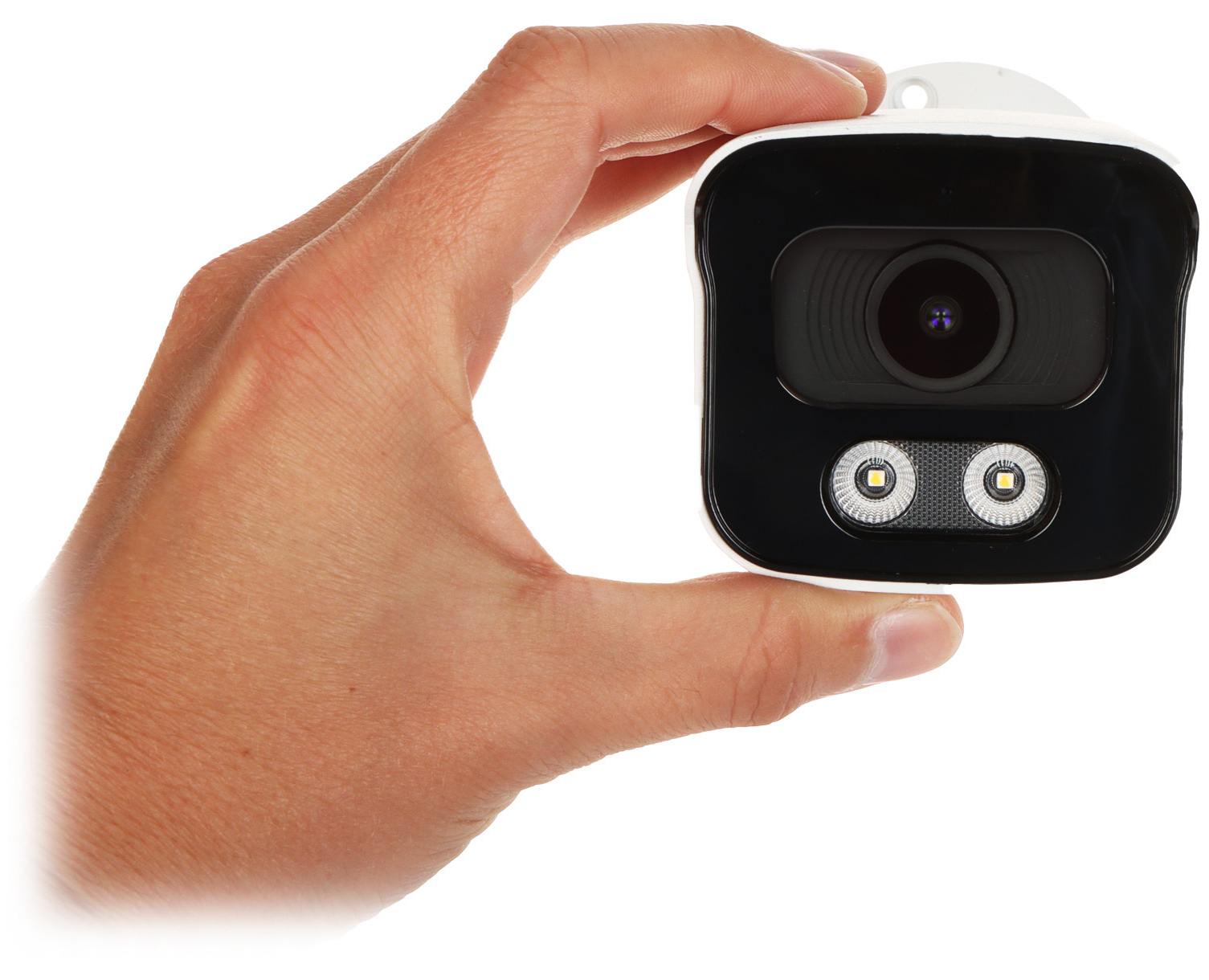

White light LED illuminator range: | 25 m |

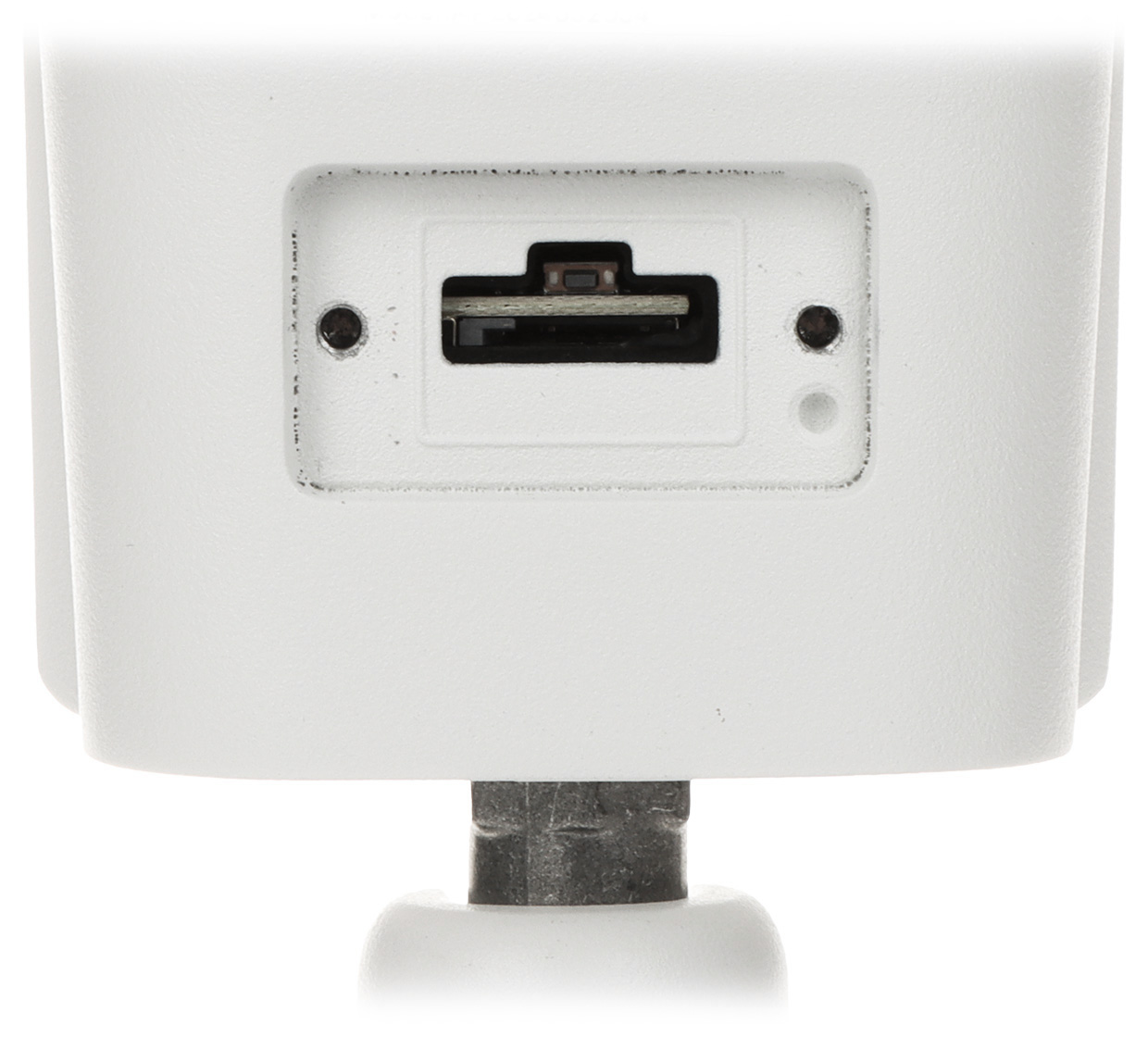

Memory card slot: | |
Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG / AVI / JPEG |
Alarm inputs / outputs: | ![]() |
Audio: | |
Main stream frame rate: | 25 fps @ 8.3 Mpx |
Interface: | 10/100 Base-T (RJ-45) |
WEB Server: | Built-in |
Max. number of on-line users: | 10 |
ONVIF: | 19.12 |
Intelligent Image Analysis: | |
Main features: | F-DNR (Defog) - Reduction of image noise caused by precipitation |
Mobile phones support: | Port no.: 80 or access by a cloud (P2P) |
Default IP address: | 192.168.1.168 |
Default admin user / password: | admin / 123456 (older FW versions: admin) |
Web browser access ports: | 80 |
PC client access ports: | 80 |
Mobile client access ports: | 80 |
ONVIF port: | 80 |
RTSP URL: | rtsp://user:password@ip_address:80/0 - Main stream rtsp://user:password@ip_address:80/1 - Sub stream |
Power supply: | |
Power consumption: | ≤ 3.7 W |

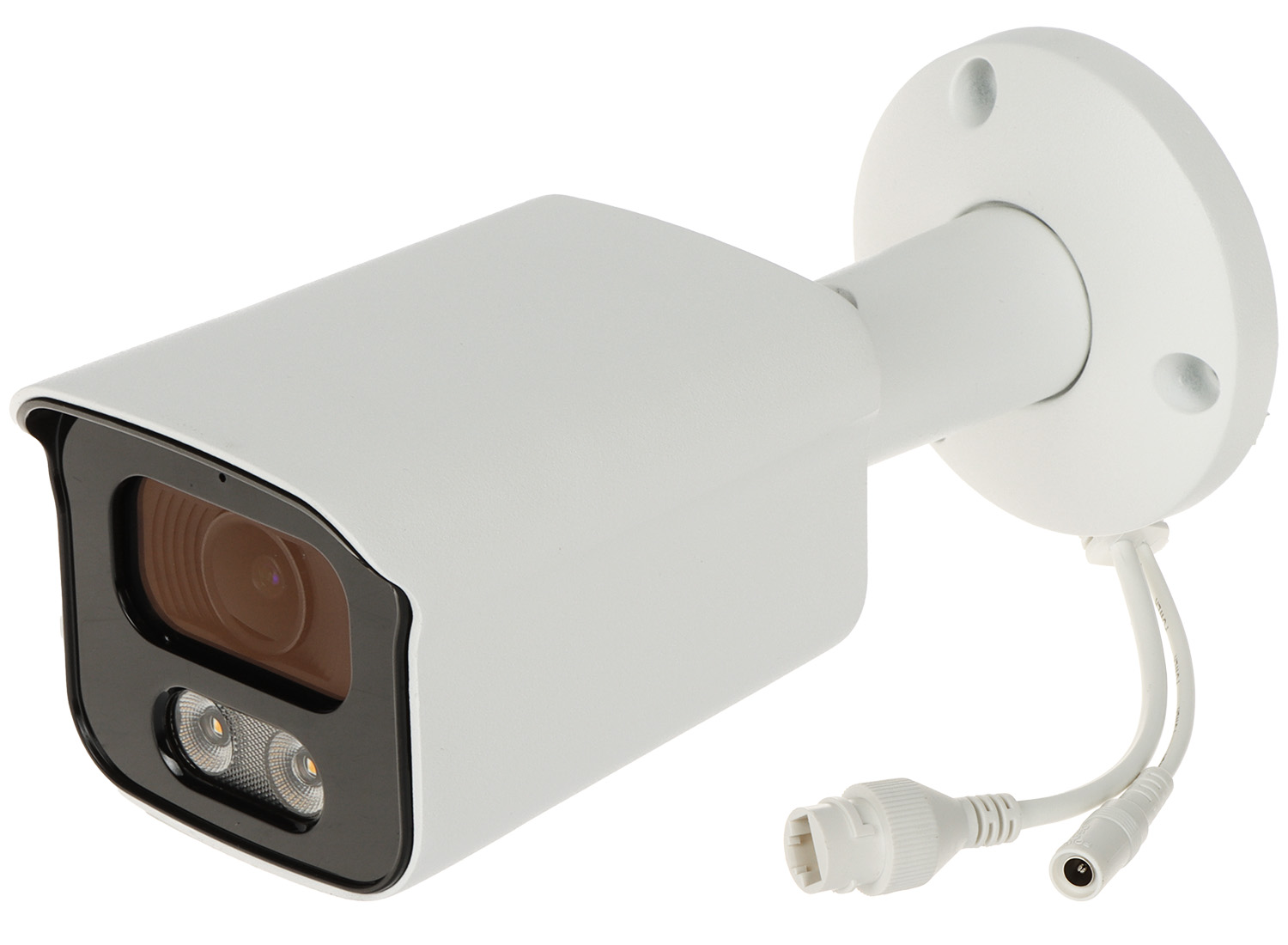

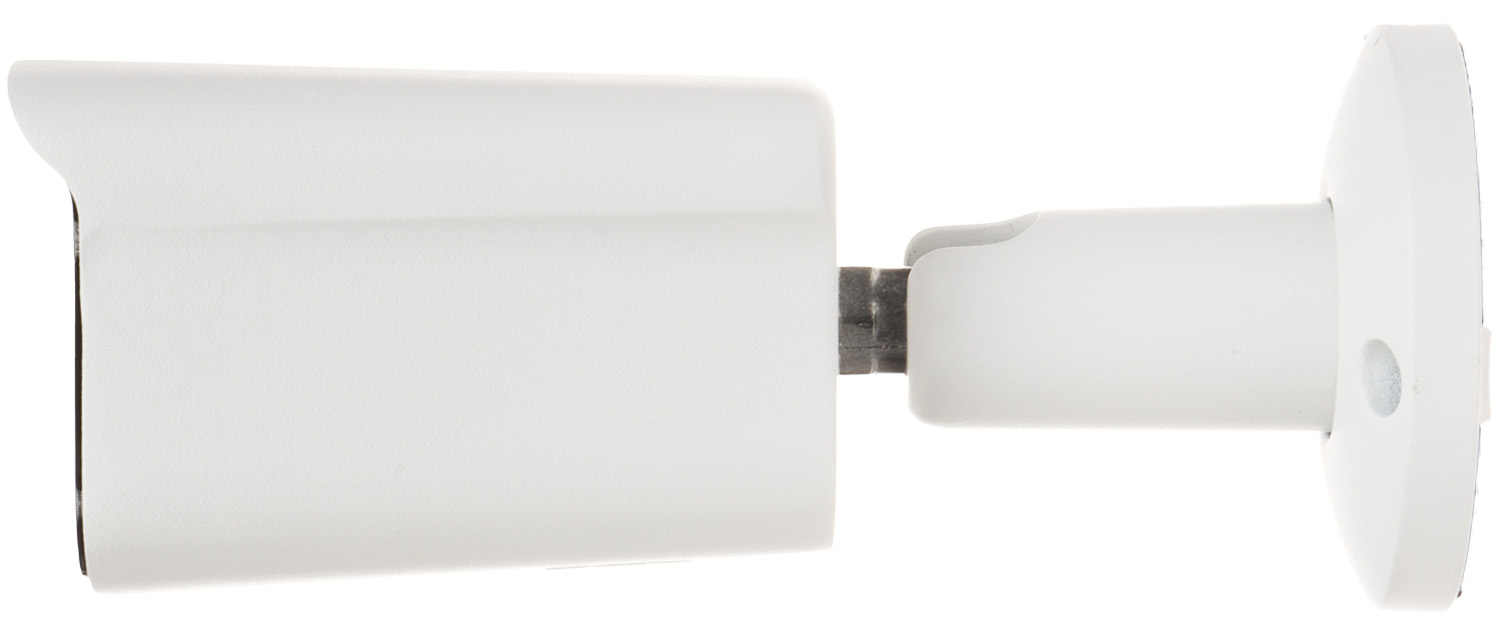

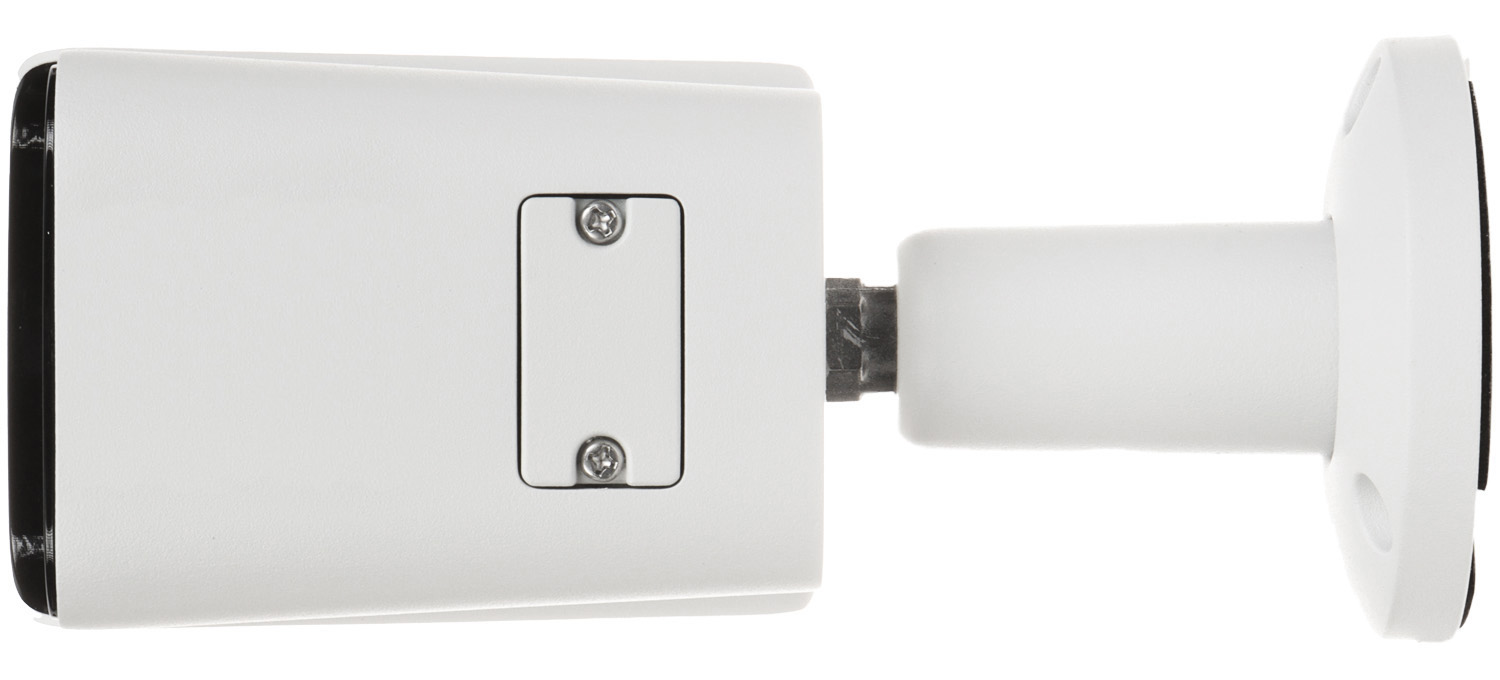

Housing: | Compact - Metal |
Color: | White |
"Index of Protection": | IP67 |
Mechanical protection class: | ![]() |
Operation temp: | -20 °C ... 60 °C |
Weight: | 0.53 kg |

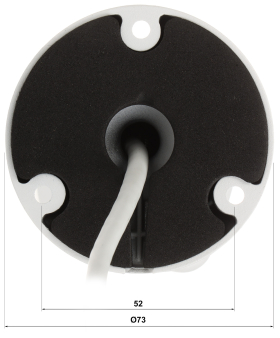

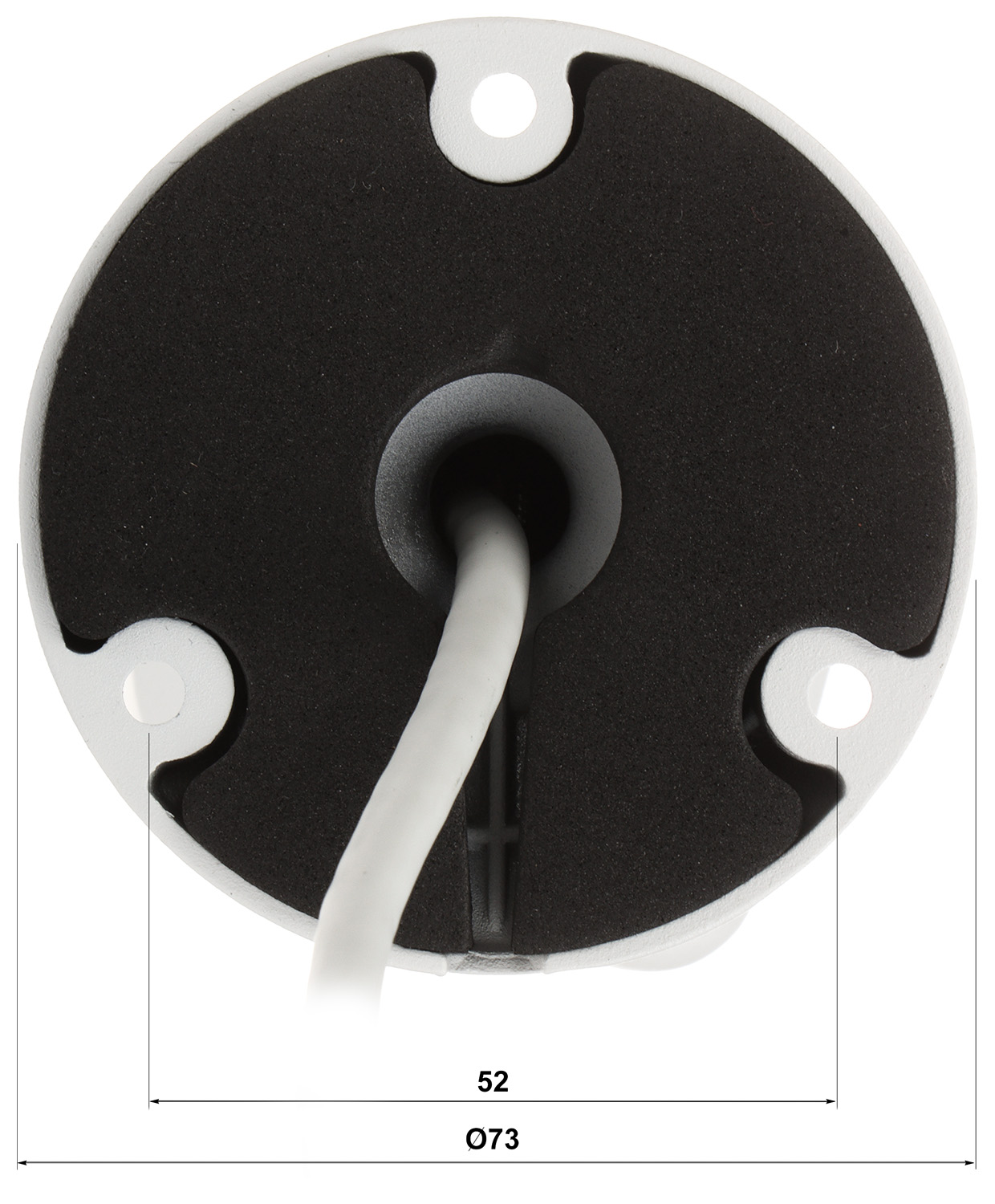

Dimensions: | 175 x 73 x 73 mm |
Supported languages: | Polish, English, French, Hebrew, Spanish, Portuguese, Russian, Ukrainian, Hungarian, Italian |
Manufacturer / Brand: | APTI |
Guarantee: | 2 years |
