Standard: | TCP/IP |
Sensor: | 1/1.8 " Progressive Scan CMOS |
Matrix size: | 2.1 Mpx |
Resolution: | 1920 x 1080 - 1080p , 1280 x 720 - 720p , 704 x 576 - D1 |
Lens: | 2.8 ... 12 mm - Motozoom |
View angle: | |
Range of IR illumination: | 50 m |
Compression: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
Main stream frame rate: | 25 fps - 1080p |
Network interface: | 100/1000 Base-T (RJ-45) |
Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, IEEE 802.1x, QoS, IPv6, UDP, Bonjour, SSL / TLS |
WEB Server: | Built-in |

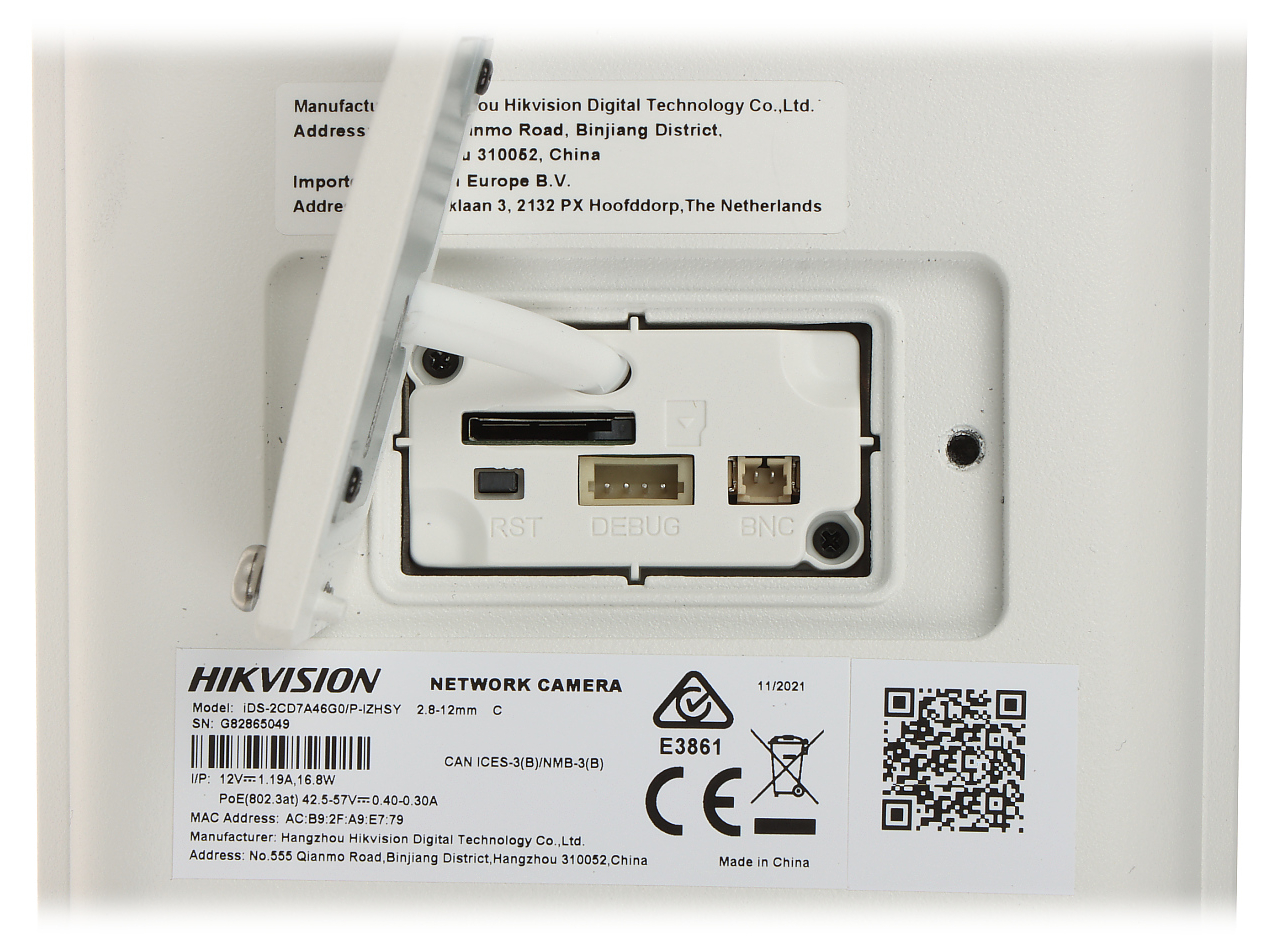

Memory card slot: | Micro SD memory cards up to 256GB support (possible local recording) |
Alarm inputs / outputs: | 2 / 2 |
Audio: | |
RS-485 interface: | ![]() |
Wiegand interface: | 26/34 bit |
Mobile phones support: | Port no.: 8000 or access by a cloud (P2P) |
Main features: | |
Power supply: | |
Power consumption: | |
Housing: | Compact, Aluminum alloy Corrosion protection in accordance with the requirements of NEMA 4X |
Color: | White + Black |
"Index of Protection": | IP67 |
Vandal-proof: | IK10 |
Operation temp: | -40 °C ... 60 °C |
Weight: | 2.4 kg (with bracket) |

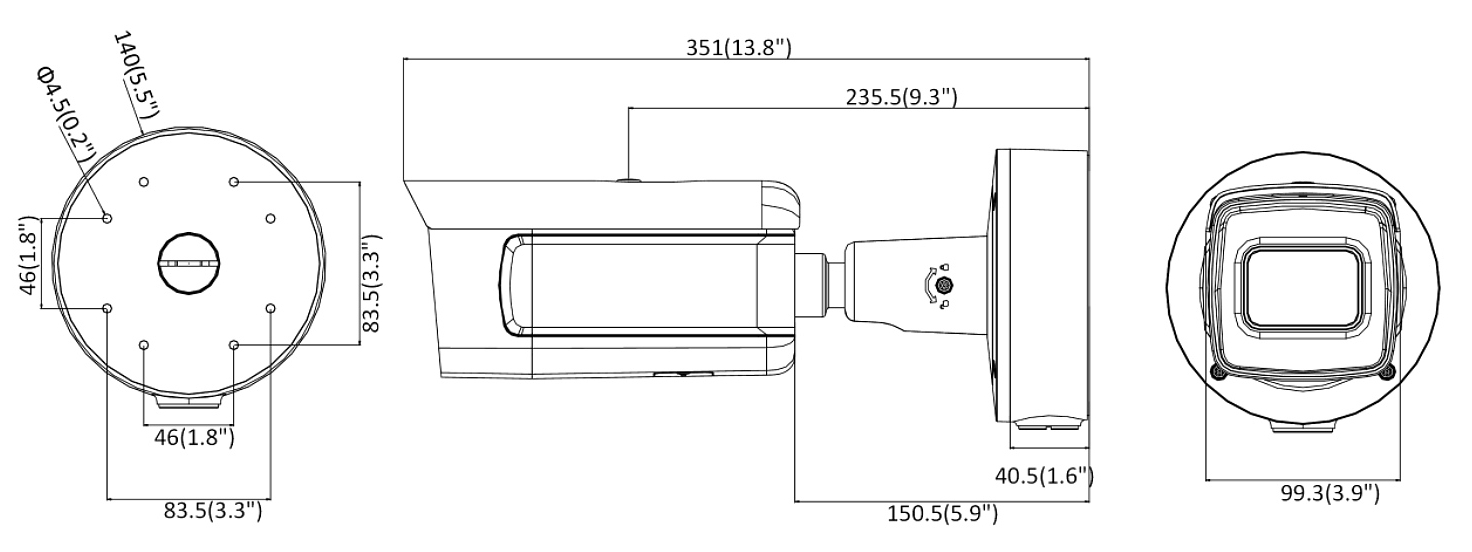

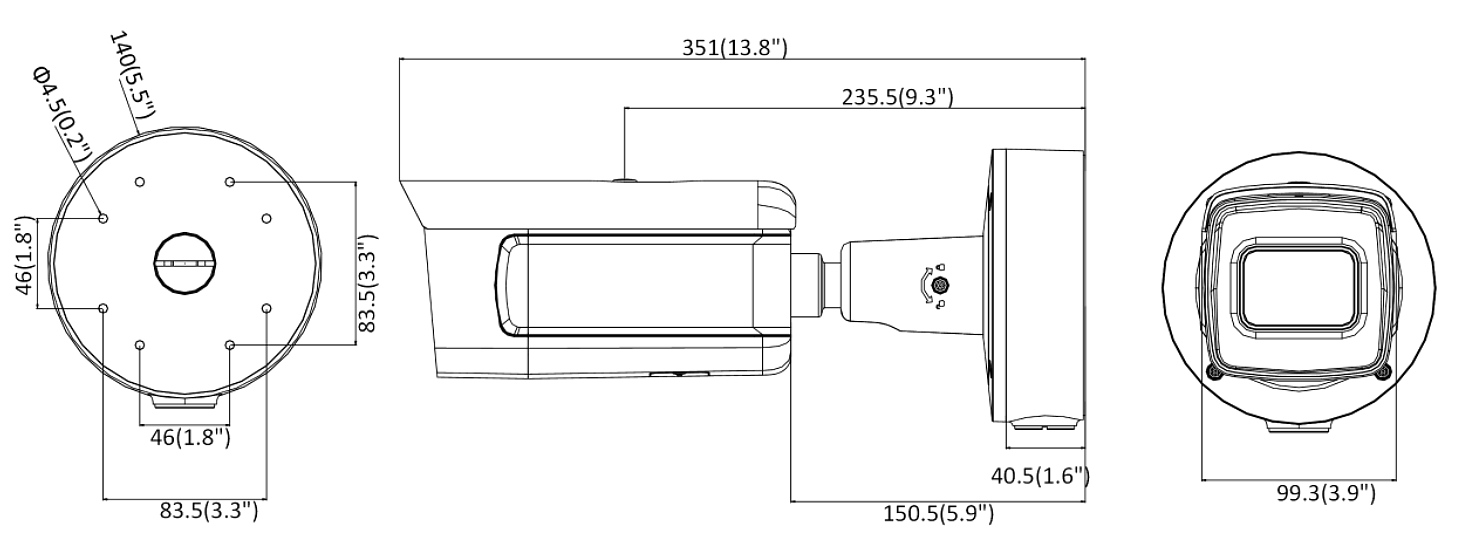

Dimensions: | Ø 140 x 351 mm |
Supported languages: | English |
SAP Code: | 311317286 |
Manufacturer / Brand: | Hikvision |
Guarantee: | 3 years |
