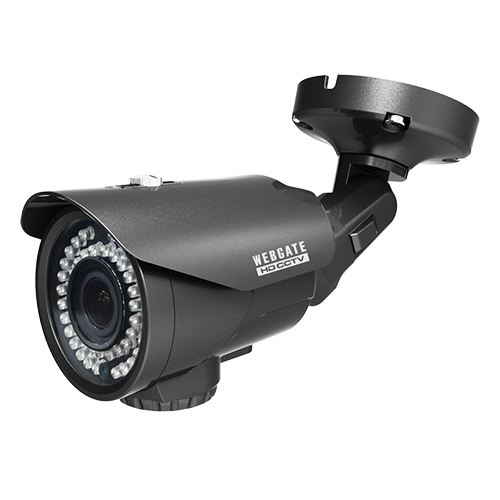

2.1 Megapixel SONY CMOS Sensor HD-SDI / EX-SDI 1.0 / EX-SDI 2.0 selectable Full-HD Resolution DC Iris, 2.7mm~12mm Megapixel Lens 3DNR (Noise Reduction) Back Light Compensation (WDR / BLC / HLC) True Day&Night (ICR) Removing Fog (Defog) Privacy Masking (10 zones) Internal IR LED : 48 pcs IP67 Level Protection against Dust and Water
|
Description |
NTSC |
PAL |
|
|
Sensor Type |
2.1 Megapixel SONY CMOS Sensor |
||
|
Output Pixels |
1920 (H) × 1080 (V) = 2.1M pixels |
||
|
Scanning System |
Progressive Scan |
||
|
Lens |
Filter |
True Day & Night (ICR) |
|
|
Type |
2.7~12mm DC IRIS VARIFOCAL LENS (ICR) |
||
|
Video |
Output |
1 (BNC 1.0 Vp-p, 75Ω) |
|
|
Resolution |
1080p30 / 720p30, 720p60(crop) |
1080p25 / 720p25, 720p50(crop) |
|
|
Format |
HD-SDI / EX-SDI 1.0 / EX-SDI 2.0 selectable |
||
|
Video Control |
AGC |
LEVEL 0~10 |
|
|
S/N Ratio |
More than 52dB |
||
|
BLC |
OFF / HLC / BLC / WDR |
||
|
ACE |
OFF / LOW / MIDDLE / HIGH |
||
|
Min. Illumination |
0.02Lux (DSS X32) |
||
|
DNR |
OFF / LOW / MIDDLE / HIGH |
||
|
Iris Adjustment |
DC / Manual |
||
|
White Balance |
AUTO / AUTOext / PRESET / MANUAL |
||
|
Electric Shutter |
INDOOR / OUTDOOR / INDOOR-ANTI-BLUR / OUTDOOR-ANTI-BLUR / FLICKER / MANUAL (11 Steps) |
||
|
OSD Language |
ENG |
||
|
Day&Night |
COLOR / BW / EXTERN / AUTO |
||
|
Defog |
OFF / ON (AUTO, MANUAL-LOW / MIDDLE / HIGH) |
||
|
Privacy |
OFF / ON (Programmable 10 zones) |
||
|
Defect |
LIVE DPC |
||
|
DSS |
OFF / AUTO / X2~X32 |
||
|
Digital Effect |
OFF / H-MIRROR / V-MIRROR |
||
|
IR LED |
48 pcs |
||
|
Smart IR |
OFF / ON |
||
|
Input Voltage |
DC 12V(±10%) |
||
|
Power Consumption |
IR OFF : 250mA (MAX) / IR ON : 900mA (MAX) |
||
|
Operation Temp./Humidity |
-10℃ ~ +50℃ / MAX 90% RH |
||
|
Storage Temp./Humidity |
-25℃ ~ +60℃ / MAX 90% RH |
||
