Sensor: 1/2.8 " STARVIS™ CMOS ; Matrix size: 2.1 Mpx ; Resolution: 1920 x 1080 - 1080p ; Range of IR illumination: 150 m ; View angle: 61 ° ... 3.2 ° ; Optical zoom: x 25 ; Rotation speed (manual control): 0.1 °/s ... 300 °/s (horizontal), 0.1 °/s ... 200 °/s (vertical) ; Audio: External microphone input ; Alarm inputs / outputs: 2 / 1 ; Power supply: 24 V DC ;
| Standard: | HD-CVI |
| Sensor: | 1/2.8 " STARVIS™ CMOS |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 - 1080p 1280 x 720 - 720p |

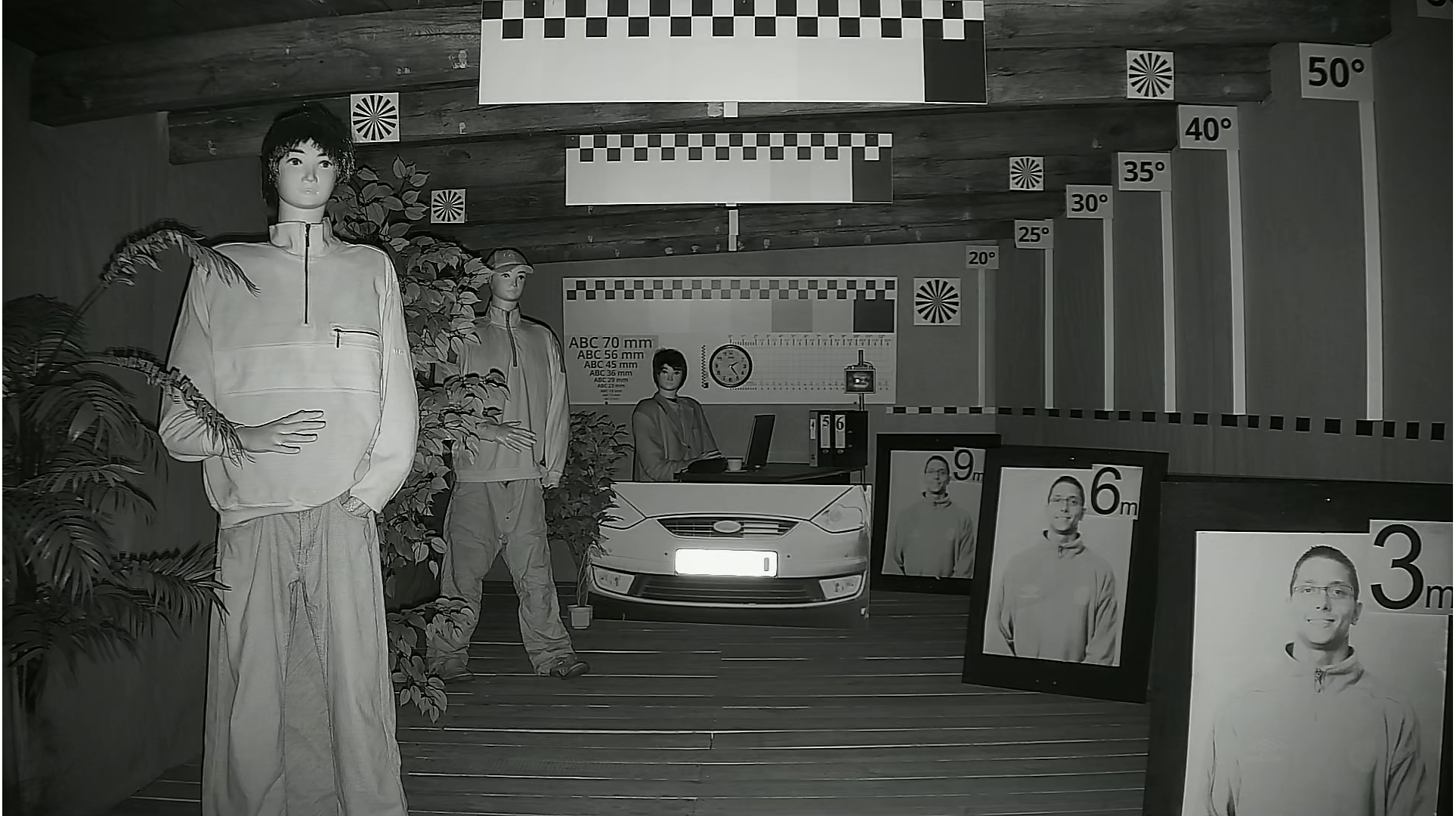

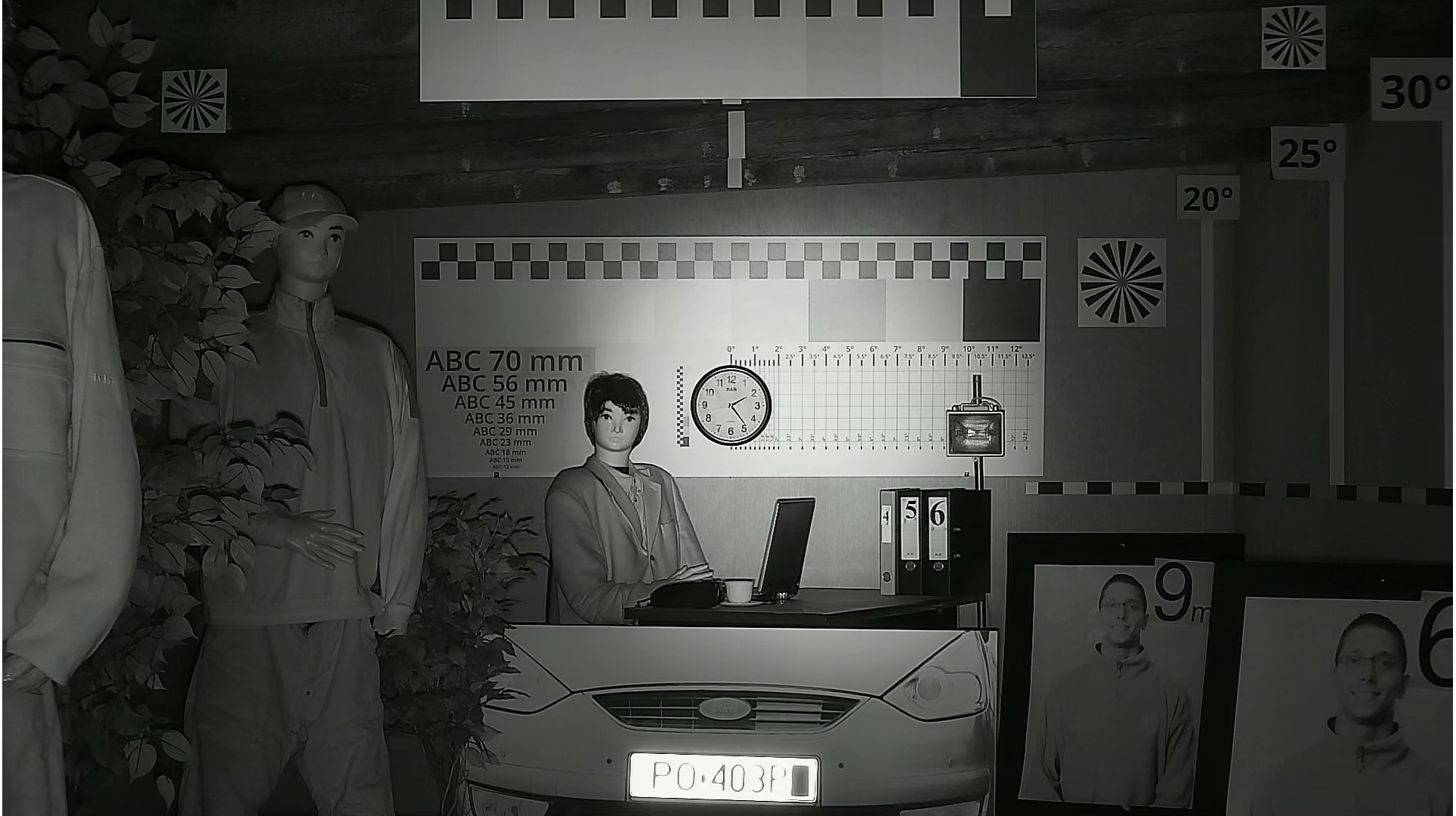

| Range of IR illumination: | 150 m |
| Lens: | 4.8 ... 120 mm |
| View angle: | |
| Optical zoom: | x 25 |
| Digital zoom: | x 16 |
| Rotation speed depending on ZOOM level: |  |
| Auto IR illuminator: | Adaptive adjusting of the IR illuminator power to the lens zoom and outdoor light conditions |
| Horizontal rotation range: | 360 ° continuous |
| Vertical rotation range: | -15 ° ... 90 ° |
| Rotation speed (manual control): | |
| Preset rotation speed: | |

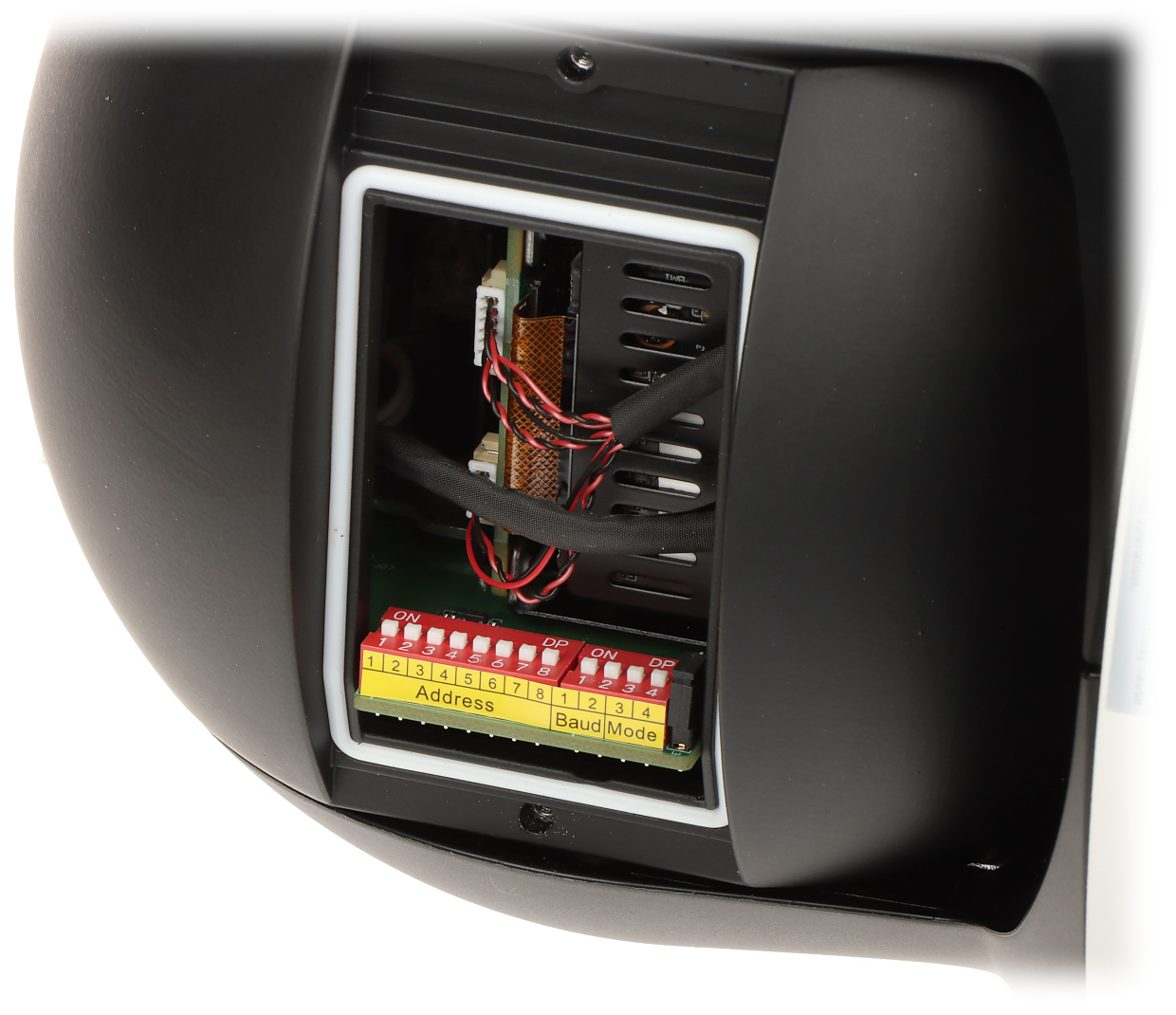

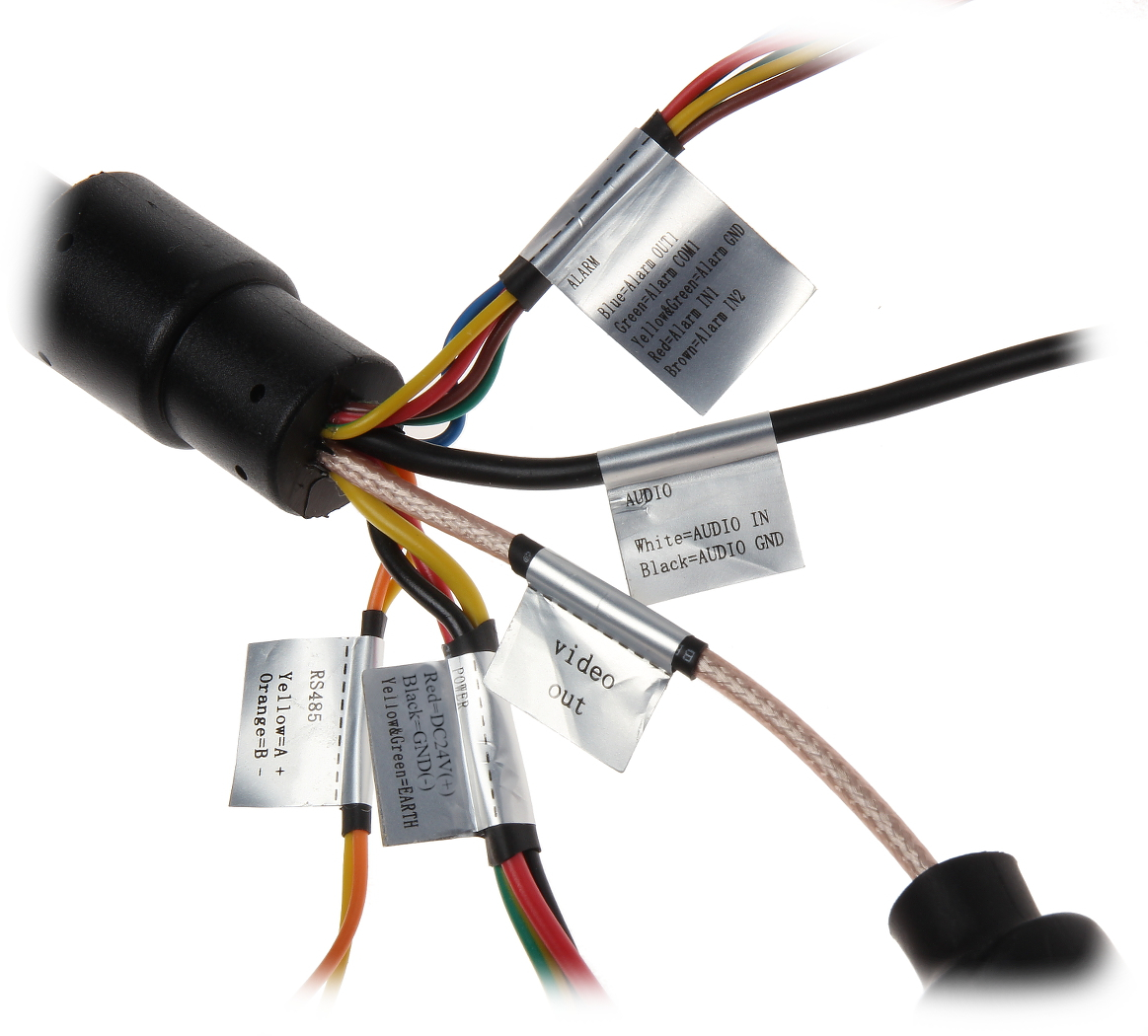

| PTZ control: | Via interface RS-485 The ability to control via coaxial cable from recorder |
| Protocols: | Pelco-D, Pelco-P, DH-SD (auto detection) |
| Video output: | HD-CVI / CVBS : 1 Vpp 75 Ω |
| Audio: | External microphone input |
| Number of presets: | 300 |
| Route settings: | 8 |
| Horizontal scan: | |
| Park action: | Call the set function (tour, scan, etc.) after specified dwell time |
| Alarm inputs / outputs: | 2 / 1 |
| Main features: | |
| OSD menu: | |

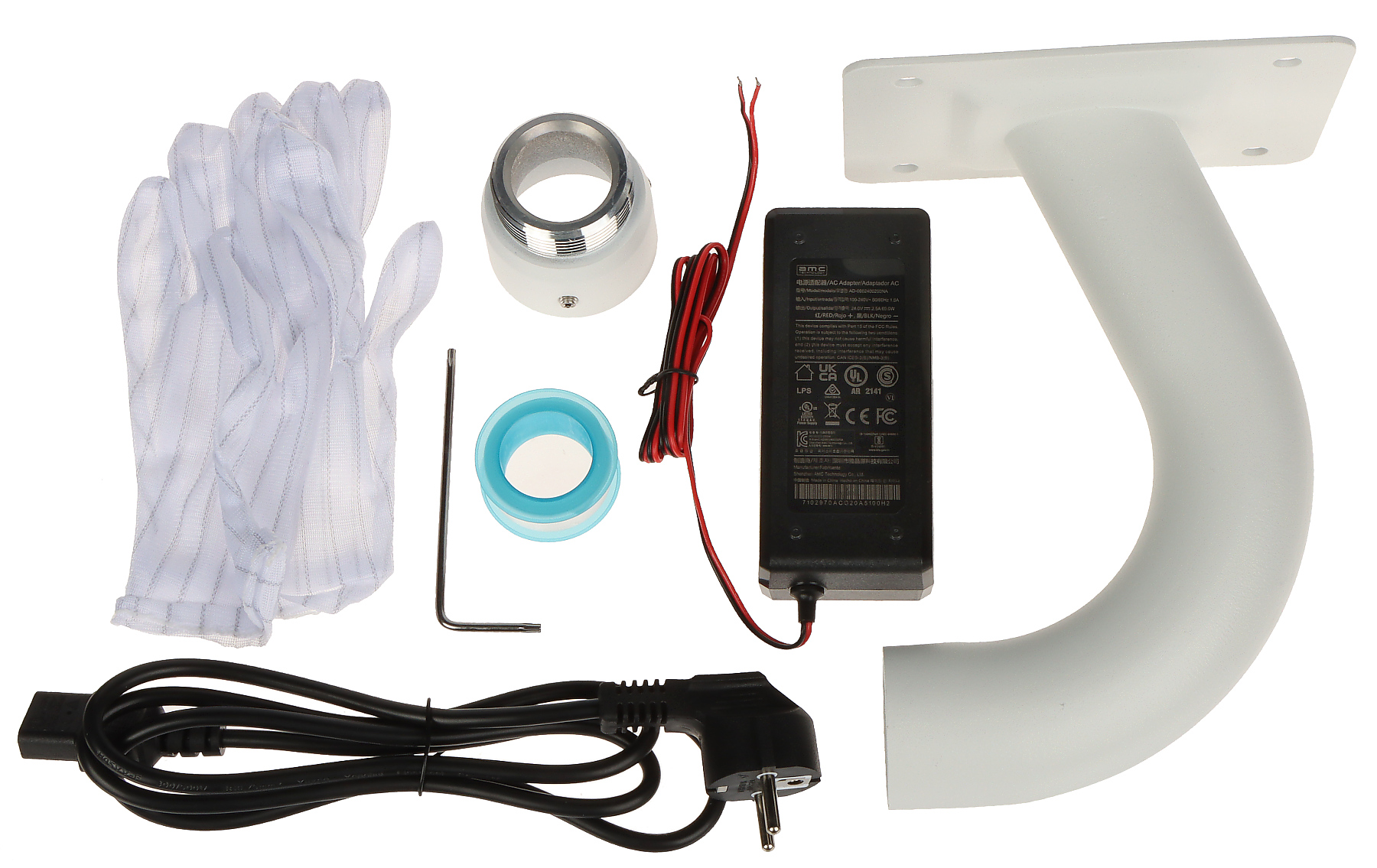

| Power supply: | 24 V DC / 2.5 A (power adapter included) |
| Power consumption: | ≤ 10 W (typical) ≤ 21 W (max) |

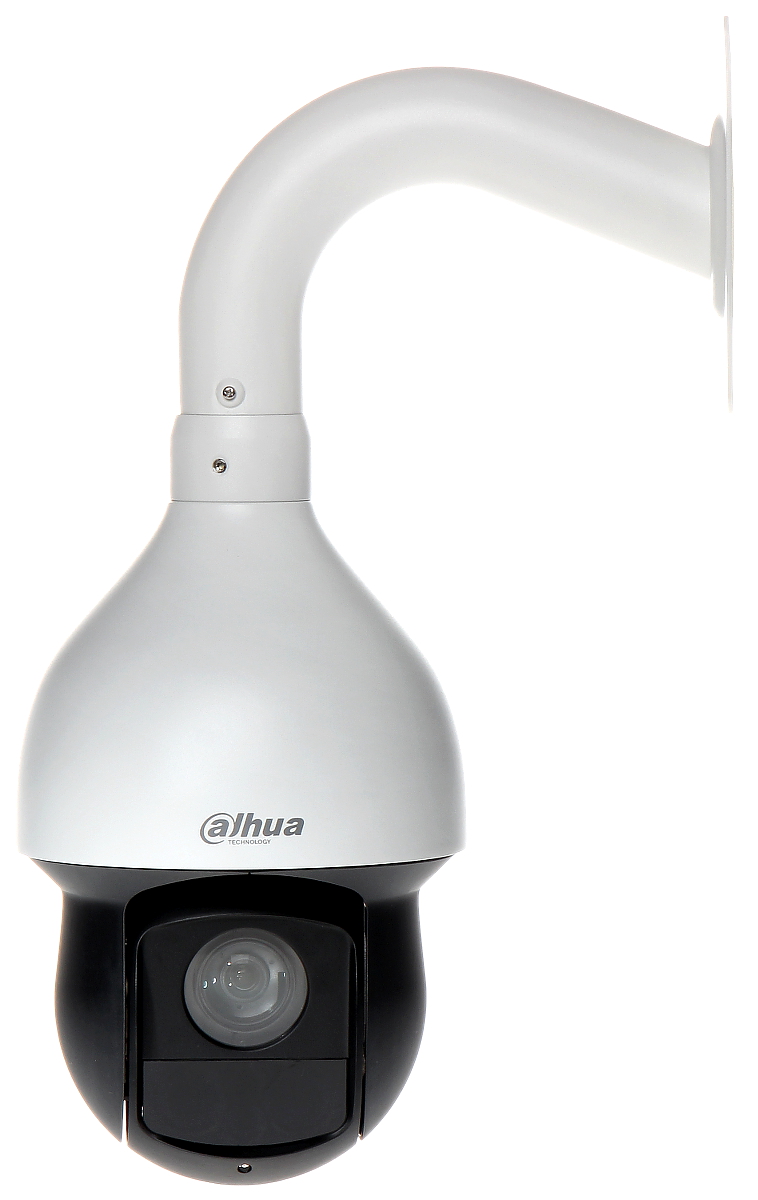

| Housing: | Speed Dome, Metal + Plastic |
| Color: | White + Black |
| "Index of Protection": | IP66 |
| Vandal-proof: |  |
| Operation temp: | -40 °C ... 70 °C |
| Weight: | 4.28 kg (with bracket) |

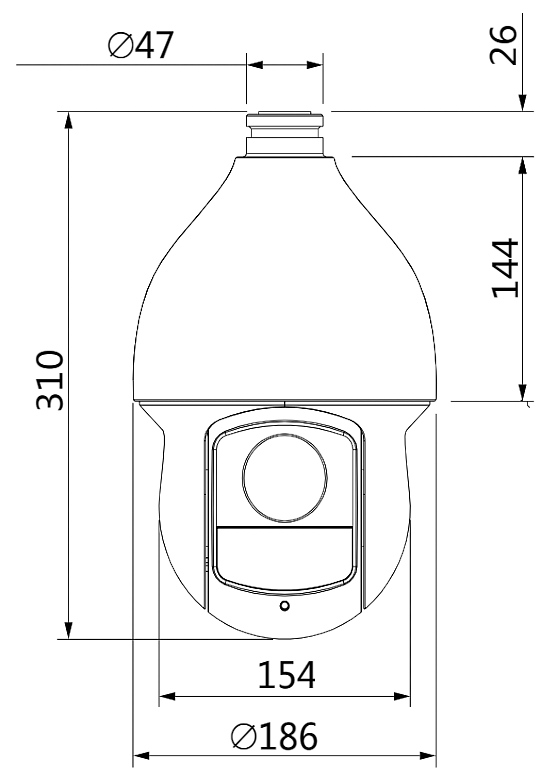

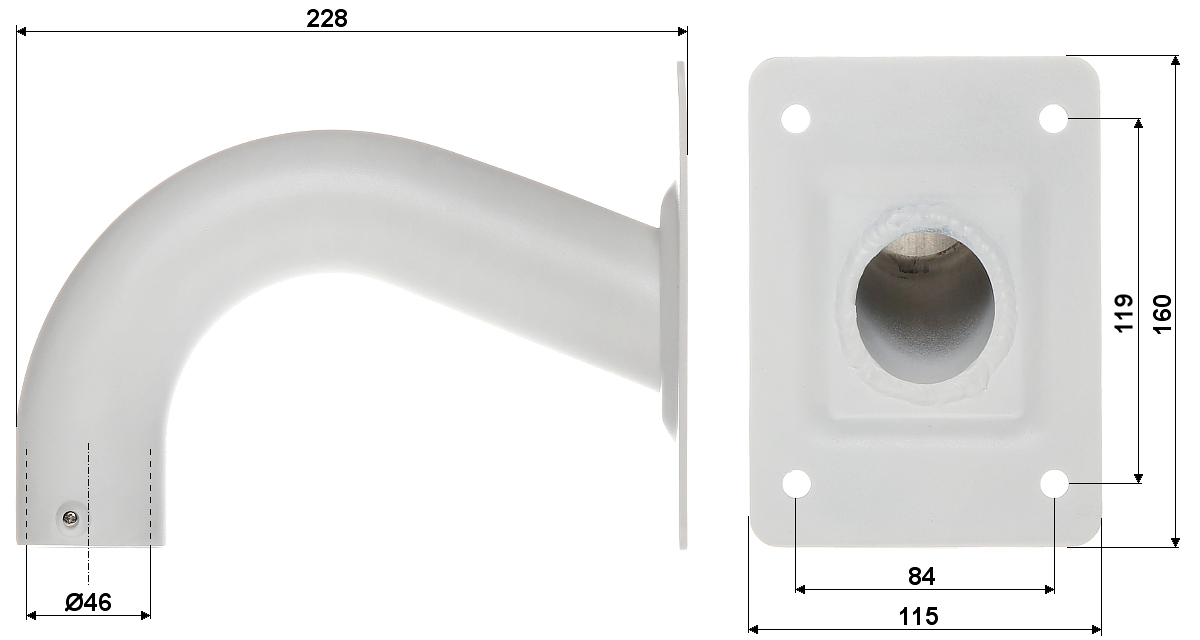

| Dimensions: | 297 x 475 x 186 mm (with bracket) |
| Supported languages: | English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 5 years |
Brand:
Dahua
