Standard: | AHD, HD-CVI, HD-TVI, PAL |
Matrix size: | 5 Mpx |
Sensor: | 1/2.8 " CMOS |
Resolution: | 2592 x 1944 - 5 Mpx , 2560 x 1440 - 3.7 Mpx |
Range of IR illumination: | 10 m |
IR illuminator power adjustment: | Automatic |
Lens: | 1.4 mm - Fish Eye, F2.0 |
View angle: | 180 ° |
IR illuminator support: | ICR - Movable InfraRed filter |
S/N ratio: | > 65 dB |
Audio: | Microphone built-in |
Video output: | AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω |
Main features: | |
OSD menu: | OSD menu available via recorder |
Power supply: | 12 V DC / 610 mA |
Power consumption: | ≤ 7.3 W |
Housing: | Dome, Plastic |
"Index of Protection": | ![]() |
Vandal-proof: | ![]() |
Color: | White |
Operation temp: | -30 °C ... 60 °C |
Weight: | 0.26 kg |

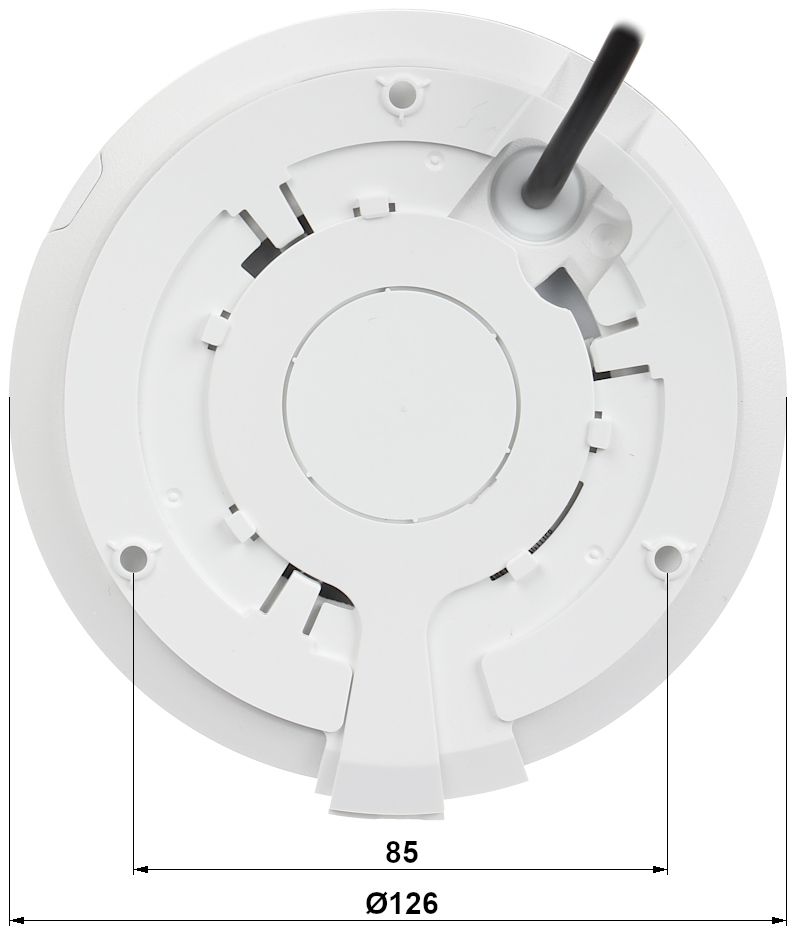

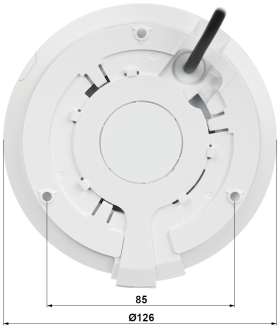

Dimensions: | Ø 126 x 44 mm |
Manufacturer / Brand: | DAHUA |
Guarantee: | 5 years |
