Standard: | AHD / HD-CVI / HD-TVI / PAL |
Resolution: | 1920 x 1080 - 1080p @ AHD / HD-CVI / HD-TVI 960 x 576 - 960H, PAL |
Sensor: | Progressive Scan CMOS |
Lens: | 2.8 mm |
View angle: | 105 ° |
White light LED illuminator range: | 40 m |
Range of IR illumination: | 40 m |
Video output: | 1 Vpp / 75 Ω - AHD / HD-CVI / HD-TVI / PAL, BNC socket |
Audio: | |
Main features: | |
OSD menu: | ![]() |
Power supply: | 12 V DC / 580 mA |
Power consumption: | ≤ 6.9 W |
Housing: | Compact, Metal |
Color: | White |
"Index of Protection": | IP67 |
Mechanical protection class: | ![]() |
Operation temp: | -40 °C ... 60 °C |
Weight: | 0.53 kg |

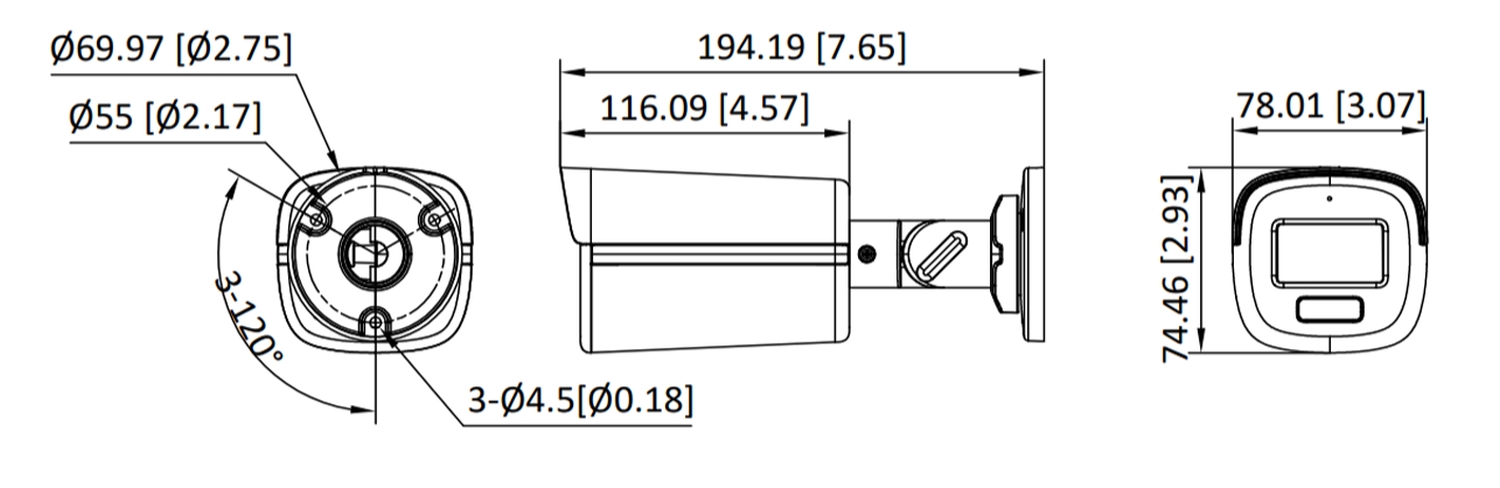

Dimensions: | 194 x 78 x 75 mm |
Supported languages: | English |
Manufacturer / Brand: | Hikvision |
SAP Code: | 327800917 |
Guarantee: | 3 years |
