Sensor: Progressive Scan CMOS ; Matrix size: 2 Mpx ; Resolution: 1920 x 1080, ; View angle: 101 ° ; White light LED illuminator range: 30 m ; Audio: Microphone built-in, Audio support via coaxial cable - HD-CVI only ; Power supply: 12 V DC ;
Standard: | AHD, HD-CVI, HD-TVI, CVBS |
Sensor: | Progressive Scan CMOS |
Matrix size: | 2 Mpx |
Resolution: | 1920 x 1080 - 1080p , 960 x 576 - 960H, CVBS |
Lens: | 2.8 mm |
View angle: | 101 ° |
White light LED illuminator range: | 30 m |
Video output: | AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω |
Audio: | |
OSD menu: | OSD menu available via DAHUA recorder |
Main features: | |
Power supply: | 12 V DC / 495 mA |
Power consumption: | ≤ 5.94 W |
Housing: | Bullet, Metal |
"Index of Protection": | IP67 |
Vandal-proof: | ![]() |
Color: | White |
Operation temp: | -40 °C ... 60 °C |
Weight: | 0.36 kg |

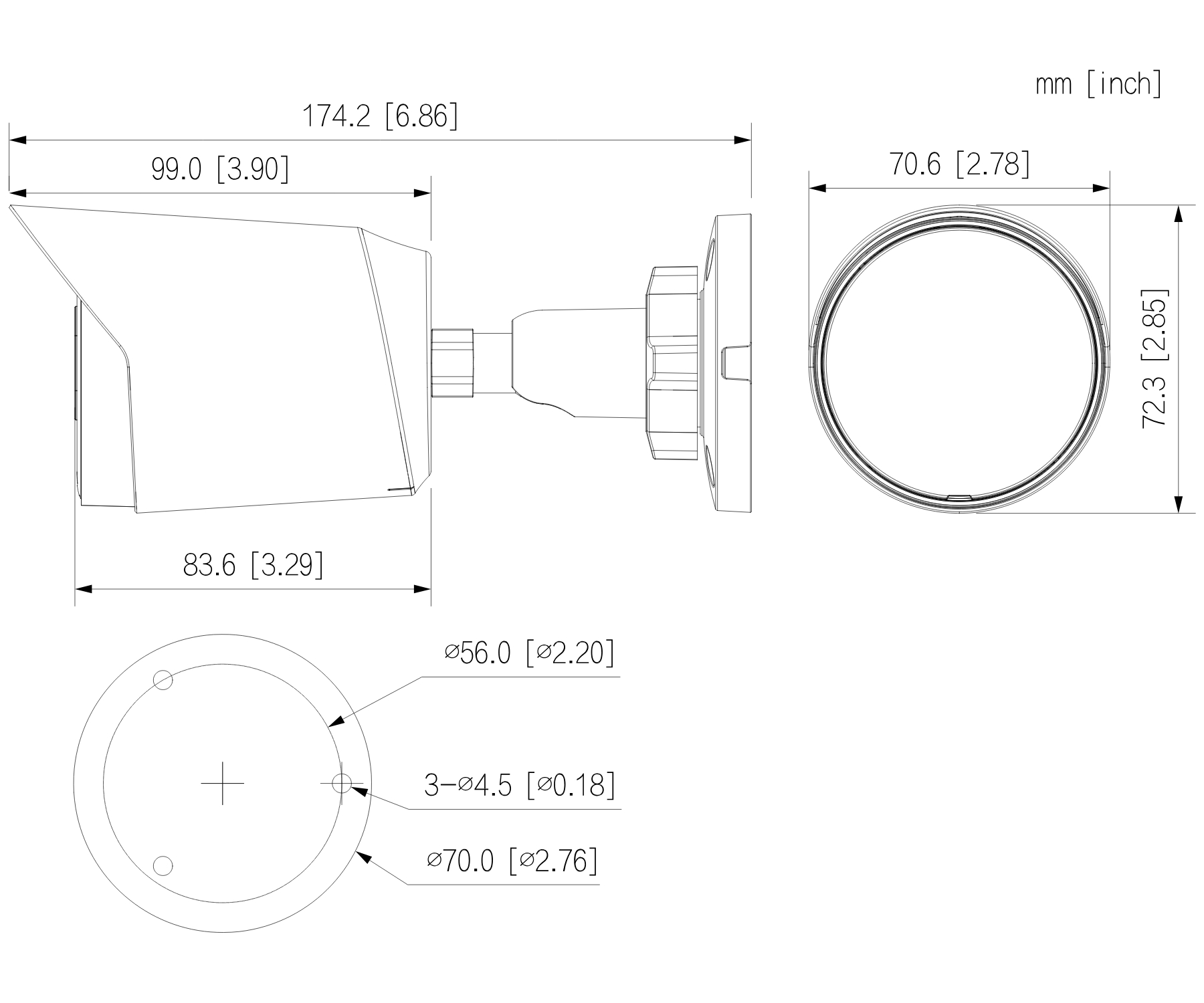

Dimensions: | Ø 177 x 72 x 72 mm |
Manufacturer / Brand: | DAHUA |
Guarantee: | 3 years |
