Standard: | AHD, HD-CVI, HD-TVI, CVBS |
Sensor: | 1/2.8 " Progressive Scan CMOS |
Matrix size: | 2.1 Mpx |
Resolution: | 1920 x 1080 - 1080p , 960 x 576 - 960H, CVBS |
Lens: | 2.8 mm |
View angle: | |
White light LED illuminator range: | 40 m |
Video output: | AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω |
Audio: | |
OSD menu: | OSD menu available via DAHUA recorder |
Main features: | |
"Index of Protection": | IP67 |
Power supply: | 12 V DC / 350 mA |
Power consumption: | ≤ 5.1 W |

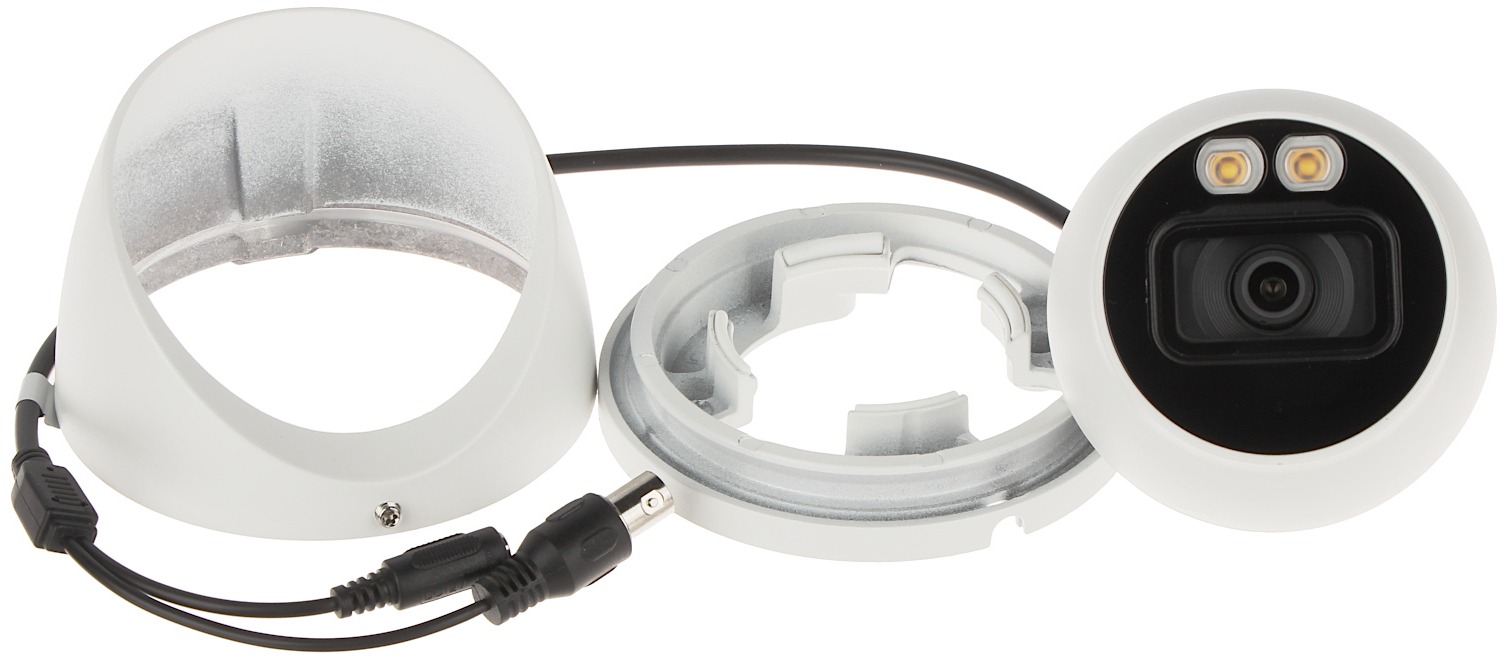

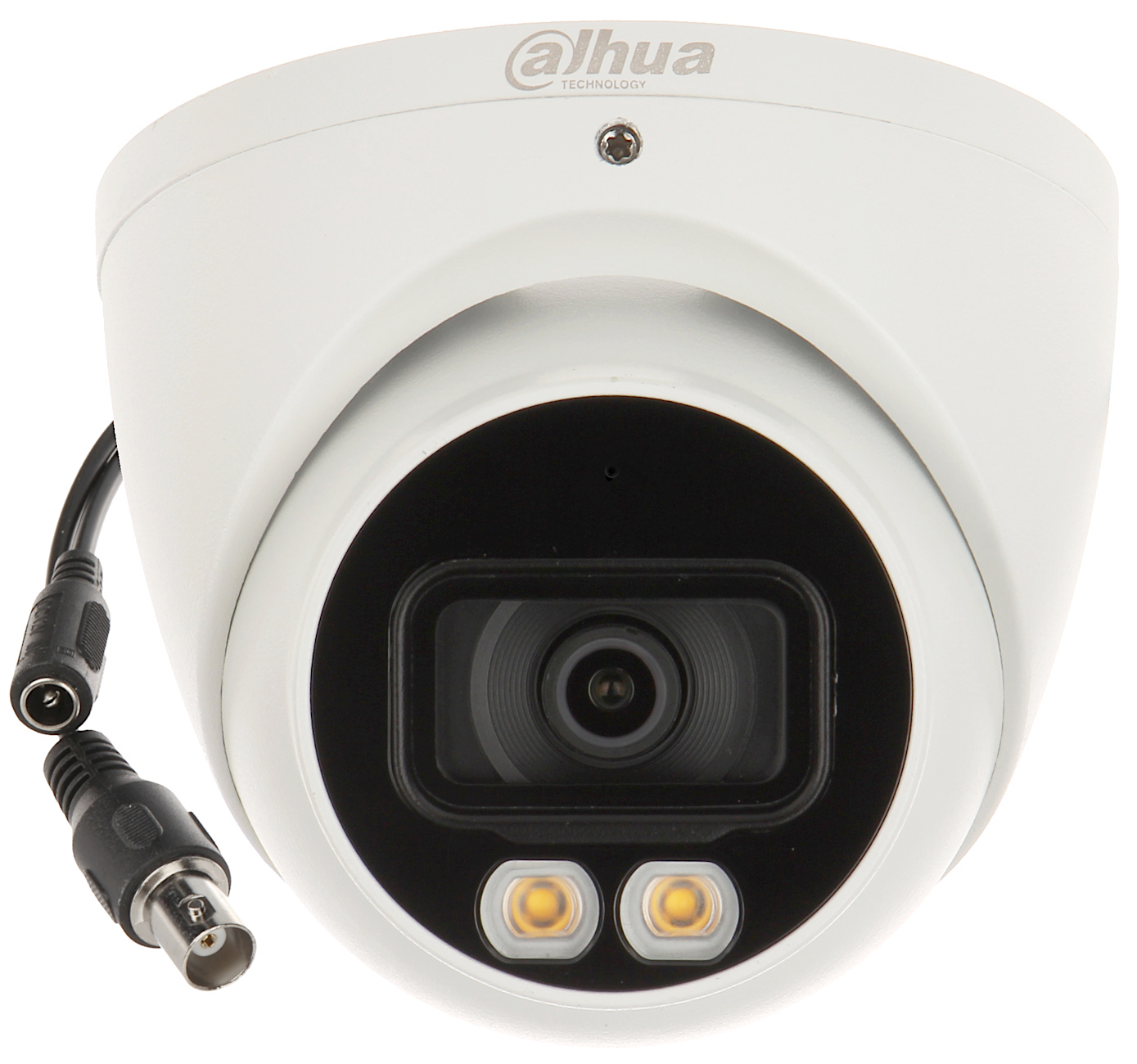

Housing: | Dome, Aluminum |
Vandal-proof: | ![]() |
Color: | White |
Operation temp: | -40 °C ... 60 °C |
Weight: | 0.45 kg |

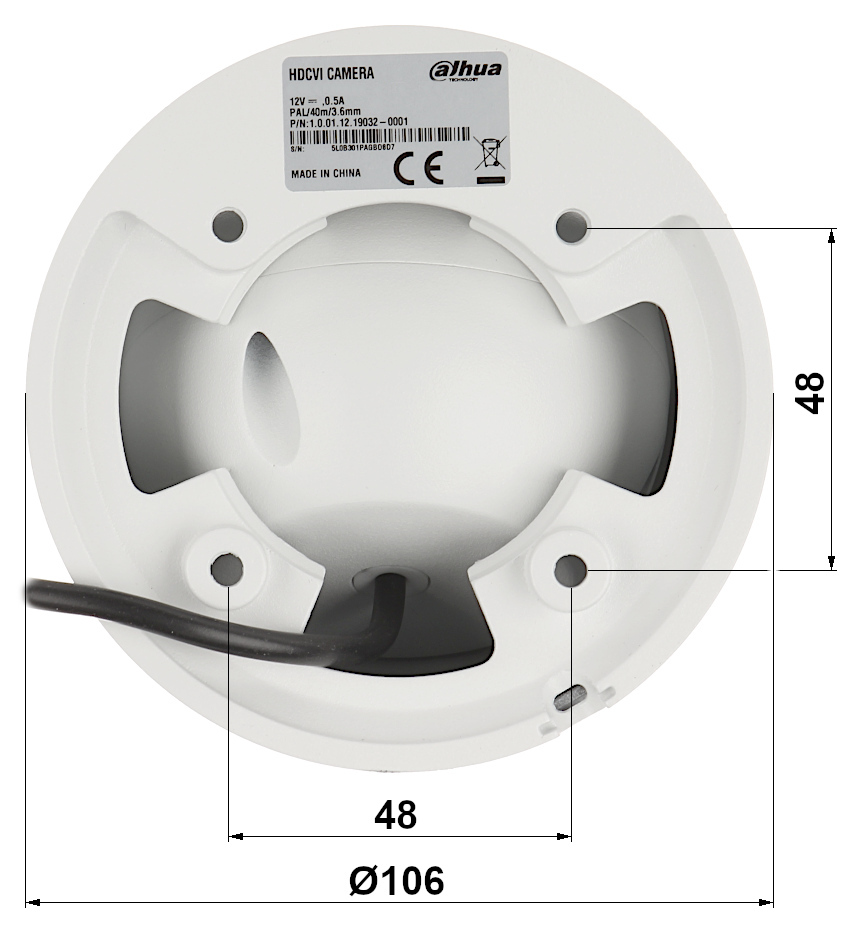

Dimensions: | Ø 106 x 94 mm |
Manufacturer / Brand: | DAHUA |
Guarantee: | 3 years |
