Standard: | AHD / HD-CVI / HD-TVI / PAL |
Resolution: | 1920 x 1080 - 1080p 960 x 576 - 960H |
Sensor: | Progressive Scan CMOS |
Range of IR illumination: | 30 m |
IR illuminator power adjustment: | Automatic |
Lens: | 2.8 mm, F1.2 |
View angle: | 100 ° |
S/N ratio: | > 65 dB |
Video output: | AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω |
Main features: | |
OSD menu: | OSD menu available via recorder |
"Index of Protection": | IP67 |
Power supply: | 12 V DC / 230 mA |
Power consumption: | ≤ 2.8 W |
Housing: | Dome, Plastic |
Mechanical protection class: | ![]() |
Color: | White |
Operation temp: | -40 °C ... 60 °C |
Weight: | 0.28 kg |

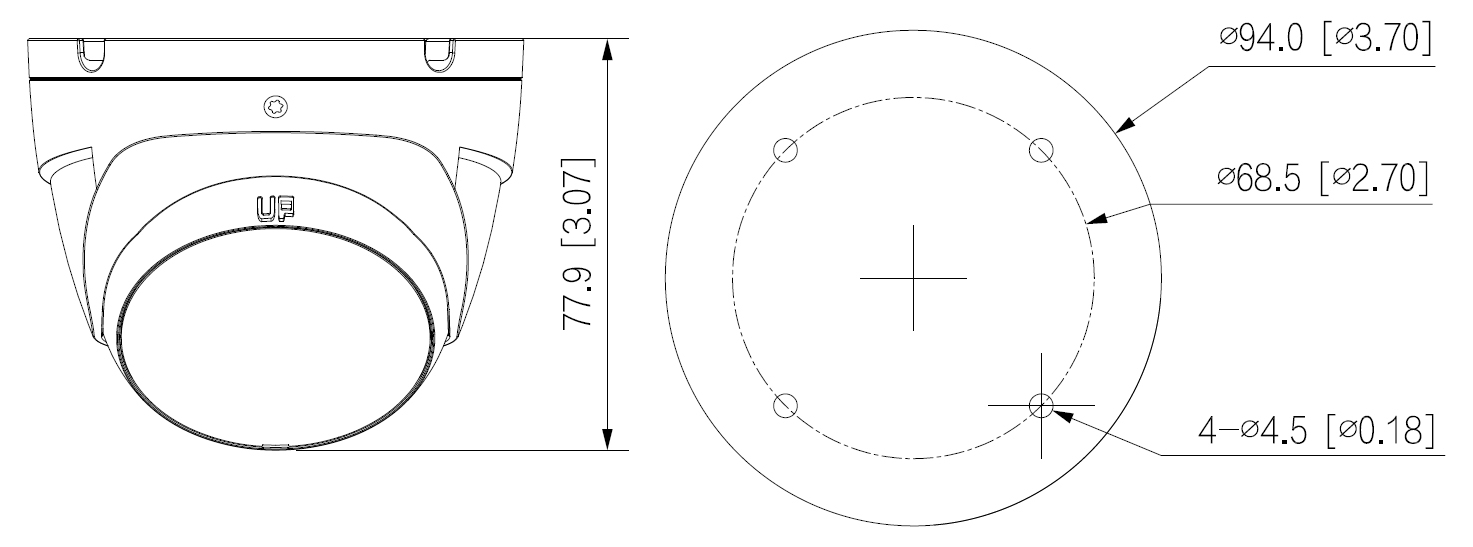

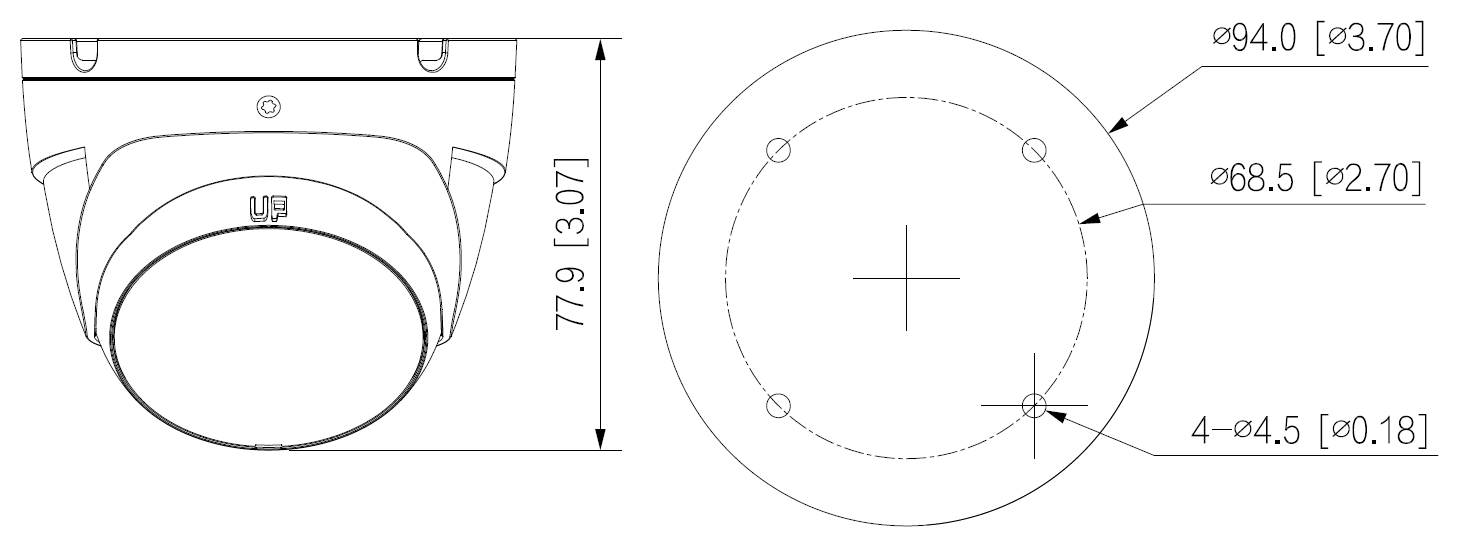

Dimensions: | Ø 94 x 78 mm |
Manufacturer / Brand: | DAHUA |
Guarantee: | 3 years |
