Standard: | HD-CVI, HD-TVI, AHD, CVBS |
Sensor: | 1/2.8 " Progressive Scan CMOS |
Matrix size: | 2.1 Mpx |
Resolution: | 1920 x 1080 - 1080p , 960 x 576 - 960H, PAL |
Range of IR illumination: | 30 m |
IR illuminator power adjustment: | Automatic |
Lens: | 2.8 mm |
View angle: | |
S/N ratio: | > 65 dB |
Video output: | AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω |
Audio: | |
Main features: | |
OSD menu: | OSD menu available via DAHUA recorder |
Power supply: | 12 V DC / 260 mA |
Power consumption: | ≤ 3.1 W |

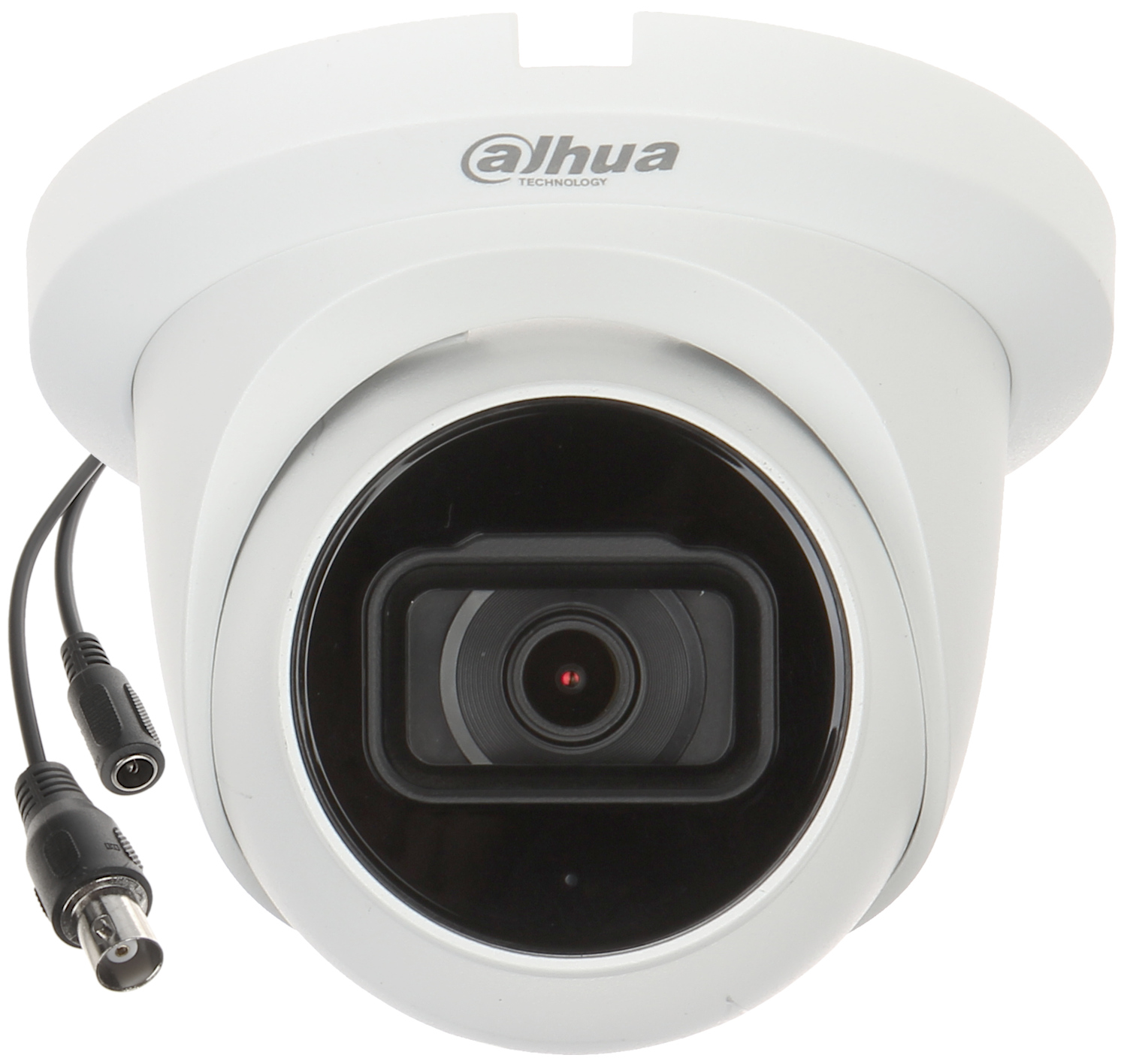

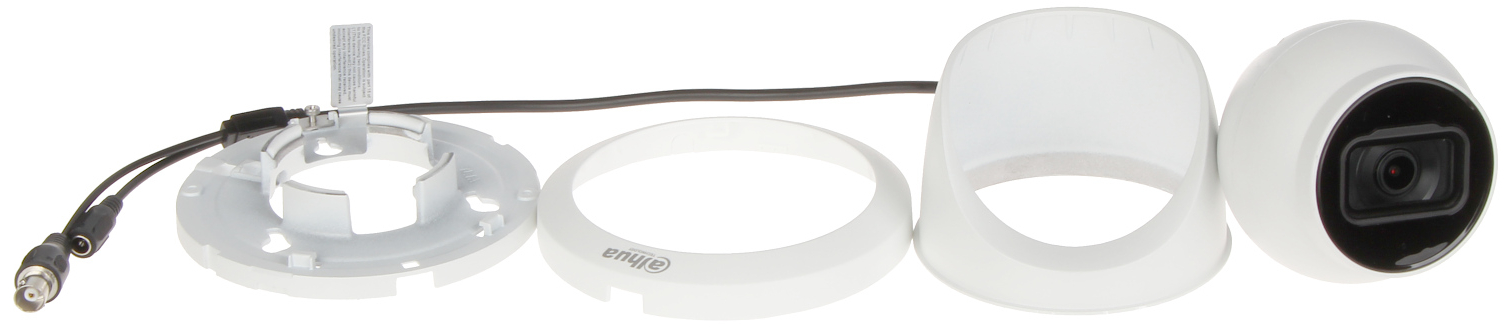

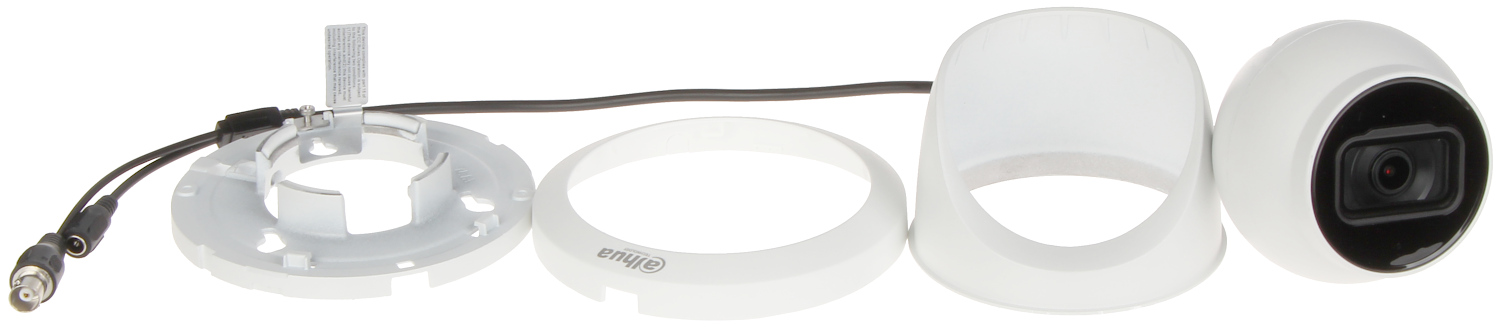

Housing: | Dome, Metal + Plastic |
"Index of Protection": | IP67 |
Color: | White |
Vandal-proof: | ![]() |
Operation temp: | -40 °C ... 60 °C |
Weight: | 0.33 kg |

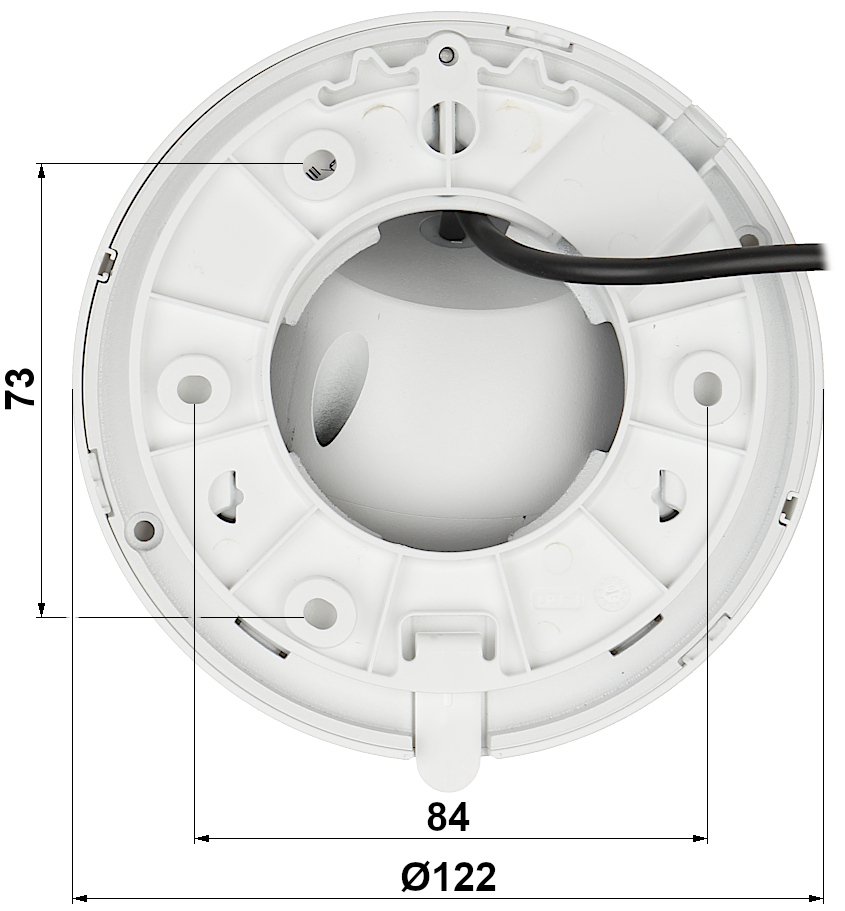

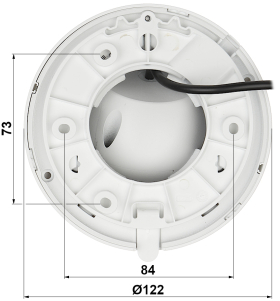

Dimensions: | Ø 110 x 88 mm |
Manufacturer / Brand: | DAHUA |
Guarantee: | 3 years |
