Standard: | HD-CVI, HD-TVI, AHD, CVBS |
Resolution: | 1920 x 1080 - 1080p , 960 x 576 - 960H, PAL |
Sensor: | Progressive Scan CMOS |
Range of IR illumination: | 40 m |
IR illuminator power adjustment: | Automatic |
Lens: | 2.8 mm |
View angle: | 102 ° |
Video output: | AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω |
Audio: | |
Main features: | |
OSD menu: | OSD menu available via DAHUA recorder |
Power supply: | 12 V DC / 270 mA |
Power consumption: | ≤ 3.2 W |
Housing: | Dome Metal + Plastic |
"Index of Protection": | IP67 |
Color: | White |
Mechanical protection class: | ![]() |
Operation temp: | -40 °C ... 60 °C |
Weight: | 0.33 kg |

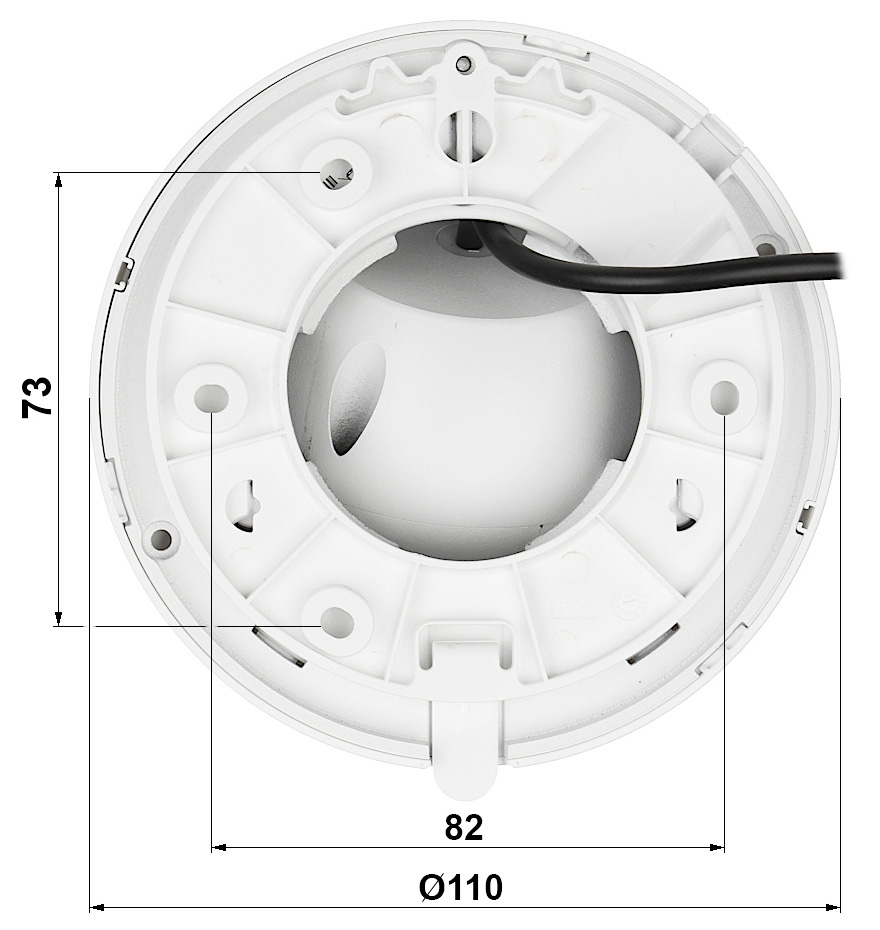

Dimensions: | Ø 110 x 101 mm |
Manufacturer / Brand: | DAHUA |
Guarantee: | 3 years |
