Standard: | AHD, HD-CVI, HD-TVI, CVBS |
Resolution: | 1920 x 1080 - 1080p @ AHD / HD-CVI / HD-TVI @ 25 fps , 960 x 576 - 960H @ PAL @ 25 fps |
Sensor: | Progressive Scan CMOS |
Lens: | 2.8 mm |
View angle: | 102 ° |
Range of IR illumination: | 20 m |
White light LED illuminator range: | 20 m |
IR illuminator power adjustment: | Automatic |
Video output: | AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω |
Audio: | |
OSD menu: | ![]() |
Main features: | |
Power supply: | 12 V DC / 220 mA |
Power consumption: | ≤ 2.6 W |
Housing: | Dome - Metal |
Color: | White |
"Index of Protection": | IP67 |
Mechanical protection class: | ![]() |
Operation temp: | -40 °C ... 60 °C |
Weight: | 0.31 kg |

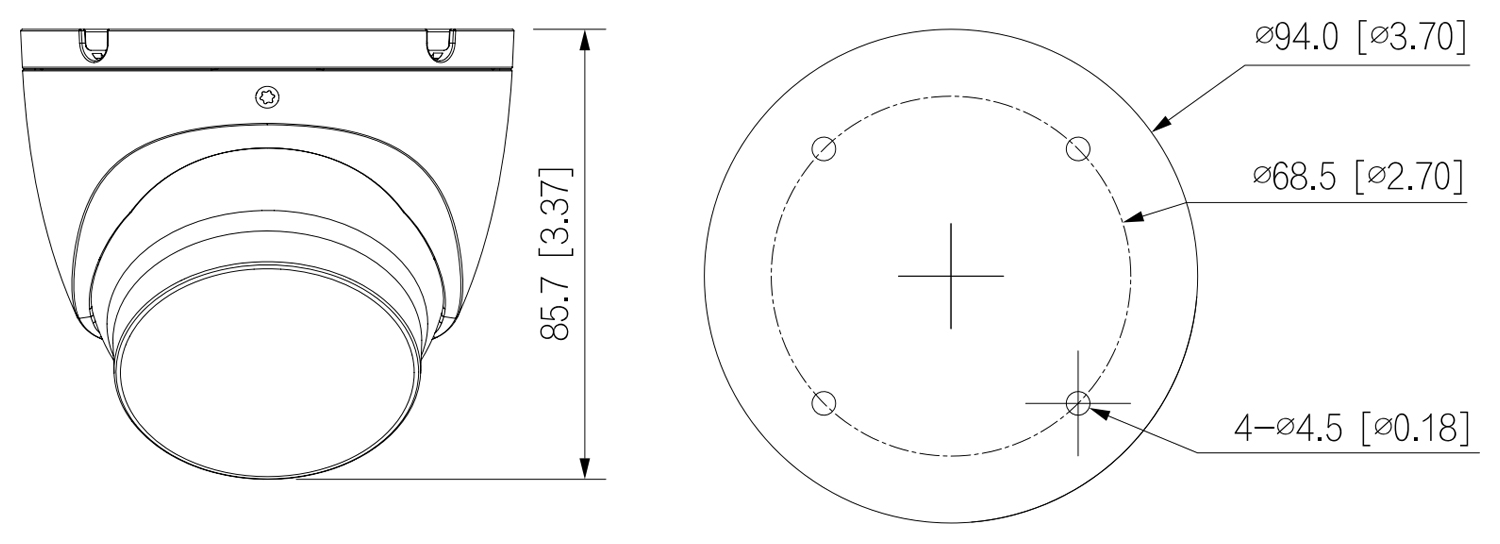

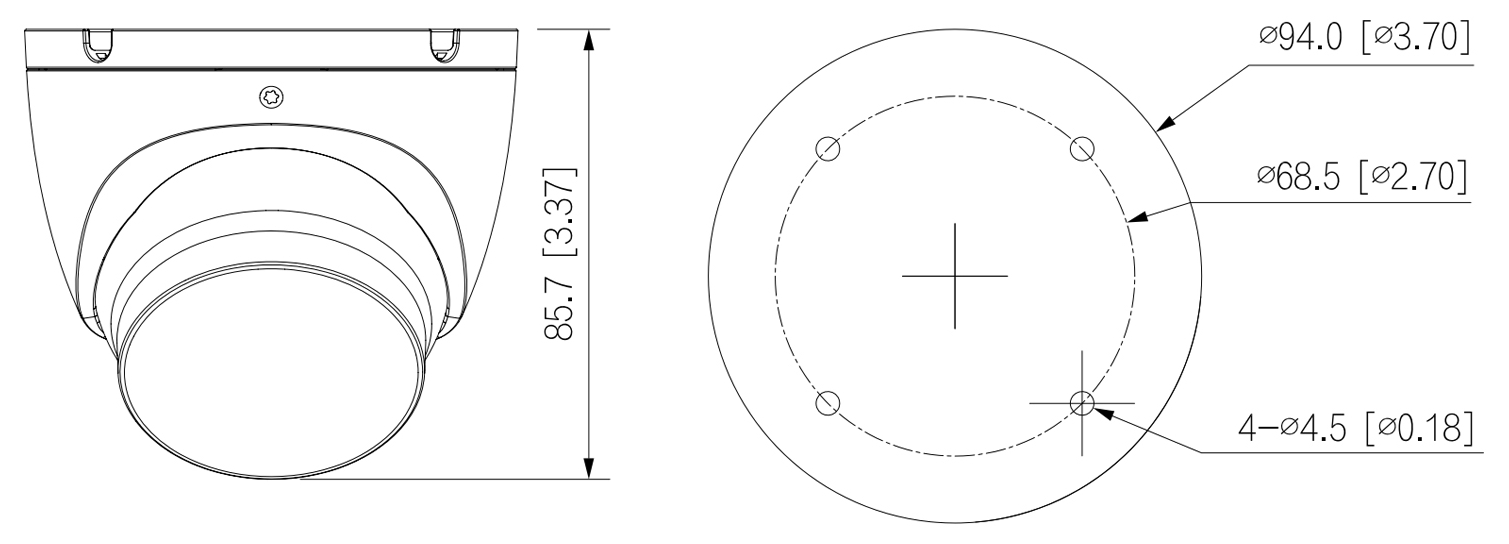

Dimensions: | Ø 94 x 86 mm |
Manufacturer / Brand: | DAHUA |
Guarantee: | 3 years |
