Audio inputs: 4 pcs CINCH ; Image compression method: AI Coding / Smart H.265+ ; Image records resolutions: AHD / HD-CVI / HD-TVI : 8 Mpx, IP : max. 8 Mpx ; Supported hard drives: 2 x 16 TB SATA ; Alarm inputs / outputs: 8 / 3 ; Main features: Cooperation with Dahua devices working in the concept of the Internet of Things (IoT), Coax Audio/Alarm support, Intelligent Image Analysis, advanced face and vehicle recognition and search functions ;
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |

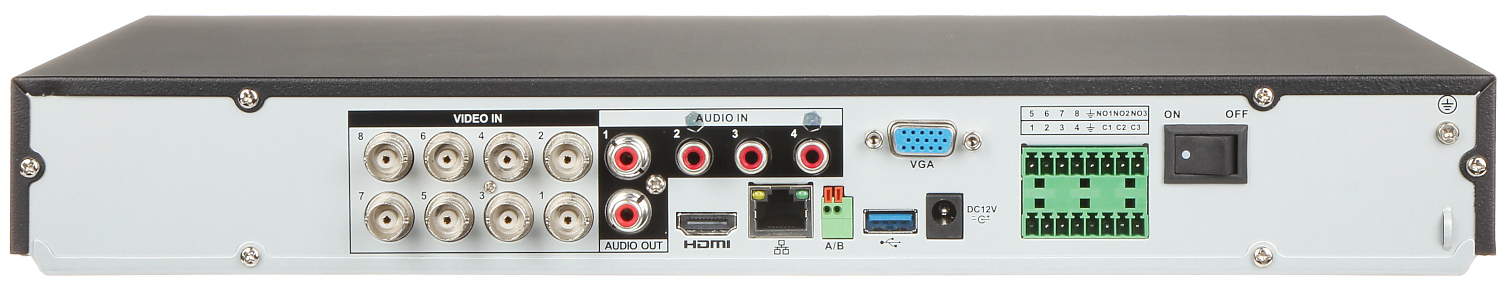

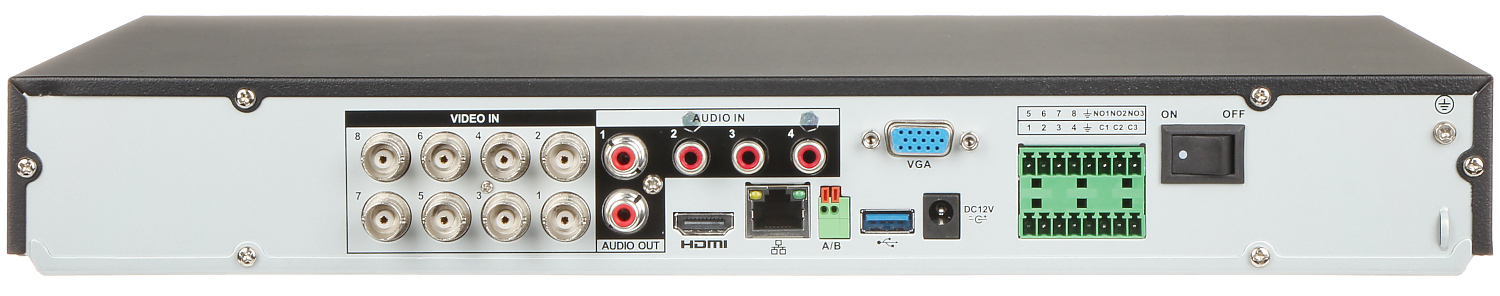

| Video inputs: | 8 pcs BNC |
| Video outputs: | |
| Audio inputs: | 4 pcs CINCH , 8 Channels - Audio support via coaxial cable, HD-CVI only |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Image records resolutions: | 8 Mpx - 3840 x 2160 , 4K-N - 1920 x 2160 , 6 Mpx - 2880 x 1920 - HD-CVI only , 5 Mpx - 2592 x 1944 , 4 Mpx - 2560 x 1440 , 3 Mpx - 2048 x 1536 - AHD / HD-TVI only , 1080p - 1920 x 1080 , 720p - 1280 x 720 |
| Recording speed adjustment: | 8 Mpx IP @ 1 ... 25 fps 8 Mpx @ 1 ... 15 fps 4K-N @ 1 ... 25 fps 6 Mpx @ 1 ... 20 fps 5 Mpx @ 1 ... 25 fps 4 Mpx @ 1 ... 25 fps 3 Mpx @ 1 ... 25 fps 1080p @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps for each channel |
| Operation modes: | 8 x AHD / HD-CVI / HD-TVI / CVBS / IP + 8 x IP |
| Recording modes: | Manual, Sensor, Motion detection, Schedule |
| Supported hard drives: | 2 x 16 TB SATA |
| External storage devices backup: | Save single frames and whole records from DVR drive to the USB drive |
| Searching and playback the records: | Records searching: by time + timeline with record type. Playback: forward, fast, slow, step Advanced searching (to the one second accuracy) 1, 4 or 9 channels synchronous playback, Smart Playback function |
| Network interface: | 1 x RJ-45 10/100/1000 Base-TX |

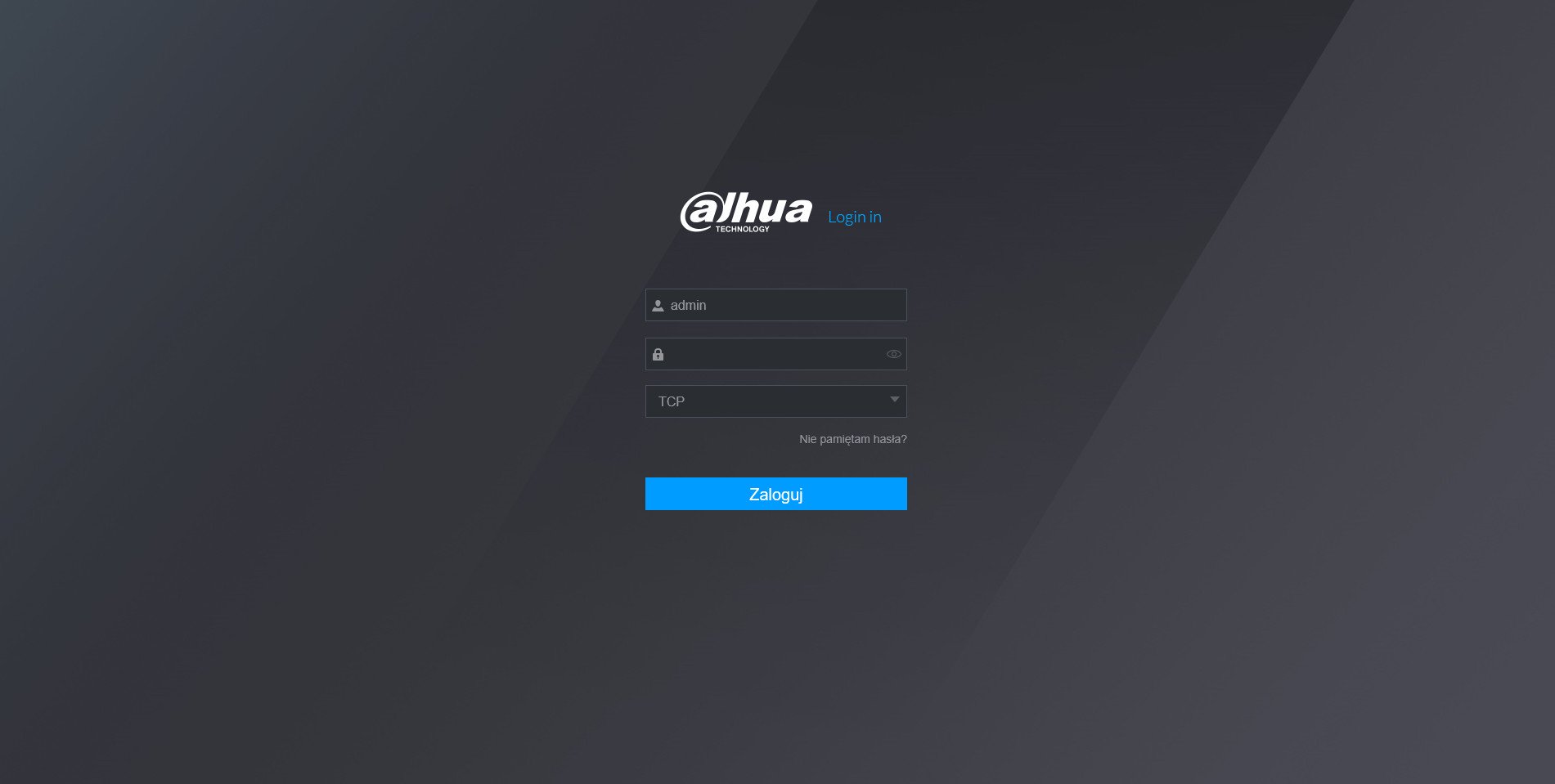

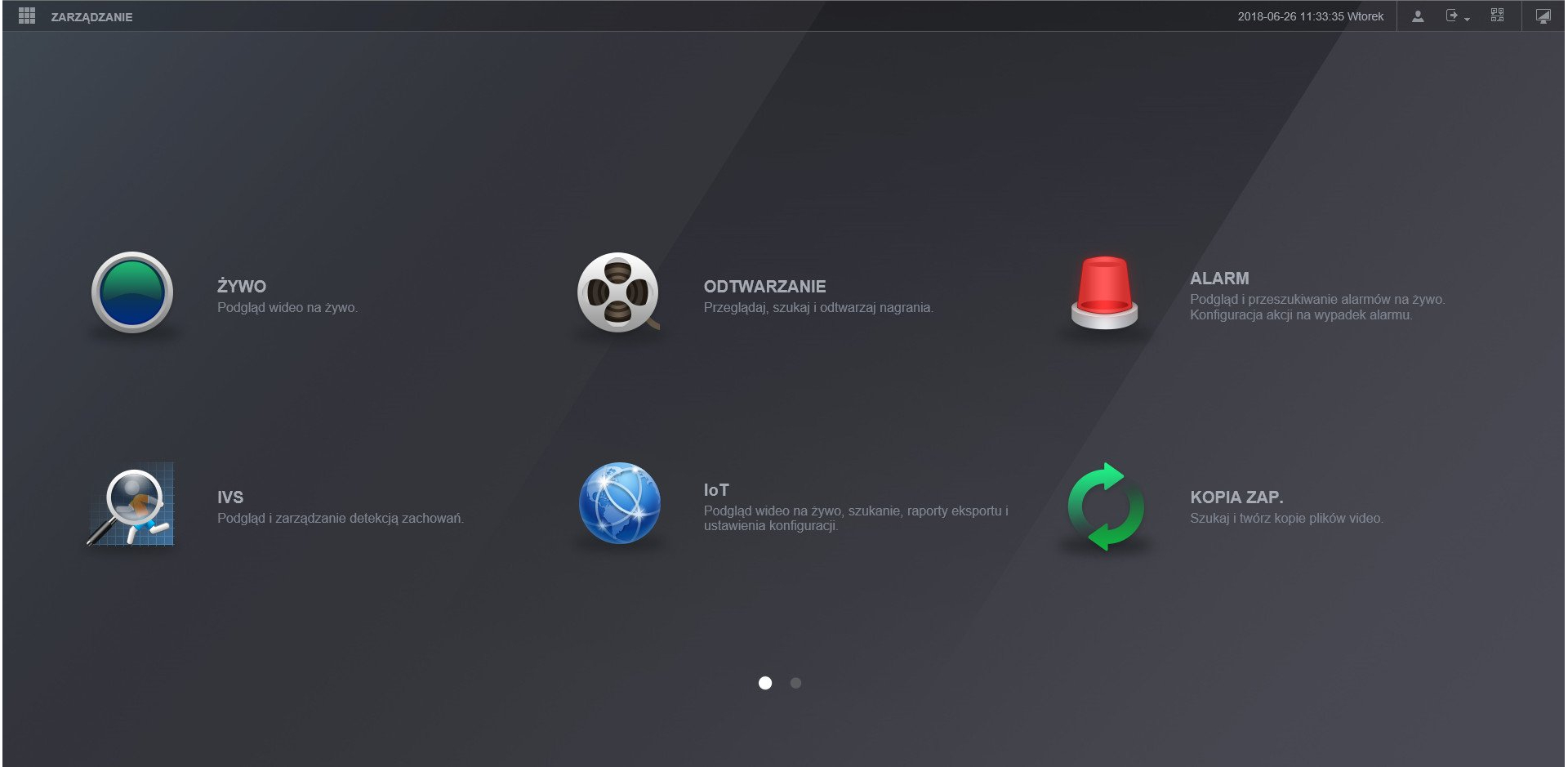

| Network functions: | Full support via network, Remote records copying, Web-Server built-in |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) See how to configure the P2P function in Dahua recorders and how to enable the mobile application |
| Alarm inputs / outputs: | 8 / 3 |
| USB: | |
| Serial ports: | RS-485 |
| PTZ control: | IP Speed Dome Cameras Control compatible with coax PTZ HD-CVI RS-485 - PELCO-D/P |
| Motion Detection: |  |

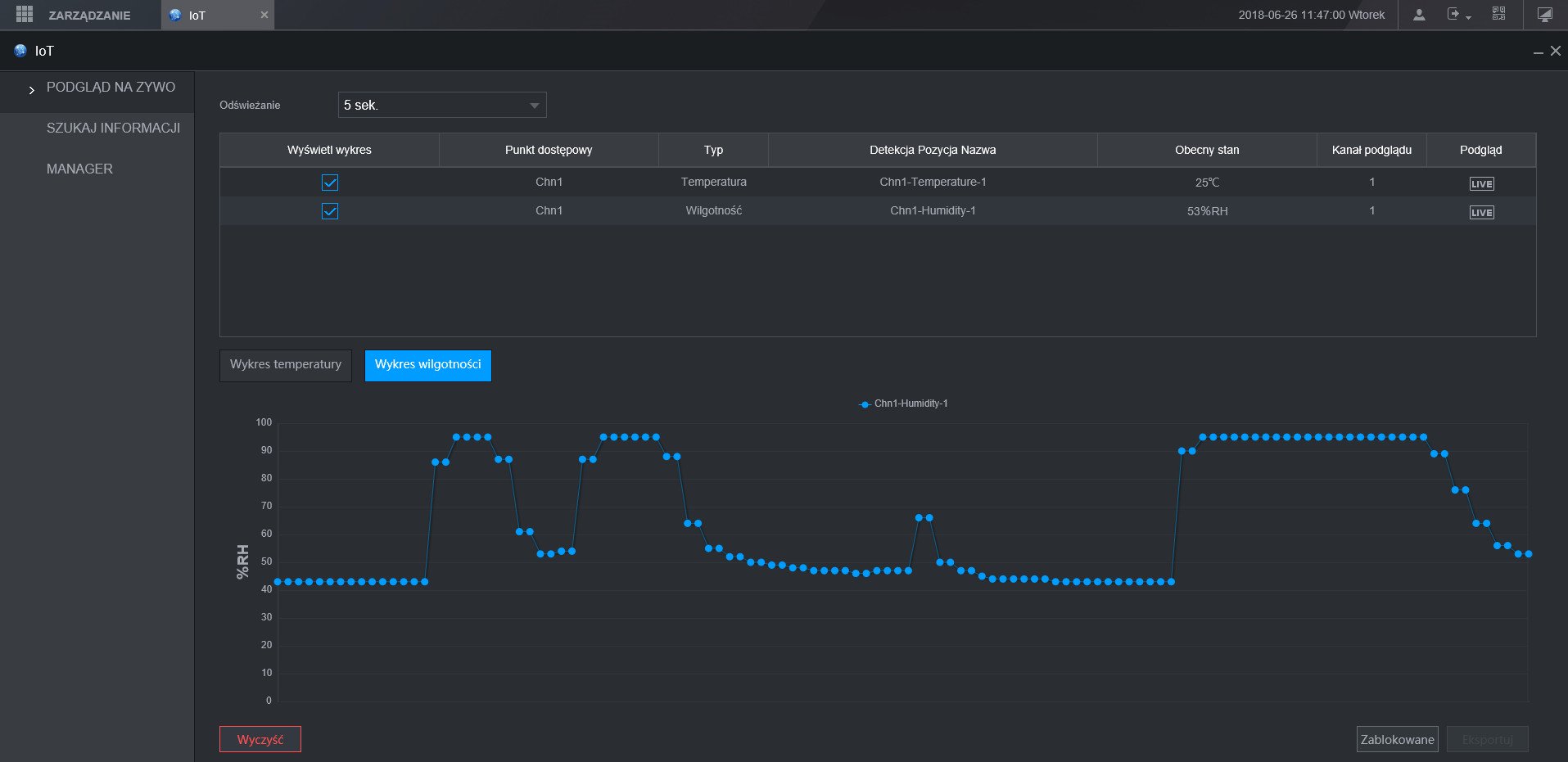

| Main features: | |
| Mouse support: | |
| IR remote controller in the set: |  |

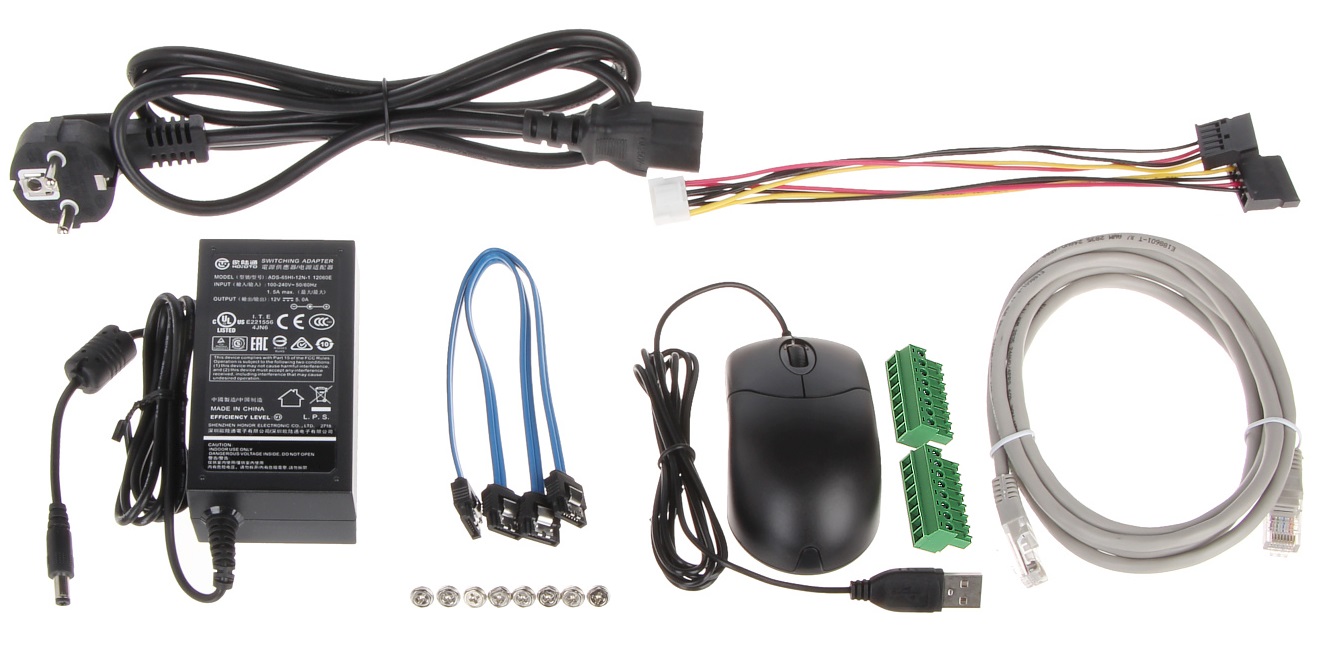

| Power supply: | 12 V DC / 5 A (power adapter included) |
| Power consumption: | < 15 W (without HDD) |
| Color: | Black |
| Weight: | 1.73 kg |
| Dimensions: | 375 x 288 x 53 mm |
| Supported languages: | Polish, English, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Hungarian, Italian |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 5 years |
Brand:
Dahua
