Audio inputs: 1 pcs CINCH, 8 - Audio support via coaxial cable ; Image compression method: AI Coding / Smart H.265+ ; Image records resolutions: HD-CVI / HD-TVI / AHD : 8 Mpx, IP : max. 8 Mpx ; Supported hard drives: 1 x 16 TB SATA ; Intelligent Image Analysis;

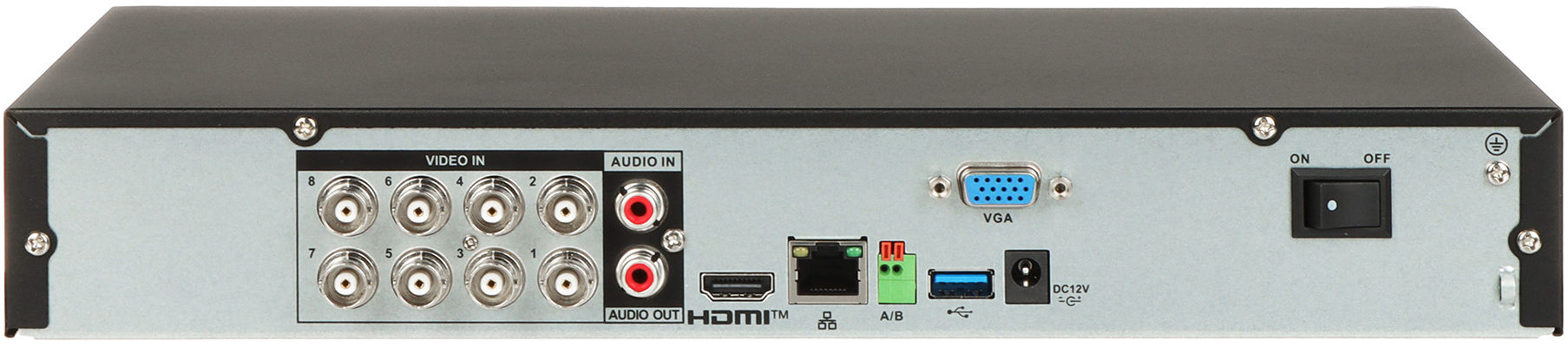

| Standard: | AHD, HD-CVI, HD-TVI, CVBS, IP |
| Video inputs: | 8 pcs BNC - AHD / HD-CVI / HD-TVI / CVBS |
| Video outputs: | |
| Audio inputs: | |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Image records resolutions: | 8 Mpx - 3840 x 2160 px , 4K-N - 1920 x 2160 px , 6 Mpx - 2880 x 1920 px - HD-CVI only , 5 Mpx - 2592 x 1944 px , 4 Mpx - 2560 x 1440 px , 3 Mpx - 2048 x 1536 px - AHD / HD-TVI only , 1080p - 1920 x 1080 px , 720p - 1280 x 720 px |
| Recording speed adjustment: | 8 Mpx IP @ 1 ... 25 fps 8 Mpx @ 1 ... 15 fps 4K-N @ 1 ... 25 fps 6 Mpx @ 1 ... 20 fps 5 Mpx @ 1 ... 25 fps 4 Mpx @ 1 ... 25 fps 3 Mpx @ 1 ... 25 fps 1080p @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps for each channel |
| Operation modes: | 8 x AHD / HD-CVI / HD-TVI / CVBS / IP + 8 x IP |
| Recording modes: | Manual, Motion Detection, Schedule |
| Supported hard drives: | 1 x 16 TB SATA |
| External storage devices backup: | Save single frames and whole records from DVR drive to the USB drive |
| Searching and playback the records: | Records searching: by time + timeline with record type. Playback: forward, fast, slow, step 1, 4 or 9 channels synchronous playback, Smart Playback function |
| Network interface: | 1 x RJ-45 - 10/100/1000 Mbps |
| Network functions: | Full support via network, Remote records copying, Web-Server built-in ONVIF compliance |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) See how to configure the P2P function in Dahua recorders and how to enable the mobile application |
| USB: | 1 pcs USB 3.0 1 pcs USB 2.0 |
| Serial ports: | RS-485 |
| Alarm inputs / outputs: |  |
| PTZ control: | IP Speed Dome Cameras Control compatible with coax PTZ HD-CVI RS-485 - PELCO-D/P |
| Motion Detection: |  |
| Intelligent Image Analysis: | |
| Main features: | |
| Mouse support: | |
| IR remote controller in the set: | |
| Power supply: | 12 V DC / 3 A (power adapter included) |
| Power consumption: | < 15 W (without HDD) |
| Color: | Black |
| Weight: | 1.3 kg |
| Dimensions: | 325 x 254 x 55 mm |
| Supported languages: | Polish, English, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Hungarian, Italian |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
