Audio inputs: 1 pcs CINCH, 8 pcs BNC Coaxial audio - Audio support via coaxial cable ; Image compression method: AI Coding / H.265+ ; Image records resolutions: AHD / HD-CVI / HD-TVI : 5 Mpx 1,2,3,4 CH only, 5M-N, 4M-N, IP : max. 6 Mpx ; Supported hard drives: 1 x 1 TB SSD - Built-in ; Main features: Cooperation with Dahua devices working in the concept of the Internet of Things (IoT), Coax Audio/Alarm support, Intelligent Image Analysis ;
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |

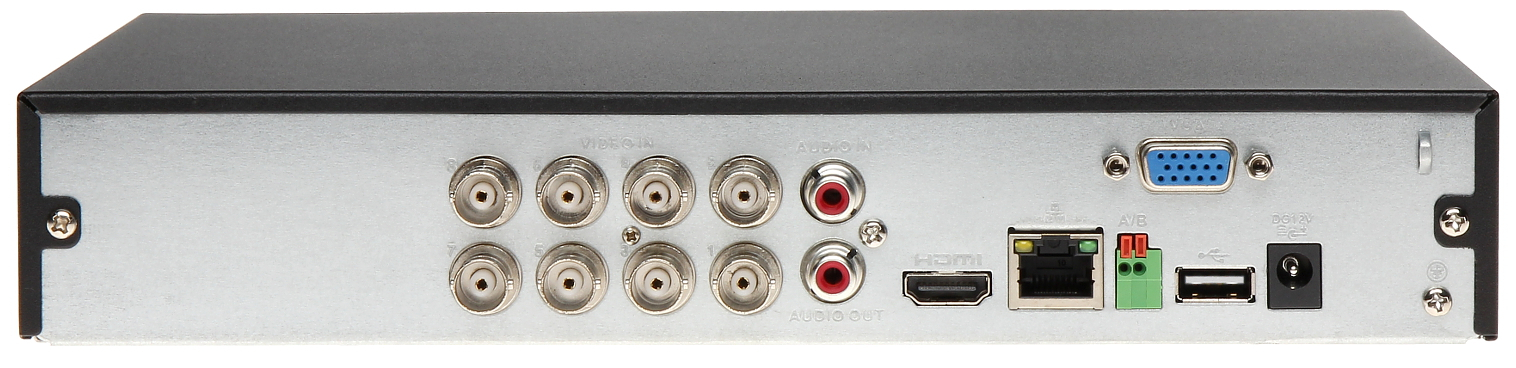

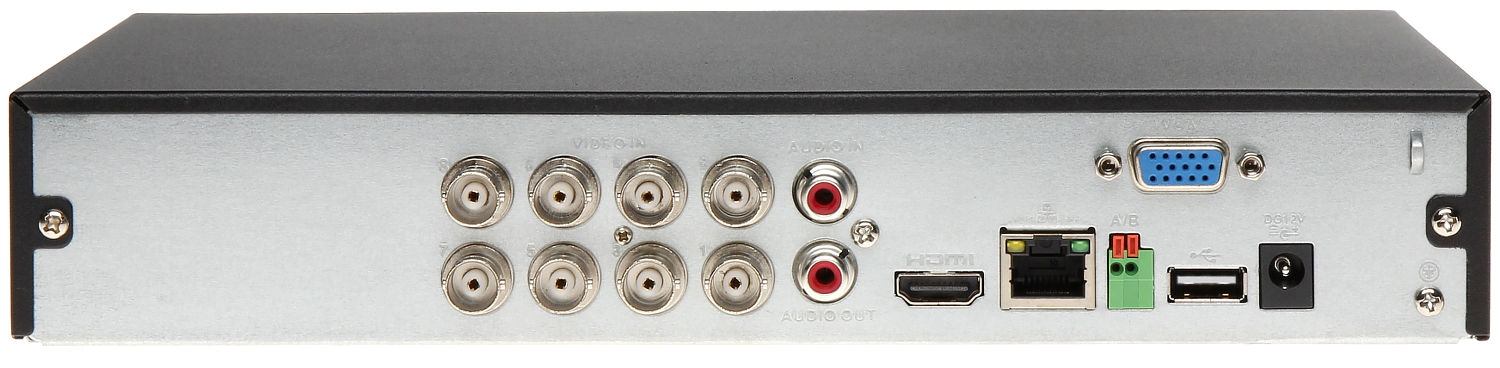

| Video inputs: | 8 pcs BNC |
| Video outputs: | |
| Audio inputs: | |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | AI Coding / H.265+ / H.265 / H.264+ / H.264 |
| Image records resolutions: | 5 Mpx - 2560 x 1944 px 1,2,3,4 CH only , 5M-N - 1296 x 1440 px , 4M-N - 1280 x 1440 px , 1080p - 1920 x 1080 px , 1080N - 960 x 1080 px , 720p - 1280 x 720 px , 960H - 960 x 576 px max. 6 Mpx - 3072 x 2048 px |
| Recording speed adjustment: | 6 Mpx IP @ 1 ... 25 fps 5 Mpx @ 1 ... 6 fps 1,2,3,4 CH only 5M-N @ 1 ... 12 fps 4M-N @ 1 ... 15 fps 1080p @ 1 ... 15 fps 1080N @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps for each channel |
| Operation modes: | 8 x AHD / HD-CVI / HD-TVI / CVBS / IP + 4 x IP |
| Recording modes: | Manual, Motion Detection, Schedule |
| Supported hard drives: | 1 x 1 TB SSD - Built-in |
| External storage devices backup: | Save single frames and whole records from DVR drive to the USB drive |
| Searching and playback the records: | Records searching: by time + timeline with record type. Playback: forward, fast, slow, step Advanced searching (to the one second accuracy) Intelligent face search AI - simultaneous search in the archive of face recordings based on max 8 photos taking into account the similarity threshold (for each photo separately) 1, 4 or 9 channels synchronous playback, Smart Playback function |
| Network interface: | 1 x RJ-45 - 10/100 Base-TX |

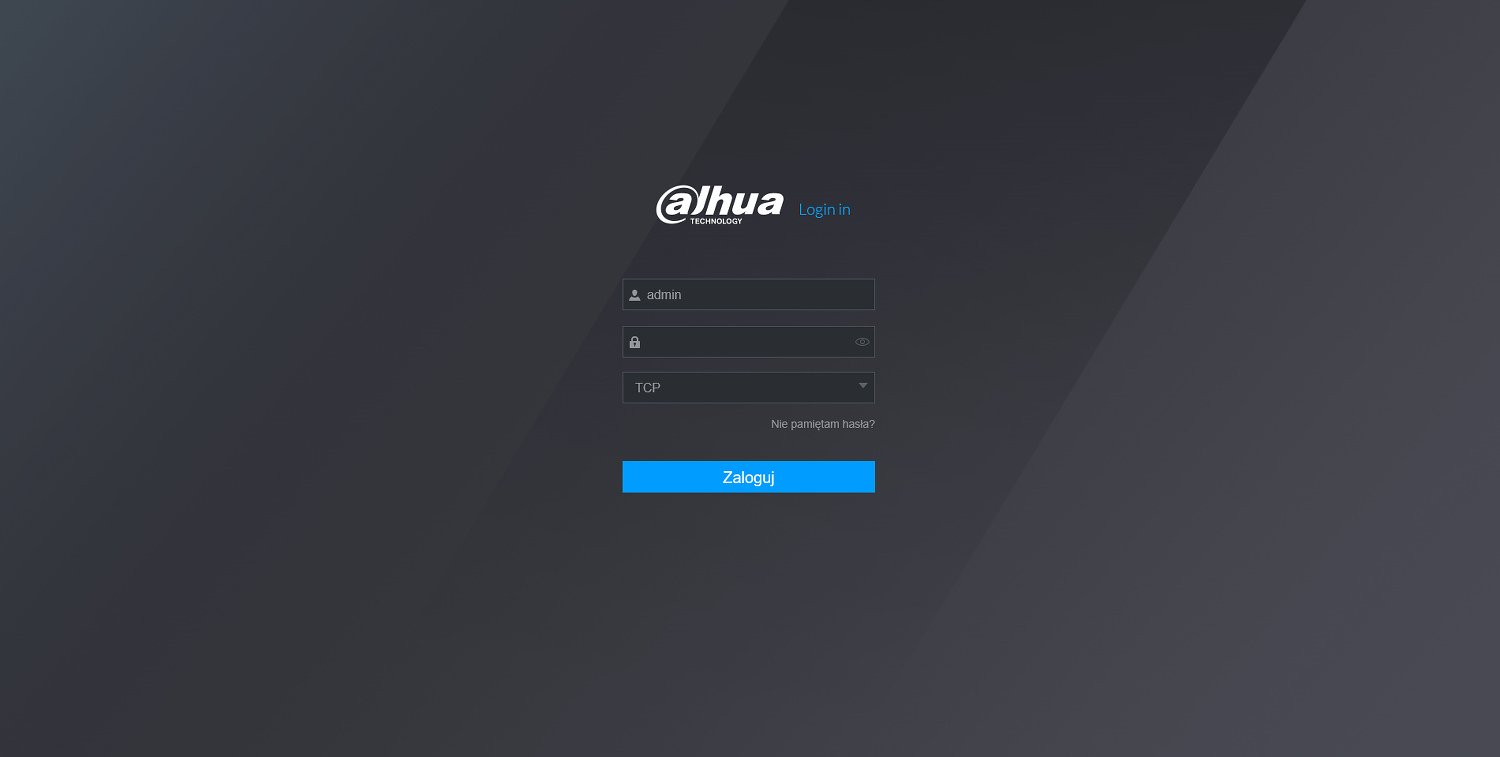

| Network functions: | Full support via network, Remote records copying, Web-Server built-in ONVIF 22.12 |
| Default IP address: | DHCP or 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) See how to configure the P2P function in Dahua recorders and how to enable the mobile application |
| USB: | 2 pcs USB 2.0 |
| Serial ports: | RS-485 |
| Alarm inputs / outputs: |  |
| PTZ control: | IP Speed Dome Cameras Control compatible with coax PTZ HD-CVI RS-485 - PELCO-D/P |
| Motion Detection: |  |
| Intelligent Image Analysis: | |
| Main features: | |

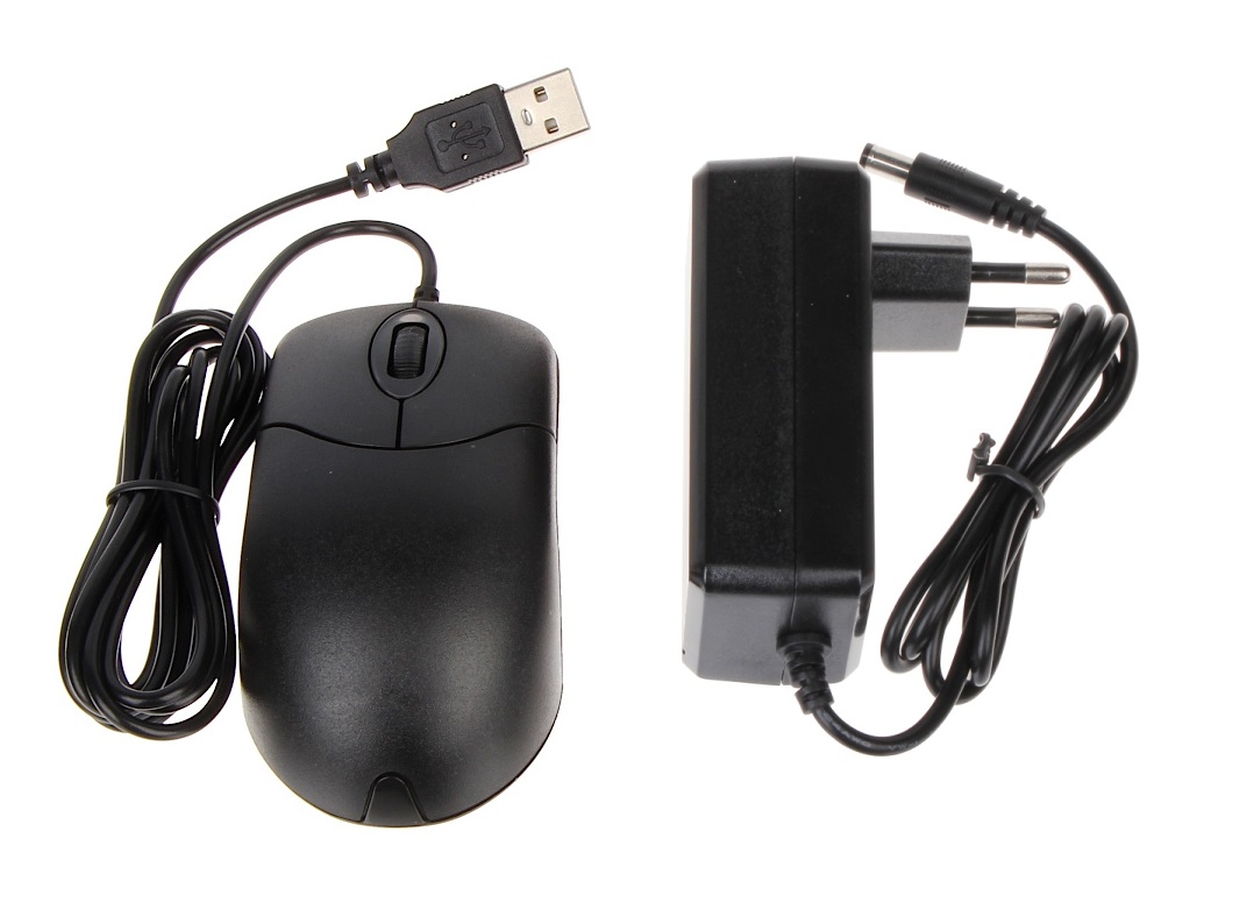

| Mouse support: | |
| IR remote controller in the set: | |
| Power supply: | 12 V DC / 2 A (power adapter included) |
| Power consumption: | max. 7 W - Recorder with HDD |
| Color: | Black |
| Weight: | 0.97 kg |
| Dimensions: | 260 x 238 x 48 mm |
| Supported languages: | Polish, English, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Hungarian, Italian |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 5 years |
