Audio inputs: 4 pcs CINCH, 8 pcs BNC, Coaxial audio - Audio from cameras ; Image compression method: H.265 Pro+ ; Image records resolutions: HD-TVI : 3K Lite, HD-TVI / HD-CVI / AHD : 5M-N, 4M-N, IP : max. 6 Mpx ; Supported hard drives: 1 x 10 TB SATA ; Alarm inputs / outputs: 8 / 4 ; Intelligent Image Analysis;
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, IP |

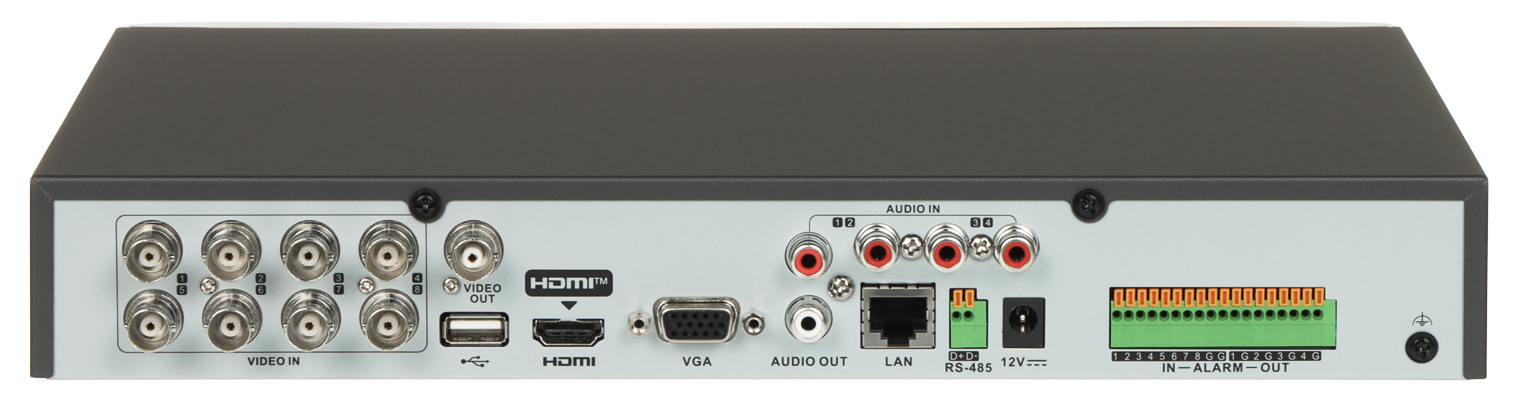

| Video inputs: | 8 pcs BNC - AHD / HD-CVI / HD-TVI / CVBS |
| Video outputs: | |
| Audio inputs: | |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Image records resolutions: | 3K Lite - 1480 x 1944 px , 5M-N - 1296 x 1944 px , 4M-N - 1280 x 1440 px , 1080p - 1920 x 1080 px , 1080N - 960 x 1080 px , 720p - 1280 x 720 px , 960H - 960 x 576 px , max. 6 Mpx - 3072 x 2048 px |
| Recording speed adjustment: | 6 Mpx IP @ 1 ... 25 fps 3K Lite @ 1 ... 12 fps 5M-N @ 1 ... 12 fps 4M-N @ 1 ... 15 fps 1080p @ 1 ... 15 fps 1080N @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps for each channel |
| Operation modes: | 8 x HD-TVI / AHD / HD-CVI / PAL / IP + 4 x IP |
| Recording modes: | Manual, Sensor, Motion detection, Schedule |
| Supported hard drives: | 1 x 10 TB SATA |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: timeline or file list. Playback: forward, fast, slow. Records playback from max. 8 channels in the same time Smart Search function |
| Network interface: | 1 x RJ-45 - 10/100 Base-T |
| Network functions: | Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters 64 on-line users ONVIF compliance |
| Mobile phones support: | Port no.: 8000 or access by a cloud (P2P) |
| USB: | 2 pcs USB 2.0 |
| Serial ports: | RS-485 |
| Alarm inputs / outputs: | 8 / 4 |
| PTZ control: | RS-485 PELCO-D/P Control compatible with coax HD-TVI Hikvision |
| Motion Detection: | 2.0 |
| Intelligent Image Analysis: |  |
| Main features: | |
| Mouse support: | |
| IR remote controller in the set: |  |

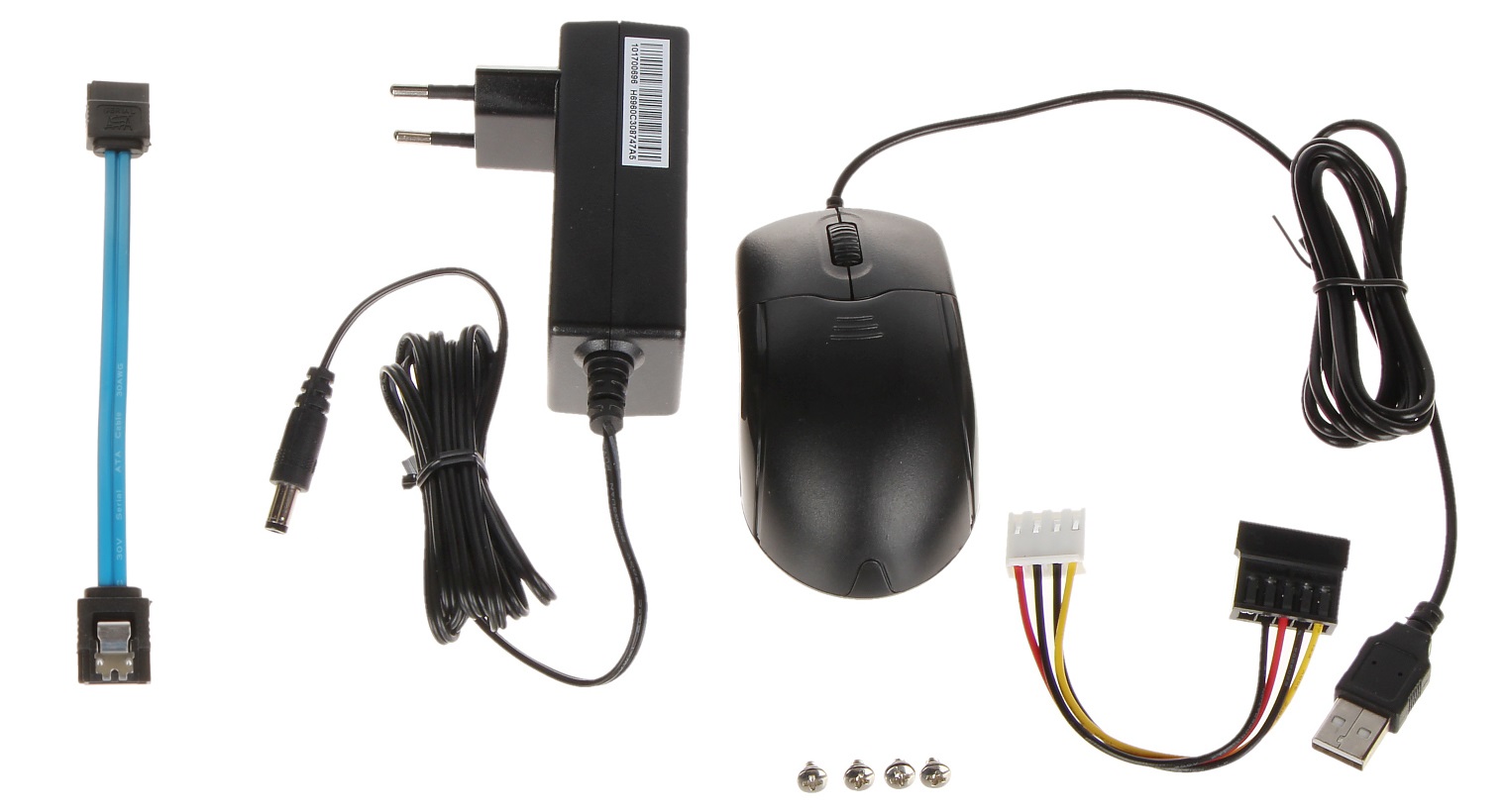

| Power supply: | 12 V DC / 1.5 A (power adapter included) |
| Power consumption: | ≤ 18 W (without HDD) |
| Color: | Black |
| Weight: | 1.24 kg |
| Dimensions: | 319 x 244 x 48 mm |
| Supported languages: | Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 300228717 |
| Guarantee: | 3 years |
Brand:
Hikvision
