Audio inputs: 1 pcs CINCH, Coaxial audio - Audio from cameras ; Image compression method: H.265+ ; Image records resolutions: HD-TVI : 8 Mpx, AHD : 5 Mpx, 3.7 Mpx, 1080p, HD-CVI : IP : max. 8 Mpx ; Supported hard drives: 1 x 10 TB SATA ;
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |

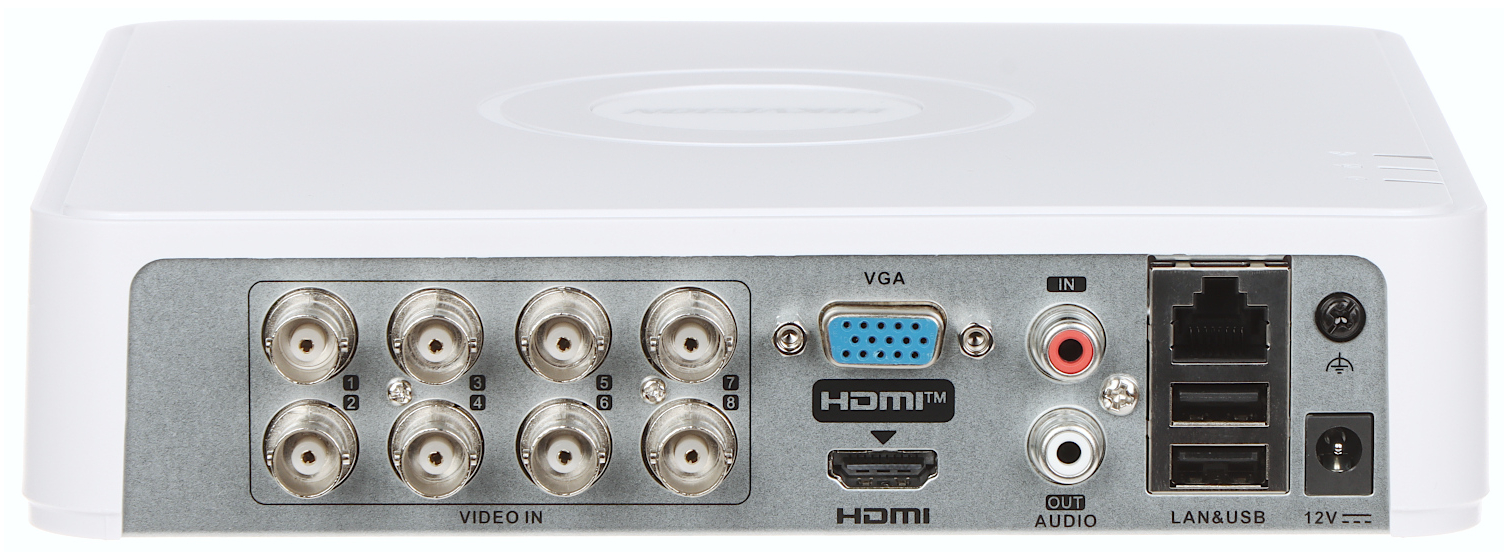

| Video inputs: | 8 pcs BNC - AHD / HD-CVI / HD-TVI / CVBS |
| Video outputs: | 1 pcs HDMI 4K 1 pcs VGA |
| Audio inputs: | 1 pcs CINCH, Coaxial audio - Audio from cameras |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Image records resolutions: | 8 Mpx - 3840 x 2160 , 5.0 Mpx - 2960 x 1665 (3K) , 5.0 Mpx - 2560 x 1944 , 3.7 Mpx - 2560 x 1440 , 3.0 Mpx - 1920 x 1536 , 1080p - 1920 x 1080 , 720p - 1280 x 720 , 5 Mpx - 2560 x 1944 , 3.7 Mpx - 2560 x 1440 , 1080p - 1920 x 1080 , 720p - 1280 x 720 , 3.7 Mpx - 2560 x 1440 , 1080p - 1920 x 1080 , 720p - 1280 x 720 , 960H - 960 x 576 , D1 - 704 x 576 , max. 8 Mpx - 3840 x 2160 |
| Recording speed adjustment: | 8 Mpx IP @ 1 ... 25 fps 8 Mpx @ 1 ... 8 fps 5 Mpx @ 1 ... 12 fps 3.7 Mpx @ 1 ... 15 fps 3 Mpx @ 1 ... 18 fps 1080p @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps D1 @ 1 ... 25 fps for each channel |
| Operation modes: | 8 x HD-TVI / AHD / HD-CVI / CVBS / IP + 8 x IP |
| Recording modes: | Manual, Motion Detection, Schedule |
| Supported hard drives: | 1 x 10 TB SATA |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: timeline or file list. Playback: forward, fast, slow. Playback max. 8 cameras in the same time |
| Network interface: | 1 x RJ-45 - 10/100/1000 Base-TX |
| Bitrate: | 32 ... 10240 kbps |
| Network functions: | Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Mobile phones support: | Port no.: 8000 or access by a cloud (P2P) |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Default IP address: | DHCP or 192.168.1.64 |
| Web browser access ports: | 80 |
| PC client access ports: | 554 RTSP, 8000 |
| Mobile client access ports: | 8000 |
| ONVIF port: | 80 |
| RTSP URL: | |
| Alarm inputs / outputs: |  |
| PTZ control: | Control compatible with coax HD-TVI Hikvision |
| Motion Detection: | 2.0 |
| USB: | 2 pcs USB 2.0 |
| Mouse support: |  |
| IR remote controller in the set: | |
| Main features: | Intelligent Image Analysis - detection line violation and intrusion in an area previously designated, classification of people and vehicles |
| Power supply: | 12 V DC / 2 A (power adapter included) |
| Color: | White |
| Weight: | 0.59 kg |
| Dimensions: | 200 x 210 x 48 mm |
| Supported languages: | Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 300227956 |
| Guarantee: | 3 years |
Brand:
Hikvision
