Application: Conversion of DVB-S/S2 to DVB-C ; Frequency range: 950 ... 2150 MHz ;

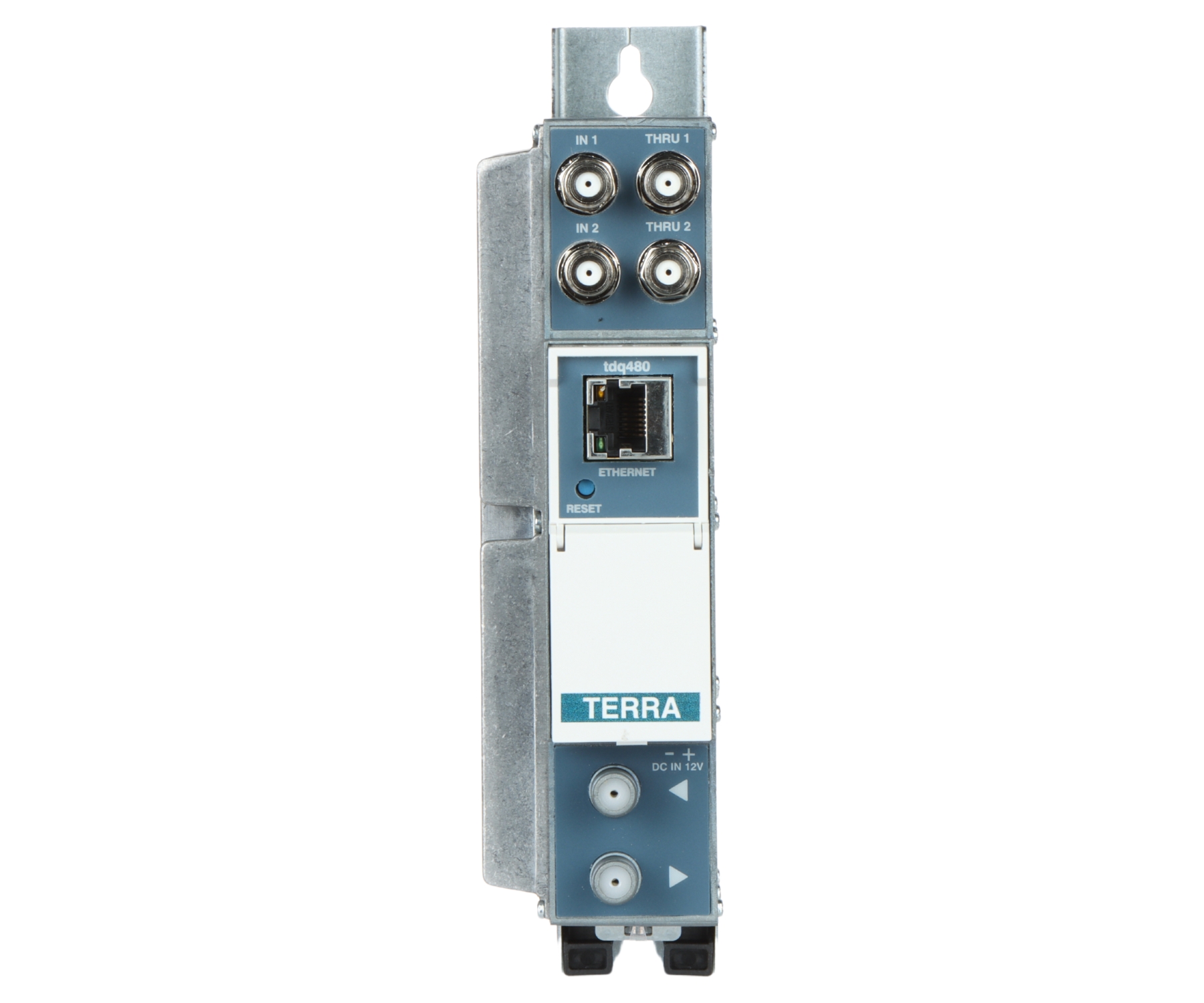

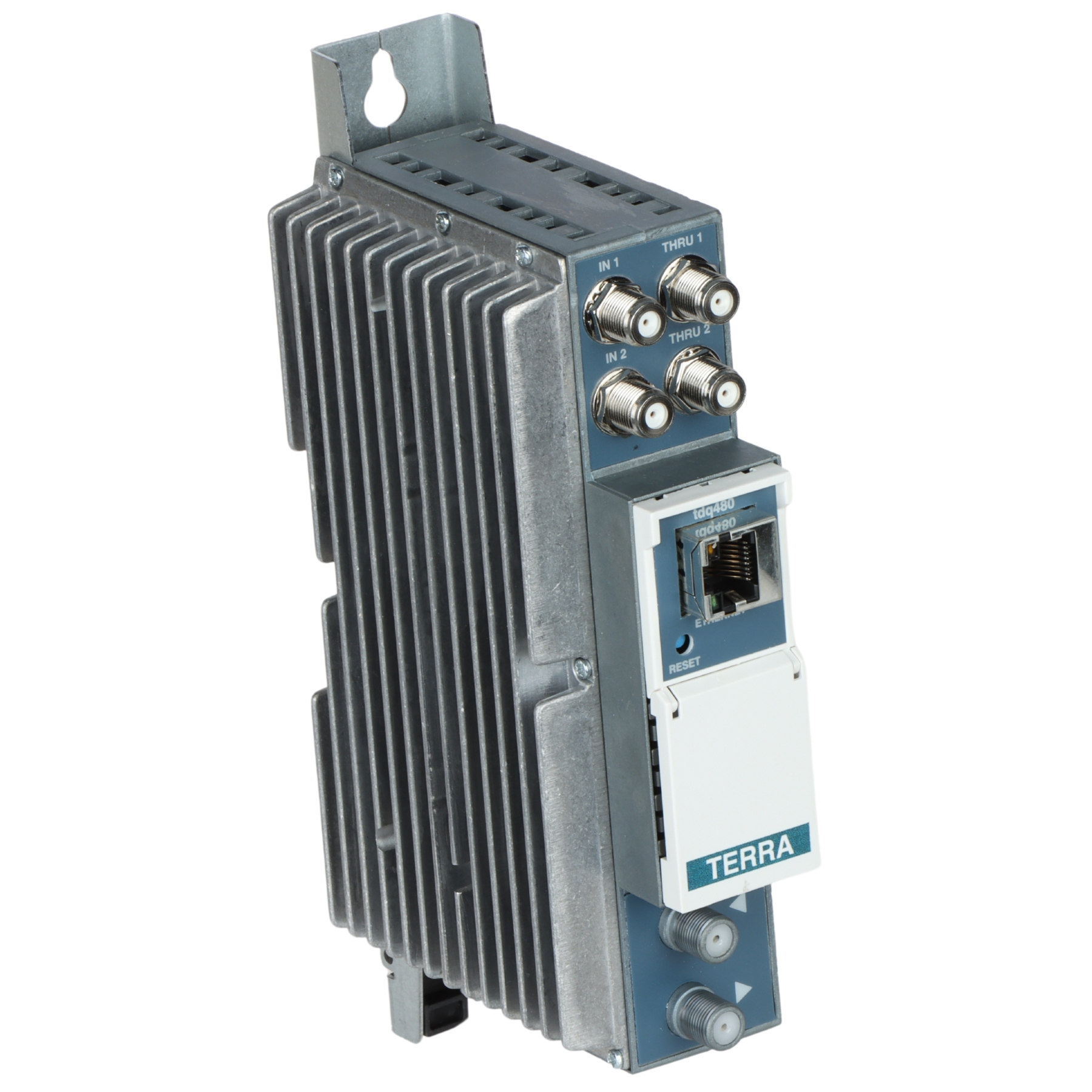

| Device type: | Transmodulator |
| Application: | Conversion of DVB-S/S2 to DVB-C |
RF input:
| Number of supported transponders: | 8 |
| Frequency range: | 950 ... 2150 MHz |
| Standard: | DVB-S/S2 |
| Modulation: | QPSK, 8PSK |
| Signal level: | 55 ... 95 dBµV |
| Impedance: | 75 Ω |
| RF throughput - amplification: | -1 ± 1 dB |
RF output:
| Standard: | DVB-C/J.38B |
| Number of DVB-C multiplexes: | 8 |
| Modulation: | QAM16, QAM32, QAM64, QAM128, QAM256 |
| Frequency range: | 96 ... 862 MHz - RF output |
| Signal level: | 90 dBµV |
| Adjusting the signal level at the output: | 0 ... 15 dB |
| Impedance: | 75 Ω |
| MER: | > 40 dB |
| Channel width: | 4 ... 8.3 MHz |
| Bandwidth: | 8 x 53 Mbps |
General information:
| IP address: | 192.168.1.10 |
| Connectors: | |
| Power supply: | 12 V DC / 1.1 A |
| Operation temp: | 0 ... 45 °C |
| Weight: | 0.896 kg |
| Dimensions: | 198 x 106 x 41 mm |
| Manufacturer / Brand: | TERRA |
| Guarantee: | 2 years |
