Audio inputs: 4 Channels - Audio support via coaxial cable ; Image compression method: H.265 Pro ; Image records resolutions: HD-TVI : 3K Lite / 5 MP Lite, AHD / HD-CVI / HD-TVI : 4M-N, 1080p, 1080N, 720p, IP : max. 6 Mpx ; Supported hard drives: 1 x 512 GB eSSD - Built-in, Space available for records : 480 GB ;
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |

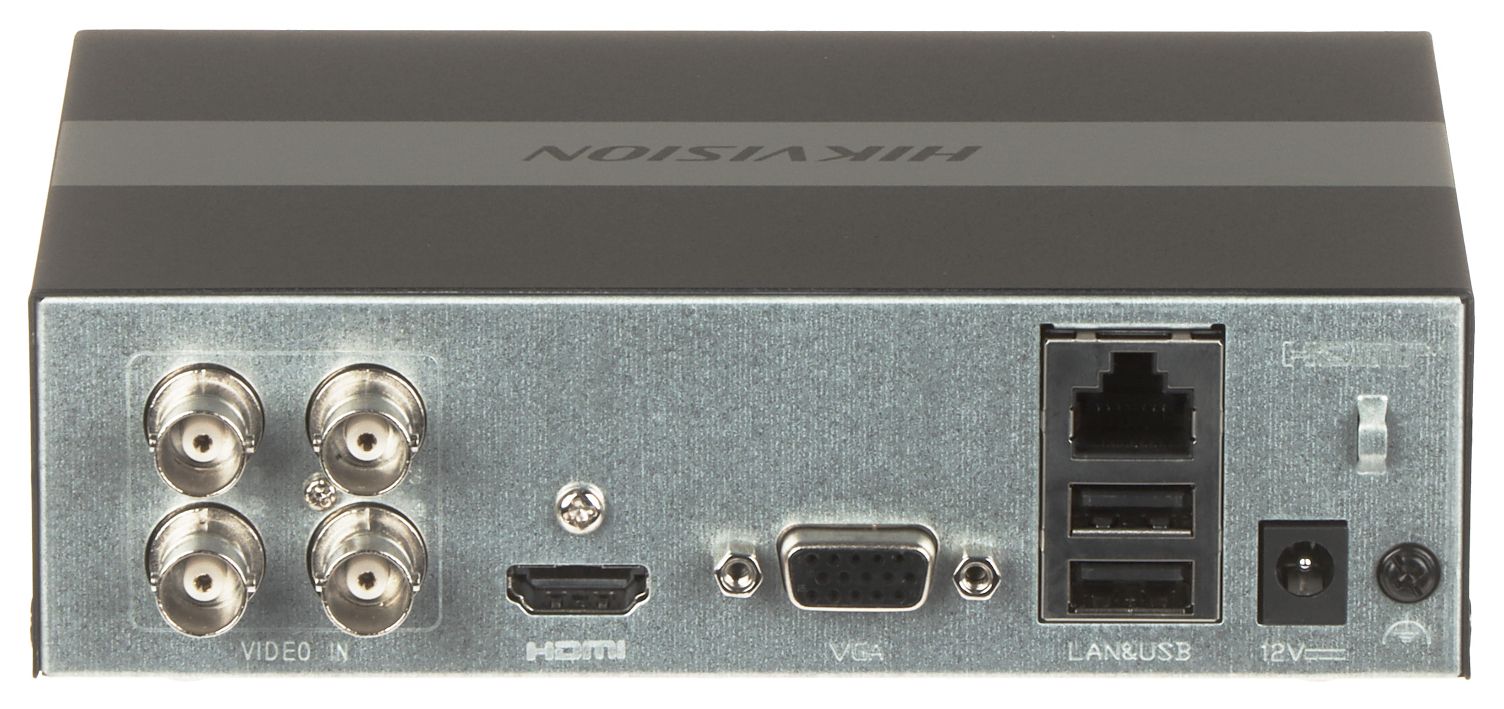

| Video inputs: | 4 pcs BNC - AHD / HD-CVI / HD-TVI / CVBS |
| Video outputs: | 1 pcs HDMI 1 pcs VGA |
| Audio inputs: | 4 Channels - Audio support via coaxial cable |
| Audio outputs: |  |
| Image compression method: | H.265 Pro / H.265 |
| Image records resolutions: | 3K Lite / 5 MP Lite - Channel 1 , 4M-N - 1280 x 1440 , 1080p - 1920 x 1080 , 1080N - 960 x 1080 , 720p - 1280 x 720 , 960H - 960 x 576 , D1 - 704 x 576 , max. 6 Mpx - 3072 x 2048 |
| Recording speed adjustment: | 6 Mpx IP @ 1 ... 25 fps 3K Lite, 5M-N @ 1 ... 12 fps 4M-N @ 1 ... 15 fps 1080p @ 1 ... 15 fps 1080N @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps D1 @ 1 ... 25 fps for each channel |
| Operation modes: | 4 x HD-TVI / AHD / HD-CVI / CVBS + 1 x IP |
| Recording modes: | Manual, Motion Detection, Schedule |
| Supported hard drives: | 1 x 512 GB eSSD - Built-in, Space available for records : 480 GB |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: timeline or file list. Playback: forward, fast, slow. Playback max. 4 cameras in the same time |
| Network interface: | 1 x RJ-45 - 10/100 Base-TX |
| Bitrate: | max. 72 Mbps |
| Network functions: | Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters |
| Network protocols: | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS |
| Mobile phones support: | Port no.: 8000 or access by a cloud (P2P) |
| Default admin user / password: | admin / - |
| Default IP address: | DHCP or 192.168.1.64 |
| Web browser access ports: | 80 |
| PC client access ports: | 554 RTSP, 8000 |
| Mobile client access ports: | 8000 |
| ONVIF port: | 80 |
| RTSP URL: | |
| Alarm inputs / outputs: | |
| PTZ control: | Control compatible with coax HD-TVI Hikvision |
| Motion Detection: | Split the screen into zones : 22 x 18 motion zones |
| USB: | 2 pcs USB 2.0 |
| Mouse support: |  |
| IR remote controller in the set: | |

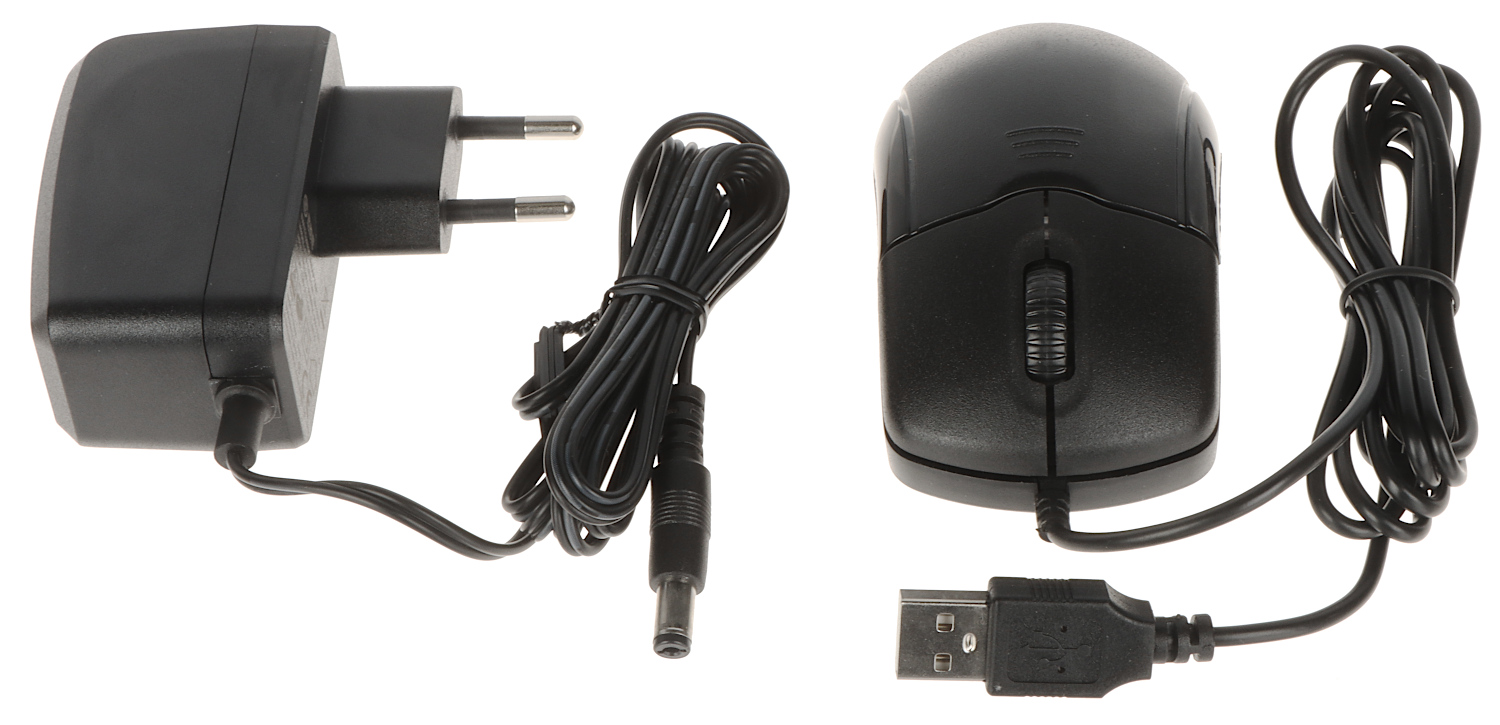

| Power supply: | 12 V DC / 1 A (power adapter included) |
| Color: | Black |
| Weight: | 0.42 kg |
| Dimensions: | 152 x 122 x 46 mm |
| Supported languages: | Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 300228280 |
| Guarantee: | 3 years |
Brand:
Hikvision
