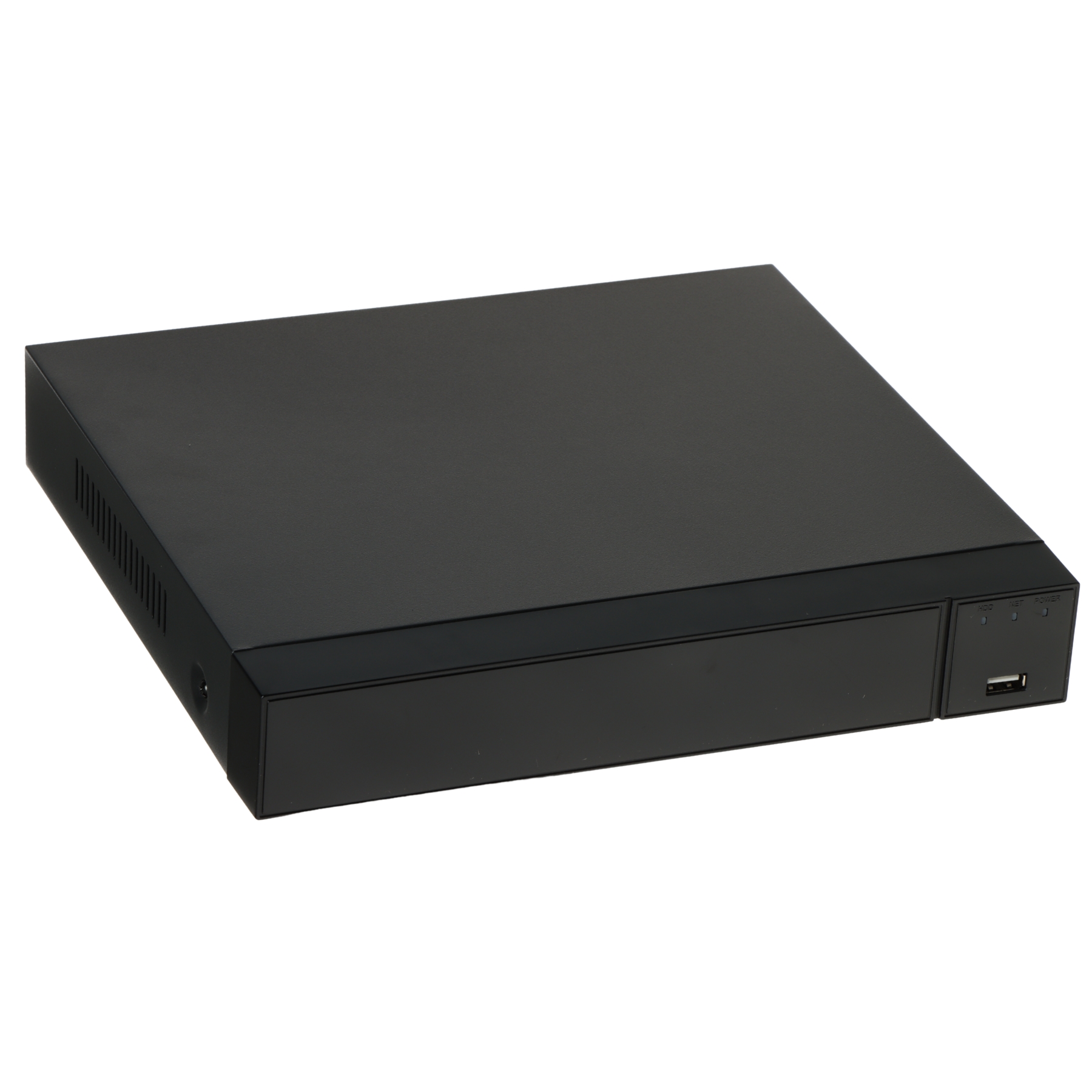

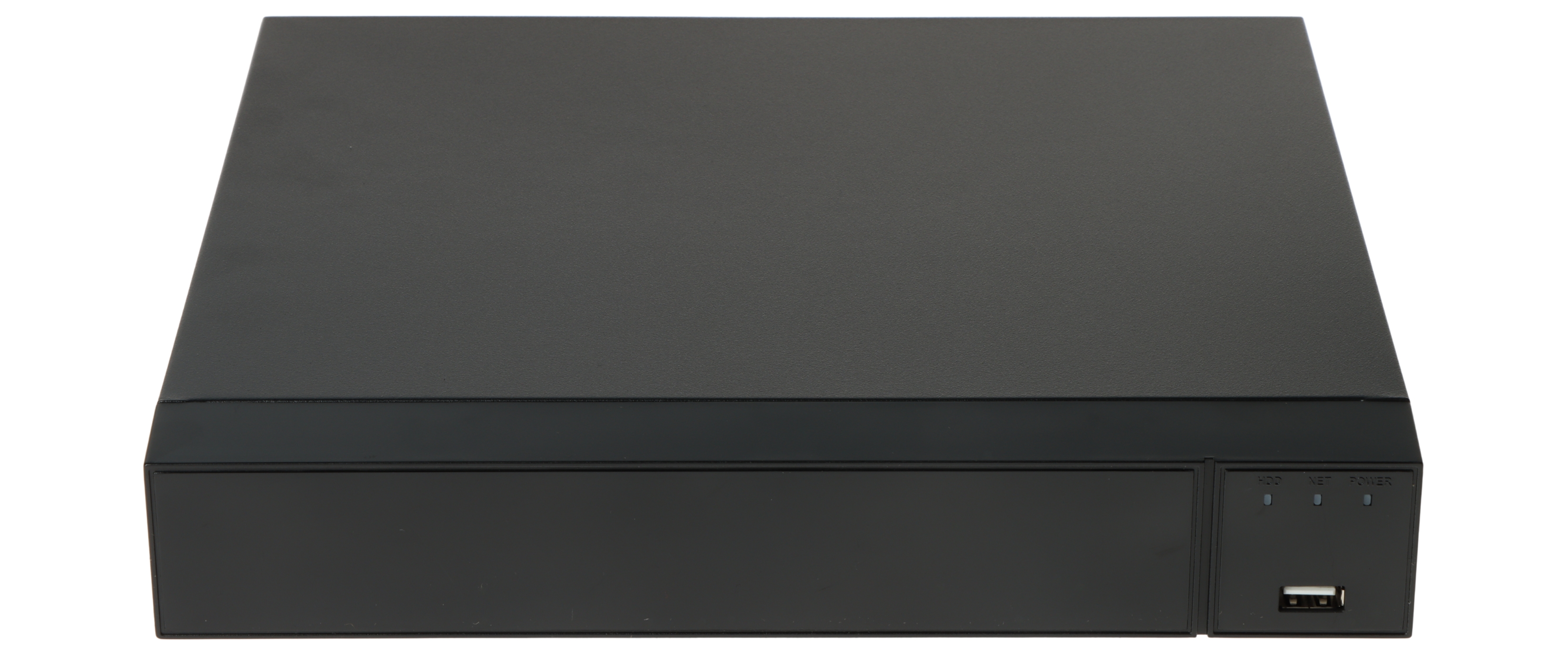

AHD, HD-CVI, HD-TVI, CVBS, IP DVR APTI-XB0401HS-4KS6 4 CHANNELS
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Audio inputs: 1 pcs CINCH ; Image compression method: H.265+ ; Image records resolutions: HD-TVI / AHD : 5 Mpx - 2592 x 1944 px,, AHD / TVI / CVI : 8 Mpx - 3840 x 2160 px, 4K UHD, CVBS : 960H - 960 x 576 px, IP : max. 8 Mpx - 3840 x 2160 px ; Supported hard drives: 1 x 8 TB SATA ; Alarm inputs / outputs: 4 / 1 ;
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
| Video inputs: | 4 pcs BNC |
| Video outputs: | |
| Audio inputs: | 1 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Image records resolutions: | 5 Mpx - 2592 x 1944 px, , 3 Mpx - 2048 x 1536 px, 8 Mpx - 3840 x 2160 px, 4K UHD , 4 Mpx - 2560 x 1440 px, 1080p - 1920 x 1080 px, 720p - 1280 x 720 px, 960H - 960 x 576 px, max. 8 Mpx - 3840 x 2160 px |
| Recording speed adjustment: | 8 Mpx IP @ 1 ... 25 fps 8 Mpx @ 1 ... 8 fps 5 Mpx @ 1 ... 12 fps 4 Mpx @ 1 ... 15 fps 3 Mpx @ 1 ... 18 fps 1080p @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps for each channel |
| Operation modes: | |
| Recording modes: | Motion Detection, Schedule |
| Supported hard drives: | 1 x 8 TB SATA |
| Searching and playback the records: | Records searching: timeline or file list. Playback: forward, backward, fast, slow. Records playback from max. 4 channels in the same time |
| Network functions: | |
| Mobile phones support: | Port no.: 6000 or access by a cloud (P2P) |
| Default IP address: | 192.168.1.88 |
| Default admin user / password: | admin / 123456 (older version: admin / 12345) |
| Web browser access ports: | 80, 5000, 554 |
| PC client access ports: | 80, 5000, 554 |
| Mobile client access ports: | 80, 5000, 6000 |
| Alarm inputs / outputs: | 4 / 1 |
| PTZ control: | Pelco-D, Pelco-P |
| Motion Detection: |  |
| AI powered by recorder: | People detection |
| USB: | 3 pcs USB 2.0 |
| Mouse support: | |
| IR remote controller in the set: |  |
| Power supply: | 12 V DC / 2 A (power adapter included) |
| Color: | Black |
| Weight: | 1.2 kg |
| Dimensions: | 260 x 230 x 43 mm |
| Supported languages: | Polish, English, Bulgarian, Czech, French, Spanish, German, Portuguese, Russian, Turkish, Hungarian, Italian |
| Country of origin: | China |
| Manufacturer / Brand: | APTI |
| Guarantee: | 2 years |
Brand:
Apti
