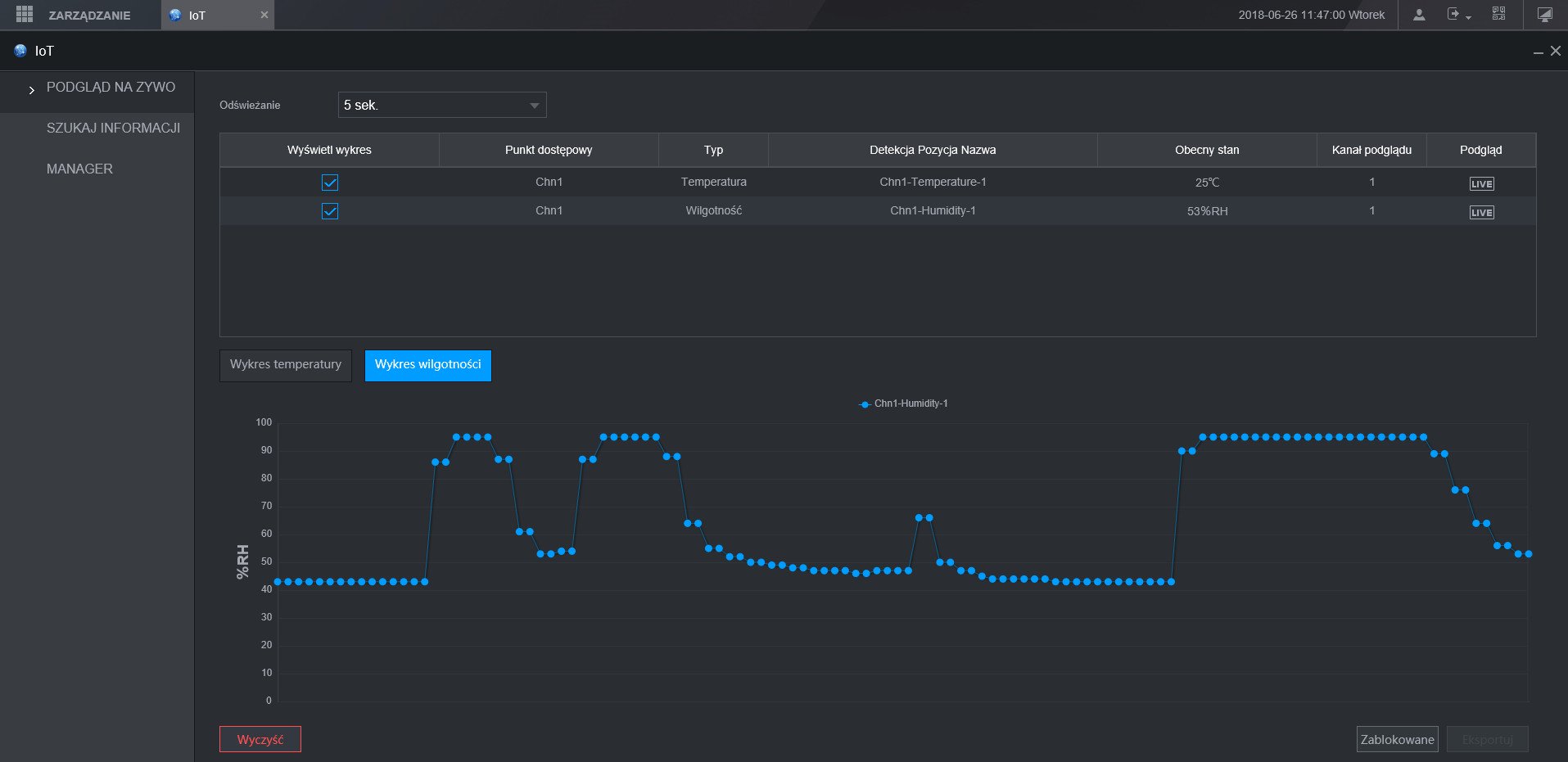

Audio inputs: 4 pcs CINCH, 16 Channels - Audio support via coaxial cable ; Image compression method: H.265+ ; Image records resolutions: AHD / HD-CVI / HD-TVI : 8 Mpx, IP : max. 8 Mpx ; Supported hard drives: 2 x 16 TB SATA ; Alarm inputs / outputs: 16 / 3 ; PTZ control: RS-485 ; Main features: Cooperation with Dahua devices working in the concept of the Internet of Things (IoT), Coax Audio/Alarm support, Intelligent Image Analysis, advanced face recognition and search functions ;
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |

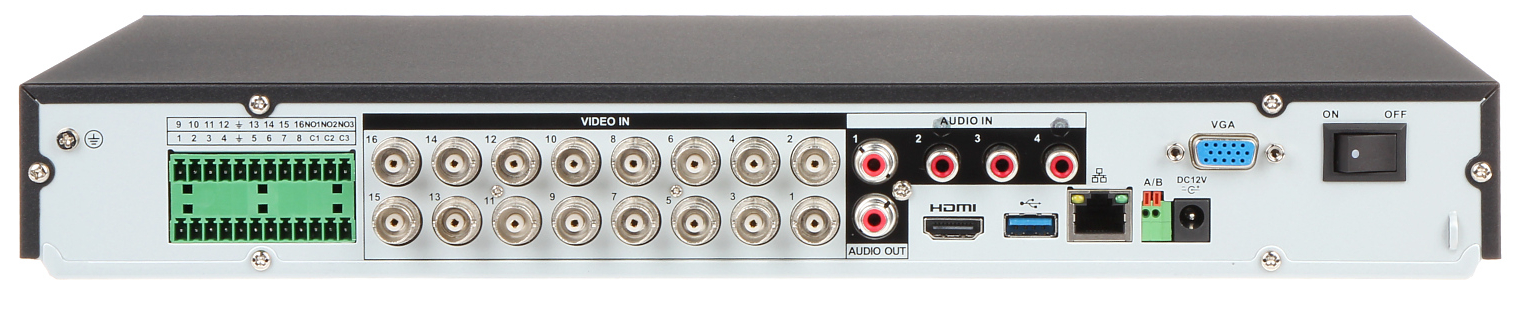

| Video inputs: | 16 pcs BNC |
| Video outputs: | There is a possibility to configure a SPOT function on one of the output |
| Audio inputs: | 4 pcs CINCH , 16 Channels - Audio support via coaxial cable, HD-CVI only |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Image records resolutions: | 8 Mpx - 3840 x 2160 , 4K-N - 1920 x 2160 , 6 Mpx - 2880 x 1920 - HD-CVI only , 5 Mpx - 2592 x 1944 , 4 Mpx - 2560 x 1440 , 4M-N - 1280 x 1440 , 3 Mpx - 2048 x 1536 - AHD / HD-TVI only , 1080p - 1920 x 1080 , 720p - 1280 x 720 |
| Recording speed adjustment: | 8 Mpx IP @ 1 ... 25 fps 8 Mpx @ 1 ... 7 fps 4K-N @ 1 ... 15 fps 6 Mpx @ 1 ... 10 fps 5 Mpx @ 1 ... 12 fps 4 Mpx @ 1 ... 15 fps 4M-N @ 1 ... 25 fps 3 Mpx @ 1 ... 15 fps 1080p @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps for each channel |
| Operation modes: | 16 x AHD / HD-CVI / HD-TVI / CVBS / IP + 16 x IP |
| Recording modes: | Manual, Sensor, Motion detection, Schedule |
| Supported hard drives: | 2 x 16 TB SATA |
| External storage devices backup: | Save single frames and whole records from DVR drive to the USB drive |
| Searching and playback the records: | Records searching: by time + timeline with record type. Playback: forward, fast, slow, step Advanced searching (to the one second accuracy) All channels synchronous playback, Smart Search function 1/4/9/16 channel synchronous playback |
| Network functions: | Full support via network, Remote records copying, Web-Server built-in max. 128 on-line users |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P) See how to configure the P2P function in Dahua recorders and how to enable the mobile application |
| Alarm inputs / outputs: | 16 / 3 |
| PTZ control: | IP Speed Dome Cameras Control compatible with coax PTZ HD-CVI RS-485 - PELCO-D/P |
| Motion Detection: | Split the screen into zones : 22 x 18 motion zones |
| Main features: | |
| Mouse support: |  |
| IR remote controller in the set: |  |
| USB: | 1 pcs USB 3.0 1 pcs USB 2.0 |
| Power supply: | 12 V DC / 5 A (power adapter included) |
| Color: | Black |
| Weight: | 1.8 kg |
| Dimensions: | 375 x 287 x 53 mm |
| Supported languages: | Polish, English, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Hungarian, Italian |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
Brand:
Dahua
