Audio inputs: 1 pcs CINCH ; Image compression method: H.265 ; Image records resolutions: AHD : 4M-N, HD-CVI : 4M-N 1080p HD-TVI : 4M-N, IP : max. 6 Mpx ; Supported hard drives: 2 x 10 TB SATA ; Main features: Intelligent Image Analysis ;
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |

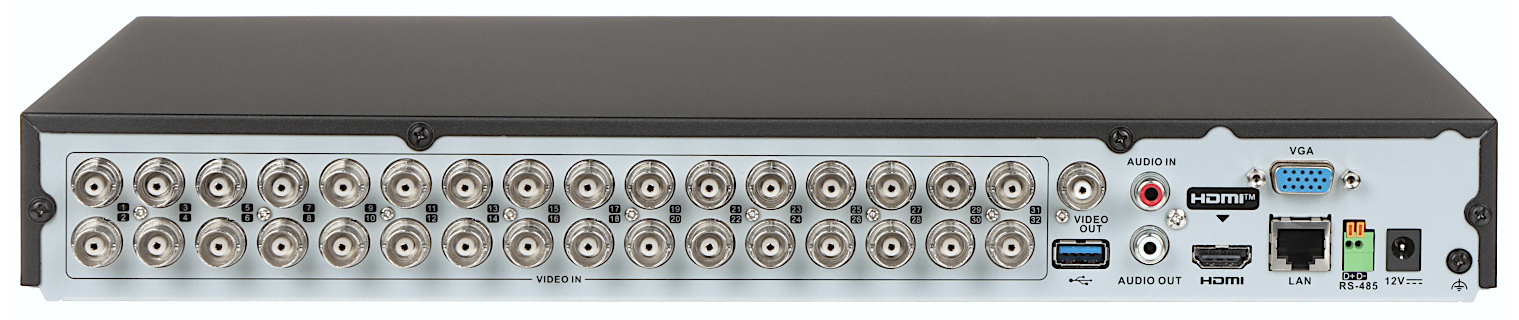

| Video inputs: | 32 pcs BNC |
| Video outputs: | 1 pcs HDMI 1 pcs VGA 1 pcs CVBS - BNC socket |
| Audio inputs: | 1 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265 / H.265+ / H.264 / H.264+ |
| Image records resolutions: | 4M-N - 1280 x 1440 , 1080p - 1920 x 1080 , 1080N - 960 x 1080 , 720p - 1280 x 720 , 4M-N - 1280 x 1440 , 1080p - 1920 x 1080 , 1080N - 960 x 1080 , 720p - 1280 x 720 , 4M-N - 1280 x 1440 , 1080p - 1920 x 1080 , 1080N - 960 x 1080 , 720p - 1280 x 720 , 960H - 960 x 576 , D1 - 704 x 576 , max. 6 Mpx - 3072 x 2048 |
| Recording speed adjustment: | 6 Mpx IP @ 1 ... 25 fps IP 4M-N @ 1 ... 15 fps 1080p @ 1 ... 15 fps 1080N @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps for each channel |
| Operation modes: | 32 x HD-TVI / AHD / HD-CVI / PAL / IP + 8 x IP |
| Recording modes: | Manual, Motion Detection, Schedule |
| Supported hard drives: | 2 x 10 TB SATA |
| External storage devices backup: | Backup to USB drive (pendrive, external drive) |
| Searching and playback the records: | Records searching: timeline or file list. Playback: forward, fast, slow. Playback max. 16 cameras in the same time |
| Network interface: | 1 x RJ-45 - 10/100/1000 Base-T |
| Bitrate: | 32 ... 6144 kbps |
| Network functions: | Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Mobile phones support: | Port no.: 8000 or access by a cloud (P2P) |
| Default IP address: | DHCP or 192.168.1.64 |
| Default admin user / password: | admin / - |
| Web browser access ports: | 80 |
| PC client access ports: | 554 RTSP, 8000 |
| Mobile client access ports: | 8000 |
| ONVIF port: | 80 |
| RTSP URL: | |
| Alarm inputs / outputs: |  |
| PTZ control: | RS-485 PELCO-D/P Control compatible with coax HD-TVI Hikvision |
| Motion Detection: | 2.0 |
| Main features: | |
| Mouse support: |  |
| IR remote controller in the set: | |

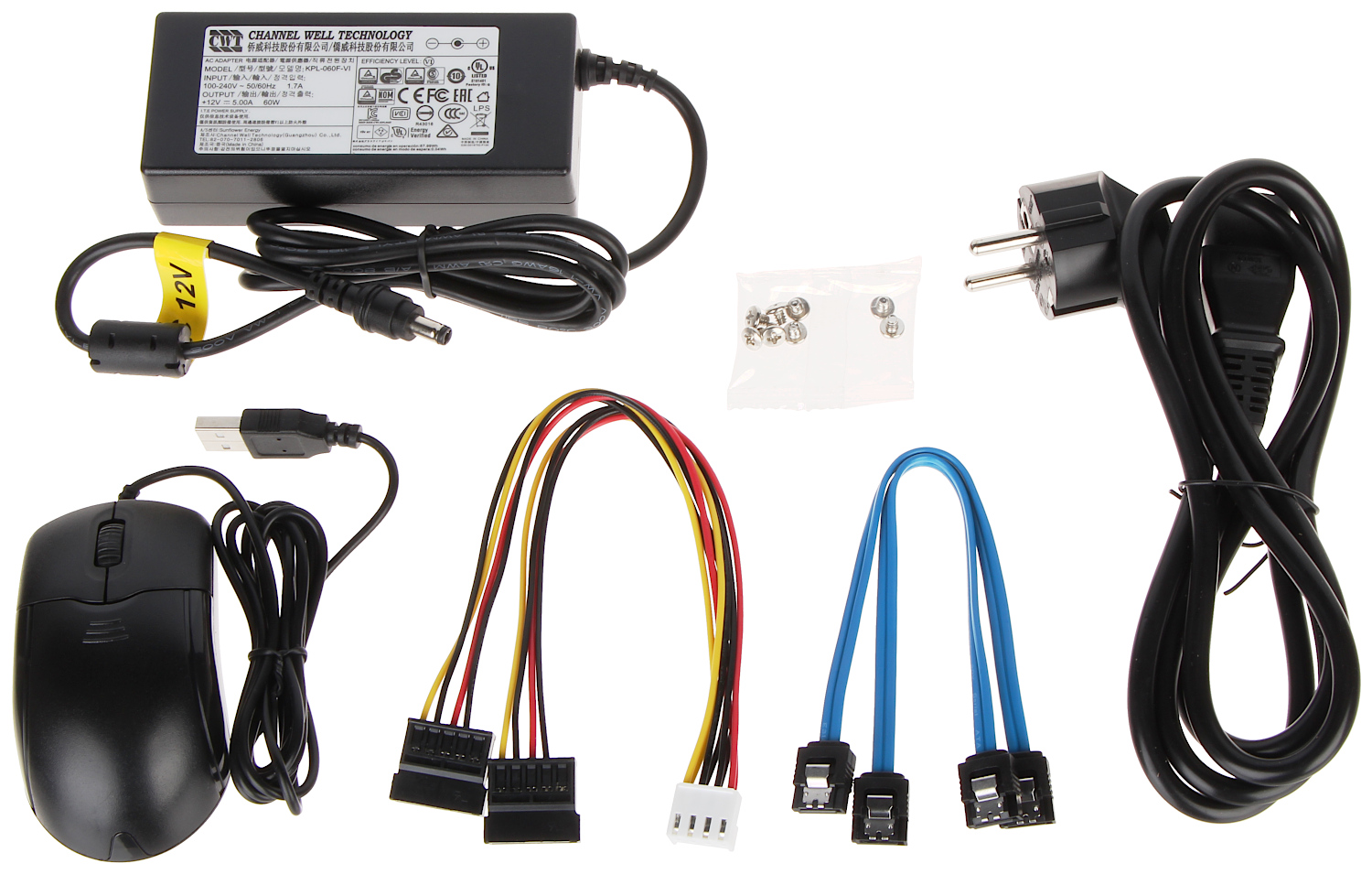

| Power supply: | 12 V DC / 5 A (power adapter included) |
| Color: | Black |
| Weight: | 2.12 kg |
| Dimensions: | 380 x 330 x 52 mm |
| Supported languages: | Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 300227850 |
| Guarantee: | 3 years |
Brand:
Hikvision
