Audio inputs: 6 pcs CINCH ; Image compression method: H.265+ ; Image records resolutions: AHD / HD-TVI : 5M-N, AHD / HD-CVI / HD-TVI : 4M-N, 1080N, 720p, IP : max. 8.3 Mpx 4K UHD ; Supported hard drives: 2 x 16 TB SATA ;
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |

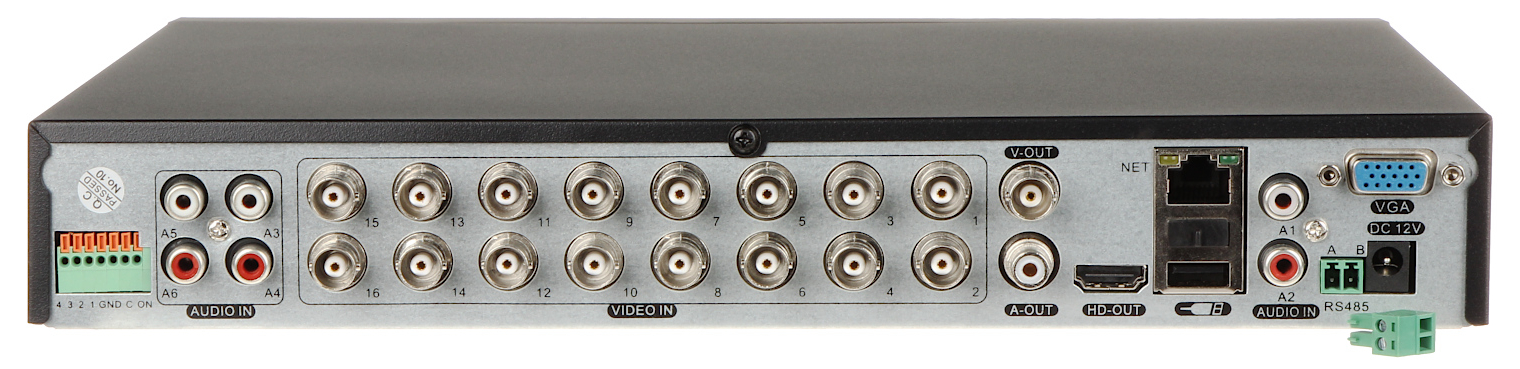

| Video inputs: | 16 pcs BNC |
| Video outputs: | |
| Audio inputs: | 6 pcs CINCH |
| Audio outputs: | 1 pcs CINCH |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Image records resolutions: | 5M-N - 1280 x 1952 , 4M-N - 1280 x 1440 , 1080N - 960 x 1080 , 720p - 1280 x 720 , |
| Recording speed adjustment: | 8.3 Mpx IP @ 1 ... 25 fps 5M-N @ 1 ... 6 fps 4M-N @ 1 ... 8 fps 1080N @ 1 ... 15 fps 720p @ 1 ... 15 fps 960H @ 1 ... 25 fps for each channel |
| Operation modes: | 16 x AHD / HD-CVI / HD-TVI / IP All modes allow for any combination of the AHD, HD-CVI, HD-TVI, CVBS cameras The recorder allows you to connect analog / IP cameras only in pairs |
| Recording modes: | Manual, Sensor, Motion detection, Schedule |
| Supported hard drives: | 2 x 16 TB SATA |
| External storage devices backup: | Records backup at (.avi) format to USB (pendrive) |
| Searching and playback the records: | Records searching: timeline or file list. Playback: forward, backward, fast, slow. Records playback from max. 4 channels in the same time @ 1080p / 30 fps |
| Network interface: | 1 x RJ-45 - 10/100 Base-TX |
| Network functions: | |
| Network protocols: | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP |
| ONVIF: |  |
| Default IP address: | 192.168.1.88 |
| Default admin user / password: | admin / 12345 |
| Mobile phones support: | Port no.: 6000 or access by a cloud (P2P) |
| Web browser access ports: | 80, 5000, 554 |
| PC client access ports: | 80, 5000, 554 |
| Mobile client access ports: | 80, 5000, 6000 |
| USB: | 2 pcs USB 2.0 |
| Alarm inputs / outputs: | 4 / 1 |
| PTZ control: | RS-485 - PELCO-D/P |
| Motion Detection: | Split the screen into zones : 22 x 18 motion zones |
| Intelligent Image Analysis: |  |
| Main features: | |
| Mouse support: | |
| IR remote controller in the set: | |

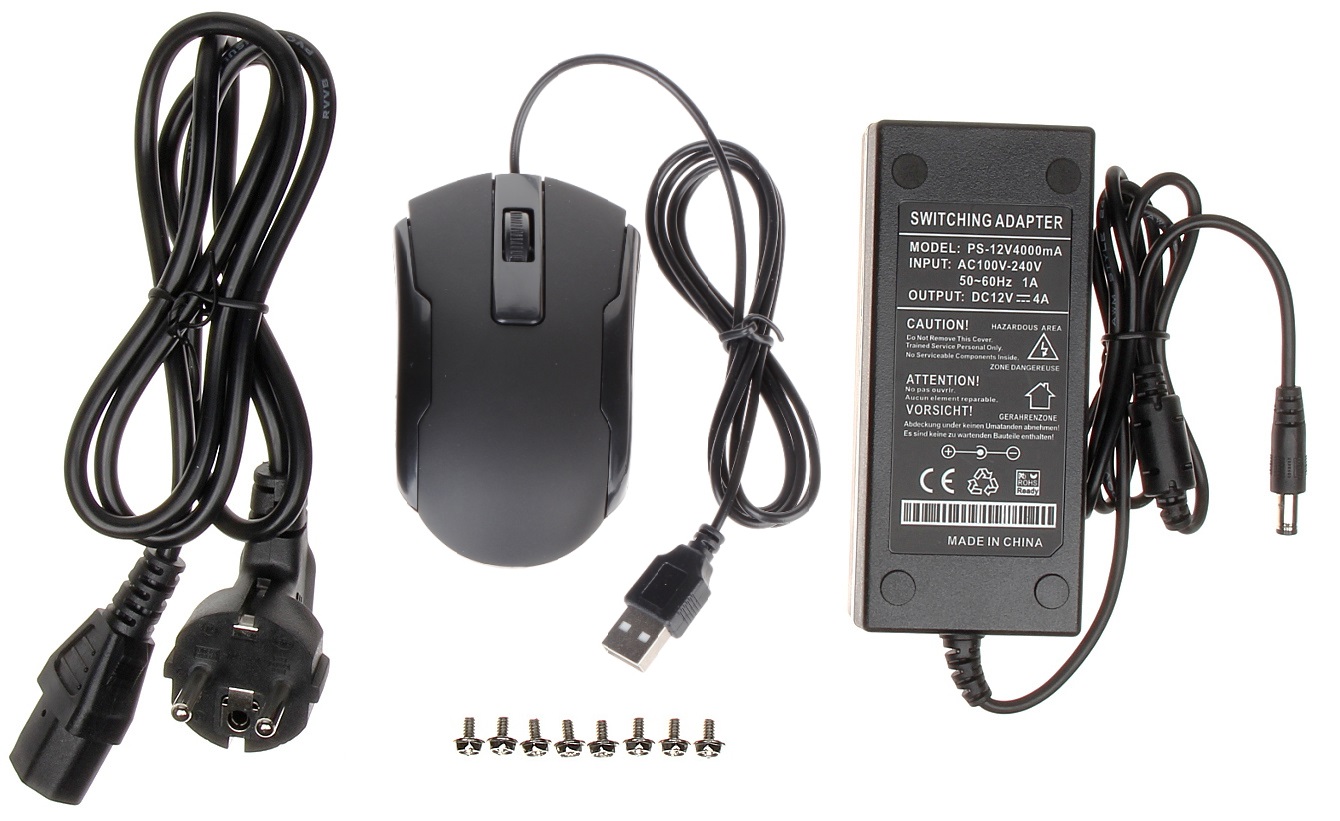

| Power supply: | 12 V DC / 4 A (power adapter included) |
| Power consumption: | ≤ 15 W (without HDD) |
| Color: | Black |
| Weight: | 1.45 kg |
| Dimensions: | 310 x 305 x 46 mm |
| Supported languages: | Polish, English, Bulgarian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Hungarian, Italian |
| Manufacturer / Brand: | APTI |
| Guarantee: | 2 years |
Brand:
Apti
