WIRELESS TRANSMISSION KIT 5.8 GHz CAM-ANALOG-2.0 TXRX SET

€347.57

(Включая налог 21%)

Задать вопрос

КОД: CAM-ANALOG-2.0

Доступность: 5 шт.

Кол-во:

+ −

Минимальное количество для товара "WIRELESS TRANSMISSION KIT 5.8 GHz CAM-ANALOG-2.0 TXRX SET" 1.

Купить в один клик

Описание
Особенности

The set for outdoor use; Video format: AHD / HD-CVI / HD-TVI / CVBS : max. 1080p ; Frequency range: 5.725 ... 5.875 GHz ; Number of channels: 2 ; Transmitter power: 25 mW, 14 dBm ; Radio communication range (at open area): max. 500 m ;

Video format:	AHD / HD-CVI / HD-TVI / CVBS : max. 1080p
Frequency range:	5.725 ... 5.875 GHz
Number of channels:	2
Transmitter power:	25 mW, 14 dBm
Receiver sensitivity:	-85 dBm
Antenna beam angle:	45 °
Radio communication range (at open area):	max. 500 m
Modulation:	FM
Audio frequency response:
Connectors:	BNC socket : 1 Vpp / 75 Ω
Main features:	Real time transmission, with no delays nor loss of image quality interference free transmission (industrial, 802.11, Bluetooth, radiotelephony, etc.) High gain directional antennas providing stable operation
Proper operation conditions:	the kit (transmitter and receiver) supporting the same camera, has to be set to the same channel (switch set to the same number) at the same location, each of used kits has to be set to different channel the transmitter and receiver antennas should be visible to each other (no obstacles like building, walls, trees, etc. between them)

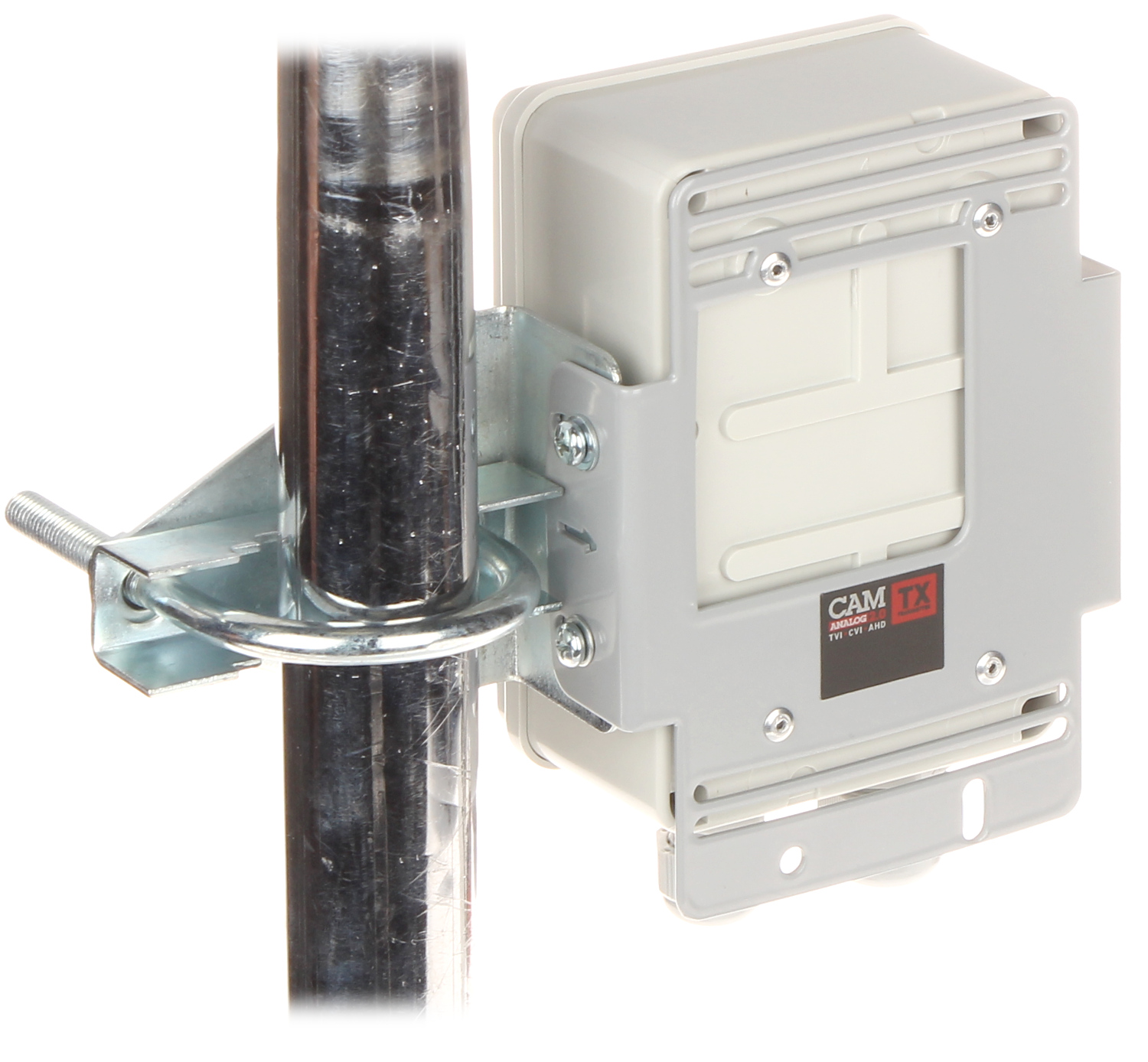

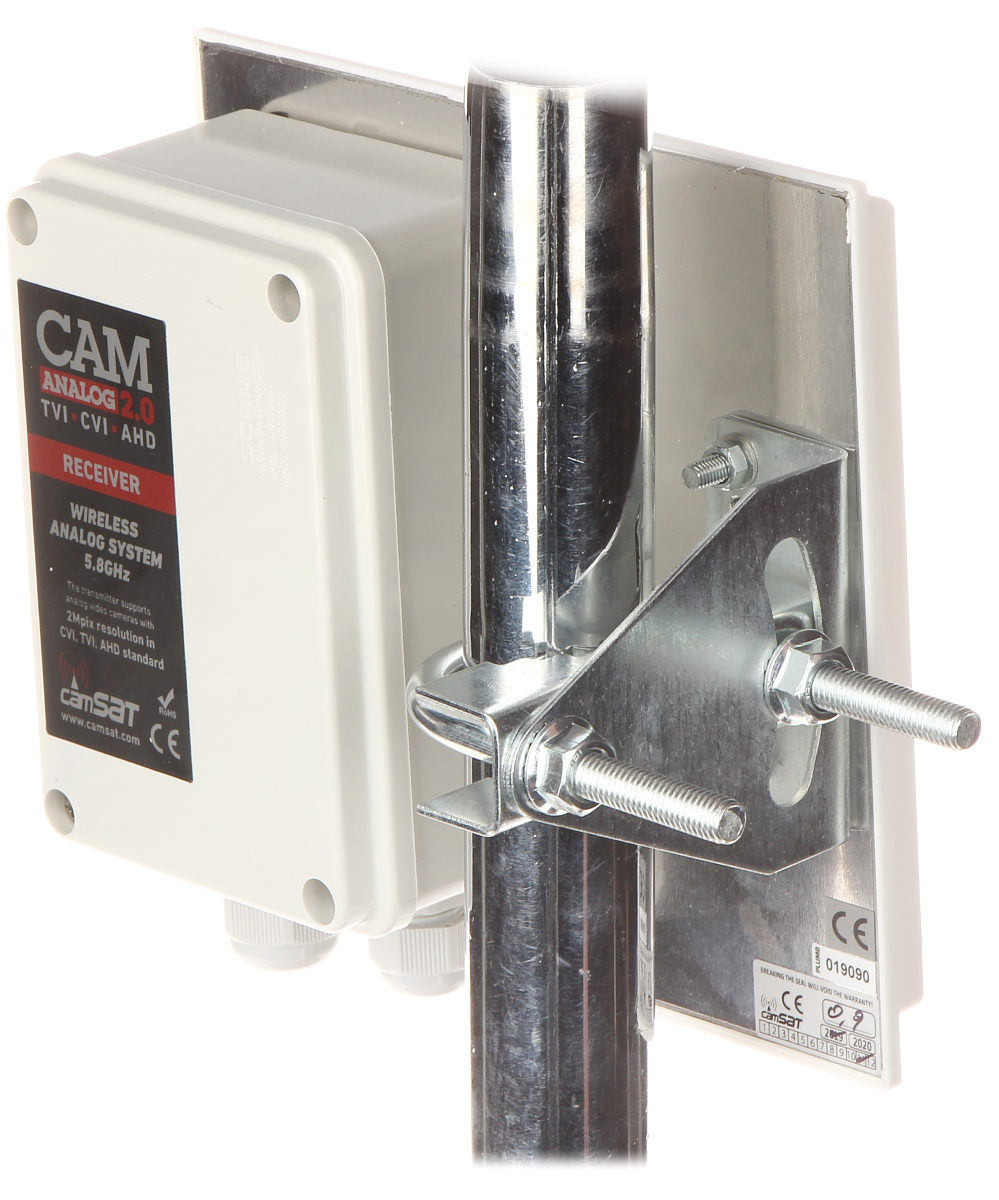

Maximal mast diameter:	Ø 50 mm
Power supply:	9 V ... 16 V DC
Current consumption:	≤ 800 mA - Tx ≤ 500 mA - Rx
Operation temp:	-20 °C ... 55 °C
"Index of Protection":	IP66
Weight:	0.38 kg - Tx 0.48 kg - Rx
Dimensions:	152 x 105 x 60 mm - Tx 164 x 164 x 80 mm - Rx
Manufacturer / Brand:	CAMSAT
Guarantee:	2 years
