UPS WITH BATTERY MODULE COVER-CORE-10K/3.5 10000 VA COVER

1,725.14
(Включая налог 21%)
COVER-CORE-10K/3.5
1 шт.
+
Nominal power: 10000 W ; Apparent Power: 10000 VA ; Estimated battery operation time: 1 battery module ( 20 x 12V/9Ah ) : 28 minutes - 25% load, 10.7 minutes - 50% load, 5.7 minutes - 75% load, 3.5 minutes - 100% load ; Number of outputs: Terminals ; Operation state indication: LCD display: operation mode, battery charging level, in/out voltage level, frequency, load, overload indicator, alarm, LED diodes, Sound signaling ; Main features: Auto restart while AC is recovering ;
Power adapter type: Online
Nominal power: 10000 W
Apparent Power: 10000 VA
Input voltage: 208 V / 220 V / 230 V / 240 V AC
Input frequency: 50  / 60 Hz @ -20 % / +20 %
Output voltage: 208 V / 220 V / 230 V / 240 V AC (Pure Sine Wave)
Power factor:
Output frequency: 50  / 60 Hz ± 0.05 Hz
Voltage adjustment:
Frequency adjustment:
Charging time (recover to 90% capacity): 4 hours
Battery: 1 battery module : 20  x 12V/9Ah
Estimated battery operation time: 1 battery module ( 20 x 12V/9Ah ) :
  • 28 minutes - 25% load,
  • 10.7 minutes - 50% load,
  • 5.7 minutes - 75% load,
  • 3.5 minutes - 100% load
  • Number of outputs: Terminals - possibility to add an external strip with C13/C19/Schuko type sockets
    Management software: ViewPower
    Protections:
  • Short-circuit
  • Overload
  • Overcharge protection
  • discharge protection
  • Output voltage filtering
  • REPO (Remote Emergency Power Off) port

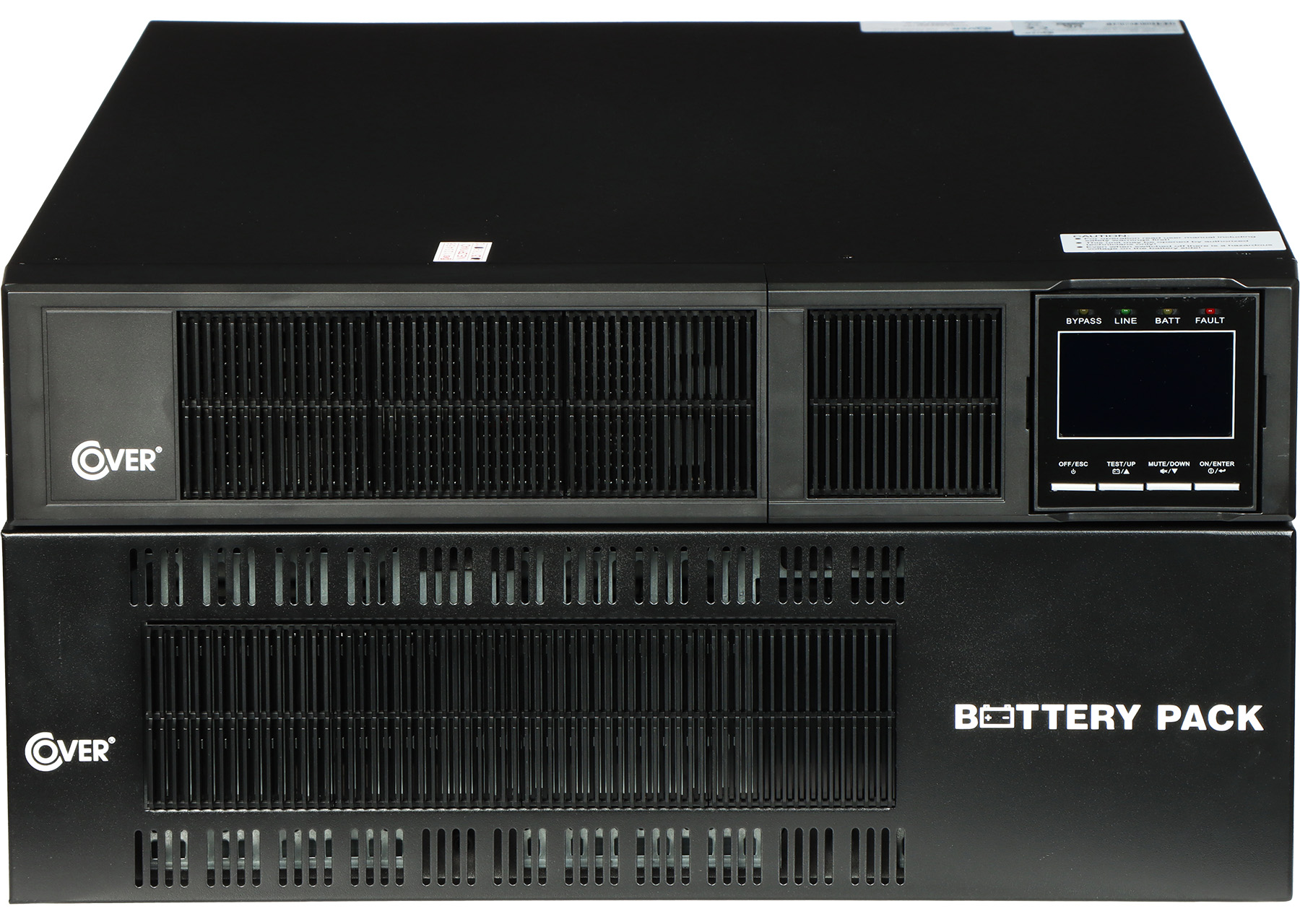

  • Operation state indication:
  • LCD display: operation mode, battery charging level, in/out voltage level, frequency, load, overload indicator, alarm,
  • LED diodes : Bypass, LINE, Battery, Error,
  • Sound signaling
  • Main features:
  • The device has a rotating display
  • Auto restart while AC is recovering
  • Automatic bypass
  • COLD START function for manual switch to the battery power supply
  • Battery charge and maintenance control

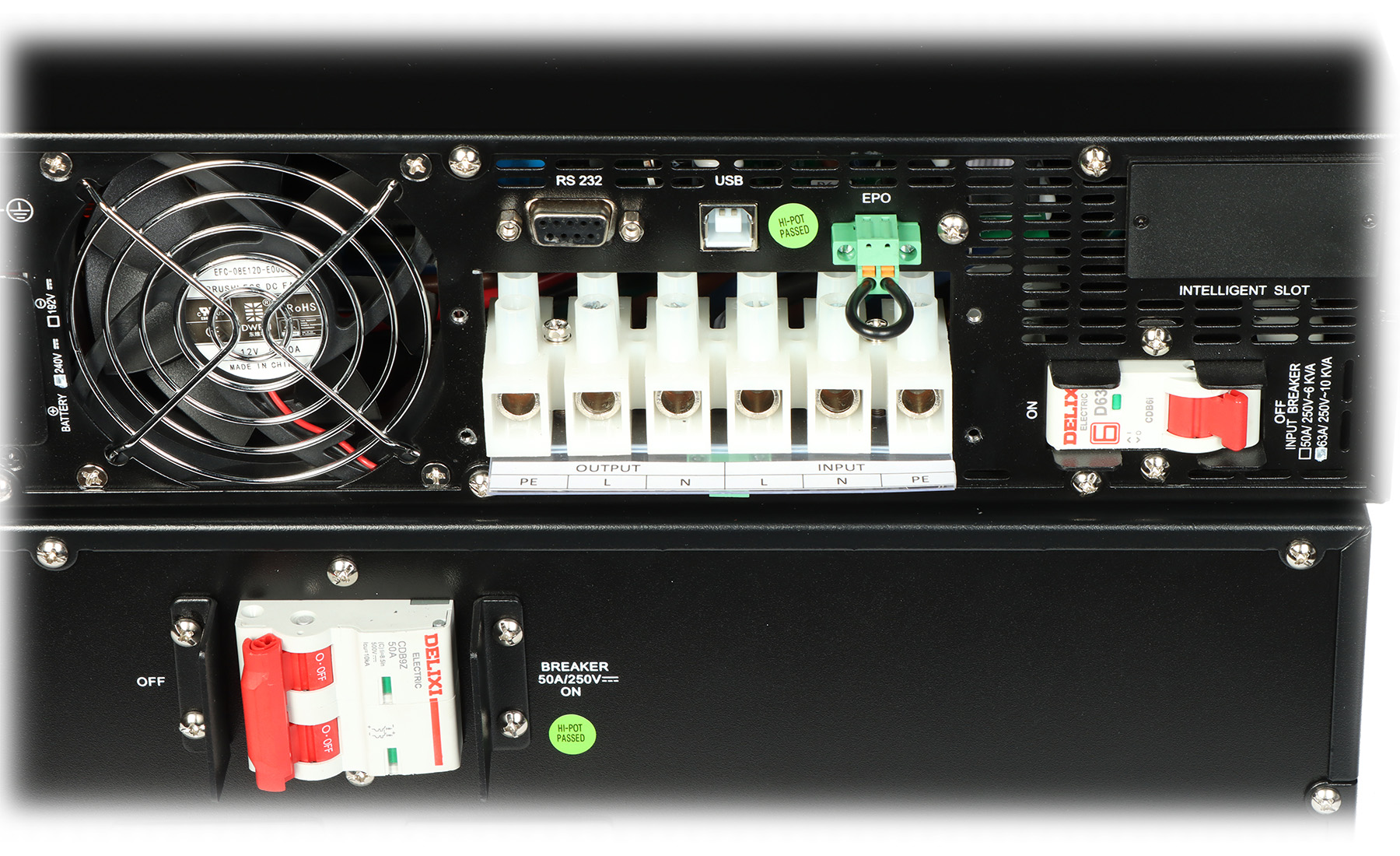

  • RS-232 port, USB port - Access from PC
  • SNMP - Network card slot
  • Remote management - ViewPower application (included)
  • Inverter (provides full voltage stabilization) ( PWM )
  • Parallel operation
  • Can be mounted in a Rack 19" cabinet
  • Application:
  • Surveillance Systems
  • data storage centers
  • network, servers, workstations
  • Industrial Equipment

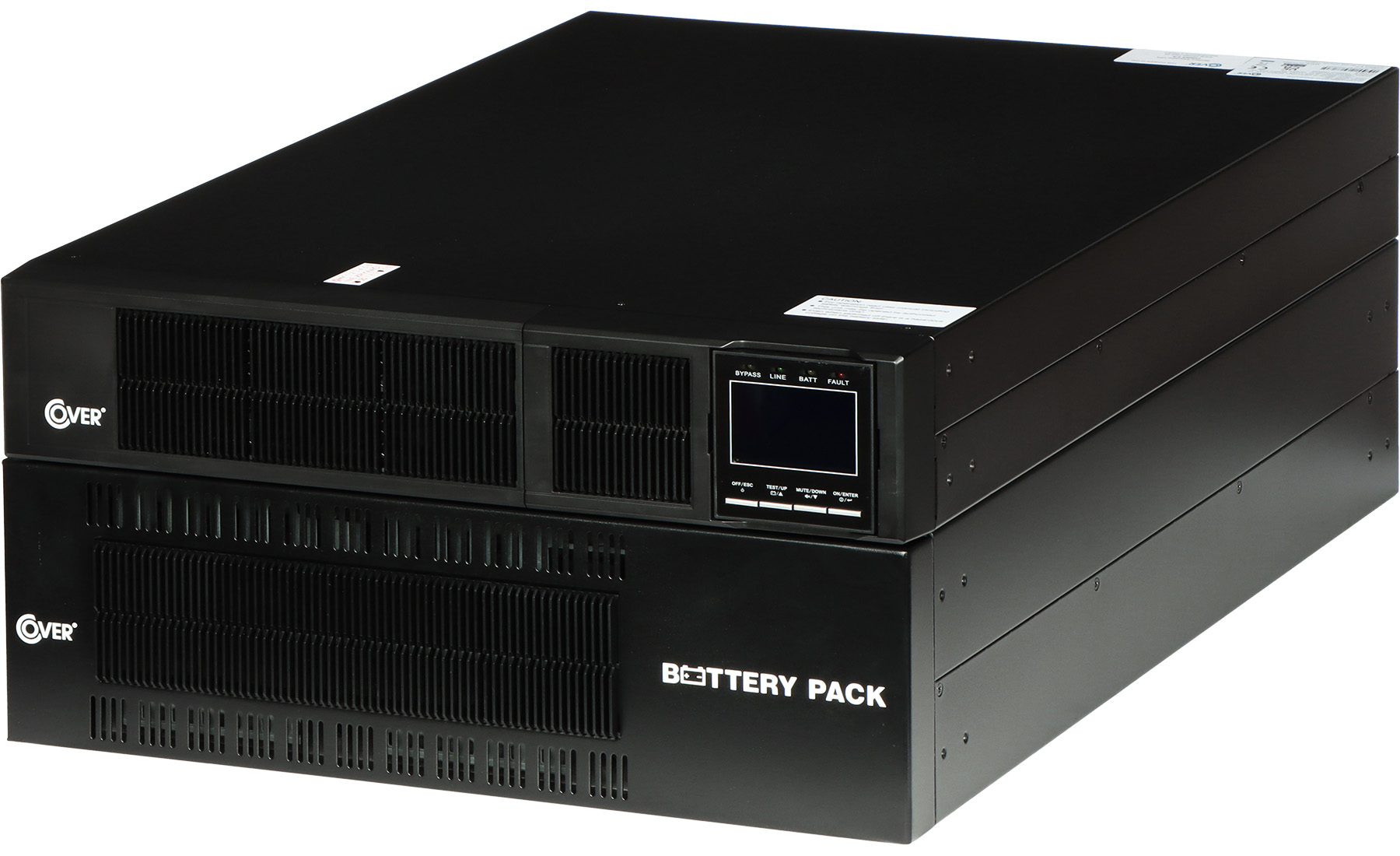

  • Housing type: Rack/Tower 2-in-1 Design
    Operation temp. / Relative humidity: 0 °C ... 45 °C / 0 % ... 95 % (non-condensing)
    Weight:
  • 16.2 kg - UPS
  • 67.4 kg - battery module
  • Dimensions:
  • 438  x 665  x 88 mm ; RACK 19", 2U - UPS
  • 438  x 635  x 133 mm ; RACK 19", 3U - battery module
  • Manufacturer / Brand: COVER
    Guarantee: 2 years
    Brand:
    Cover
