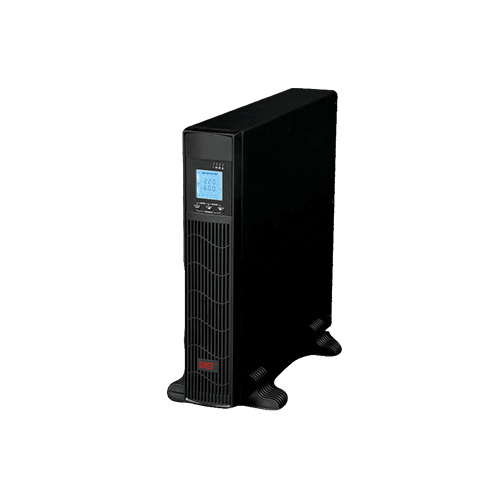

EA630 - UPS 3000VA / 2400W, Recharge time 6-8 h, Rack-mount 3U

Reactive Power (VA)

3000

Active Power (W)

2400

Rated voltage

48V

DC input range (default)

40 ~ 60 V

AC input range (bypass mode)

0 ~ 121 V / 132 V / 138 V / 144 Vac for 100 V / 110 V / 115 V / 120 Vac

± 10 Vac

0 ~ 242 V / 264 V / 276 V / 288 Vac for 200 V / 220 V / 230 V / 240 Vac

± 10 Vac

AC input range (mains mode)

100 V: 70 ~ 130 Vac  /  110 V: 80 ~ 140 Vac  / 115 V: 85 ~ 145 Vac

120 V: 90 ~ 150 Vac / 200 V: 145 ~ 260 Vac   /  220 V: 165 ~ 280 Vac

230 V: 175 ~ 290 Vac  / 240 V: 185 ~ 300 Vac

Frequency range

50 Hz / 60 Hz (auto-sense)

50 Hz / 60 Hz ± 5% ~ 15%

Generator connection

Available (generator input power is settable)

inverter output range

100 V / 110 V / 115 V / 120 V / 200 V / 220 V / 230 V / 240 Vac

± 5% (settable)

AC output range (bypass mode)

0 ~ 121 V / 132 V / 138 V / 144 Vac for 100 V / 110 V / 115 V / 120 Vac

± 10 Vac

0 ~ 242 V / 264 V / 276 V / 288 Vac for 200 V / 220 V / 230 V / 240 Vac

± 10 Vac

AC output range (mains mode)

100 V: 90 ~ 110 Vac / 110 V: 99 ~ 115 Vac  / 115 V: 103 ~ 126 Vac

120 V: 108 ~ 132 Vac / 200 V: 166 ~ 226 Vac   /  220 V: 188 ~ 245 Vac

230 V: 199 ~ 254 Vac  / 240 V: 210 ~ 264 Vac

Output frequency

50 / 60 Hz ± 0.3 Hz (settable)

Waveform

Pure sine wave

Inverter efficiency

Max. 85%

Energy saving mode

Settable (< 3% load) , enter in 80 s

No-load shutdown

Settable (< 3% load) , enter in 80 s

Transfer time

≤ 10 ms

THDV (resistive load)

≤ 5%

Protections

Overload, short circuit (inverter), battery low voltage, battery overcharge, overtemperature

Overload (mains mode)

110% for 120 s, 125% for 60 s, 150% for 10 s

(transfer to bypass mode)

Overload (inverter mode)

110% for 60 s, 125% for 10 s, 150% for 5 s

(shut down directly)

Mute

Automatic mute in 60 s or by manual

Battery capacity (H: external expansion)

12 V / 9 Ah x 4

Charging current

Standard model (S): 1 A (default)

Long time model (H): 10 A (default); <10 A, set step 1 A; ≥ 10 A, set step 5 A

Equalizing charge voltage

Single battery 14.1 Vdc (default), 13.6 ~ 15 Vdc adjustable

Floating charge voltage

Single battery 13.5 Vdc(default)

13.2 ~ 14.6 Vdc adjustable

Low voltage alarm point

Single battery 10.8 Vdc (default)

9.6 ~ 13 Vdc adjustable

Low voltage shutdown point

Single battery 10.2 Vdc (default)

9.6 ~ 11.5 Vdc adjustable

Net / Gross weight (kg)

28.1 / 30.2 (S)

28.0 / 30.0 (H)

Dimensions (W × D × H) (mm)

190 x 467 x 335.5 (S / H)

Packaged dimensions (W × D × H) (mm)

320 x 592 x 462 (S / H)
