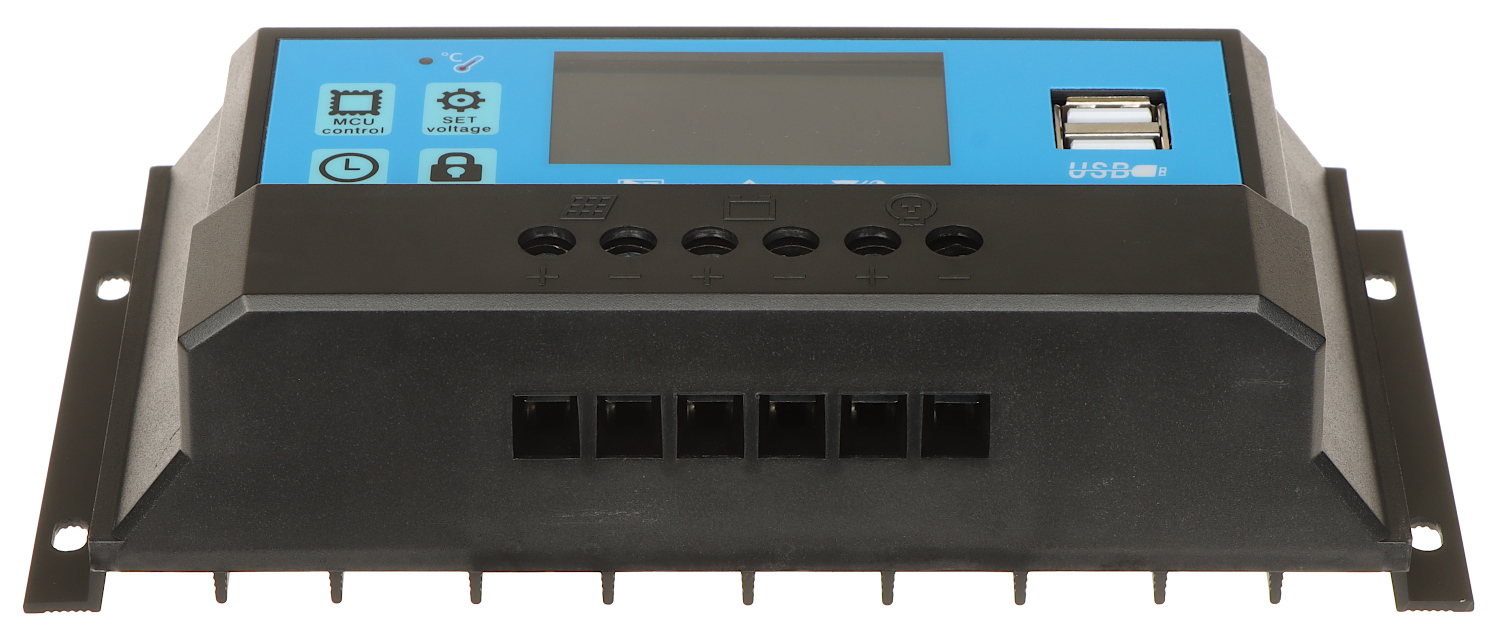

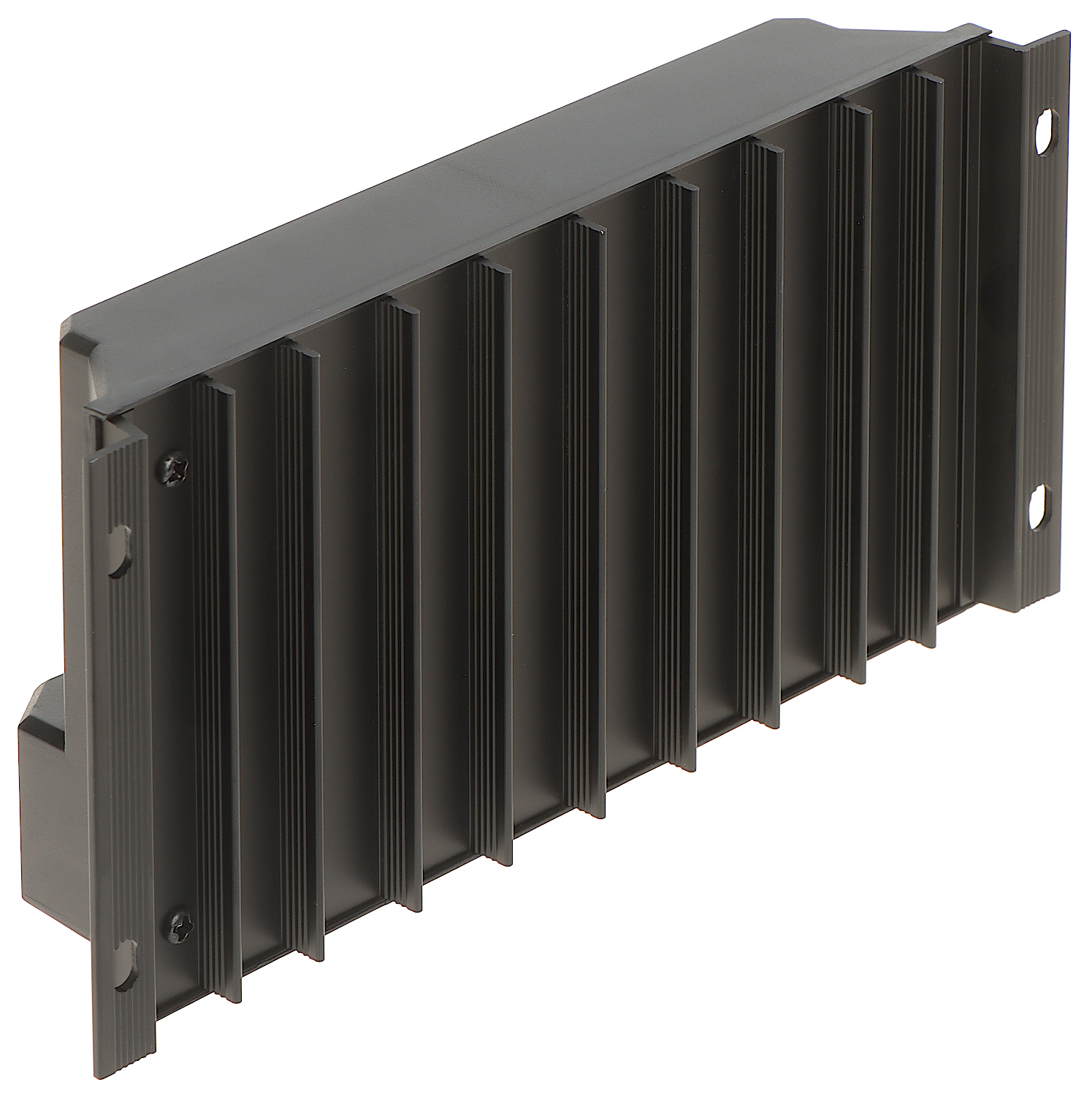

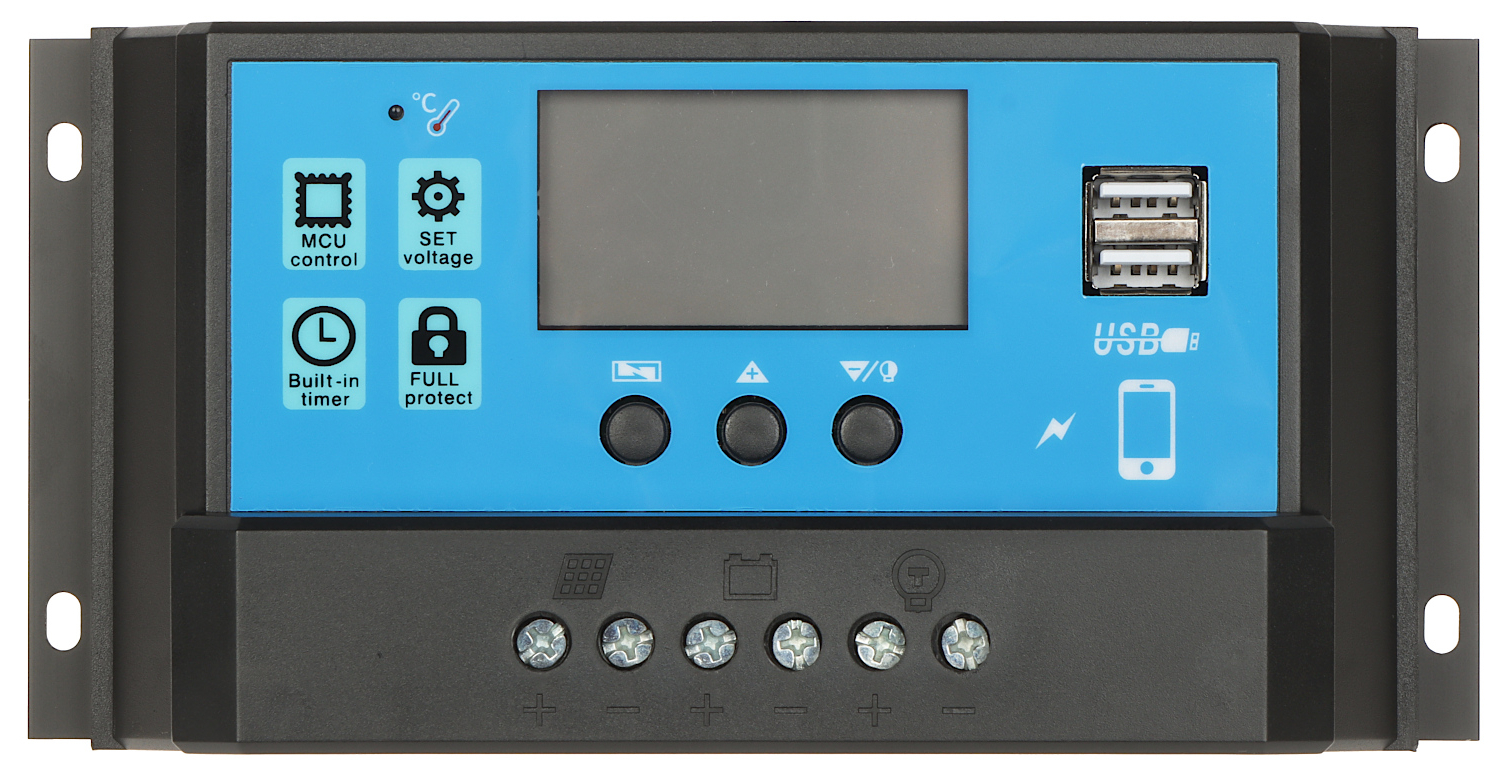

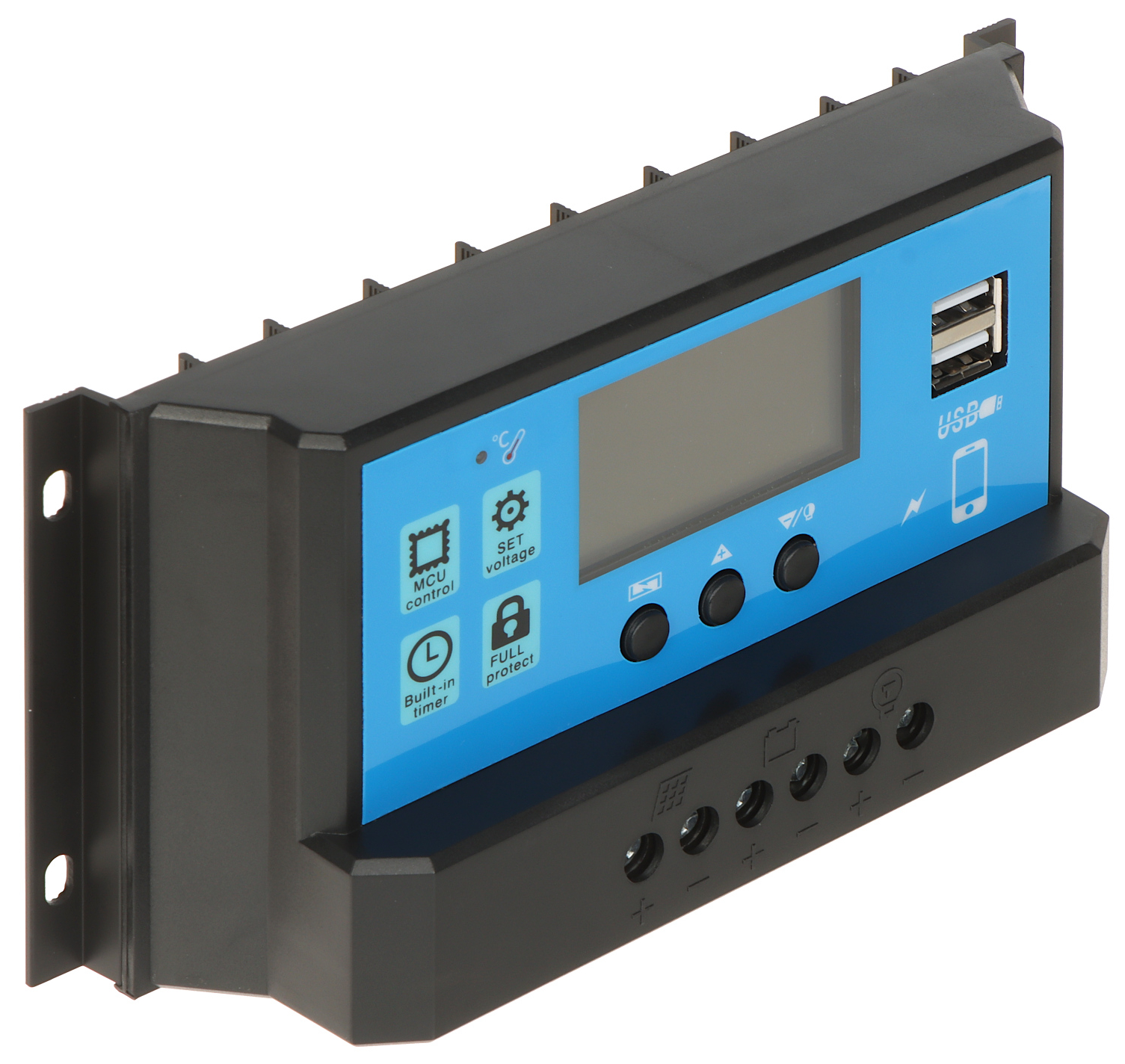

SOLAR CHARGE CONTROLLER SCC-60A-PWM-LCD-S2

€13.69

(Включая налог 21%)

Задать вопрос

КОД: SCC-60A-PWM-LCD-S2

Доступность: 22 шт.

Кол-во:

+ −

Купить в один клик

Описание
Особенности

Regulation Type: PWM ; Rated voltage: 12 / 24 V ; Rated current: 60 A ; Main features: 2 x USB power output, LCD display, LED diodes indicating the device operation status ; Weight: 0.28 kg ;

Regulation Type:	PWM
Rated voltage:	12 / 24 V
Rated current:	60 A
Permitted voltage range:	≤ 25 V for 12 V battery - The range of the highest operating voltage of a set of panels connected to one input of the controller ≤ 50 V for 24 V battery - The range of the highest operating voltage of a set of panels connected to one input of the controller
Battery charging voltage:	13 V ... 15 V (adjustable)
Output voltage:	Equal to the voltage at the battery terminals
Battery charging current:	max. 60 A
Load Current:	max. 20 A
Main features:	2 x USB power output : 5 V / 2 A, Load disconnection voltage (protection against excessive battery discharge) : 9 ... 11.5 V (adjustable), The device is designed to charge only AGM, gel and lead-acid batteries, LCD display, LED diodes indicating the device operation status, Operation modes : 24H - the load is powered all the time 1H ... 23H - the load is powered for the selected number of hours after sunset 0H - the load is powered from dusk till dawn
Weight:	0.28 kg
Dimensions:	182 x 90 x 46 mm
Guarantee:	2 years
